Used Terex Cedarapids CRH 1111R Portable Impact Plant

No longer available

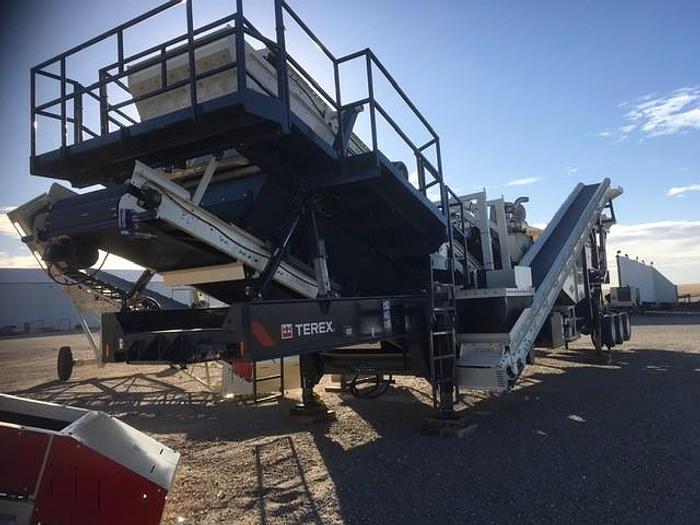

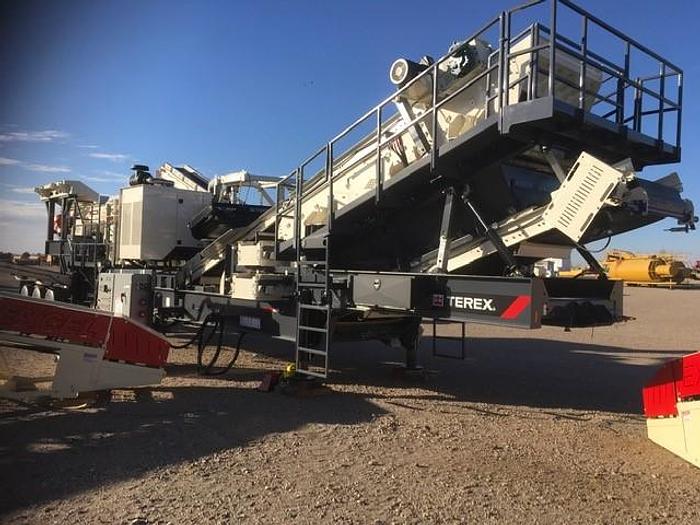

Used Terex Cedarapids CRH 1111R Portable Impact Plant


TI 4143 Impact Crusher with Heavy Duty Cast Steel 4 Bar Rotor, Standard Configuration of 2 Hi and 2 Low Martinsitic Blowbars, Hydraulic Overload Protection System, Blow Bar Cradle, 5' x 16' 2-Deck Inclined Screen, Side Tension Top Deck, End Tension Bottom Deck, 20 Hp (15 kW) Electric Motor with Pivot Base. Screen Wire Not Included; Screen Side & End Platforms, Includes 42" x 100" VM Pan Feeder & 42" x 78" Pre-screen Unit. Pre-Screen Includes 1.5" Nominal Grizzly Fingers and Rubber Blanking Mat on 2nd Deck. (15 kW), Variable Speed Electric Motor., 350 Hp Tier 4 Final, Enclosed Scania Diesel Engine, Hydraulic Clutch to Crusher, and 150kW 460/3/60 Generator, includes 300 Gal Fuel Tank and DEF Tank. Variable Speed Engine Control, Removable Electric Switchgear Panel: Manual Push Button, NEMA 4 Panel with Door Mounted Controls, Voltmeter, Ammeter, and Hour Meter. Includes Variable Frequency Inverter for 20 Hp Feeder, Reversing Starters for 2nd Deck Cross Conveyor, and 24V Controls, 42" Wide 20 Hp (15 kW) Electric Motor Under crusher Screen Feed Conveyor with Auto-Hydraulic Tail Lift for Travel, with Extra Heavy 3-ply 600 PIW Conveyor Belt and Vulcanized Belt Splice, (2) 24" Cross Conveyors with 5 Hp (3.8 Kw) TEFC Electric Motors, Class II Gear Box, Cartridge Style Full Length Skirts, Vulcanized 3-ply Belt. Lower Deck Cross Conveyor is Reversible, 24" Wide 7.5 Hp (5.6 kW) Screen Oversize Return Conveyor Hydraulically Raises for Operation, Lowers for Travel, Accepts Discharge from Both Cross Conveyors and Discharges to Grizzly, 3-ply Conveyor Belt and Vulcanized Belt Splice. 42" Wide 7.5 Hp (5.6 KW) Inclined Fines Conveyor, 3-ply Conveyor Belt and Vulcanized Belt Splice. 11 YD Heaped, 7 YD Struck, Loading Hopper with Rubber Curtain Hopper Side Covers. Gas Engine Powered Hydraulic Unit for Crusher Open, Crusher Adjustment, Screen & Recirc Conveyor Raise, and Hydraulic Jacks. Heavy Duty Triple Axle Chassis with King Pin, Under Frame Mounted Axles and Spring Suspension, 295/75, R22.5 Tires, Air Brakes, Splash Guards and Travel Lights. E-Stops on Both Sides of Chassis. (4) 6" x 18" Stroke Hydraulic Leveling Jacks. Side Mounted 4' Lockable Storage Box, Blowbar Cradle, Remote Grease Lines, Service Platforms with Access Ladder, 24” X 7.5HP Grizzly Reject Conveyor with Hydraulic Fold and 6’ Discharge Height, Hydraulic Run-On Jacks, Cross-Belt Self-Cleaning Magnet


ManufacturerTerex Cedarapids
ModelCRH 1111R Portable Impact Plant
