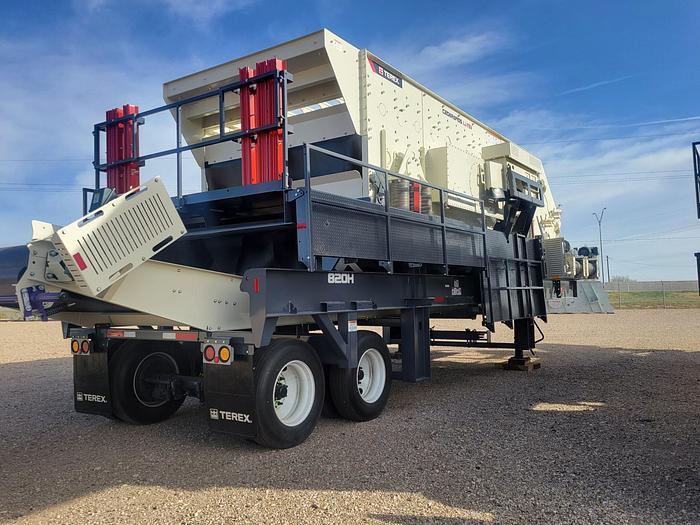

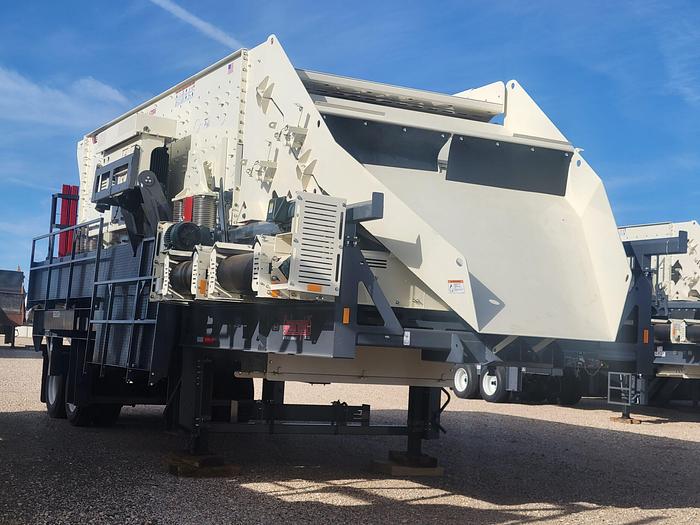

New Terex Cedarapids 8′X20′ Triple Deck Horizontal Portable Screen

New Terex Cedarapids 8′X20′ Triple Deck Horizontal Portable Screen

orCall 806.335.1553

Description

TEREX® ElJay 8 x 20 Three Deck Horizontal (TSV8203-38)Sscreen, INCLUDES Deck Deflectors, Patented Flex Shaft V-belt Screen Drive with 40 Hp (30Kw), TEFC Motor, Extended 60″ Under-screen Conveyor with 10 Hp (7.5Kw) TEFC Electric Motor, Class II Gear Box, Vulcanized 3-ply Belt with Primary Style Belt Wiper. Curved for Maximum Ground Discharge Height, (2) 36″ Reversible Cross Conveyors with 7.5 Hp (5.5Kw) TEFC electric Motors, Class II Gear Box, Cartridge Style Full Length Skirts, Vulcanized 3-ply Belt, Roll-A-Way Heavy Duty 3/8″ AR 400 Blending Discharge Chutes; 4-section (25%) Blending Gate System Allows Blending Top Deck to Center, Center Deck to Bottom, Bottom Deck to Fines. Heavy I-beam Semi-trailer Chassis Frame. Includes Two Axle Suspension, Eight Tires, King Pin, Fail Safe Spring Applied Air Brakes, Brake and Directional Signals, and Splash Guards, Wide Diamond Plate Walkways with Handrails, Inclined Removable Ladder, and Walk Around Screen Drive, (2) 55,000 lb. Rated 2-speed Crank Style Landing Jacks on Front Support Posts, 48″ Tool Box with Lockable Hinge Down Door, Clamp Bar Storage Rack on Walkway, Quick Lube Connections with Flat Face Quick Couplers on Screen Gearcases (for TOPS 2.0 Filter Unit)

Specifications

ManufacturerTerex Cedarapids
Model8'X20' Triple Deck Horizontal Portable Screen
ConditionNew
Serial NumberTRX820HSPOKPC1717
