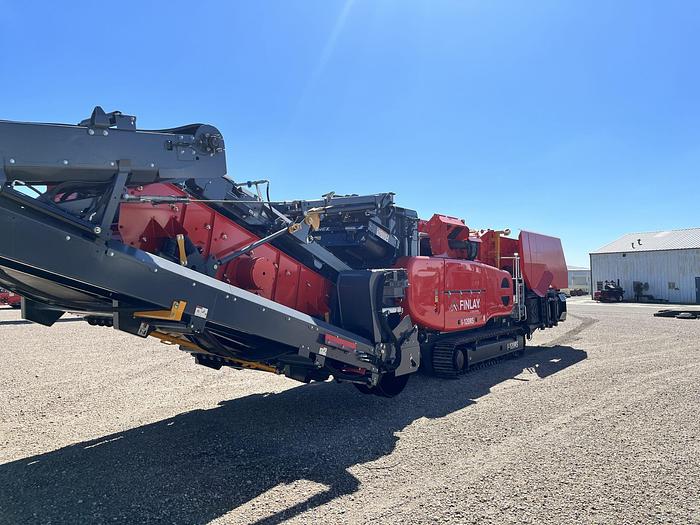

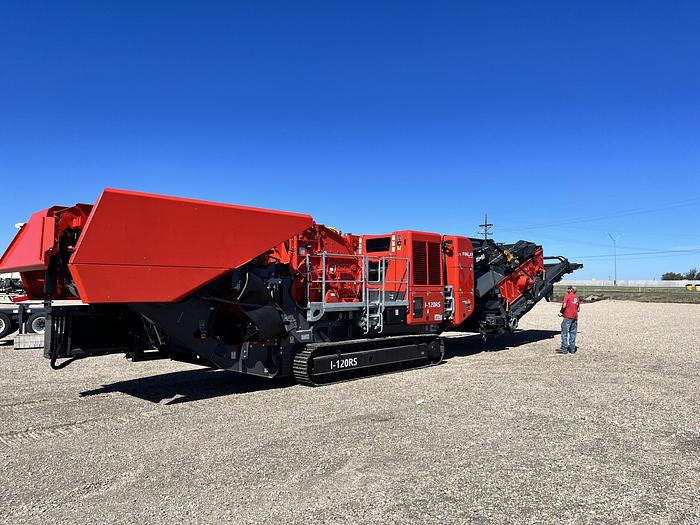

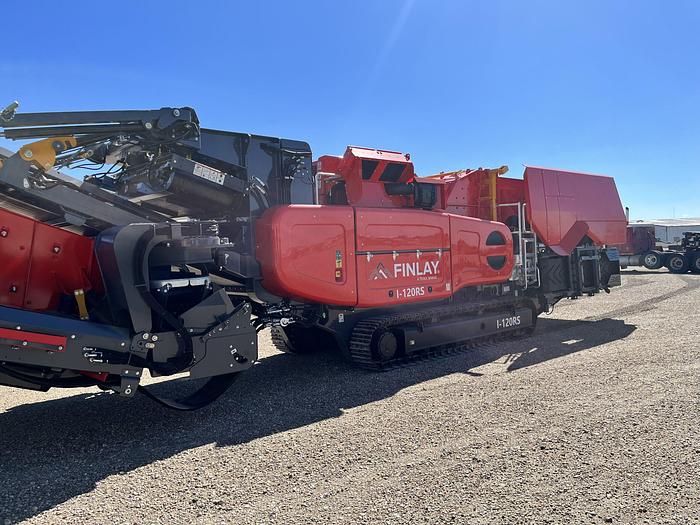

Used Terex Finlay I-120RS Track Impact Crusher

Used Terex Finlay I-120RS Track Impact Crusher

$619,000 (USD)

orCall 806.335.1553

Description

Tier 4 Final: Scania DC9 294kW (400 hp) Engine, Terex CR038 Impact Chamber, Chamber Fully Hydraulically Assisted Apron Setting and Hydraulic Apron Release, Manual Raise Chamber Flap Allowing Extra Inlet Clearance, 4 Bar Rotor – Martensitic Blow Bars 2 High & 2 Low, Direct Drive via Clutch, Drive Belt Tensioner Wheel, Blow Bar Lifting Tool Supplied, Drive Pulley to Suit Higher Speed Range, Rotor Fitted with 2 Full Martensitic Ceramic & 2 Low Martensitic Blow Bars, VGF Fixed Hopper, Stepped Grizzly Feeder with Integral Pre-screen, Standard 50mm Spacing, Mesh Aperture on Grizzly Feeder: 38mm, Selectable Discharge to By-pass Conveyor or Main Conveyor, Blanking Mat for VGF, Independent Pre-Screen Blanking Mat, Included with Pre-screen Option, Piped for Over Band Magnet, Bypass Conveyor with 650mm Wide Plain Belt, Discharging to the Right Hand Side of the Machine, Twin Pole Over Band Magnet c/w Stainless Steel Skirting & Stainless Steel Discharge Chute. Discharge RHS Standard., Standard Oils – (Recommended for Ambient Temperatures Between -5 to +30°C), Piped for Dust Suppression c/w Spray Bars, Emergency Stops, Hand Held Track Control Set with Connection Lead, T-Link Telemetry System Fitted c/w 3 Years Data Subscription, Bundled Deal with Ancillary Services, Radio Remote System: Operational Controls of Machine (Auto Start/Stop) & Track Movement, Pressurized Air System for Electrical Control Cabinet, Safety Guards in Compliance with Machinery Directive, Variable Speed Tracking, Prescreen Punch Plate. Quick On-board Detachable Recirculating System Including Large 3.66m x 1.53m (12’ x 5’) Two Deck Screen. Recirculating Conveyor Can Be Rotated from Closed Loop Configuration or Utilized for Stockpiling Making an Additional Oversized Product.

1030 Hours

Specifications

ManufacturerTEREX FINLAY
ModelI-120RS Track Impact Crusher
ConditionUsed
Serial NumberTRX120RSCOMN68844
