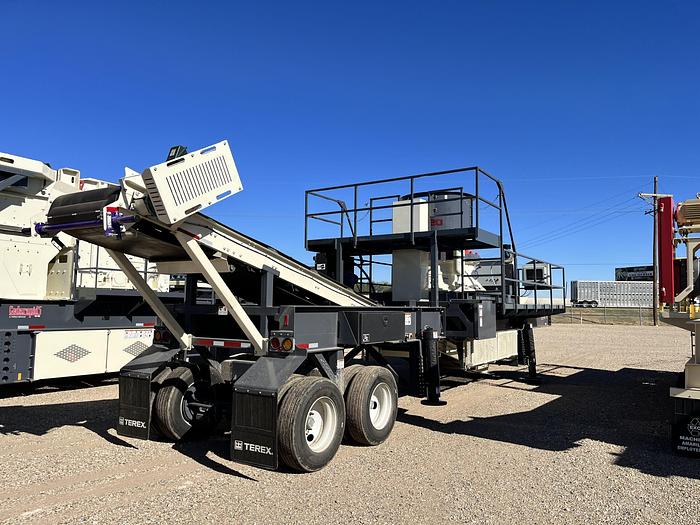

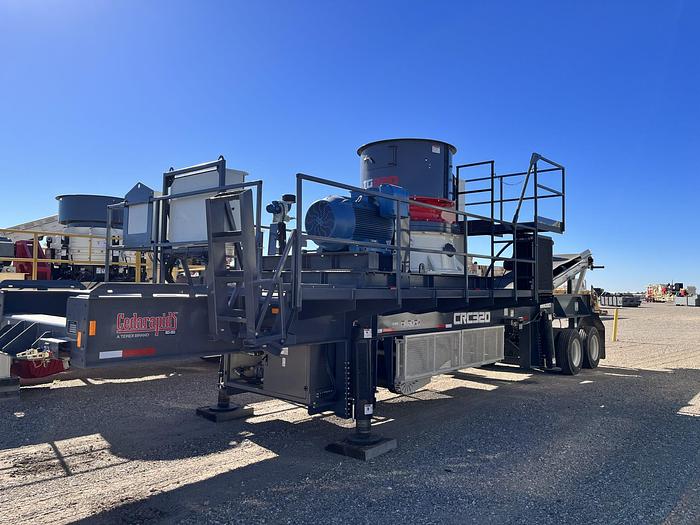

New Terex Cedarapids CRC320 Portable Cone Plant

New Terex Cedarapids CRC320 Portable Cone Plant

orCall 806.335.1553


TEREX TG320 Cone Crusher: Standard Mantle and Extra Coarse Concave Poured, Bronze Bushing Main Bearings and Roller Bearing Countershaft, Adjustable Eccentric Set at 36mm, Rubber Crusher Mount Isolators, Lubrication Tank & Air Cooler, Crusher Tool Kit, and Advanced AIC Automation Controller Unit & Mounting Panel, 300 Hp (224 kW) 1800 RPM Crusher Motor and Drive Mounted with Crusher on Rubber Isolated Frame, 42″ x 34’6″ (1067 x 10,515 mm), 15 Hp (11 kW) Electric Motor and Shaft Mount Gearbox, 3-ply Conveyor Belt with Vulcanized Belt Splice and Primary Style Belt Wiper, Oversize Cone Feed Hopper Extension, with Removable Overflow Panel, and Overflow Chute, Service Platforms Around Crusher with Elevated Observation Deck, All With Guard Rails and Access Ladder.

Easy Maintenance Features:

Remote Grease Lines, Ground Access Cone Lubrication Module, Emergency Stop Buttons on Both Sides of Frame, Tandem Axle Spring Suspension with Eight 295/75 R22.5 Tires, 48″ (1219 mm) Long Lockable Side-mounted Storage Box. Extra Course (EC) Concave (18% Mn)

Set of Four (4) 6″x24″ Stroke Dual Pinned Hydraulic Run-On Jacks and Gas Power. 2 Additional Oil Heaters: 1x Lubrication Oil & 1x Hydraulic Oil


Serial NumberTRX320GPKOKPH1784
