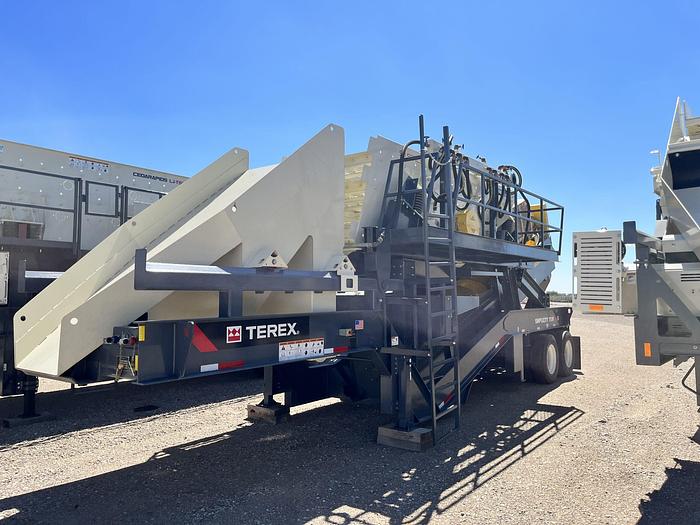

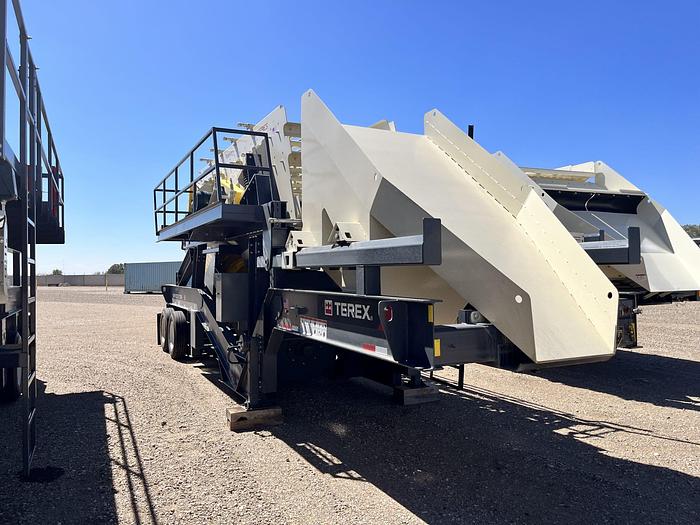

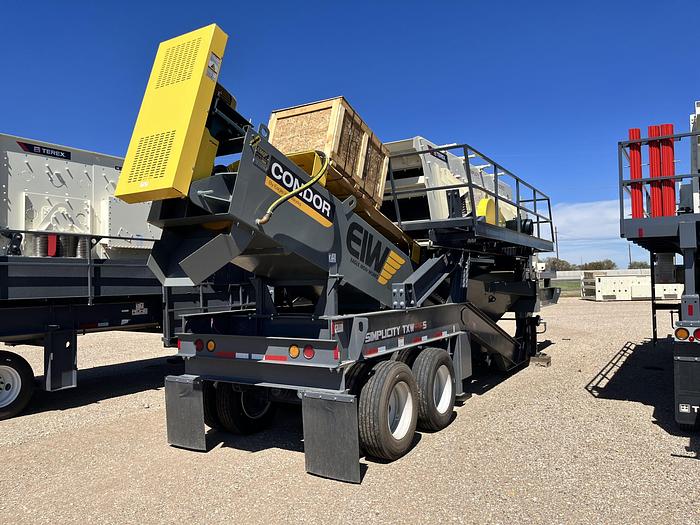

New Terex Simplicity 5'X16' Wash Plant with Eagle Iron Works Screw

New Terex Simplicity 5'X16' Wash Plant with Eagle Iron Works Screw

orCall 806.335.1553

Description

New Terex Simplicity 5′ X 16′ Wash Plant with EIW Screw, Simplicity 5×16 Triple Deck Wash Screen, EIW Single 36″ X 25′ Fine Material Washer, Walkway Access Around Three Sides of the Screen with an Access Ladder, Under-screen Fines Collection Flume is Made from 1/4″ Plate and has a Splash-type Spray System. Water Spray Systems on All Screen Decks, Flume and Washout. Manifold with the Necessary Hardware, Valves and Hoses, Roll-Away Heavy-duty Discharge Chute Made with 1/4″ Plate and Lined with A.R. Plate in Heavy Wear Areas. Includes a Top Deck-overs Chute with Discharge to the Front of the Plant. The Middle Deck Chute Discharges to the Side and the Bottom Deck Discharges to the Opposite Side. Chassis has Heavy-duty I-beam Frame with Four Braced Support Legs and 2 Manual Landing Jacks. Includes Double Axle Suspension with Eight Tires, Fifth Wheel, Air Brakes on 2 Axles, Mud Flaps and Tail Lights

Specifications

ManufacturerTerex Simplicity
Model5'X16' Wash Plant with Eagle Iron Works Screw
ConditionNew
Serial NumberTXW516S198
