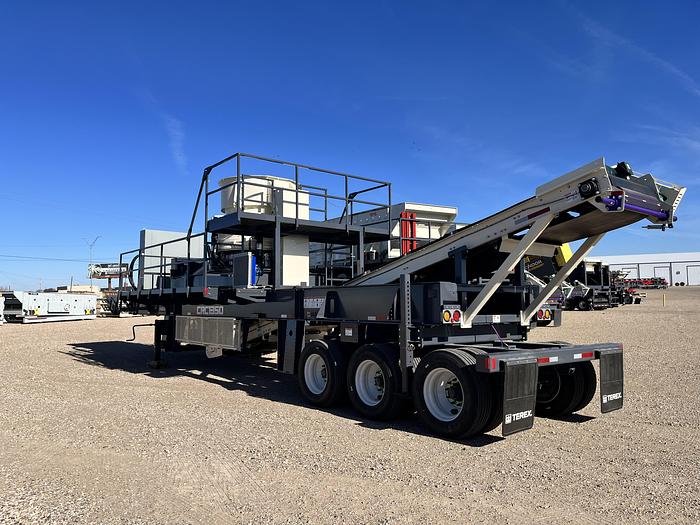

New Terex Cedarapids CRC1350 Portable Cone Plant

New Terex Cedarapids CRC1350 Portable Cone Plant

orCall 806.335.1553


New Terex CRC1350 Portable Cone Plant, TEREX TC1300X Automax Cone Crusher: Standard Mantle and Medium Coarse Concave Poured, Rubber Crusher Mount Isolators, Lubrication Tank & Air Cooler, Crusher Tool Kit, and ACE 6 Control Panel, Eriez Model 1220 Metal Detector for Off-plant Feed Conveyor (Interlocked with Off-Plant Feed Conveyor if Switchgear Panel is Selected) Includes 60" (1524 mm) Long Lockable Storage Box for Metal Detector. 400 Hp (224 kW) 1800 RPM Crusher Motor and Drive Mounted with Crusher on Rubber Isolated Frame. Under-crusher Conveyor 42" (1067mm), 15 Hp (11 kW) Electric Motor and Shaft Mount Gearbox. 3-ply Conveyor Belt with Vulcanized Belt Splice and Primary Style Belt Wiper. Oversize Cone Feed Hopper Extension, with Removable Overflow Panel, and Overflow Chute. Service Platforms Around Crusher with Elevated Observation Deck, All with Guard Rails and Inclined Access Ladder.

Easy maintenance features:

Remote grease Lines, Ground Access Cone Lubrication Module. Emergency Stop Buttons on Both Sides of Frame. Triple Axle Spring Suspension with Twelve 295/75 R22.5 Tires. Manual IEC Style Push Button Switchgear Panel: Same as Above Except Without CCM Automation and Diagnostics, Includes Door Mounted Manual Push Button Motor Controls with 120V Controls. (2) Additional 25 Hp Starters, Lockable Side-mounted Storage Box 48" (1219 mm) Long, Set of Two (2) Manual Crank Style Landing Jacks


ManufacturerTerex Cedarapids
Serial NumberTRX1350PTOKPK1819
