Terex Finlay 696 2 Deck Screen

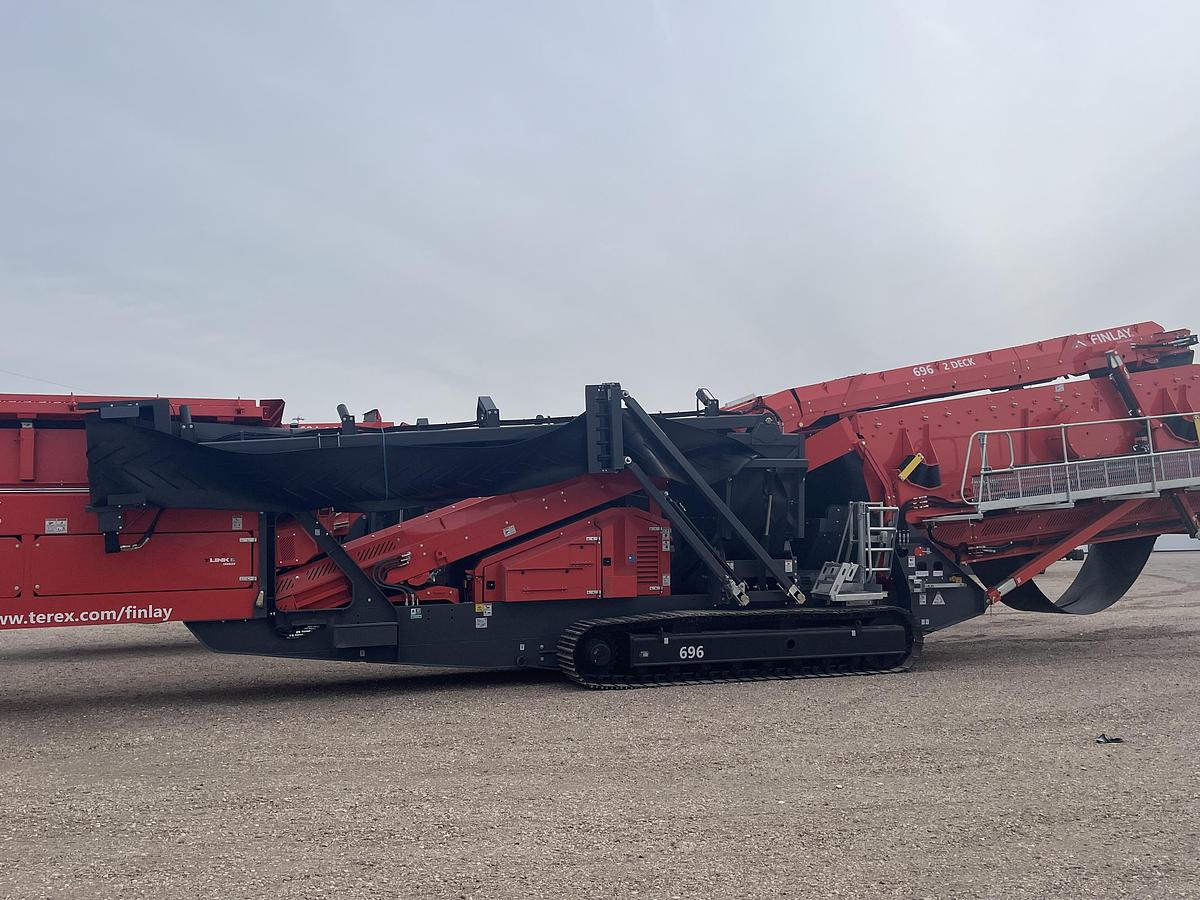

New Terex Finlay 696 2 Deck Track Screen

Tier 4F / Stage V CAT C4.4 Engine 102kW (137hp) (Dual Cert)

4.25m (14ft) Wide Hopper C/W 1200mm (48") Wide Variable Speed Belt Feeder

Remote Control Hydraulic Tipping Reject Grid C/W Grouser Bars 4.25m x 100mm Spacing (14'-0" x 4")

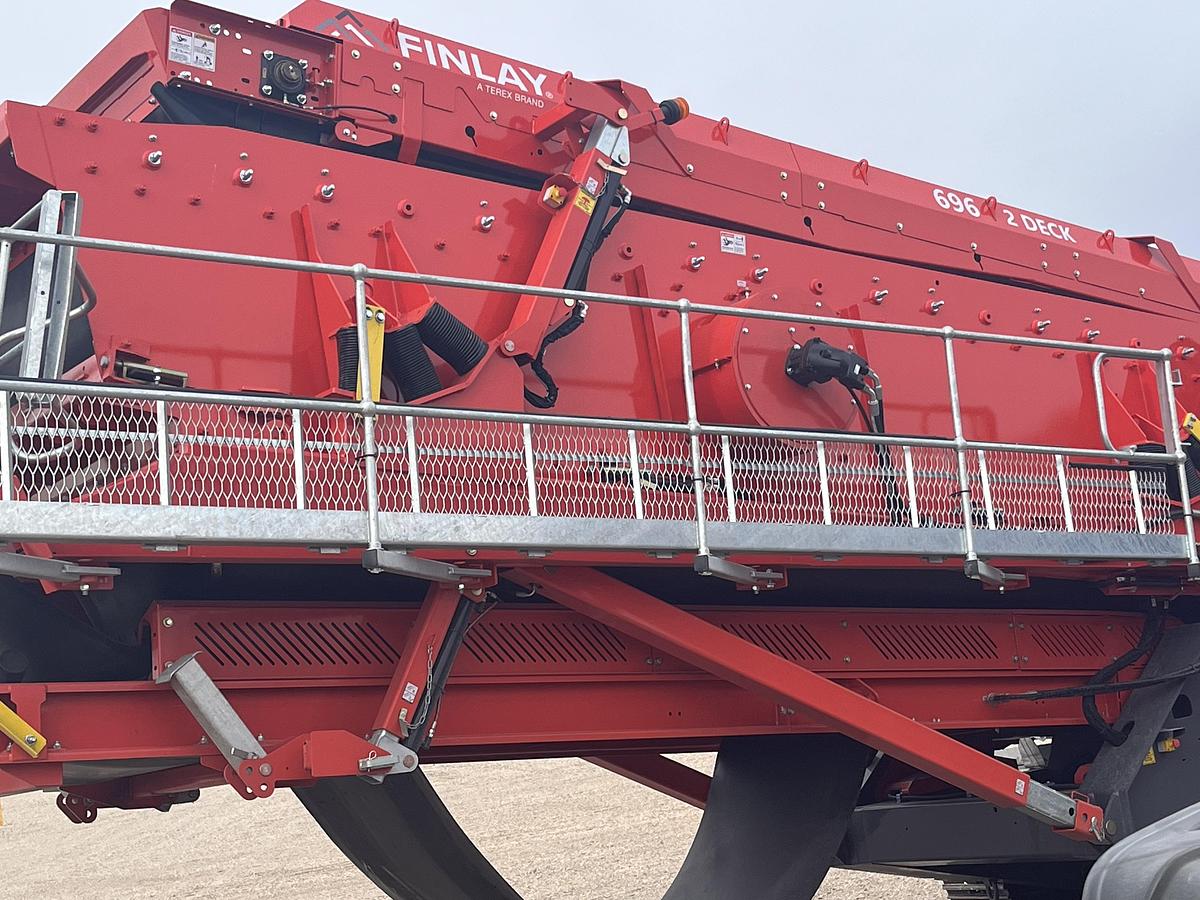

6.1m x 1.7m (20' x 5'7") Top and Bottom Deck Screen box

No Sesh or Speed Harps Included For Any Deck (But All Mesh Fitting Parts Included as standard)

Quick Wedge Tensioning - Top Deck

Hydraulic Tensioning (Bottom Deck Screen Mesh)

Hydraulic Folding Catwalks

1200mm (48") Wide Main Belt C/W Skirting

Hydraulic Raise of Main Conveyor Head-Section (For Improved Mesh Access)

Anti Roll Back Plates for Main Conveyor (3Nr)

800mm (32") Wide Chevron Belt on Both Side Conveyors

1200mm (48") Wide Plain Belt on Fines Conveyor Emergency Stops

Control Operation of Tracks Via Hand-Held Set

T-Link Telemetry System Fitted C/W 7 Years Data Subscription Bundled Deal With Ancillary Services

Safety Guards in Compliance with Machinery Directive

Low Level Central Greasing

Quad Pump Option for 1nr Dedicated Stockpiler Drive - Approx. 60 Litres/Min - Diesel only (Not available with a vibrating grid)
