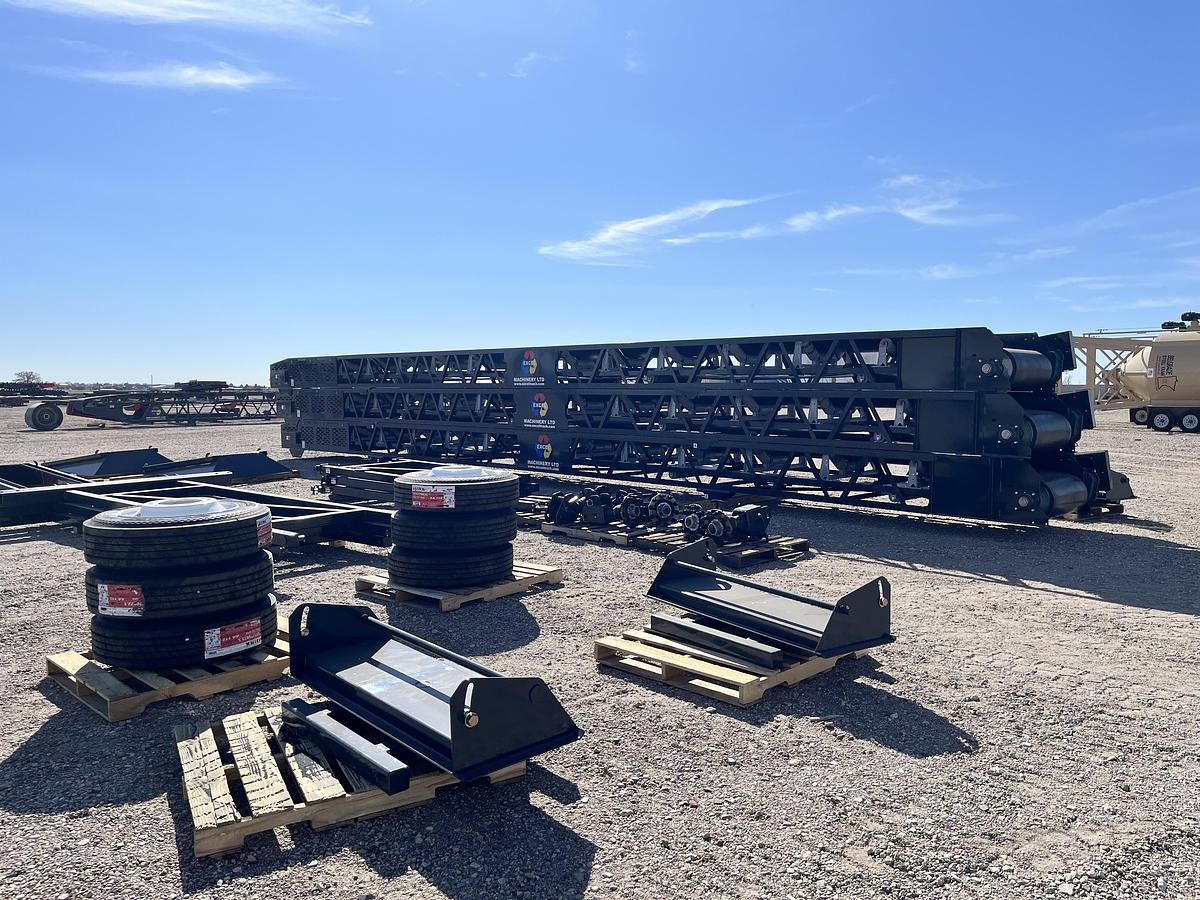

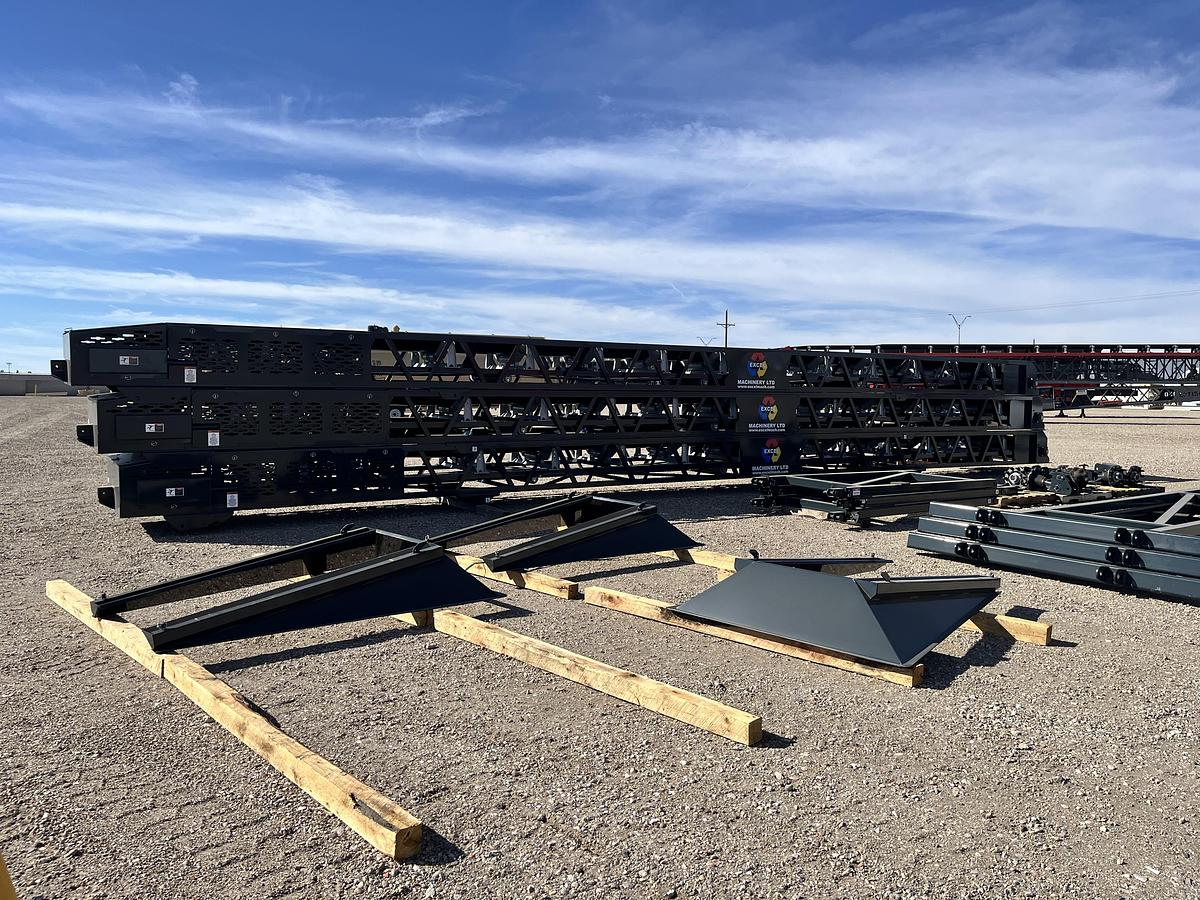

36X50 Lattic Stackable Radial Conveyor

New 36X50 Pit-Portable Radial Stacking Conveyor - Electric -Conveyor Truss Frame -Main Frame 24” Deep 1/4” X 3” X 3” -Lattice Angles - 1/4" X 2” X 2” -Cross Angles – 1/4" X 2-1/2” X 2-1/2” -15HP Motor 60 HZ 1750 RPM 3 Phase -TA3 Dodge Gear Reducer 1:15 -Dodge Torque Arm Assembly TA3 -Sheave Type SK / 2B94SK & 2B110SK -15X38 Head Pulley – Lagged – XTH30 Hubs -2-7/16” Head Pulley Shaft With XTB30 Bushings -Dodge 4B Wall Mount Bearings 2-7/16” SCM -14X38 Tail Pulley – XTH30 HUBS -2-7/16” Tail Pulley Shaft With XTB30 Bushings -Dodge Take-Up Bearings 2-7/16” SCM -CEMA-B Idlers 5” Diameter – 20° / 35° / R -Conveyor Belt 330 PIW 3/16 X 1/16 (Vulcanized) -Wheeled V-Undercarriage (Adjustable Height) -Receiving Hopper -Lunette Ring Drawbar Hook-Up
