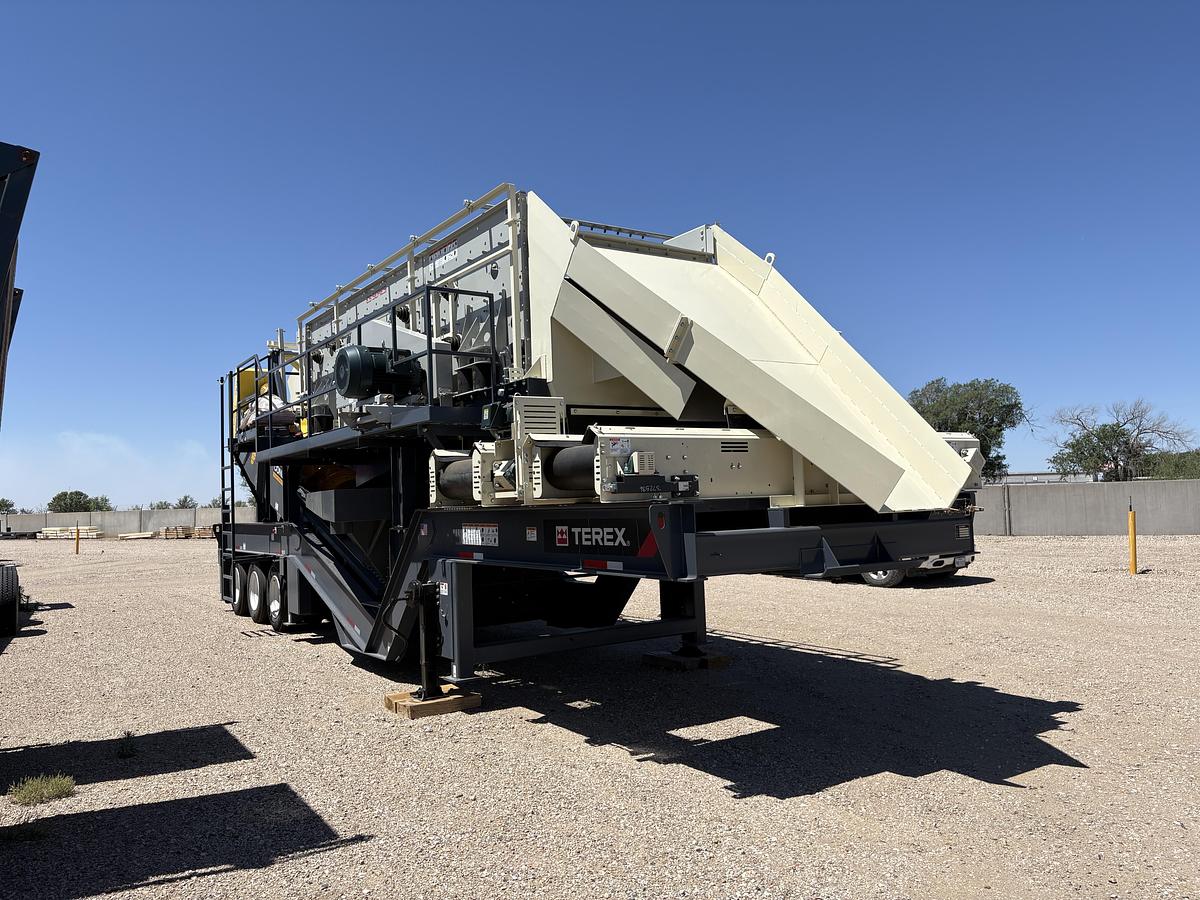

Terex Simplicity 6X20 Horizontal Wash Plant

Terex Simplicity 6X20 Horizontal Wash Plant
Description
New Terex Simplicity 6' X 20' Horizontal Wash Plant with Twin 36" Screws 1 Simplicity ES 6 x 20 Triple Shaft Horizontal Three Deck Screen with Complete Spray System. 2 A 40 HP (30Kw) 1200 RPM, Tefc Electric Motor with Screen V-Belt drive. 3 Walkway Access Around Three Sides of the Screen with an Access Ladder. 4 Under-Screen Fines Collection Flume is made from 1/4" Plate with a Splash-Type Spray System. Water Spray System on all Screen Decks, Flume and Washout. 5 Includes a 36" x 25' Twin Screw with Two 15 HP (11Kw) Drives. 6 Standard Hinged Slurry Box with Spray Bar, Manifold with the Necessary Hardware, Valves and Hoses. 7 Heavy-Duty Discharge Chute Made with 1/4" Plate and Lined with A.R. Plate in Heavy Wear Areas. Includes a Top Deck-Over Chute with Discharge to the Front of the Plant. The Middle Deck Chute Discharges on to a 30" Cross Conveyor and the Bottom Deck Discharges to a 30" Cross Conveyor. 8 All Standard Guards are Included. 9 Qty 2 - 30" x 10'9" Long Reversible Cross Cone.
Specifications
| Manufacturer | Terex Simplicity |
| Model | 6X20 Horizontal Wash Plant |
| Condition | New |

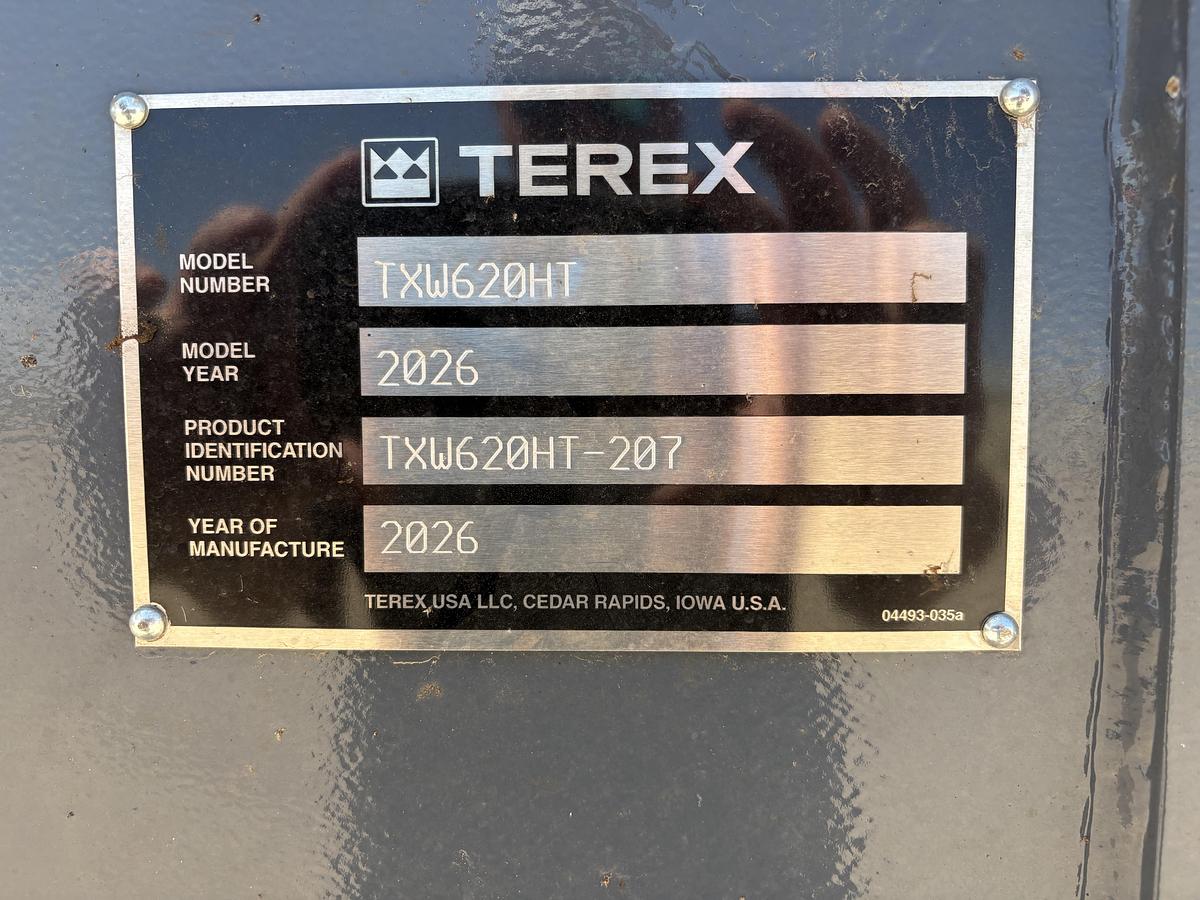

| Serial Number | TXW620HT207 |
