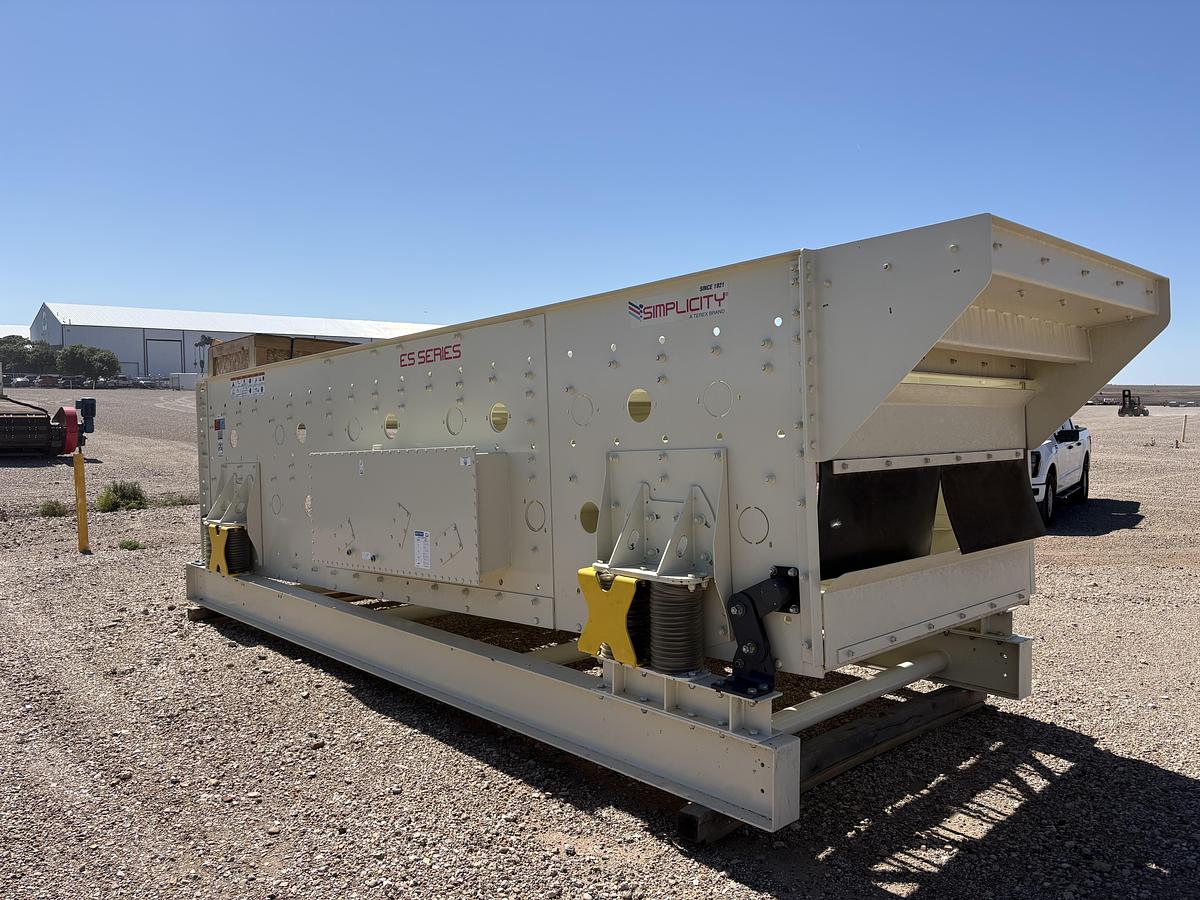

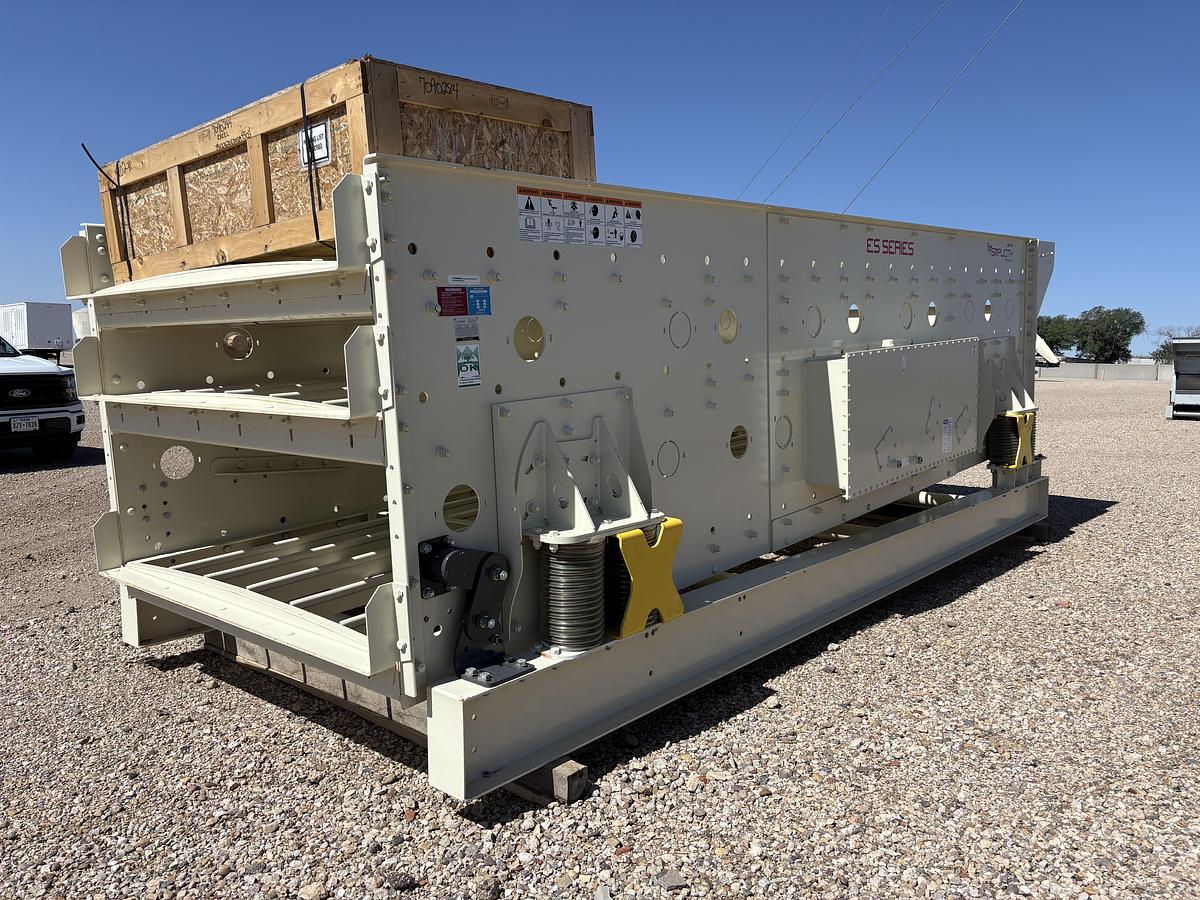

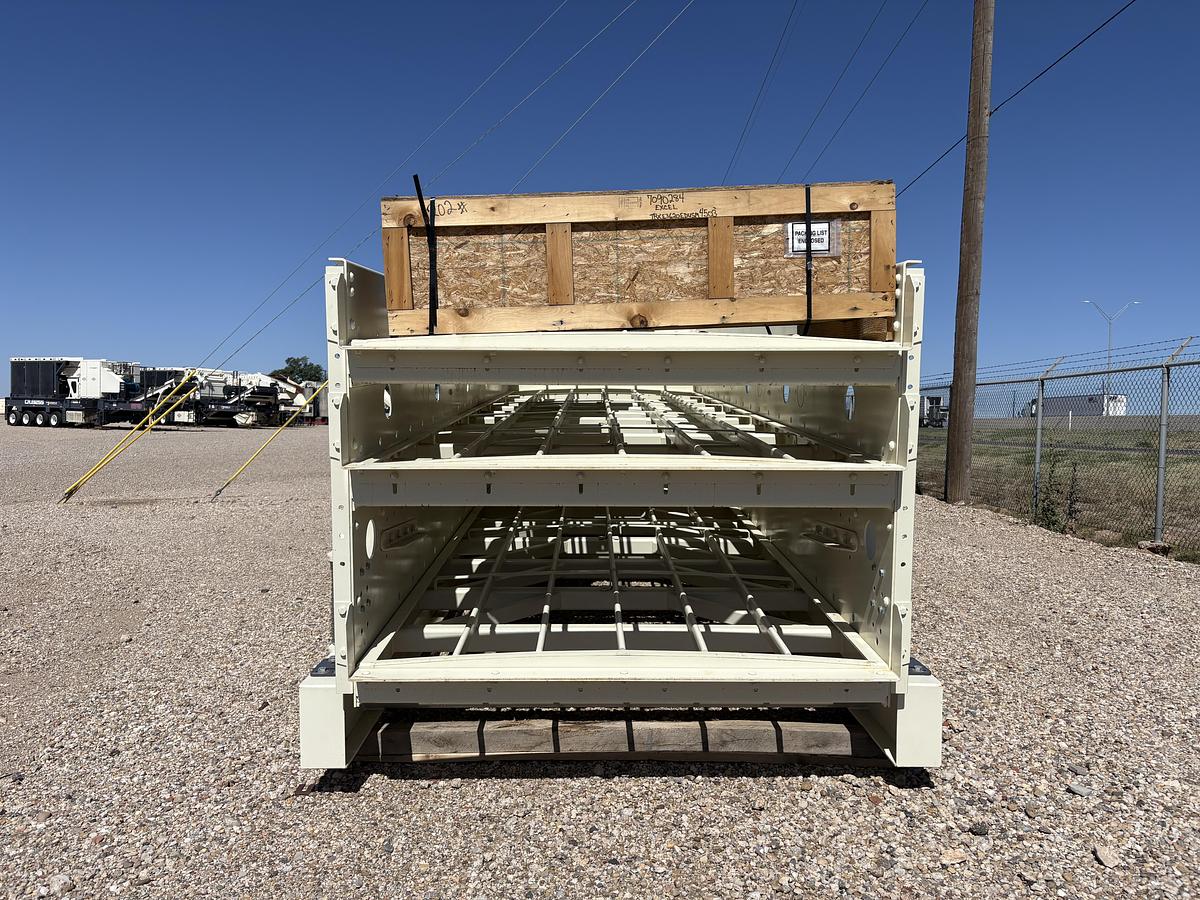

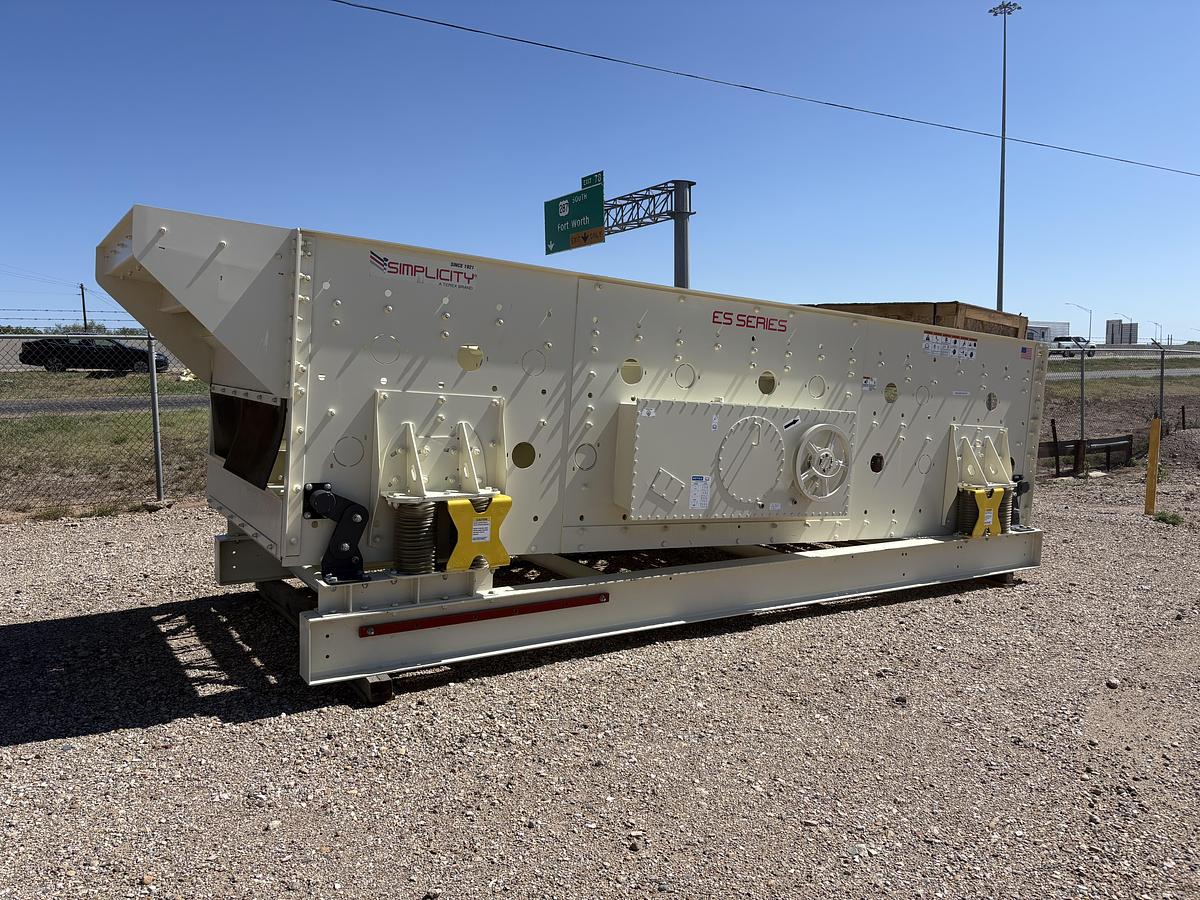

Terex Simplicity 6X20 Three Deck Screen

Terex Simplicity 6X20 Three Deck Screen

Description

New Terex Simplicity ES 6' X 20' Three Deck Screen Triple Shaft Screen with 2.6 Deg Slope Low Maintenance Dual Pivot Surge Dampers and coil springs 5/16" Thick Side Plates and Huck-Bolt Construction Side Tension Decks with Steel Seal Strips for 4’ Screen Panels Heavy Duty Tube Steel Decks with Herringbone Bracing. O-ring Sealed Vibrator Mechanism with "Flow Through" Oil Lubrication Carriage Bolts used to retain Clamp Bars, Specify 4' or 5' Clamp Bars AR Lined Feed Box and AR Lined Discharge Lip Right Hand Variable Speed Drive Standard with Motor Mount and Belt Guard Hand Access On Triple Deck Screens. Spray Bar Knockouts, Bottom Deck Curtain Bolt-On Spring Guides, Less motor 4 Foot Long Clamp Bars for 4 Foot Long Screen Panels Coil Springs 2.6° Slope Mount - Matches TSS/FSG Model Screens, with Feed End Spring Spacers, Spring Brackets at 2.6° WITH BASEFRAME - Accepts Bolt-On Spring Base Guides and Surge Damper Assembly.

Specifications

ManufacturerTerex Simplicity
Model6X20 Three Deck Screen
ConditionNew
Serial NumberTRXE3620EDUSM4503
