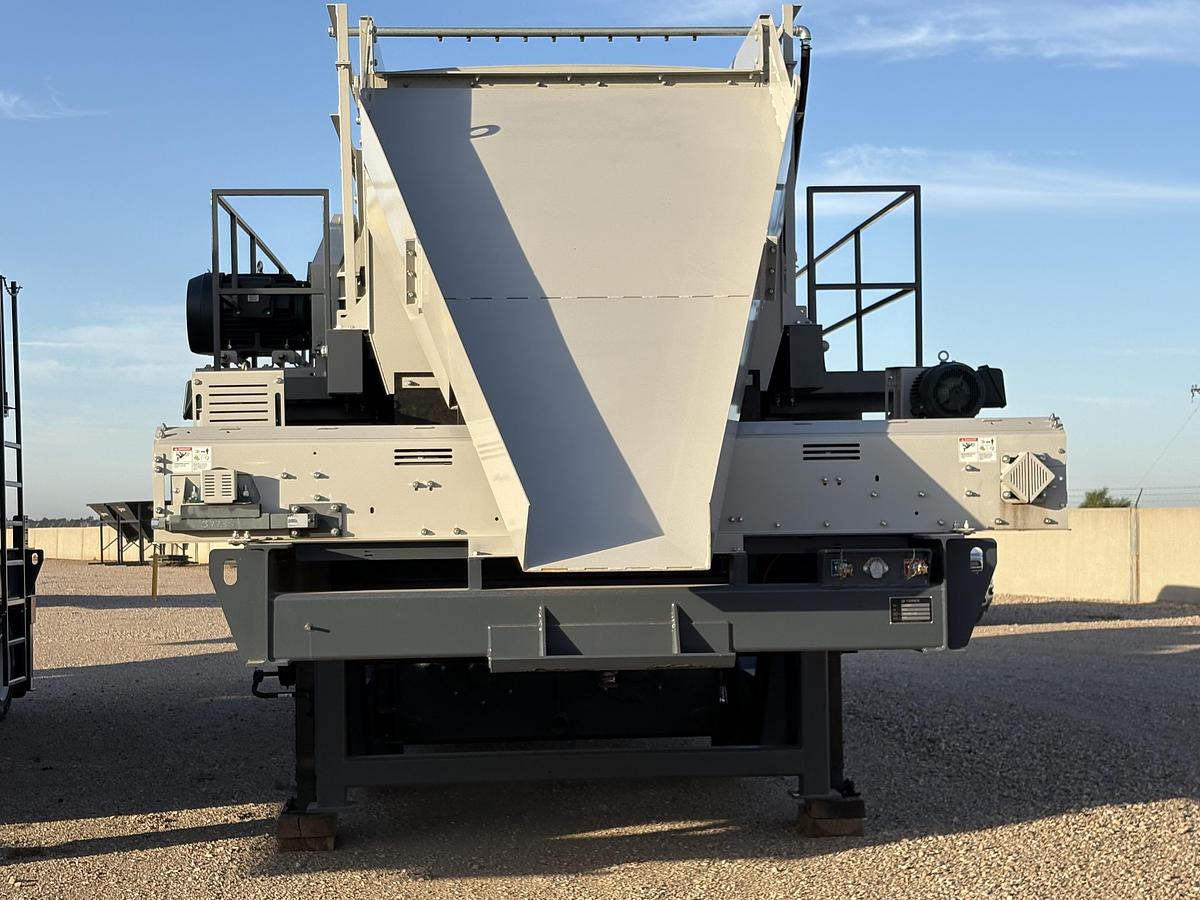

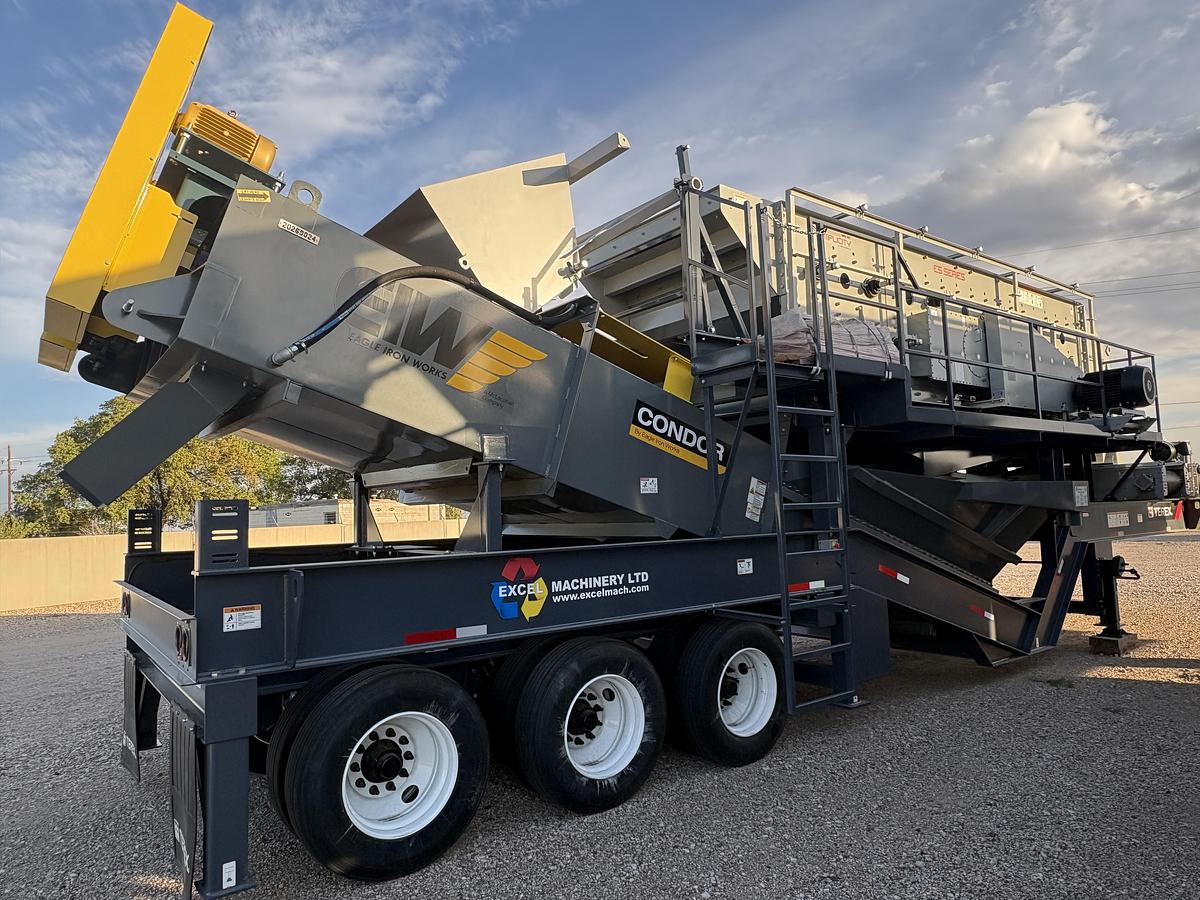

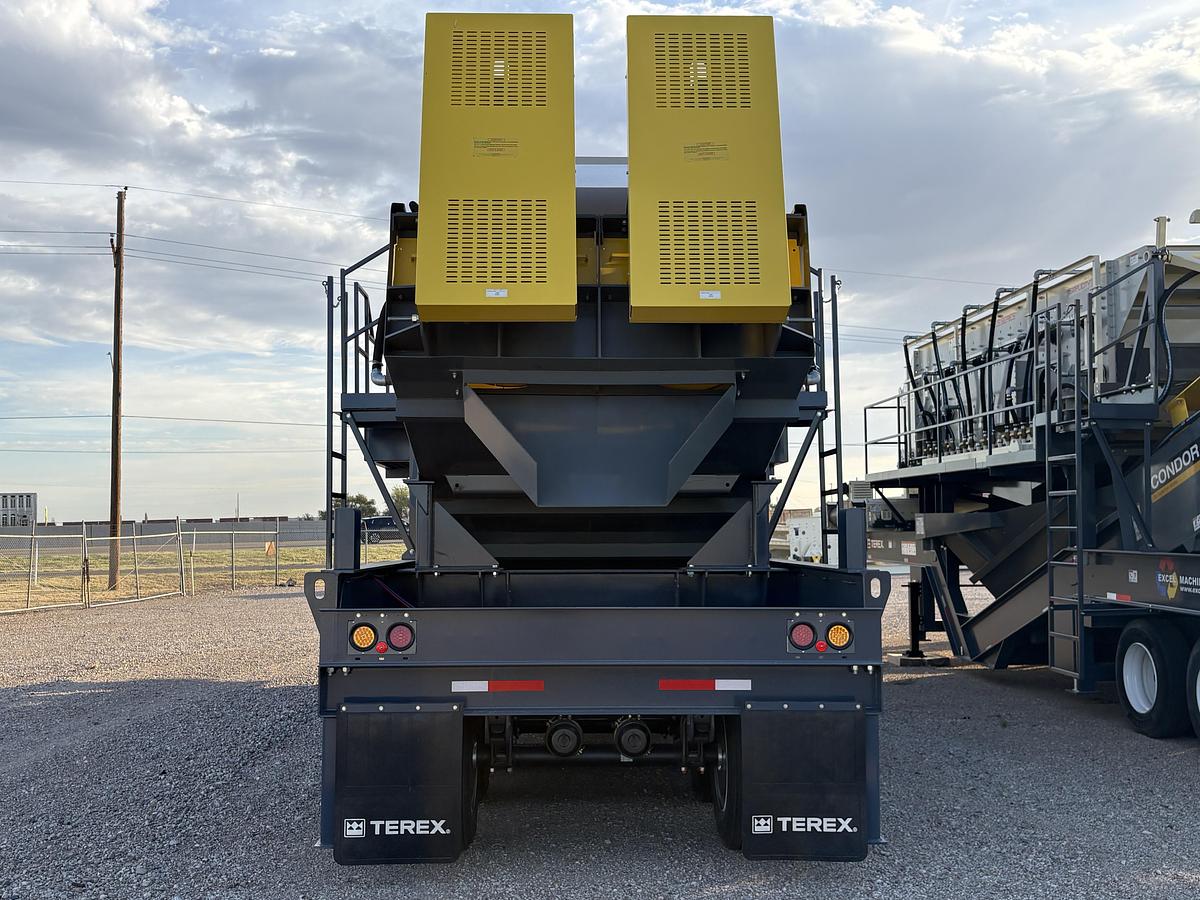

Terex Simplicity 6X20 Horizontal Wash Plant

Terex Simplicity 6X20 Horizontal Wash Plant
Description
New Terex Simplicity 6' X 20' Horizontal Wash Plant With Twin 36" Screws, Simplicity ES 6 X 20 Triple Shaft Horizontal Three Deck Screen With Complete Spray System, 40 HP (30Kw) 1200 RPM, TEFC Electric Motor With Screen V-Belt Drive, Walkway Access Around Three Sides Of The Screen With An Access Ladder, Under-Screen Fines Collection Flume Is Made From 1/4" Plate With A Splash-Type Spray System, Water Spray System On All Screen Decks Flume And Washout, Includes A 36" X 25' Twin Screw With Two 15 HP (11Kw) Drives, Standard Hinged Slurry Box With Spray Bar, Manifold With The Necessary Hardware, Valves And Hoses, Heavy-Duty Discharge Chute Made With 1/4" Plate And Lined With A.R. Plate In Heavy Wear Areas, Includes A Top Deck-Over Chute With Discharge To The Front Of The Plant, The Middle Deck Chute Discharges On To A 30" Cross Conveyor And The Bottom Deck Discharges To A 30" Cross Conveyor, All Standard Guards Are Included, 2 - 30" X 10'9" Long Reversible Cross Conveyors.
Specifications
| Manufacturer | Terex Simplicity |
| Model | 6X20 Horizontal Wash Plant |
| Condition | New |

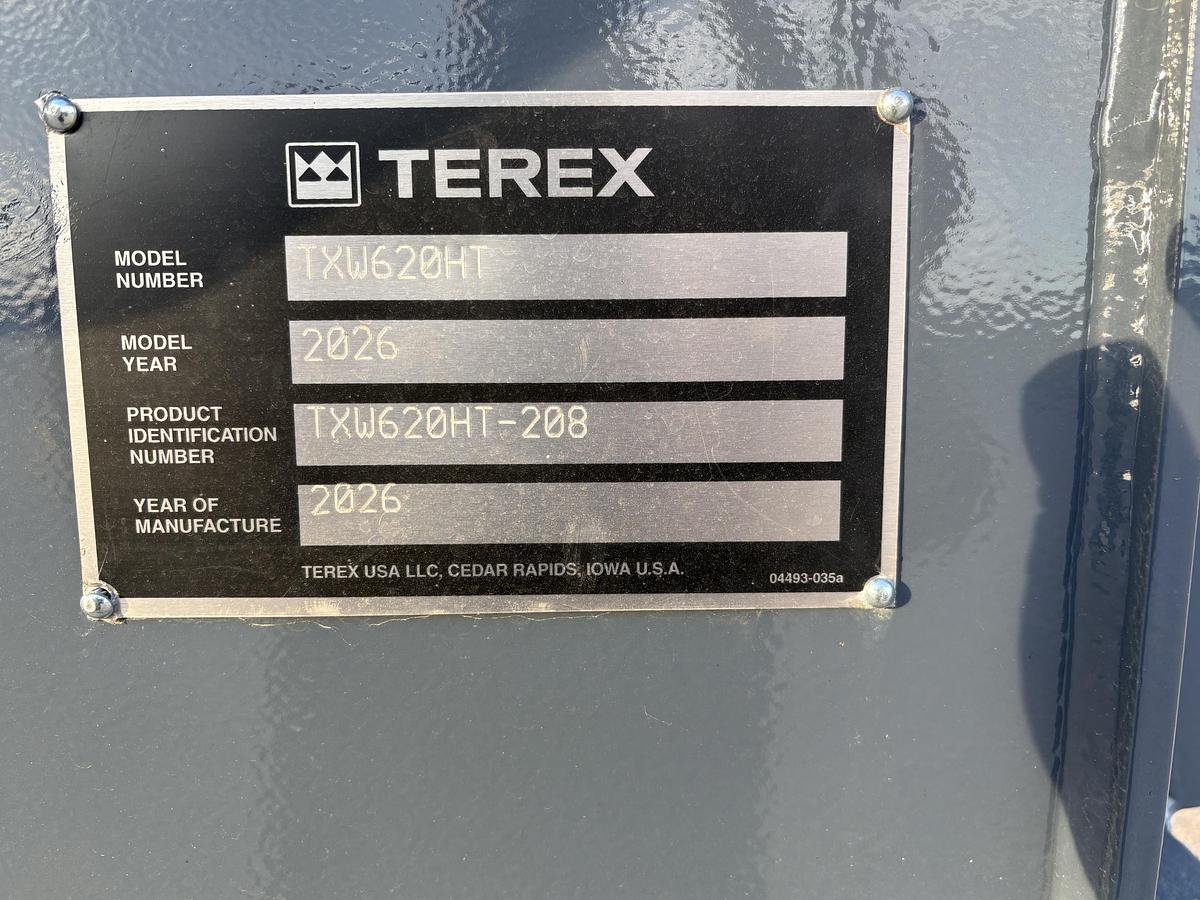

| Serial Number | TXW620HT208 |
