Cedarapids CRC320 Portable Cone Crusher

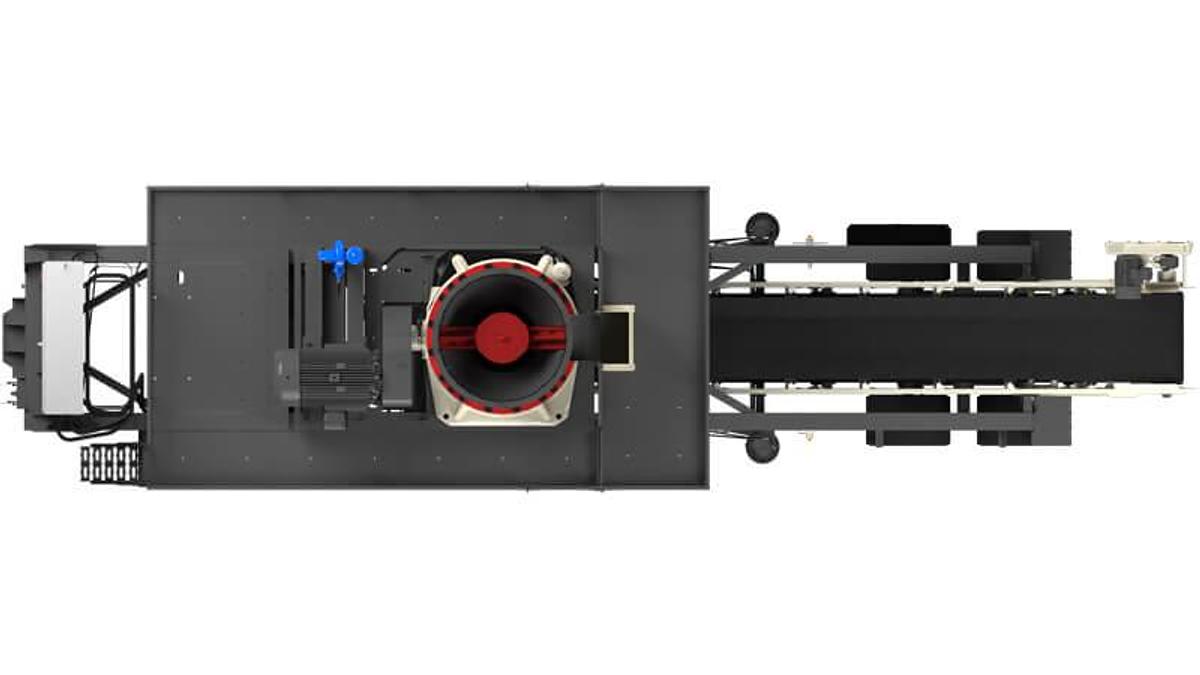

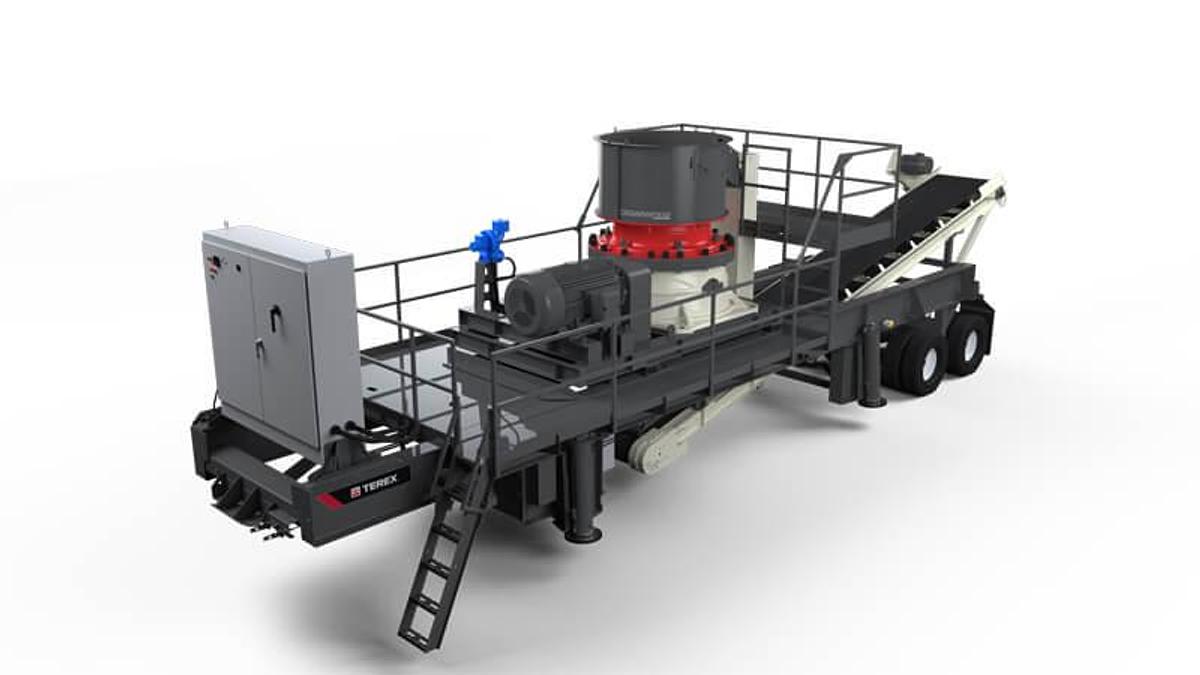

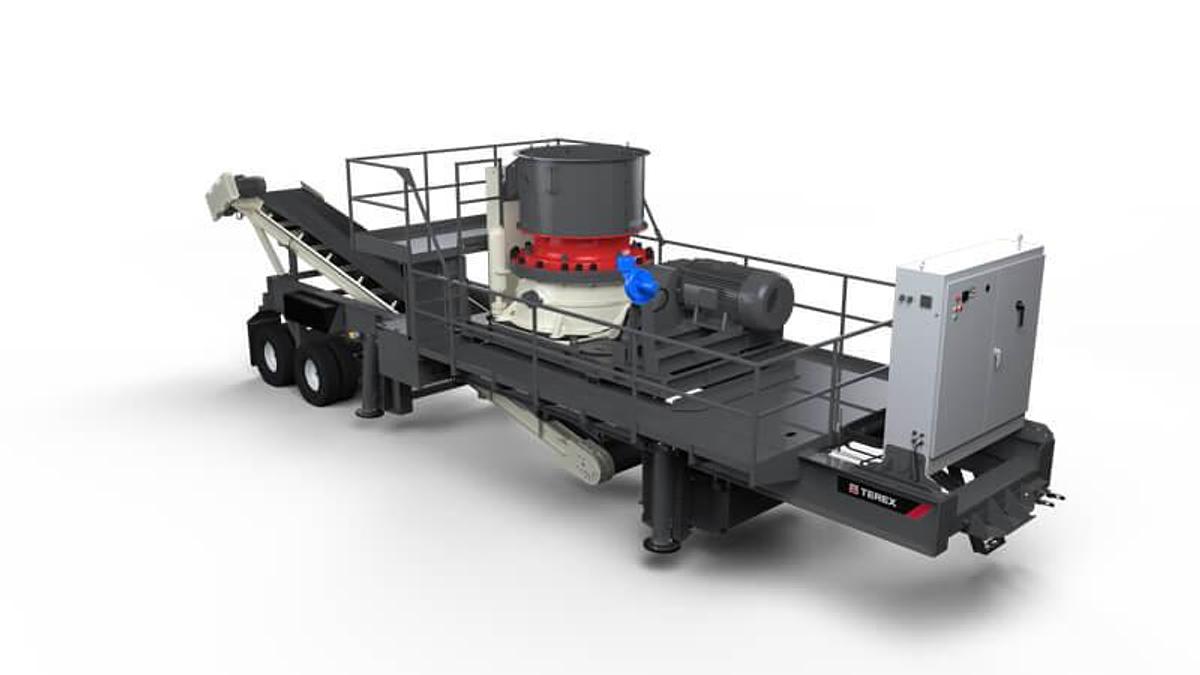

The CRC320 Portable Cone Crusher features the TG320 Cone Crusher with a large feed opening, delivering versatile performance across various layouts and applications. This all electric plant is designed for easy transport and quick setup, whether on the road or onsite. Wide service platforms ensure safe and convenient access for maintenance and inspection. Equipped with proven bronze bushing technology within the TG320 cone, operators can adjust the eccentric throw on site with a simple bushing rotation. The plant includes a 15 hp, 42" wide discharge conveyor, an overflow chute with a removable panel to manage feed surges in closed circuit applications, and multiple jack options, including the patented "canted" run on jacks for enhanced stability. Features: • Large crusher feed opening and 300 hp electric motor. • Overflow chute with removal overflow panel. • Primary style belt wiper is standard. • Tandem spring suspension and heavy I beam main frame. • Emergency stop buttons on both sides of frame. • Service platforms with elevated observation deck, guard rails and access ladder. • Diamond plate walkway for easy cleanup. • Optional Run On or Leveling Jacks. Unique "canted" jack system minimizes plant vibration. • Convenient sloped stair/ladder. • Optional CCM automatic switchgear panel. • Vibration isolated crusher mount. • TG320 bronze bushing cone with adjustable eccentric throw and multiple liners matches most any application. Specifications: • Axles: 2 • Transport Dimensions: 46' 10" x 11' 11" x 13' 9" (14,275 x 3,632 x 4,191 mm) • Weight: 75,650 lbs (34,314 kg) • Working Dimensions: 45' 4" x 11' 11" x 14' 9" (13,818 x 3,632 x 4,496 mm) • Capacity: 419 to 452 tph (380 to 410 mtph)
