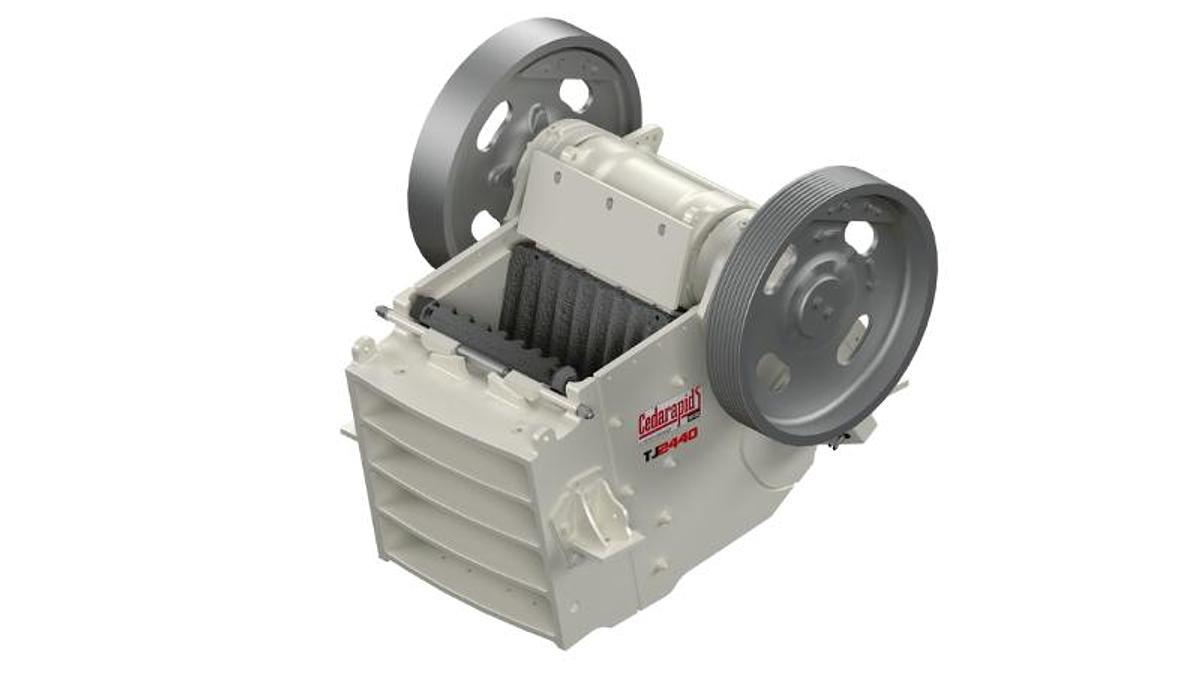

Cedarapids TJ2440 Static Jaw Crusher

The Cedarapids TJ2440 Static Jaw Crusher is a powerful and efficient single toggle jaw crusher, engineered for high productivity in demanding applications. Designed for tight closed side settings while maintaining an aggressive nip angle and crushing stroke, it delivers exceptional performance with maximum throughput. The 24" x 40" (610mm x 1016mm) inlet provides a robust crushing chamber, while full hydraulic adjustment ensures ease of operation and precise control. The TJ2440 features a fully welded construction with a cast front end frame, rear end frame, and swing stock, ensuring long lasting reliability in the toughest conditions. The large eccentric throw and steep toggle plate angle create a consistently powerful stroke, maximizing reduction ratios and overall efficiency.Ideal for mining, quarrying, and recycling, the TJ2440 is one of the most aggressive and productive jaw crushers in its class, delivering unmatched performance and durability for heavy duty crushing applications. Features: • Oversized self aligning spherical roller bearings. Grease purged labyrinth dust seals. Bolt on outer bearing cartridges. • High inertia and well balanced flywheels. • Push button CSS adjustment. Dual tapered wedge design, with 2 externally mounted hydraulic adjustment cylinders • Hydraulically compressed spring coil tension rod. • Precision machined cast steel jaw holder with "rolling end" non lubricated toggleplate and seats. Fabricated mainframe, well respected in the industry, to provide extreme reliability in arduous applications • Front end frame and swingstock liner seating surfaces protected by replaceable weld on backing plates. • Standard mounting base design for easy "drop in" installations. Jaw mounting feet floating arrangement to reduce structural stresses. • Protected swing jaw liner retention wedge. Wrap over fixed jaw liner, added protection to cast front end frame. Through bolt fixed jaw liner dual wedge retention, allowing for easier liner removal. Specifications: • Capacity: 220 to 320 tph (200 to 290 mtph) • Weight: 26,914 lbs (12,208 kg) • Motor Size: 150 hp (110 kW) • CSS Range: 1.6"-5.7" (40 to 146 mm) • Feed Opening: 24" x 40" (600 x 1,000 mm)
