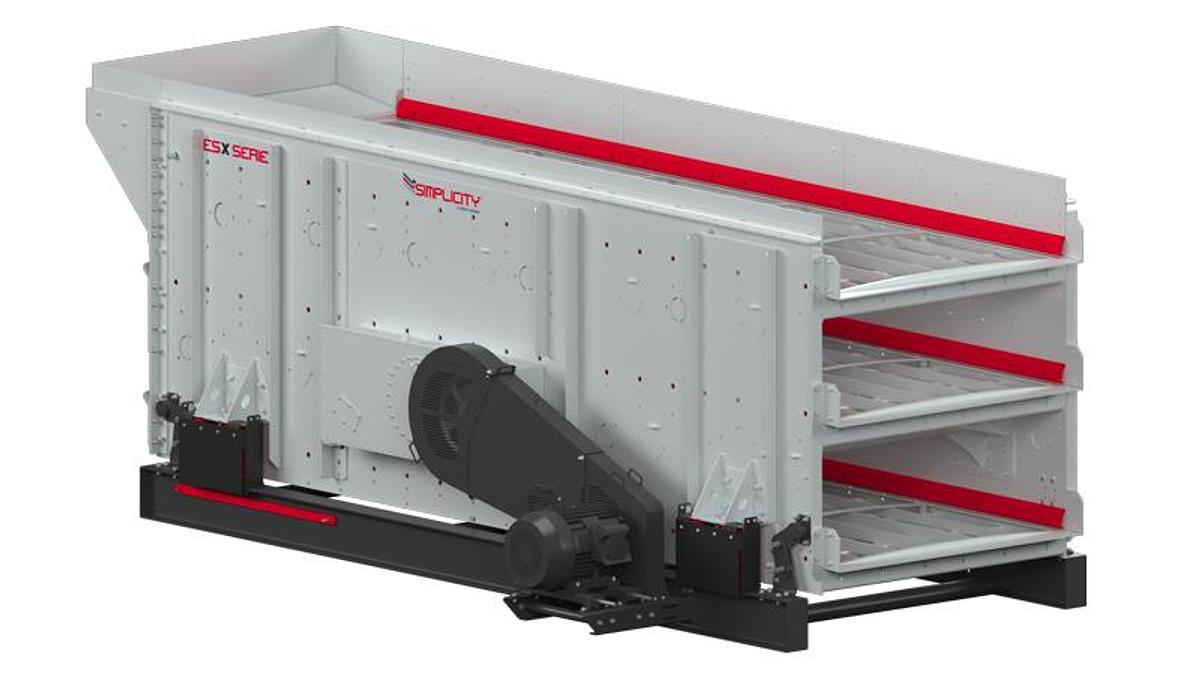

Simplicity ESX Series Vibrating Screen

The Simplicity® ESX "Extra Clearance" Triple Shaft Horizontal Screen is the latest evolution in oval stroke vibratory screening, built on our proven oval stroke technology with smarter design and superior accessibility. This ESX Horizontal Screen is designed with maintenance in mind. offering significantly more clearance between decks, 23" between the top and middle, and 27.5" between the middle and bottom, while maintaining the same footprint as previous models, standing only 22" taller. The ESX Vibratory Screen, with its variable slope operation, gives customers a product that handles more applications than other screens on the market. The increased capabilities, higher production, enhanced durability, but most importantly, the "Extra Clearance" of the ESX Triple Shaft Horizontal Series, make this elliptical screen an industry leader. Specifications: • Working Dimensions: 6' x 20' (1,924 to 3,074 mm) • Number of Decks: 3
