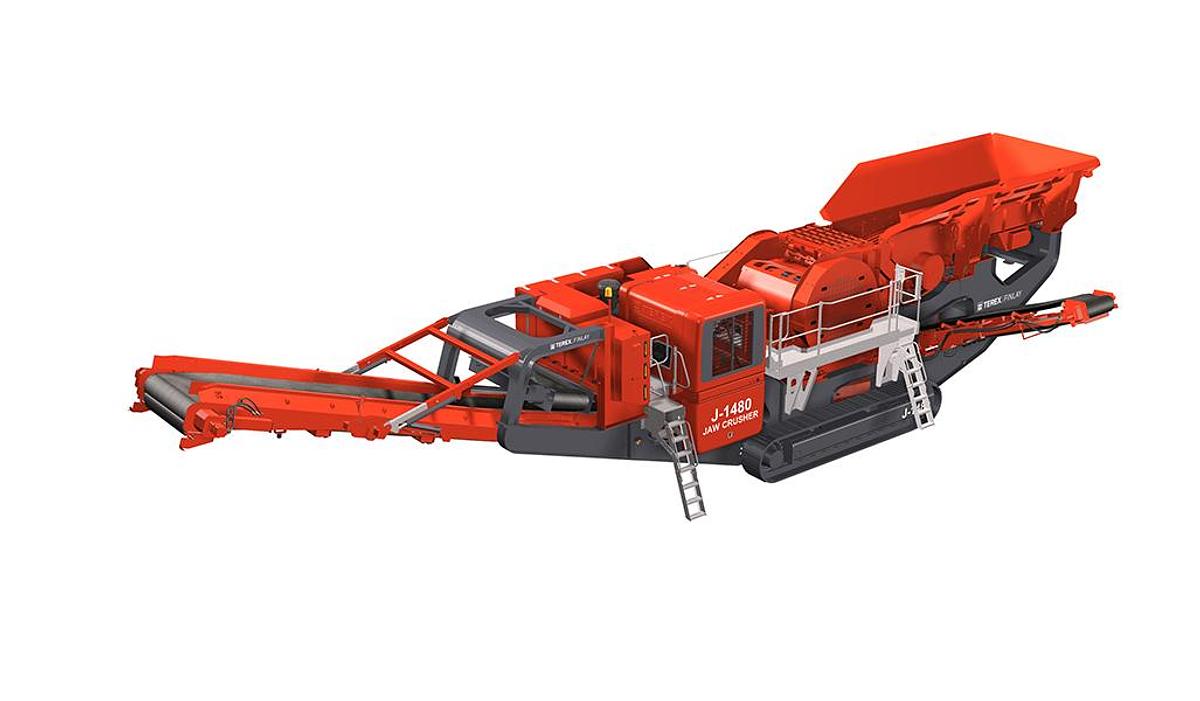

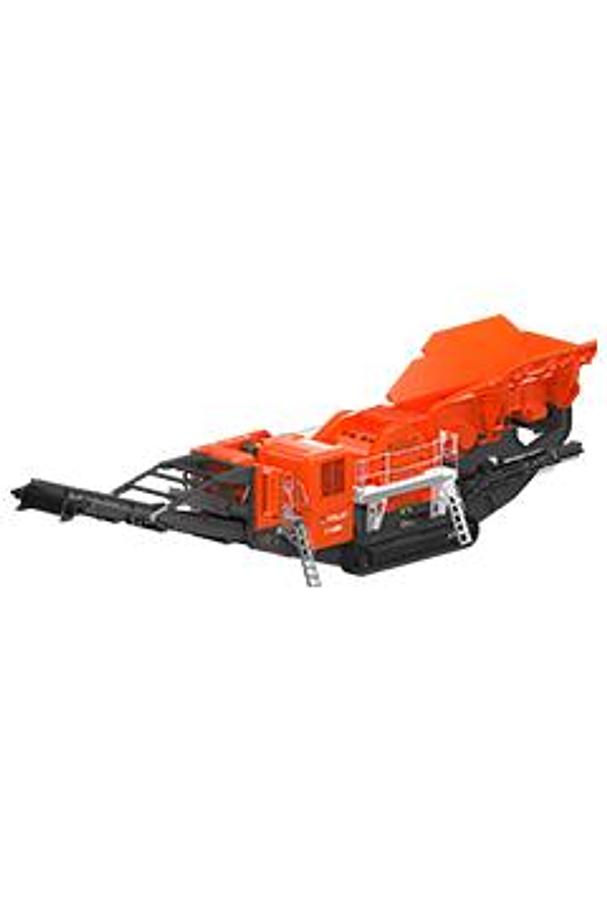

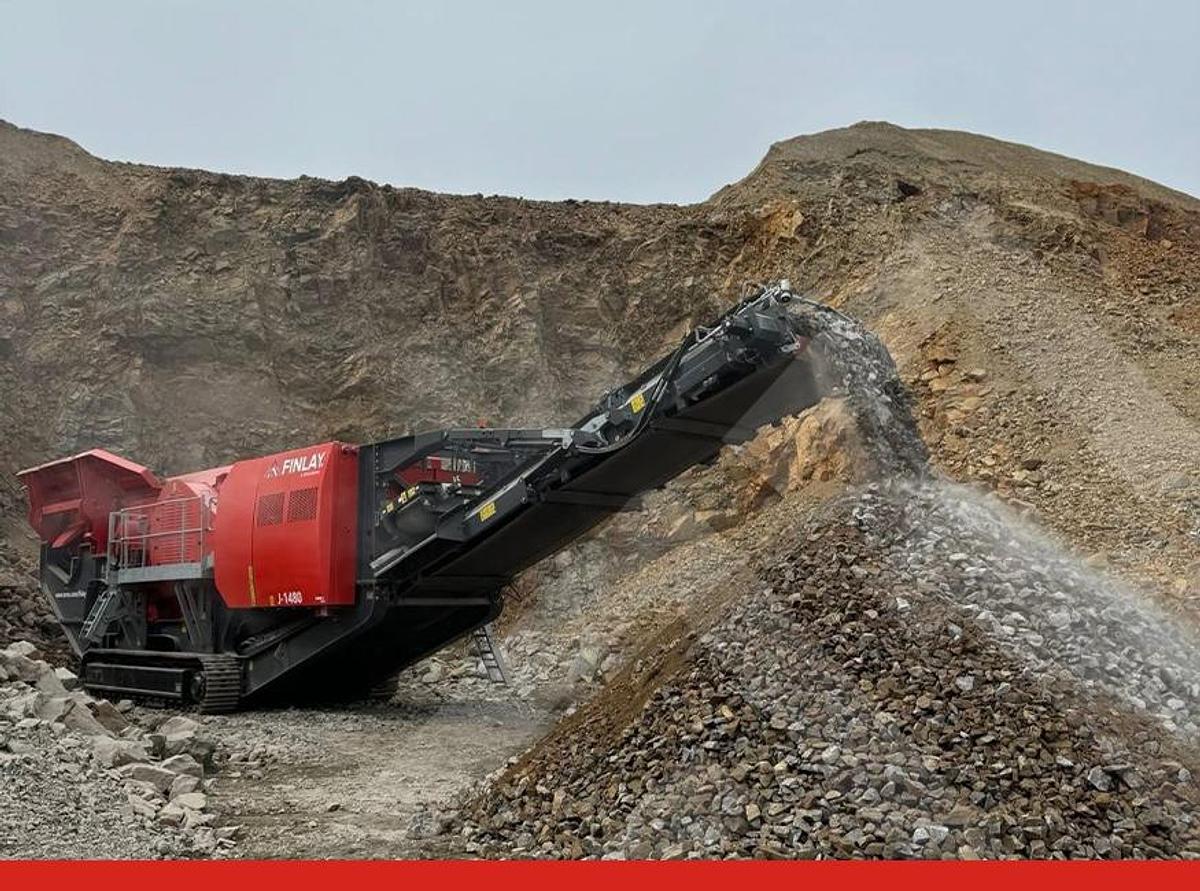

The Finlay J1480 tracked jaw crusher incorporates the Jaques JW55 single toggle jaw which boasts a throughput capacity up to 750mtph depending on application and material. The machine has hydrostatic drive which offers reversible operation for clearing blockages and demolition applications. The large 10m³ (13yd³) hopper has hydraulically folding sides and hydraulic wedge clamp system providing faster machine set up time. This Mobile Rock Crusher features a vibrating pan feeder linked to an aggressive independently driven prescreen which provides optimum separation of dirt, fines and difficult materials. Finlay Jaques Jaw with fully hydraulic adjustable closed side setting. Features: • Hopper and Feeder: Hopper capacity: 10m³ (13yd³); Feed height: 4.67m (15' 5"); Width at rear with standard flares: 2.86m (9' 5"); Locking mechanism: hydraulic; Independent Hydraulic Prescreen as standard; Hopper extensions (Optional): 12m³ (15.6yd³) • Bypass conveyor (optional): Belt Width: 750mm (30"); Working Angle: 30°; Hydraullically folds for transport; Discharge Height: 3.6m (11' 10"); Stockpile capacity: 69.4m3 (90.8yds3) @ 40° • Undercarriage: Shoe Width: 500mm (20"); Dual speed tracking with 'soft start'; Gradeability: 25° • Jaw Chamber: Terex JW55 chamber single toggle jaw crusher; Inlet width: 1415mm (55"); Inlet gape: 820mm (32"); Under jaw clearance: 380mm nominal; Drive arrangement: Hydrostatic; Maximum Closed Side Settings (CSS): 225mm (9"); Minimum Closed Side Settings (CSS): 75mm (3") Demolition and Recycle applications.; 85mm (3 1/4") Quarry applications; Reverse action for clearing blockages; Full hydraulic closed side setting adjust • Main Conveyor: Belt Width: 1.4m (55"); Working Angle: 21°; Discharge Height: 4.5m (14' 9"); Impact bars and wear resistant liners at feed point; Standard Stockpile capacity: 135.5m3 (177.2yds3) @ 40° • Magnetic Separator (optional): Belt Width: 750mm (30"); Drive: Hydraulic Specifications: • Net Engine Power: Stage V: Scania DC13 450hp (Scania DC13 331 kW) • Net Engine Power: Tier 4F / Stage IV: Scania DC13 450 hp (Scania DC13 331 kW) • Net Engine Power: Tier 3 / Stage IIIA: CAT C13 440 hp (CAT C13 328 kW) • Working Dimensions: Height 15' 3", Width 22' 0", Length 67' 11" (Height 4.6m, Width 6.7m, Length 20.7m) • Transport Height: 12 ft 8 in (3 m 80 cm) • Inlet Opening: 55" x 32" (1,415mm x 820mm) • Weight: 175,157 lbs with options (79,450kg with options) • Transport Length: 59 ft 4 in (18 m) • Transport Width: 11 ft 1 in (3 m 38 cm) • Output Potential: 827 US tph (750 tph)
