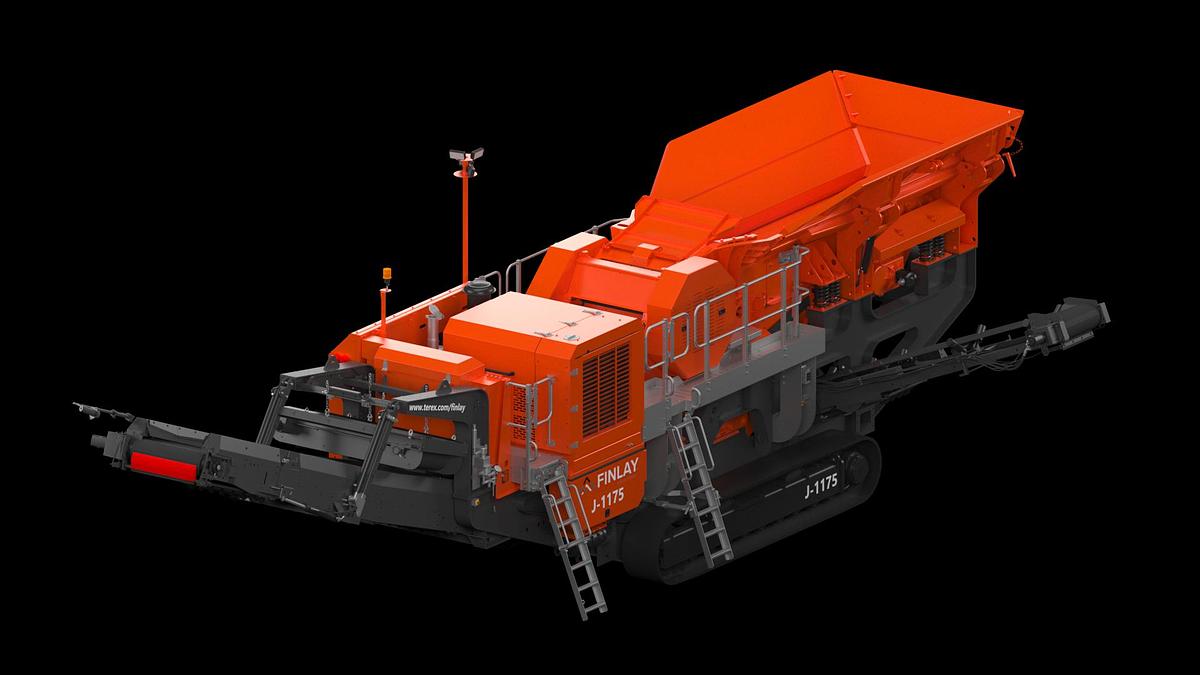

The Finlay J1175 Tracked Jaw Crusher is a high performance and aggressive mobile crusher. Incorporating a Terex Jaques JW42 jaw crusher and a heavy duty vibrating grizzly feeder, the Finlay J1175 gives optimum production in a range of applications. Its compact size, quick set up times, ease of transport and simple maintenance make the Finlay J1175 Tracked Jaw Crusher ideal for quarrying, mining, demolition and recycling applications. Features: • Hopper and Feeder: Hopper capacity: 9m³ (11.7yd³); Feed height VGF: 3.98m (12' 11"); Feed height Prescreen: 4.12m (13' 6"); Feed width at rear Prescreen: 2.65m (8' 8"); Locking mechanism: manual • Bypass conveyor (optional): Belt Width: 650mm (26"); Working Angle: 22°; Hydraulically folds for transport; Standard Discharge Height: 2.1m (7'); Stockpile capacity: 13.8m3 (18yd3) @ 40° • Jaw Chamber: Terex JW42 Chamber single toggle jaw crusher; Inlet width: 1070mm (42"); Inlet gape: 760mm (30"); Under jaw clearance: 460mm nominal; Drive arrangement: Hydrostatic; Maximum Closed Side settings: 145mm (5¾") (subject to toggle selection); Minimum Closed Side Settings (CSS): 45mm (1 3/4") Demolition and Recycle applications.; 75mm (3") 'Hard Rock' Quarry application,; 60mm (2 1/2") 'Soft Rock' Quarry application; Reverse action for clearing blockages; Full hydraulic closed side setting adjust • Magnet separator: Optional • Main Conveyor: Belt Width: 1m (40"); Working Angle: 22°; Discharge Height: 3.6m (11' 10") with standard conveyor; Stockpile capacity: 69.4m3 (90.8yd3) @ 40° Specifications: • Net Engine Power: Tier 3 / Stage IIIA: Caterpillar C9.3B 335 hp (Caterpillar C9.3B 250 kW) • Net Engine Power: Stage V: Scania DC09 345 hp (Scania DC09 257 kW) • Net Engine Power: Tier 4 Final: Scania DC9 345 hp (Scania DC9 257 kW) • Transport Length: 47 ft 8 in (14 m 50 cm) • Weight: 111,024 lbs with options (50,360 kg with options) • Inlet Opening: 42" x 30" (1,070mm x 760mm) • Transport Width: 9 ft 6 in (2 m 90 cm) • Transport Height: 11 ft 6 in (3 m 50 cm) • Working Dimensions: Height 12' 1", Width 20' 4", Length 51' 8" (Height 3.9m, Width 20.4m, Length 15.7m) • Output Potential: 496 US tph (450 tph)
