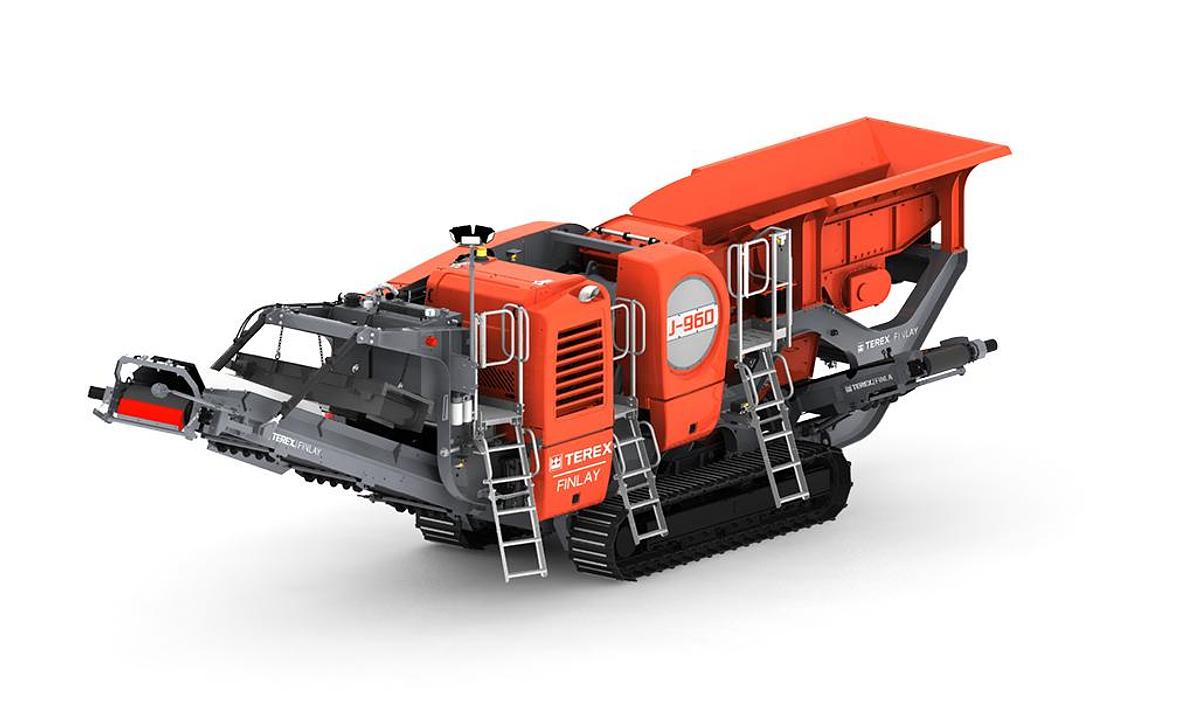

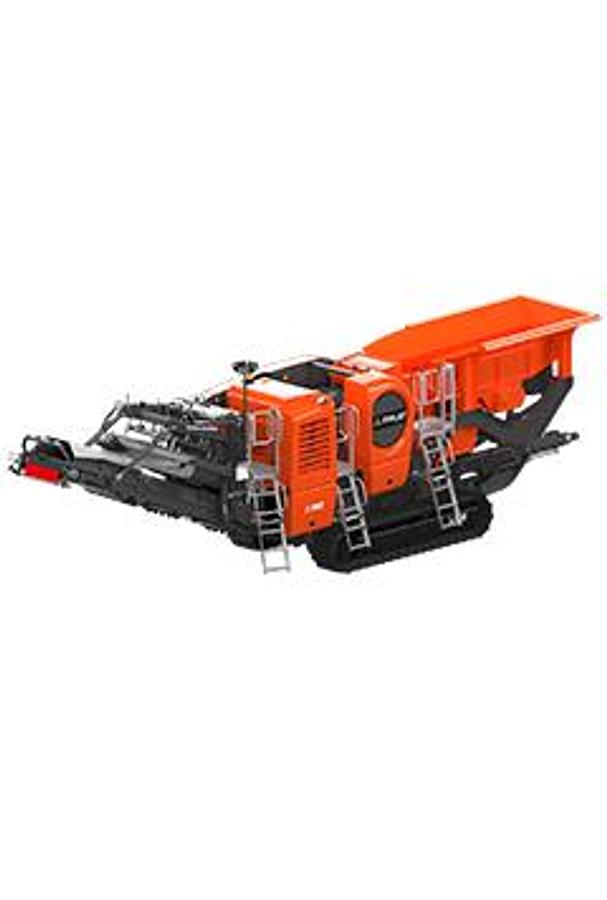

The Finlay J960 Portable Jaw Crusher is a compact and aggressive mobile jaw crusher that has been designed with the customer and operator in mind. The machine has been redesigned with improved all round preventative maintenance and serviceability access points. The heartbeat of the machine is a robust direct driven Terex 900 x 600mm (35" x 24") single toggle jaw chamber which provides high capacity with large reduction ratios. Its compact size, excellent mobility and high crushing capacity even at tight settings in recycling and hard rock operations make the J960 Portable Jaw Crusher ideal for small to medium sized operators. A number of innovative design features have be in built improving material flow through increased clearances, improved service access points and all round maintenance serviceability. Features: • Hopper and Feeder: Hopper Capacity: 3.6m³ (4.7yd³); Feed height with standard hopper: 3.20m (10' 5"); Vibrating Grizzly Feeder (VGF); VGF grizzly aperture: 50mm (standard offering); VGF Speed range: variable, 500 to 915 rpm • Jaw Chamber: Terex 900mm x 600mm (35" x 24") Single toggle jaw crusher; Drive arrangement: Direct Drive via wedge belts; Reverse action for clearing blockages; Deflector plate, optional; Full hydraulic closed side setting adjust; Standard Liner Profile: Premium Tooth (18% Manganese) • Main Conveyor: Belt width: 800mm (32"); Working Angle: 22o; Discharge Height: 2.9m (9' 6"); Impact bars and wear resistant liners at feed point; High spec scraper at head drum • Magnet separator: Belt Width: 750mm (30"); Drive: Hydraulic • By Pass conveyor (optional): Belt width: 600mm (24"); Discharge height: 2.0m (6' 7"); Hydraulically foldable for transport Specifications: • Weight: 61,730 lbs with options (28,000 kg with options) • Inlet Opening: 35" x 24" (900mm x 600mm) • Transport Length: 40 ft 8 in (12 m 40 cm) • Transport Width: 7 ft 10 in (2 m 40 cm) • Transport Height: 10 ft 6 in (3 m 20 cm) • Working Dimensions: Height 10' 6", Width 12' 6", Length 40' 8" (Height 3.2m, Width 3.8m, Length 12.4m) • Net Engine Power: Tier 4F / Stage V: CAT C4.4 173hp Dual Certified (CAT C4.4 129kW Dual Certified) • Net Engine Power: Stage IIIA Constant Speed: John Deere 4,045 169 hp (John Deere 4,045 126 kW) • Output Potential: 220 US tph (200 tph)
