2026

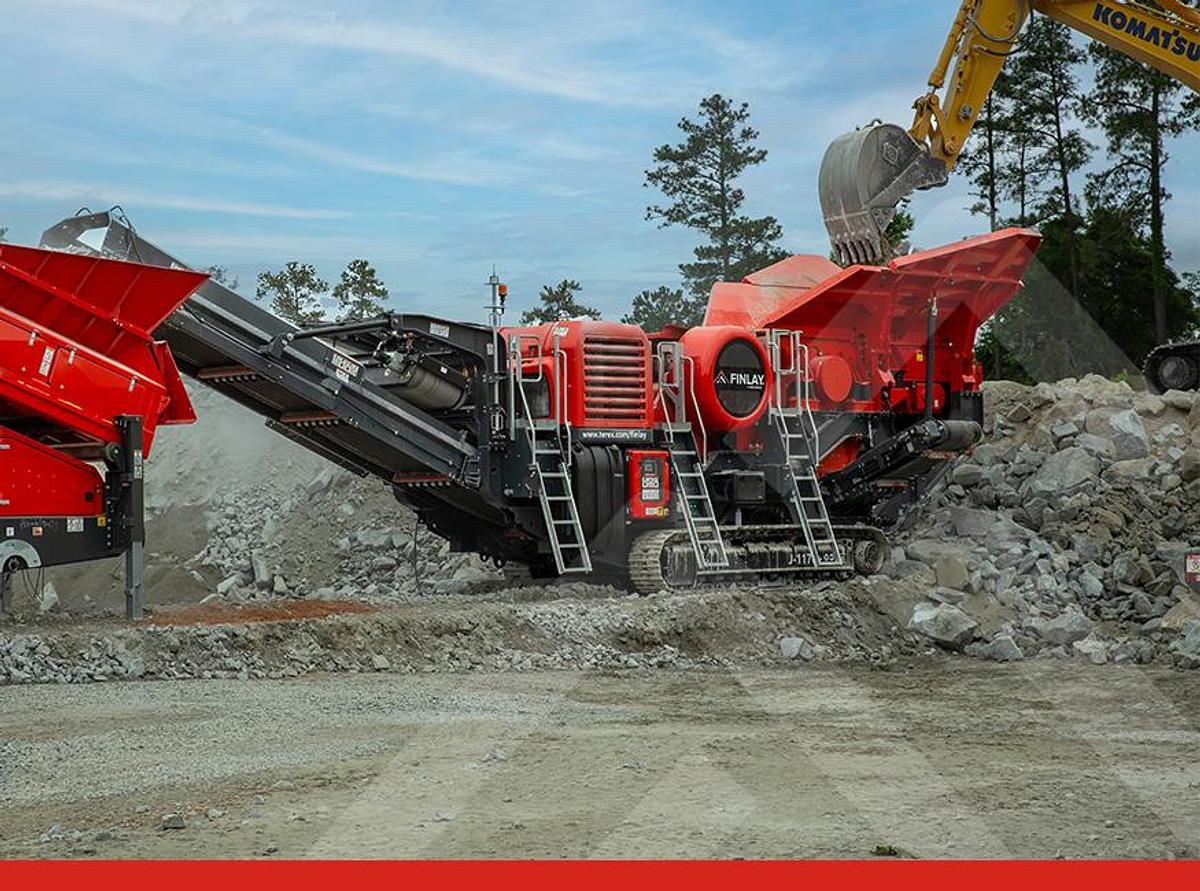

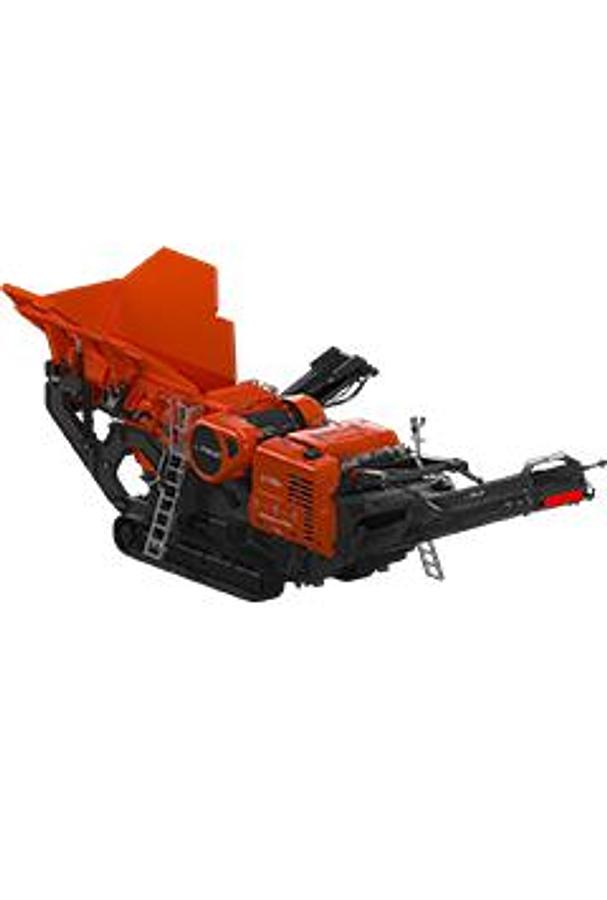

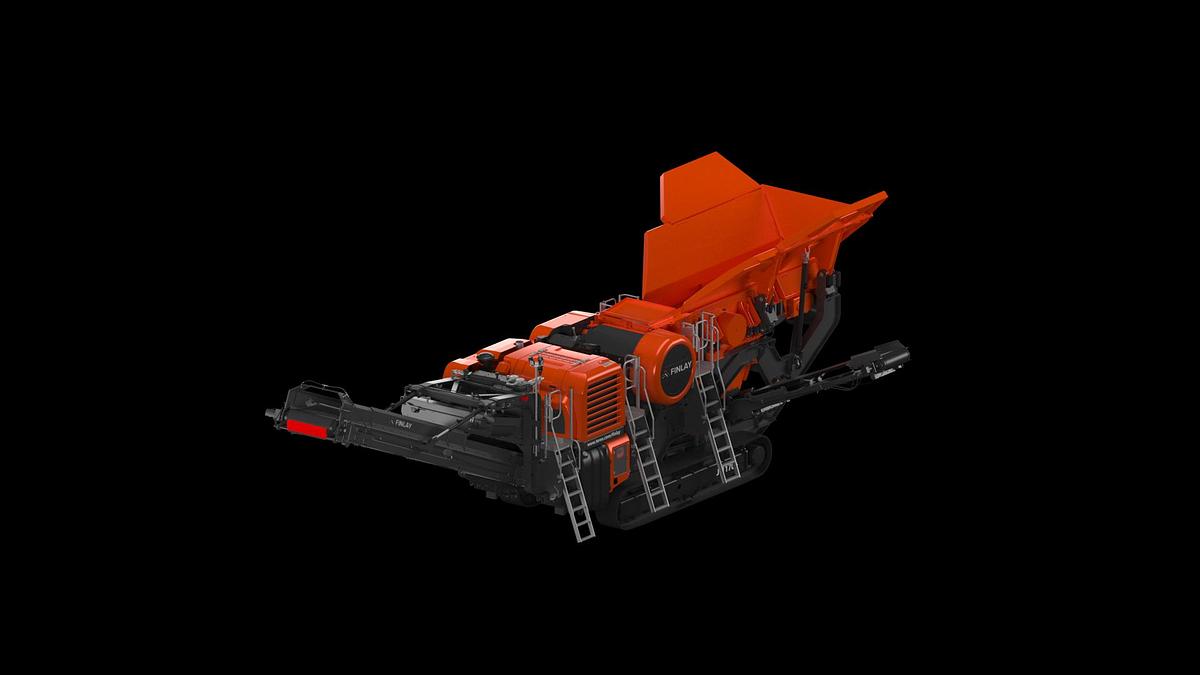

The second generation Finlay J1170+ tracked jaw crusher has been designed to excel in the most demanding applications, including aggregates, mining, construction demolition waste and recycling industries. The J1170+ features a heavy duty variable speed VGF and integrated prescreen giving excellent production throughput in quarrying, mining, demolition and recycling applications. Features: • HOPPER and FEEDER: Hopper capacity: 9m³ (11.7yd³); Feed height at rear: 4.91m (16' 1"); Feed width at rear: 2.48m (8' 2"); Locking mechanism: hydraulic; Vibrating Grizzly feeder (VGF): 1.05m wide 4.25m long • BY PASS CONVEYOR (Optional): Belt Width: 650mm (26"); Working Angle: 22°; Hydraulically folds for transport; Discharge Height: 2.9m (9' 6"); Stockpile capacity: 36.3m3 (47.5yds3) @ 40° • Jaw Crusher: Terex 1100mm X 700mm chamber single toggle jaw crusher; Inlet width: 1100mm (44"); Inlet gape: 700mm (28"); Under jaw clearance: 480mm (18.9"); Drive arrangement: Hydrostatic; Maximum Closed Side Settings (CSS): 150mm (6"); Minimum Closed Side Settings (CSS): 50mm (2"); application dependent. 75mm (3") Quarry application; Reverse action for clearing blockages; Hydraulic assist closed side setting standard • Undercarriage: Shoe Width: 500mm (20"); Two Speed Tracking with 'soft start'; Gradeability: 25° • Platforms: Galvanised catwalks and ladders for full maintenance and service access; Catwalks on left hand side of the machine with access to both sides of the powerunit; Compact folding for transport • Magnet (Optional): Belt Width: 750mm (30"); Drive: Hydraulic • Main Conveyor: Belt Width: 1m (40"); Working Angle: 23°; Discharge Height: 3.1m (10' 2") with standard conveyor; Impact bars and wear resistant liners at feed point; Standard Stockpile capacity: 44.3m3 (58yds3) @ 40° Specifications: • Output Potential: 441 US tph (400 tph) • Net Engine Power: Tier 3 / Stage IIIA: CAT C9.3B 335 hp (CAT C9.3B 250 kW) • Net Engine Power: Stage V: Scania DC9 345 hp (Scania DC9 257 kW) • Net Engine Power: Tier 4F / Stage IV: Scania DC9 345 hp (Scania DC9 257 kW) • Transport Height: 11 ft 2 in (3 m 40 cm) • Transport Length: 47 ft 5 in (14 m 50 cm) • Inlet Opening: 44" x 28" (1,100mm x 700mm) • Working Dimensions: Height 13' 2", Width 19' 11", Length 52' 10" (Height 4m, Width 6.04m, Length 16.1m) • Weight: 108,611 lbs with options (49,265 kg with options) • Transport Width: 9 ft 6 in (2 m 90 cm)
