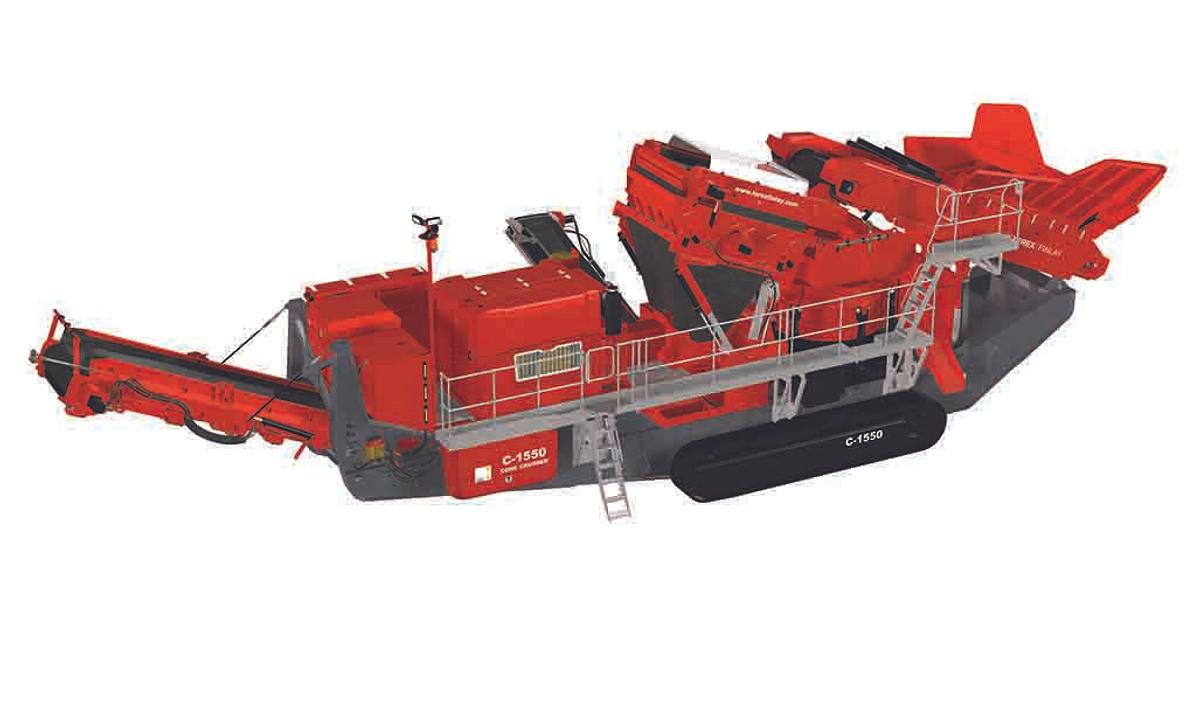

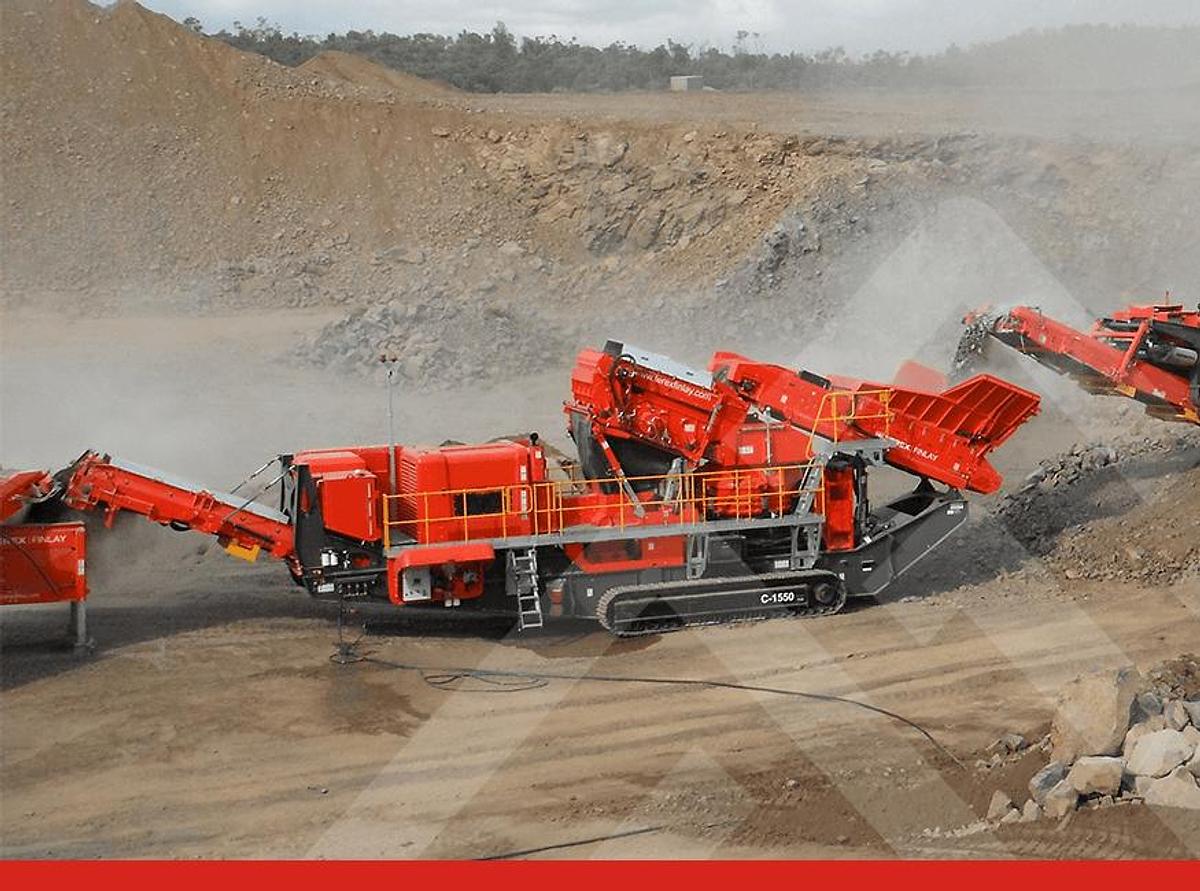

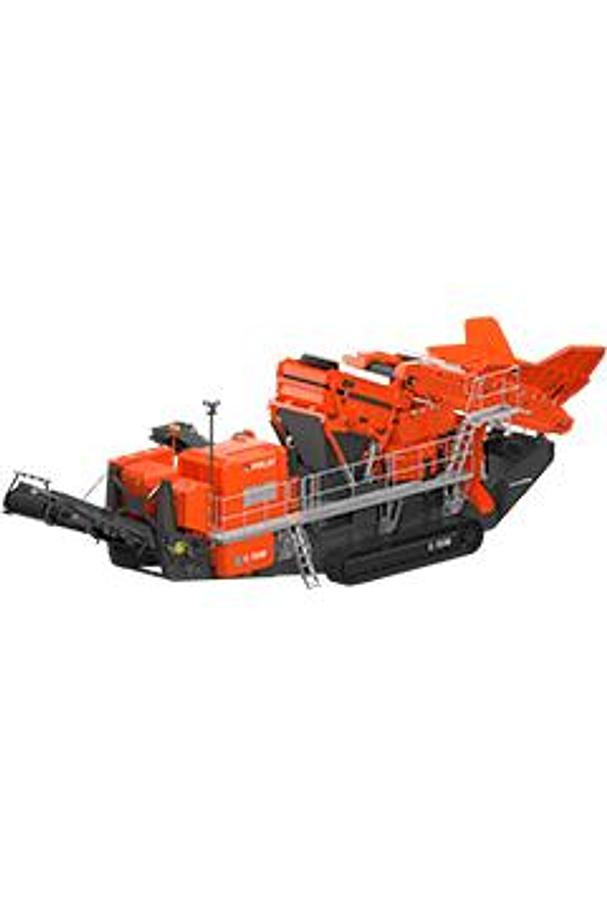

Finlay C1550P Mobile Cone Crushing Plant leads the way. The self propelled Finlay C1550P incorporates the proven Finlay 1300 cone crusher driven through direct drive. The machine features a patent pending prescreen module with a single deck 2.45m x 1.52m (8' x 5') screen for removal or bypass of fines from the feed material. The integrated chute system, below the prescreen, allows the fines material to be discharged from the machine using the optional bypass conveyor or reintroduced onto the main product conveyor. Both methods improve the overall plant throughput capacity, product flexibility and liner wear reduction. The cone features variable speed drive, hydraulic tramp relief system and ability to change closed side setting while crushing. The large hopper/feeder has an automated metal detection and a purge system to protect the cone and reduce downtime by removing metal contaminants via the purge chute. The hydraulically adjustable feed conveyor allows the machine to be operated using either the innovative prescreen system or if required by feeding directly into the cone. Features: • Prescreen side conveyor: Belt Width: 650mm (26"); Hydraulically folds for transport; Discharge Height: 2.8m (9' 2"); Stockpile capacity: 32.6m3 (42.6yds3) @ 40° • Main conveyor: Belt Width: 1.2m (48"); Discharge Height: 3.8m (12' 6"); Impact bars and wear resistant liners at feed point; Dust suppression: fitted with hose and spraybars as standard (no pump supplied); Full length skirting to head drum; Stockpile level sensor; Stockpile capacity: 81.6m³ (106.7yd³) @ 40° • Prescreen module: Top deck: 2.45m X 1.53m (8' X 5'); Screen Angle: 23°; The prescreen module will maximise production through the cone by removing as much fine material as possible before it enters the cone chamber. This will also reduce wear within the cone chamber. • Hopper and feeder: Hopper capacity: 8m³ (10.4yd³); Feed height: 3.6m (11' 10") (Prescreen position), 3.3m (10' 10") (Direct feed position); Hopper Width at rear: 2.5m (8' 2"); Hopper Width at rear with optional hopper extensions: 4.16m (13' 8"); Belt Width: 1.2m (48"); Working Angle: 24° (Prescreen feed), 22° (Direct feed) • Cone crusher: Terex 1300mm (51") cone chamber; Standard medium coarse concave configuration; Drive arrangement: Direct drive via clutch, drive shaft and v belts; 'On the fly' hydraulically adjustable closed side setting with monitoring system; Mantle/concave wear indicator; Maximum Closed Side Settings (CSS): 44mm (1 3/4"); Standard medium Coarse Configuration; Minimum Closed Side Settings (CSS): 24mm (15/16") • Undercarriage: Shoe Width: 500mm (20"); Tracking speed: 1.1 km/h; Gradeability: 25° Specifications: • Working Dimensions: Height 19' 8", Width 23' 4", Length 63' 2" (Height 6m, Width 7.1m, Length 19.25m) • Weight: 142,903 lbs with options (64,820 kg with options) • Transport Width: 9 ft 10 in (3 m) • Cone Head Diameter: 52 in (1,300 mm) • Transport Length: 60 ft (18 m 30 cm) • Transport Height: 12 ft 6 in (3 m 80 cm) • Output Potential: 496 US tph (450 tph) • Net Engine Power: Stage V: Scania DC13 500 hp (Scania DC13 368 kW) • Net Engine Power: Tier 4F / Stage IV: Scania DC13 500 hp (Scania DC13 368 kW) • Net Engine Power: Tier 3 / Stage IIIA: CAT C15 Acert 522 hp (CAT C15 Acert 390 kW)
