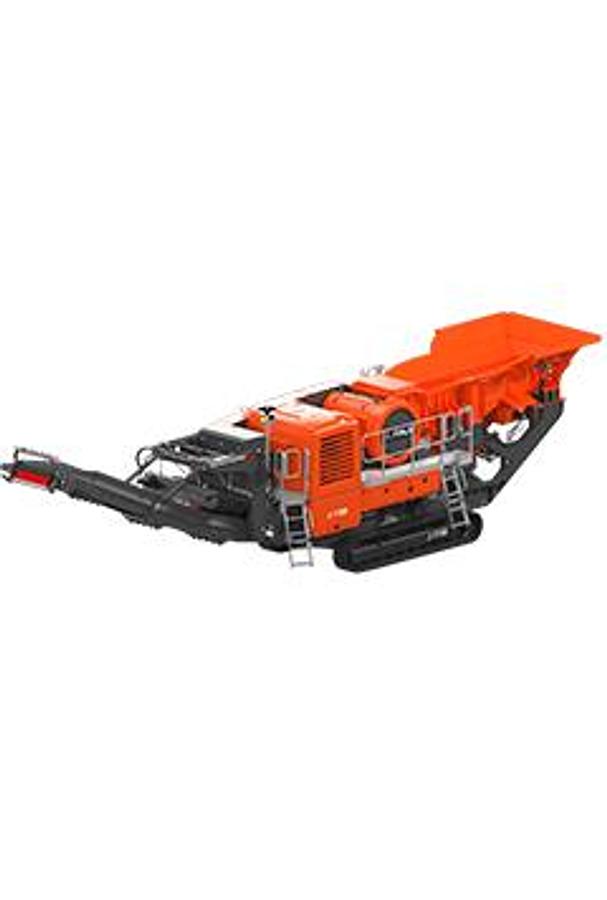

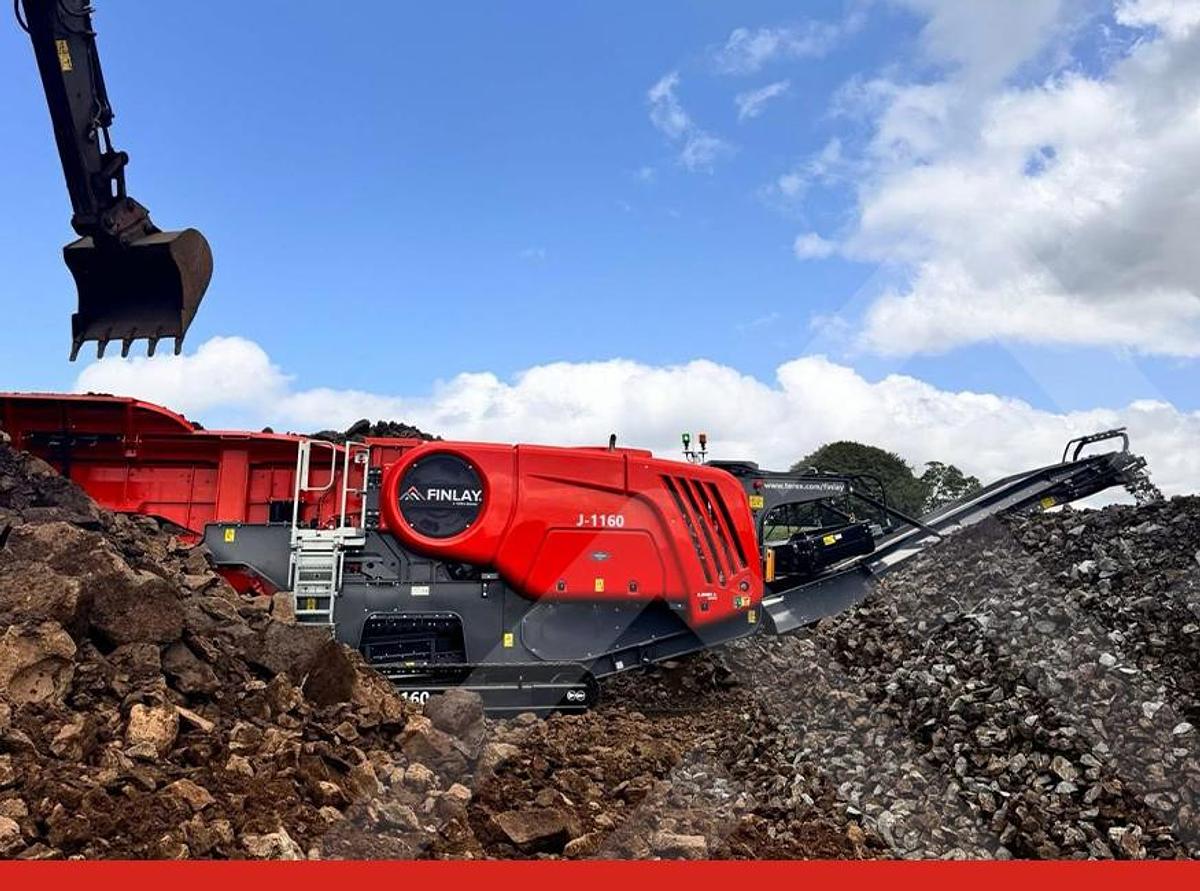

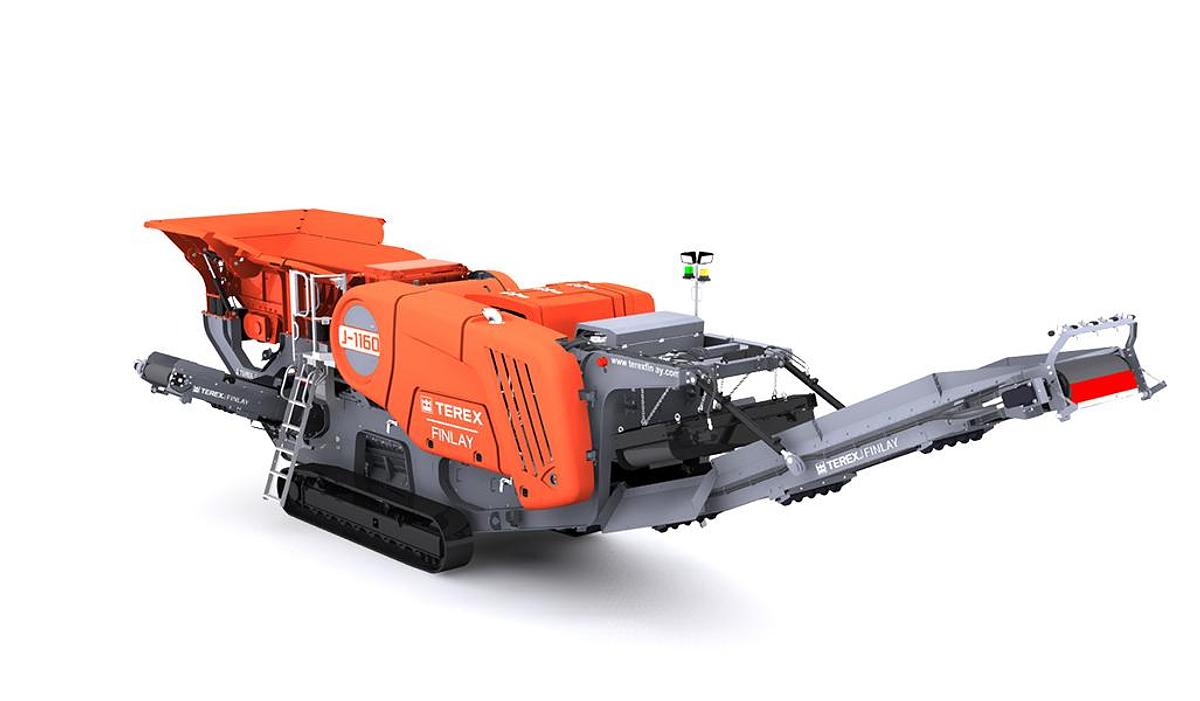

The Finlay J1160 Primary Mobile Jaw Crusher was designed with the customer and operator in mind. The machine has been designed with increased under jaw clearance and all round preventative maintenance and serviceability access. The heart beat of the machine is the renowned and aggressive Terex 1000 x 600mm (40" x 24") jaw crusher with a proven pedigree in recycling, demolition and aggregate production applications. The hydrostatic drive gives the operator the flexibility of variable crushing speed and the ability to run the chamber in reverse in certain applications. Designed to maximize fuel efficiency and deliver one of the lowest cost per ton in the market place the machine is the ideal solution for small to medium sized operators. The robust high performance hydrostatic driven single toggle jaw chamber provides high capacity with large reduction ratios. Features: • Bypass conveyor: Belt Width: 650mm (26"); Working Angle: 22°; Hydraulically folds for transport; Standard Discharge Height: 2.1m (6' 10"); Stockpile capacity: 12m3 (15.7yds3) @ 40° • Hopper and Feeder: Hopper capacity: 5m³ (6.5yd³); Feed height with standard hopper: 3.4m (11' 2"); Feed height with standard hopper and extensions: 3.7m (12' 1"); Vibrating grizzly feeder (VGF); VGF Speed range: variable, 450 to 850 rpm; Hopper extensions hydraulic folding and hydraulic locking • Jaw crusher: Terex chamber single toggle jaw crusher; Inlet width: 1000mm (40"); Inlet gape: 600mm (24"); Under jaw clearance: 540mm nominal; Drive arrangement: Hydrostatic with full reverse crush capability; Maximum Closed Side Settings (CSS): 145mm (5 45/64"); Minimum Closed Side Settings (CSS): 40mm (1 1/2") Demolition and Recycling applications. 50mm (1 31/32") quarry application; Reverse action for clearing blockages; Full hydraulic closed side setting adjust • Main conveyor: Belt Width: 900mm (36"); Working Angle: 25°; Discharge Height: 3.5m (11' 5"); Impact bars and wear resistant liners at feed point; Standard Stockpile capacity: 60m³ (78yd³) @ 40° • Magnetic (optional): Belt Width: 750mm (30"); Drive: Hydraulic • Undercarriage: Shoe Width: 400mm (16"); Dual speed tracking with 'soft start'; Gradeability: 30° Specifications: • Output Potential: 309 US tph (280 tph) • Inlet Opening: 40" x 24" (1,000mm x 600mm) • Transport Width: 8 ft 6 in (2 m 60 cm) • Working Dimensions: Height 12' 9", Width 15' 1", Length 50' 10" (Height 3.9m, Width 4.6m, Length 15.5m) • Transport Length: 51 ft 6 in (15 m 70 cm) • Transport Height: 11 ft 2 in (3 m 50 cm) • Weight: 77,360 lbs with options (35,090 kg with options) • Net Engine Power: Tier 4F / Stage V: CAT C7.1 275 hp Dual Certified (CAT C7.1 205 kW Dual Certified) • Net Engine Power: Stage IIIA Constant Speed: John Deere 6,068 284 hp (John Deere 6,068 212 kW)
