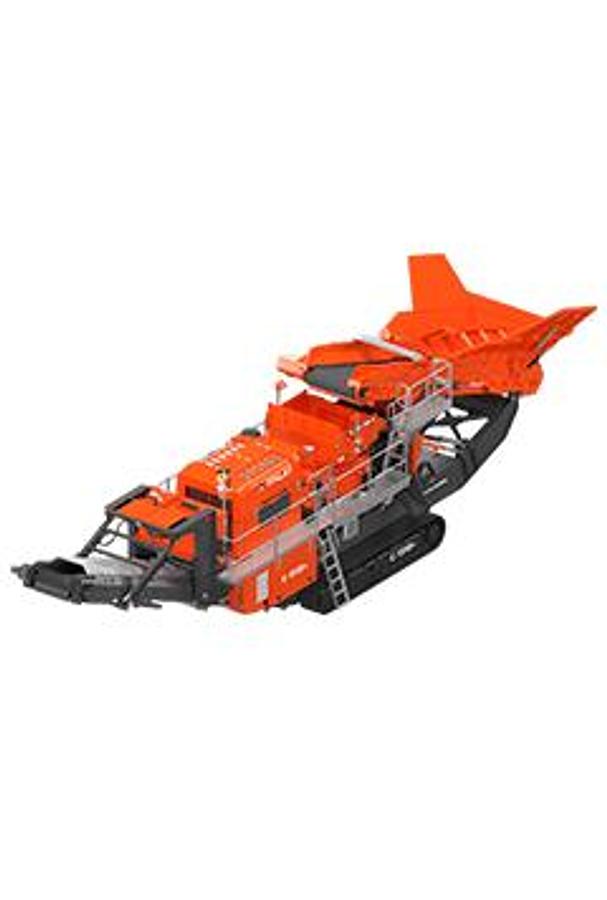

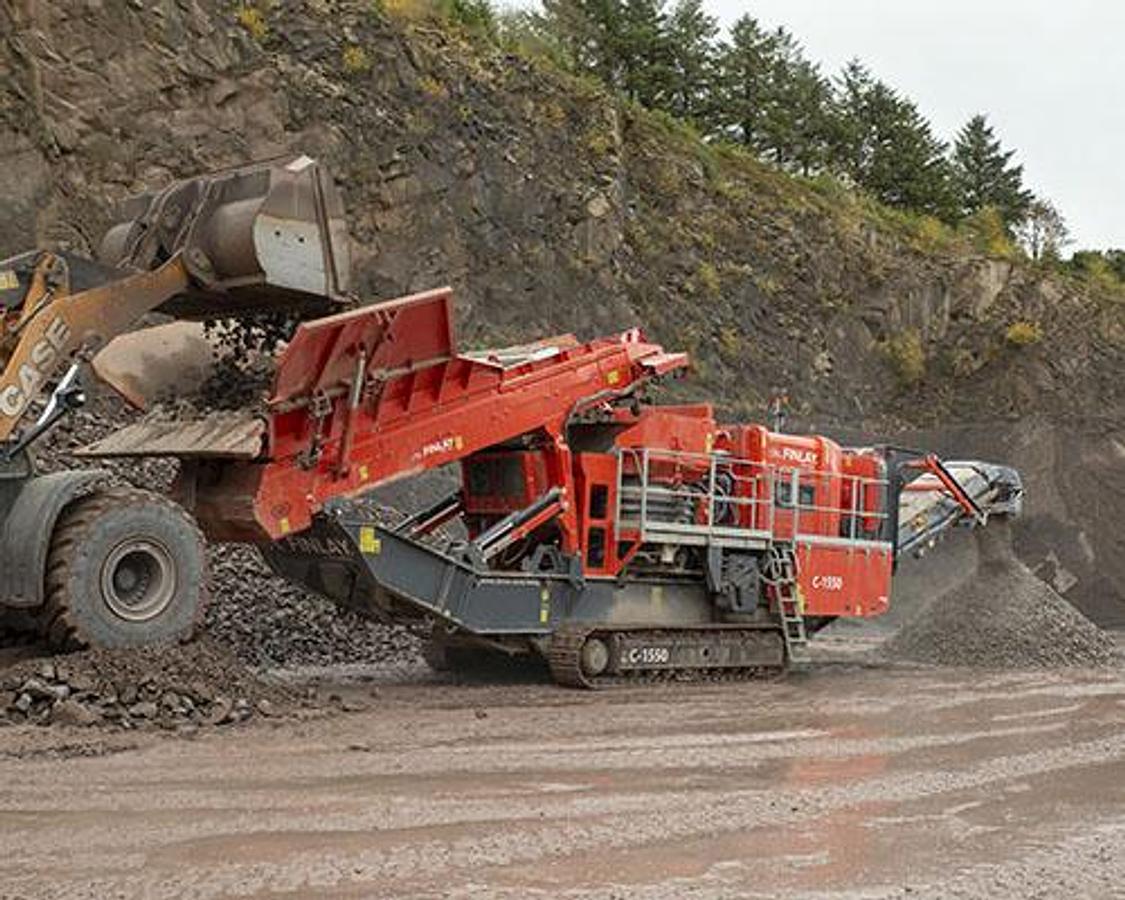

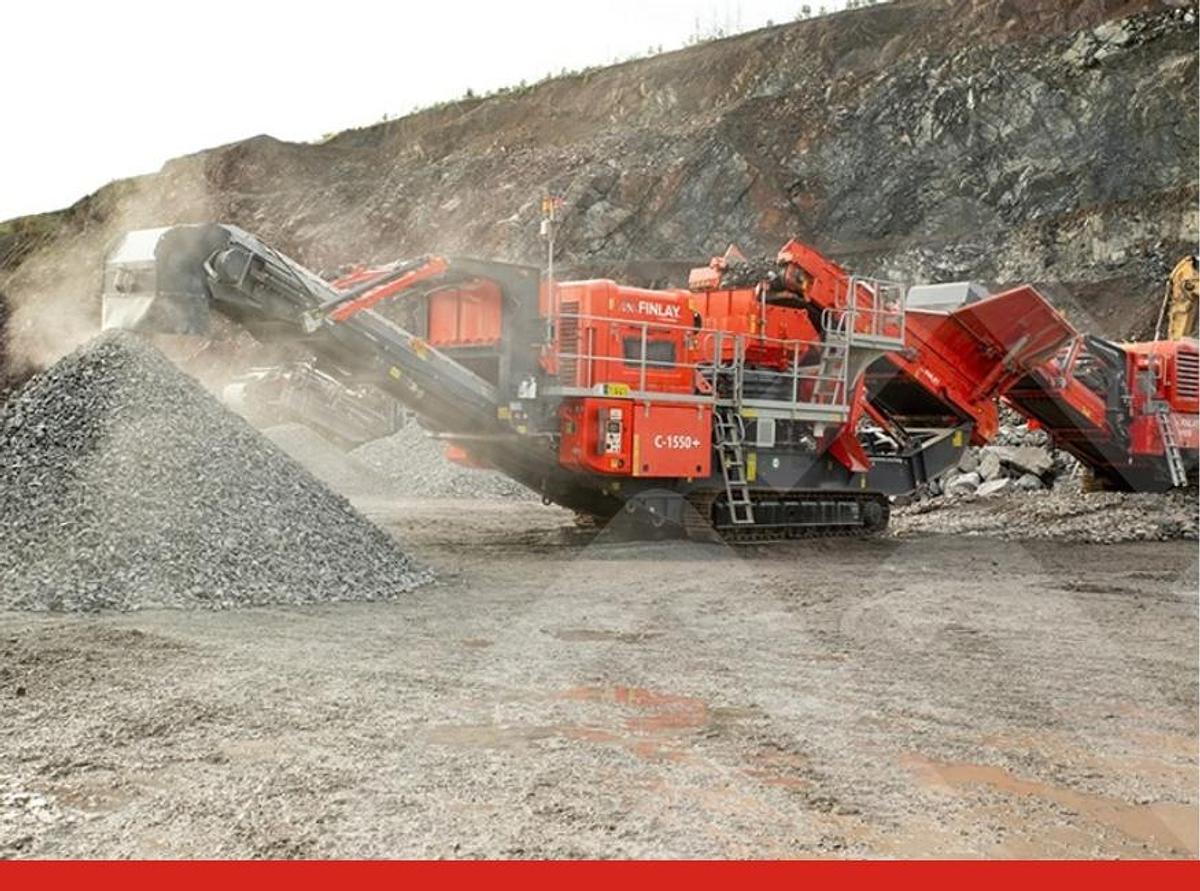

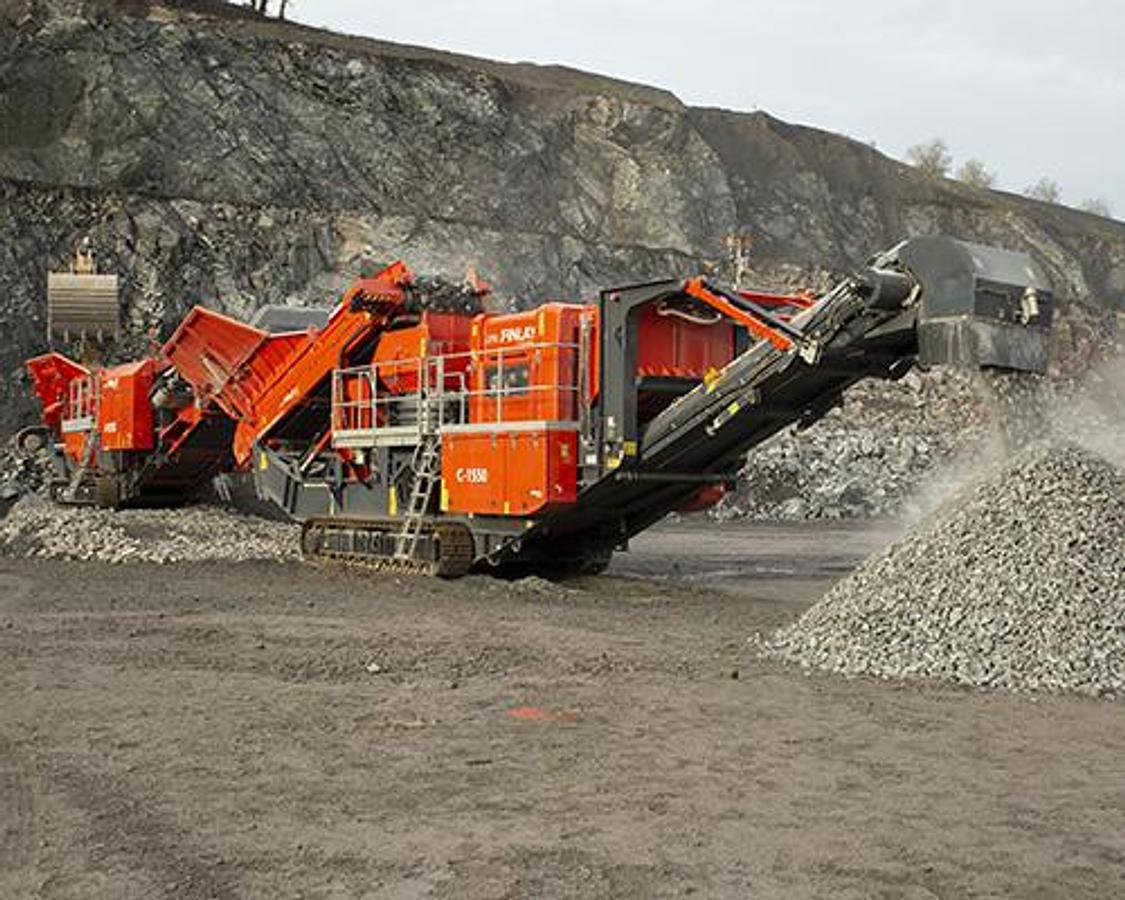

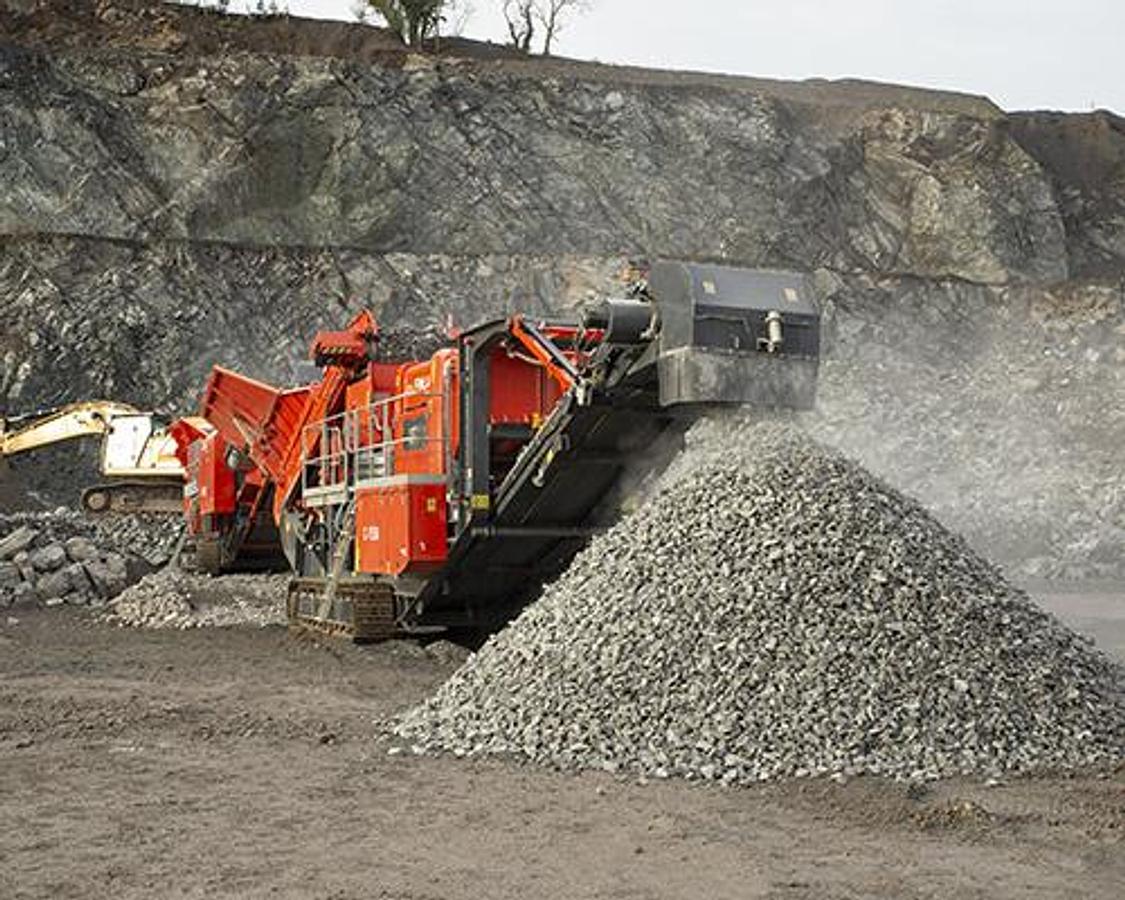

The Finlay C1550+ Tracked Cone Crusher is a high capacity and aggressive mobile cone crusher for the surface ore mining and aggregate industries. This efficient and productive machine incorporates the proven Terex 1300 cone crusher with direct variable clutch drive, automatic tramp relief and hydraulic closed side setting (CSS) adjustment. The large hopper/feeder has an automated metal detection and a purge system to protect the cone and reduce downtime by removing metal contaminants via the purge chute. Features: • Hopper and Feeder: Feed height: 3.07m (10' 1"); Feed height with optional hopper extensions: 3.54m (11' 7"); Hopper Width at rear: 2.25m (7' 5"); Hopper Width at rear with optional hopper extensions: 4.1m (13' 6") • Metal purge system: Metal purge chute standard • Cone chamber: Terex TC1300x 1300mm (52") cone chamber; Cone Counter Shaft Speed Range: 1342 to 1461 rpm; Variable speed control settings for producing a quality aggregate; Drive arrangement: Direct drive via clutch and v belts; 'On the fly' hydraulically adjustable closed side setting with monitoring system • Main conveyor: Belt Width: 1.1m (44"); Belt Spec: Plain; Speed: 105 to 120 m/min (344 to 393 ft/min) • Undercarriage: Shoe Width: 500mm (20"); Sprocket Centres: 3.80m (12' 6"); Tracking Speed: 1.1 km/h; Gradeability: 25° Specifications: • Output Potential: 551 US tph (500 tph) • Net Engine Power: Tier 4F / Stage IV: Scania DC13 550 hp (Scania DC13 405 kW) • Net Engine Power: Stage V: Scania DC13 550 hp (Scania DC13 405 kW) • Net Engine Power: Tier 3 / Stage IIIA: CAT C15 540 hp (CAT C15 403 kW) • Transport Width: 9 ft 10 in (3 m) • Cone Head Diameter: 52 in (1,300 mm) • Working Dimensions: Height 16', Width 12' 10", Length 55' 1" (Height 4.89m, Width 3.92m, Length 16.8m) • Transport Length: 58 ft 9 in (17 m 92 cm) • Transport Height: 12 ft 6 in (3 m 80 cm) • Weight: 110,782 lbs with options (50,250 kg with options)
