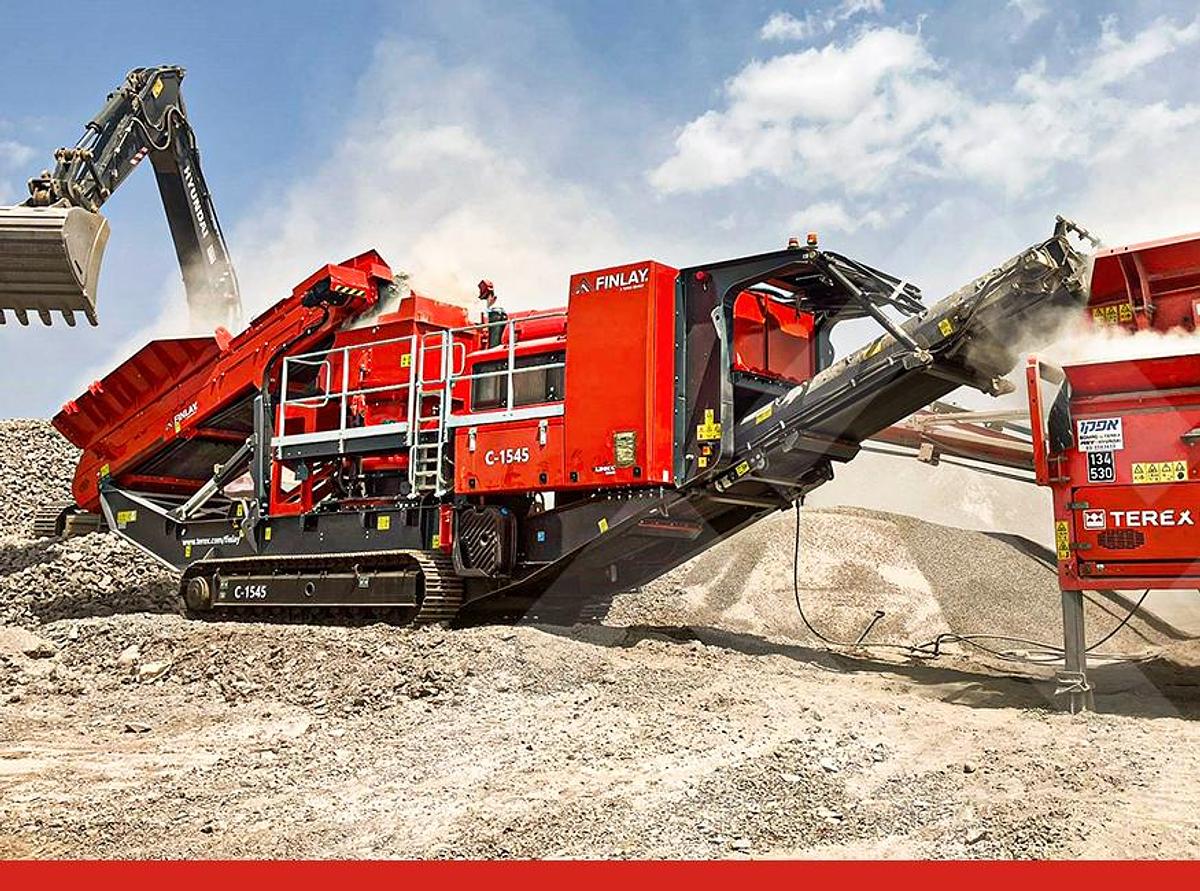

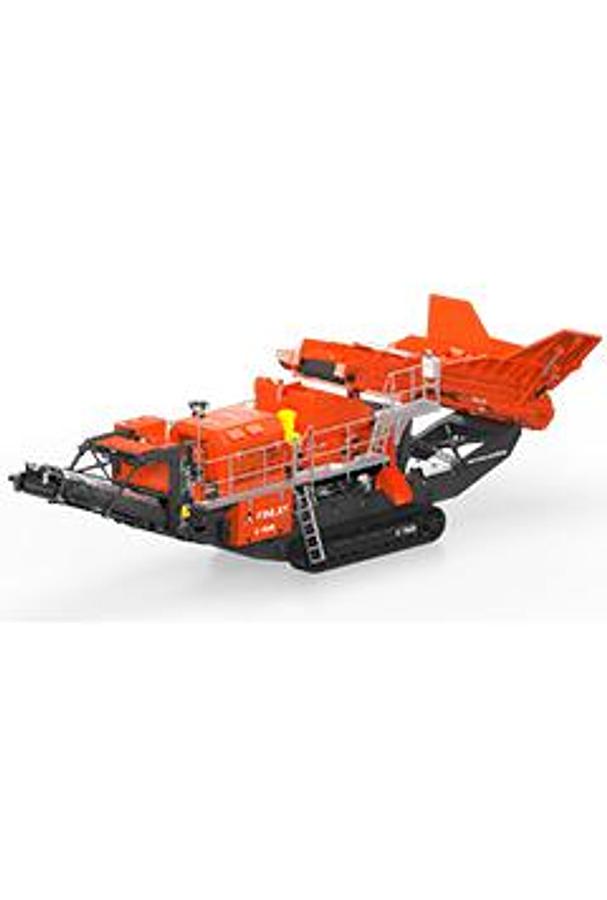

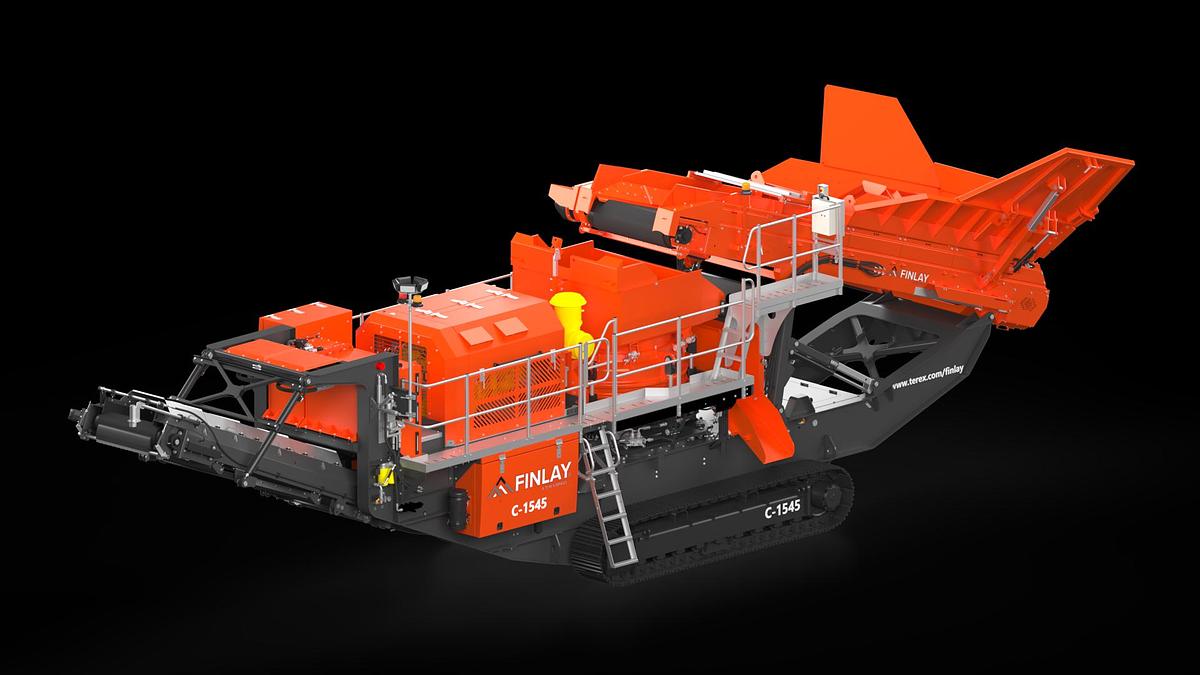

The Finlay C1545 is a high capacity and aggressive mobile cone crusher that consistently provides high output capacity and a product with excellent cubicity. This efficient and productive machine incorporates the Finlay 1150 cone crusher driven by direct clutch drive with variable speed, automatic tramp relief and hydraulic closed side setting (CSS) adjustment.The large hopper/feeder has a metal detection and a purge system to protect the cone and reduce downtime by removing metal contaminants via the purge chute. Additional benefits include, rapid set up time, ease of maintenance and advanced electronic control system. Features: • Hopper and Feeder: Hopper capacity: 6m³ (7.8yd³); Feed height: 3.0m (9' 10"); Feed height with optional hopper extensions: 3.22m (10' 7"); Hopper Width at rear: 2.27m (7' 5"); Hopper Width at rear with optional hopper extensions: 4.12m (13' 6") • Metal Detection System • Cone Chamber: Terex 1150mm (45") cone chamber; Variable speed control settings for producing a quality aggregate; Drive arrangement: Direct drive via clutch and v belts u 'On the fly' hydraulically adjustable closed side setting with monitoring system; Mantle/concave wear indicator • Undercarriage: Shoe Width: 500mm (20"); Tracking Speed: 1.1 km/h; Gradeability: 25° • Main Conveyor: Belt Width: 1.0m (40"); Belt Spec: Plain; Discharge Height: 3.26m (10' 8") • T link Telematics Specifications: • Transport Length: 55 ft 5 in (16 m 90 cm) • Transport Height: 11 ft 10 in (3 m 60 cm) • Cone Head Diameter: 45 in (1,150 mm) • Weight: 95,769 lbs with options (43,440 kg with options) • Working Dimensions: Height 15' 5", Width 14' 5", Length 53' 10" (Height 4.7m, Width 4.4m, Length 16.4m) • Transport Width: 9 ft 10 in (3 m) • Net Engine Power: Tier 3 / Stage IIIA: CAT C13 Acert 440 hp (CAT C13 Acert 328 kW) • Net Engine Power: Tier 4F / Stage IV: Scania DC13 450 hp (Scania DC13 331 kW) • Net Engine Power: Stage V: Scania DC13 450 hp (Scania DC13 331 kW) • Output Potential: 331 US tph (300 tph)
