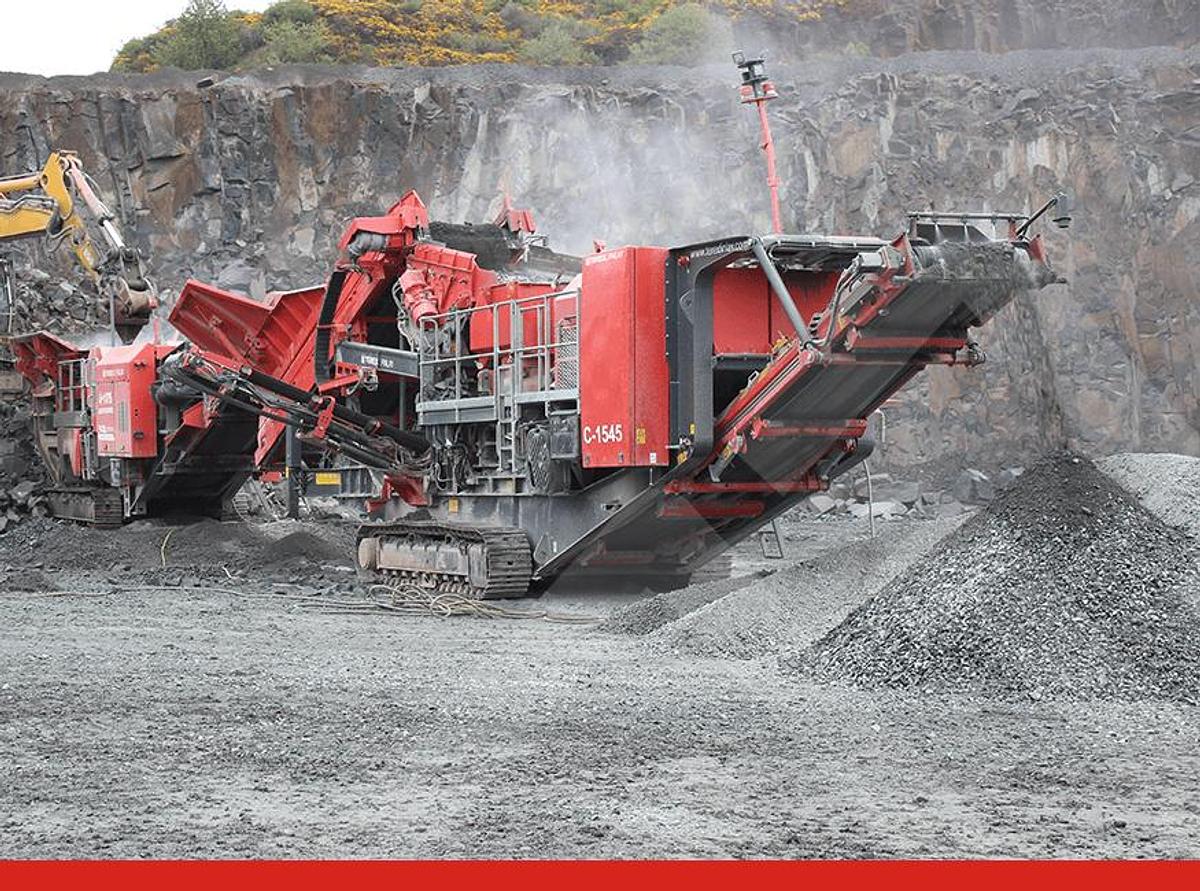

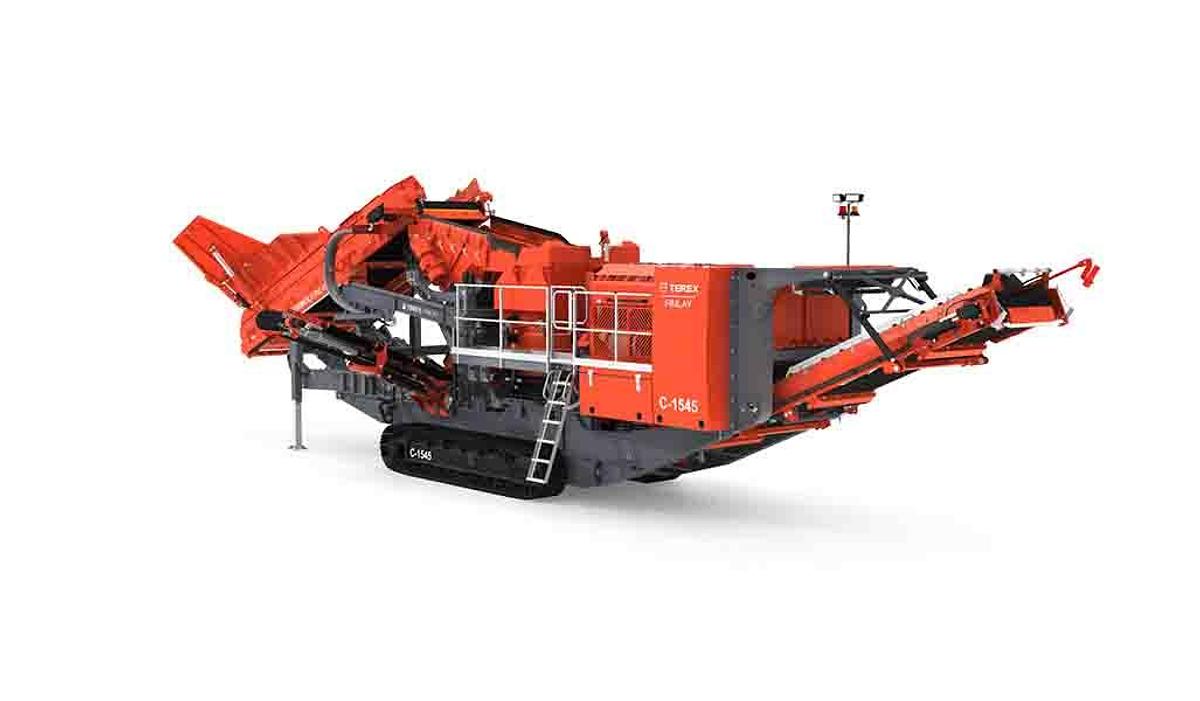

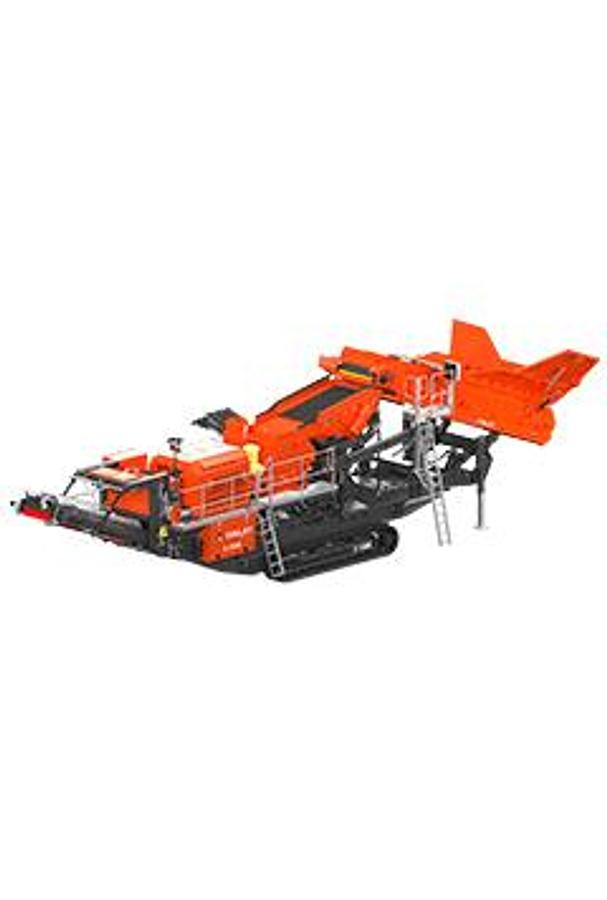

The Finlay C1545P Portable Rock Crusher incorporates the Finlay 1150 cone crusher, driven through direct clutch drive with variable speed, with automatic tramp relief and hydraulic closed side setting (CSS) adjustment. The machine features an on board forward facing prescreen module with a 2.1m x 1.52m (7' x 5') single deck screen for removal or bypass of fines from the feed material. The fines material can be discharged from the machine using the optional on board bypass conveyor or reintroduced onto the main product conveyor. Both methods improve the overall plant throughput capacity, product flexibility and liner wear reduction. Features: • Hopper and feeder: Hopper capacity: 6m³ (7.8yd³); Hopper Width at rear: 2.25m (7' 5"); Hopper Width at rear with optional hopper extensions: 4.1m (13' 6"); Belt Width: 1.3m (51"); Crash bar fitted to reduce impact load on feed conveyor • Prescreen module: The prescreen module will maximise production through the cone by removing as much fine material as possible before it entres the cone chamber. This will also reduce wear within the cone camber. Prescreen can be bypassed and material feed directly into cone if required.; Top Deck: 2.1m x 1.5m (7' x 5'); Total screening area: 3.15m (35 ft2 ) • Main conveyor: Belt Width: 1.0m (40"); Discharge Height: 3.3m (10' 10"); Full length skirting to head drum; Stockpile capacity: 51.1m3 (66.8yds3) @ 40° • Cone chamber: Variable speed control settings for producing a quality aggregate.; Unrestricted feed opening reduces blockages, bridging and maximizes output 􀁘􀀃'On the fly' hydraulically adjustable closed side setting with monitoring system.; Hydraulic overload protection with automatic reset. This allows the upper frame to lift up, to permit the passage of tramp iron and other un crushable material. The system then automatically returns the upper frame to its original position.; Dust suppression fitted at cone outlet. • Undercarriage: Shoe Width: 500mm (20"); Sprocket Centres: 3.80m (12' 6"); Tracking Speed: 1.1 km/h; Gradeability: 25° Specifications: • Net Engine Power: Tier 4F / Stage IV: Scania DC13 450 hp (Scania DC13 331 kW) • Net Engine Power: Stage V: Scania DC13 450 hp (Scania DC13 331 kW) • Net Engine Power: Tier 3 / Stage IIIA: CAT C13 Acert 440 hp (CAT C13 Acert 328 kW) • Transport Height: 12 ft 6 in (3 m 60 cm) • Weight: 113,935 lbs with options (51,680 kg with options) • Transport Width: 9 ft 10 in (3 m) • Working Dimensions: Height 16' 9", Width 21' 1", Length 62' 8" (Height 5.1m, Width 6.65m, Length 19.1m) • Cone Head Diameter: 45 in (1,150 mm) • Transport Length: 58 ft 1 in (17 m 70 cm) • Output Potential: 397 US tph (360 tph)
