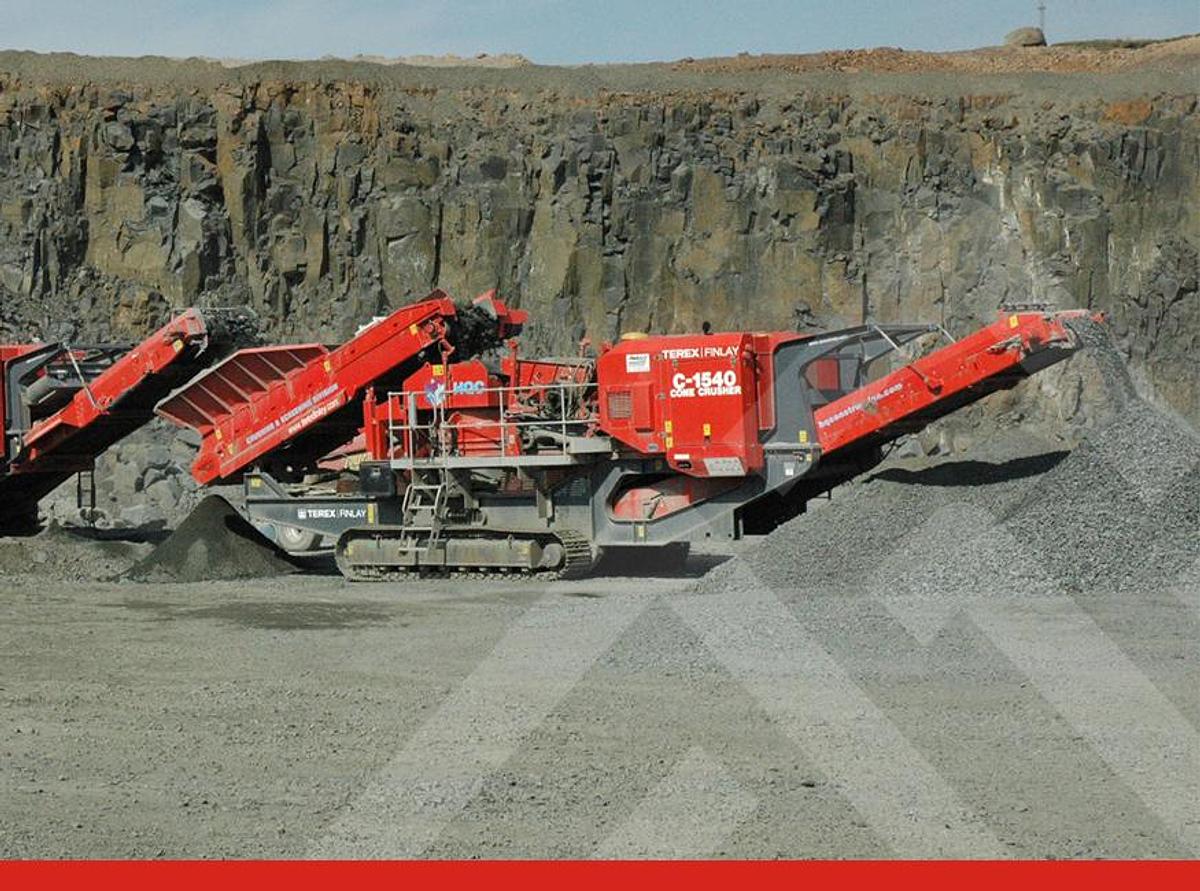

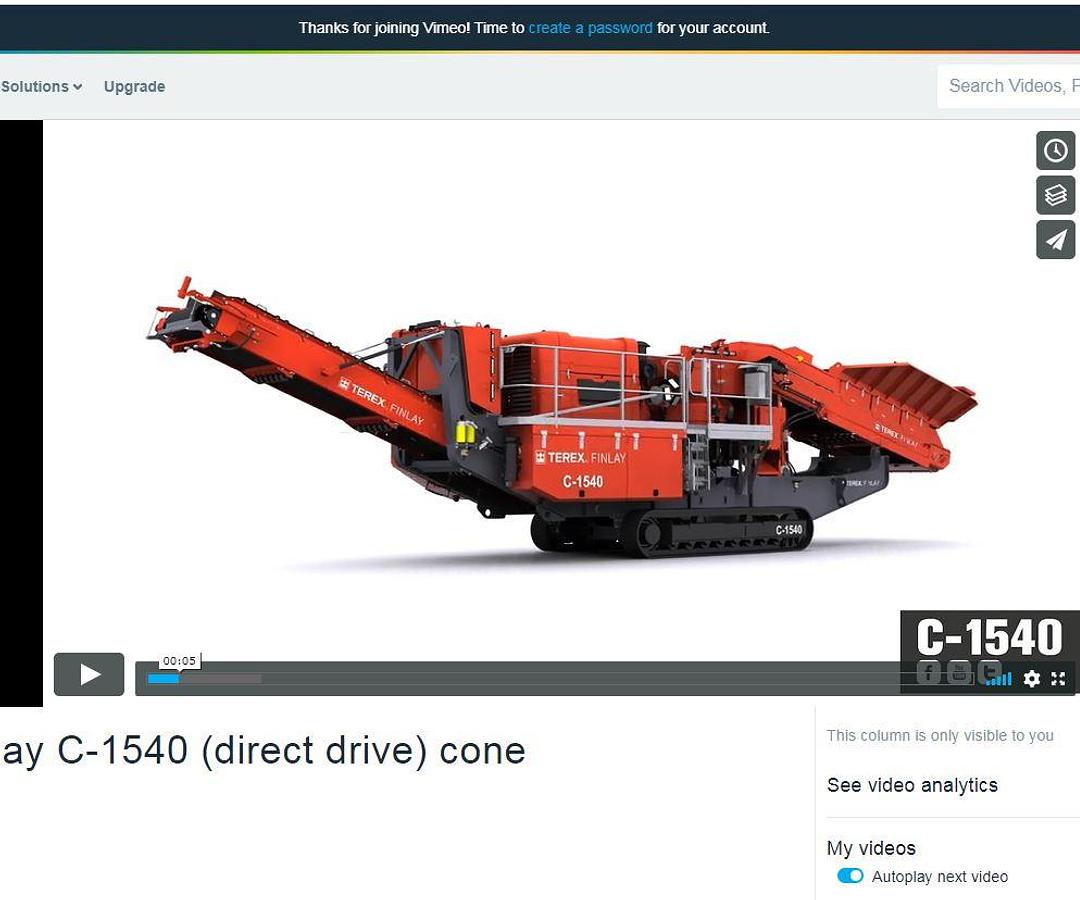

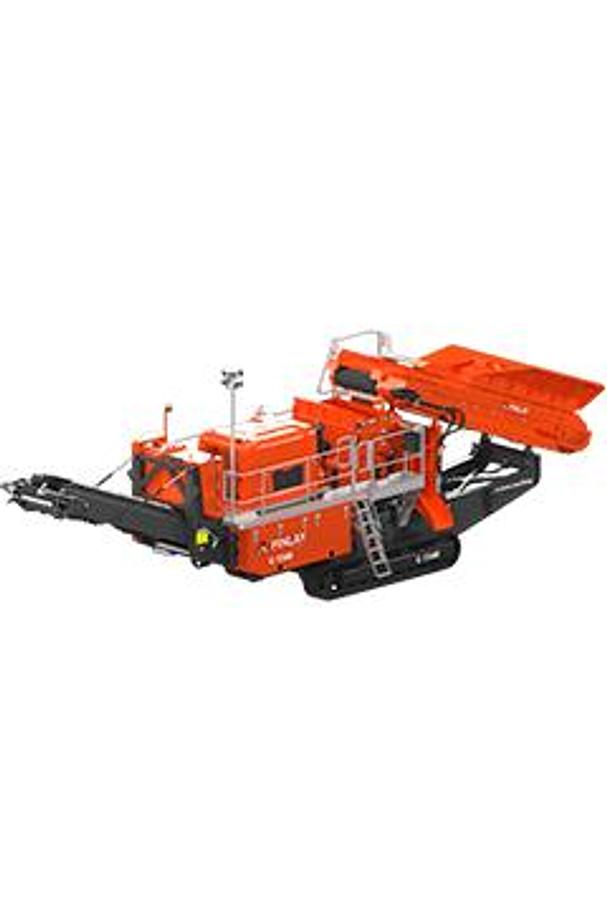

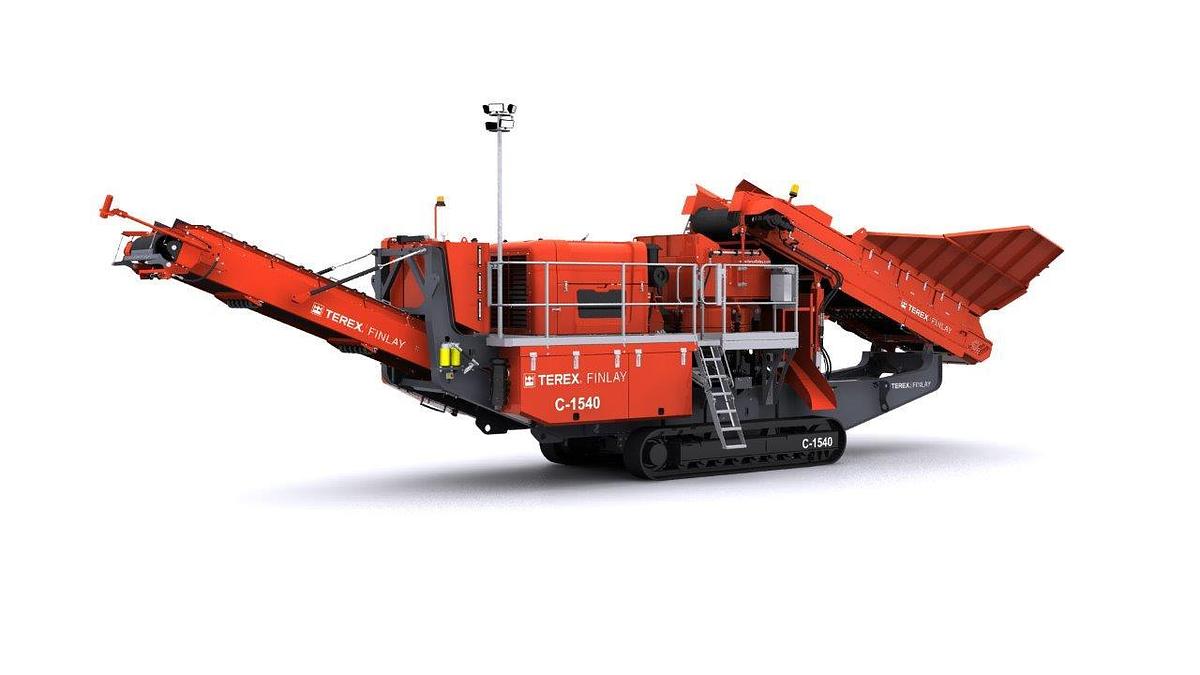

The fuel efficient direct drive Finlay C1540 Cone Crusher is the optimum machine for medium sized producers and contract crushing operators. This efficient and productive machine features the proven Finlay 1000 cone crusher that is choke fed with integrated level sensor, automatic tramp relief and hydraulic closed side setting (CSS) adjustment.The large hopper/feeder has automated metal detection and a purge system to protect the cone and reduce downtime by removing metal contaminants via the purge chute. Additional benefits include, rapid set up time, ease of maintenance, high reduction ratio, high output capacity and advanced electronic control system. Features: • Hopper and Feeder: Capacity: 5m³ (6.5yd³); Feed height: 2.8m (9' 2"); Hopper Width at rear: 2.1m (6' 10"); Crash bar fitted to reduce impact load on feed conveyor; Drop down rear door for auxiliary crusher feed; Metal detection system with 'auto stop' feature is suitable for detecting steel and manganese steel contained in the feed material • Cone Chamber: Terex 1000mm (40") cone chamber; Cone counter shaft Speed Range: 915 to 1010 rpm; Variable speed control settings for producing a quality aggregate; On the fly' hydraulically adjustable closed side setting with monitoring system • Main Conveyor: Belt: 900mm (36"); Working Angle: 21°; Impact bars and wear resistant liners at feed point; Discharge Height: 3.3m (10' 10"); Standard Stockpile capacity: 53.5m3 (70yds3) 40° • Undercarriage: Shoe Width: 400mm (16"); Tracking Speed: 1.3 km/h; Gradeability: 25° • Metal detector and contaminants purge chute: Metal detection system on feed belt with 'auto stop' protects the cone from tramp metal and the purge system removes contaminants from the machine. Specifications: • Net Engine Power: Tier 3 / Stage IIIA: CAT C9.3B 335 hp (CAT C9.3B 250 kW) • Net Engine Power: Stage V: Scania DC09 350 hp (Scania DC09 257 kW) • Net Engine Power: Tier 4 Final: Scania DC09 350 hp (Scania DC09 257 kW) • Output Potential: 254 US tph (230 tph) • Cone Head Diameter: 40 in (1,000 mm) • Transport Width: 9 ft (2 m 75 cm) • Transport Height: 11 ft 4 in (3 m 45 cm) • Working Dimensions: Height 14' 3", Width 12' 9", Length 48' 11" (Height 4.35m, Width 3.9m, Length 14.9m) • Transport Length: 51 ft (15 m 55 cm) • Weight: 72,973 lbs with options (33,100 kg with options)
