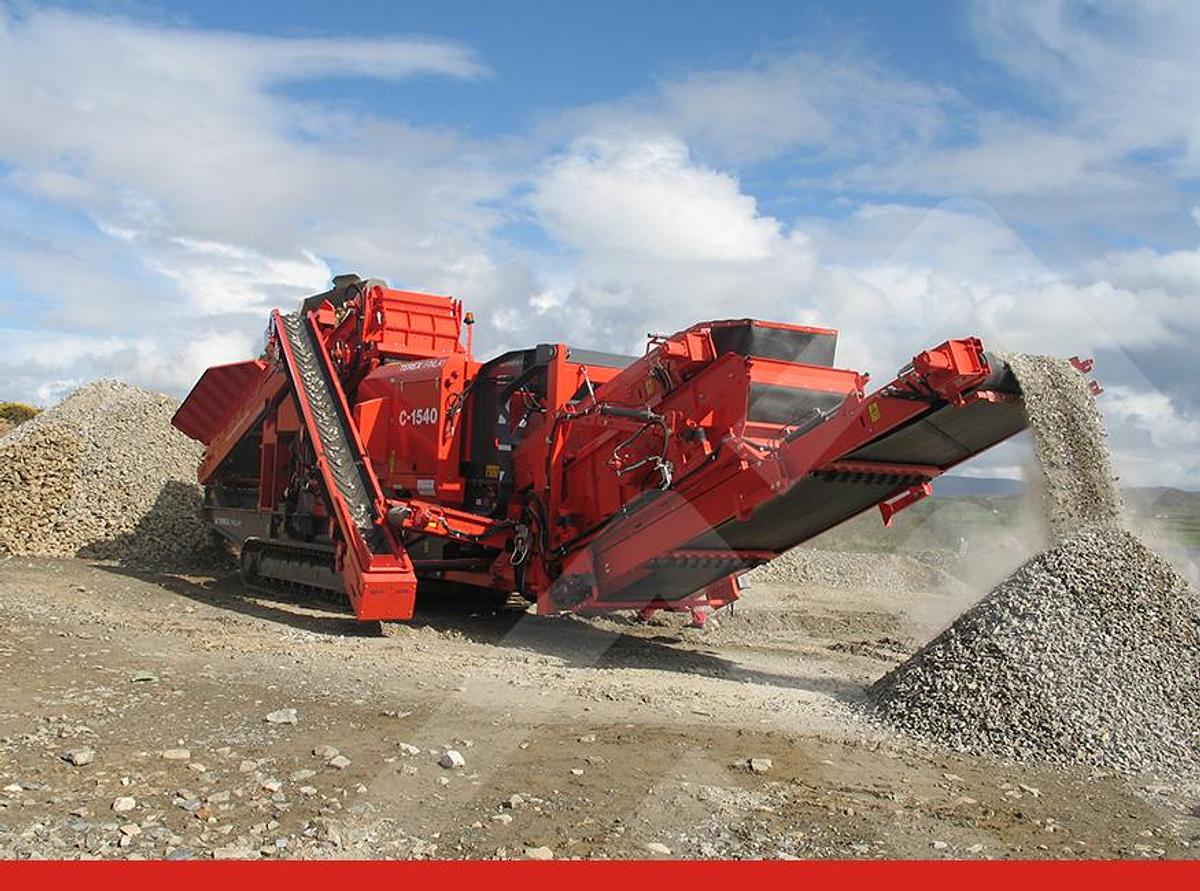

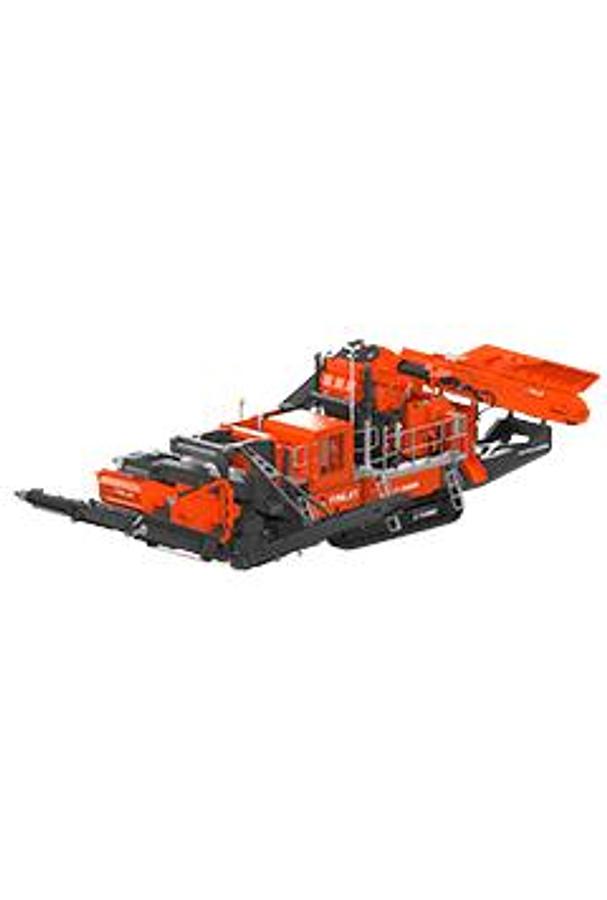

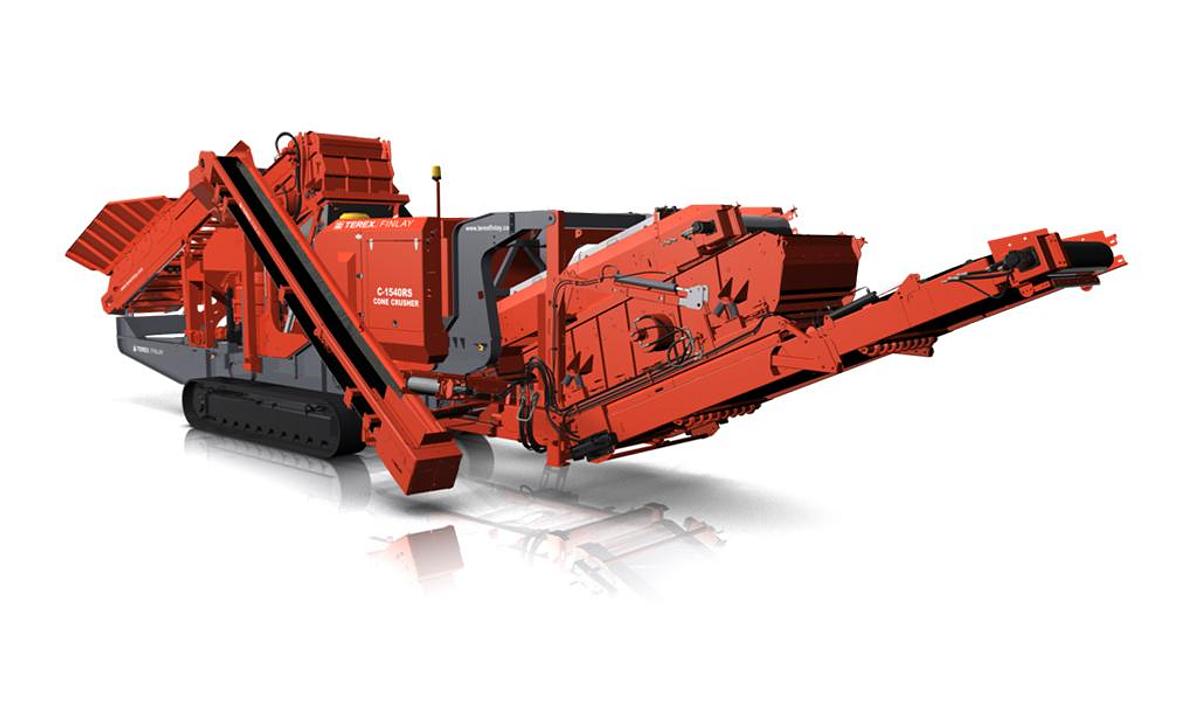

The Finlay C1540RS tracked cone crusher provides the versatility of a crushing and screening plant on one machine. Based on the Finlay C1540 this machine features an innovative on board recirculating system and detachable sizing screen. If recirculation and sizing of materials is not required the sizing screen can be quickly detached from the machine without the need for lifting equipment. Features: • Hopper and feeder: Hopper capacity: 5m³ (6.5yd³); Hopper Width at rear: 2.45m (8'); Hopper Width at rear with optional hopper extensions: 3.7m (12' 2"); Working Angle: 24° (Prescreen feed), 21° (Direct feed); Drop down rear door for auxiliary crusher feed; Crash bar fitted to reduce impact load on feed conveyor • Prescreen module: Top deck: 1.83m x 1.22m (6' x 4'); The prescreen module will maximise production through the cone by removing as much fine material as possible before it enters the cone chamber. This will also reduce wear within the cone chamber • Fines conveyor: Belt width: 1.4m (55"); Working Angle: 19°, 22°; Hydraulically folds for transport; Discharge Height: 3.0m (9' 10"); Stockpile capacity: 44.3m³ (58yd³) @ 40° • Screenbox: Top deck: 3.66m x 1.53m (12' x 5'); Bottom deck: 3.05m x 1. 53m (10' x 5'); Total screening area: 10.1m² (110ft²); Screen Angle: 19°, 22° • Re circulating conveyor: Belt width: 500mm (20"); Belt spec: Chevron; Working Angle: 30°; Hydraulically folds for transport • Cone chamber: Terex 1000mm (40") cone chamber; Variable speed control settings for producing a quality aggregate; 'On the fly' hydraulically adjustable closed side setting with monitoring system • Undercarriage: Shoe Width: 500mm (20"); Tracking Speed: 0.9 km/h; Gradeability: 25° • Detachable screenbox: Quick and easy detachable screen and fines conveyor for open circuit crushing.; The optional stacking conveyor in conjunction with the optional lower deck screen, produces a 2nd specified product. Specifications: • Net Engine Power: Tier 3 / Stage IIIA: CAT C13 Acert 440 hp (CAT C13 Acert 328 kW) • Net Engine Power: Tier 4F / Stage IV: Scania DC13 450 hp (Scania DC13 331 kW) • Net Engine Power: Stage V: Scania DC09 400 hp (Scania DC09 294 KW) • Working Dimensions: Height 15' 7", Width 15' 5", Length 62' 4" (Height 4.75m, Width 4.7m, Length 19m) • Transport Height: 11 ft 6 in (3 m 50 cm) • Weight: 112,700 lbs inc. Options (51,120 kg with options) • Cone Head Diameter: 40 in (1,000 mm) • Transport Width: 10 ft 2 in (3 m 10 cm) • Transport Length: 61 ft 6 in (18 m 76 cm) • Output Potential: 254 US tph (230 tph)
