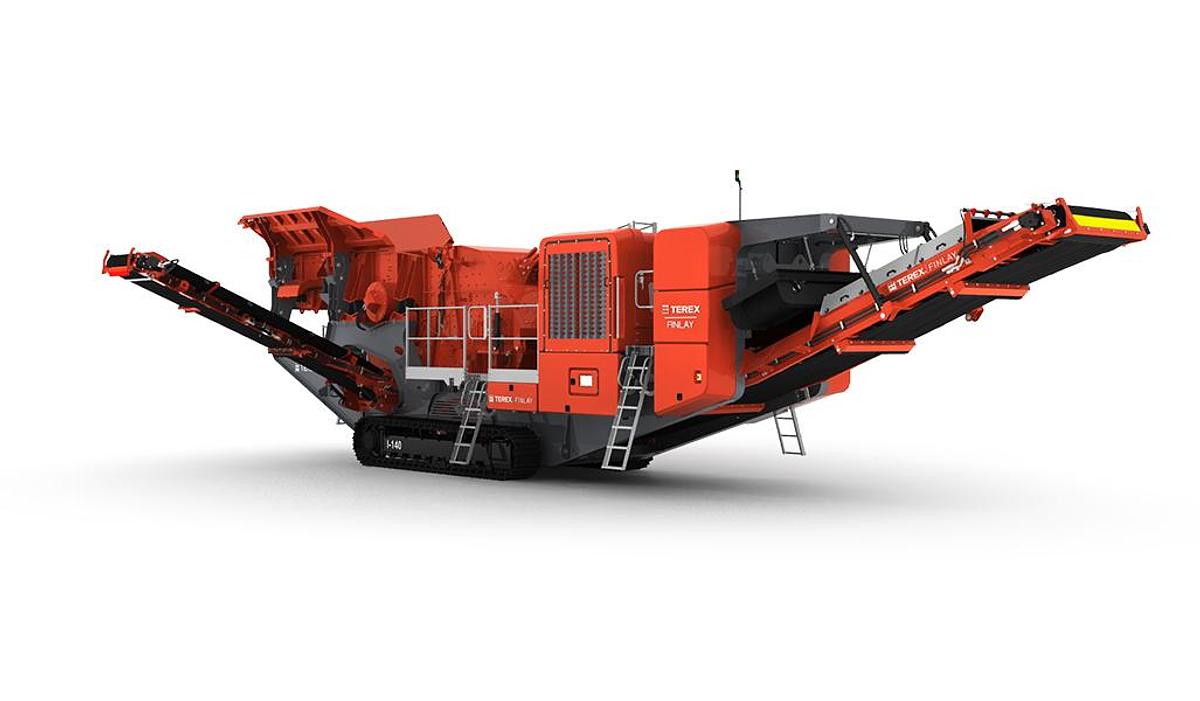

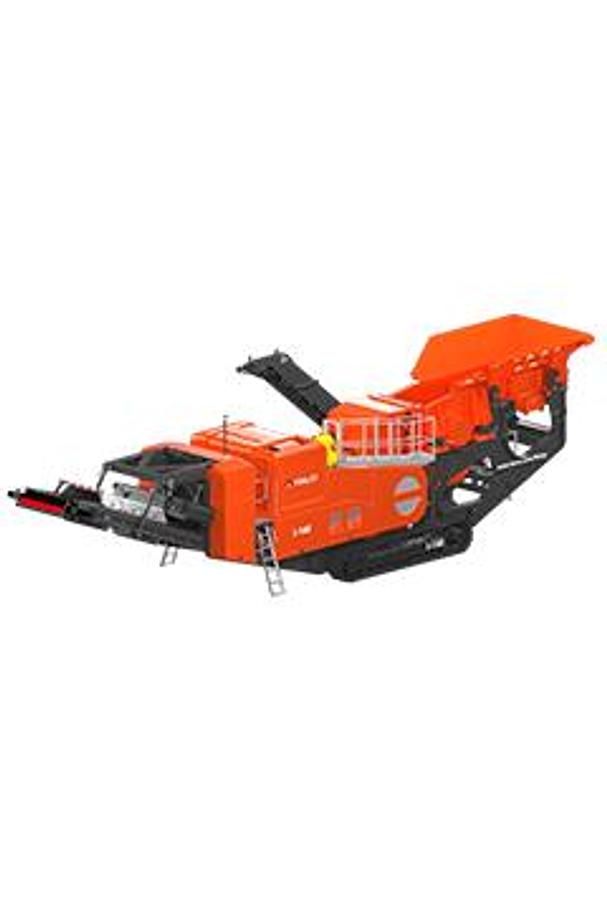

The Finlay I140 tracked impact crusher shapes the future through innovation. This new generation impact crusher with redefined style and advanced technological design gives improved material flow and production capabilities in quarrying, mining, demolition and recycling applications. Incorporating the a Terex CR032 impact chamber with direct drive and advanced electronic control system the machine provides operators with high material reduction ratios and produces a consistent product shape. The high productivity, ease of maintenance and operation makes the machine an ideal solution for large scale producers and contact crushing operators.Key Features: The ease of material flow through the machine has greatly improved. Features: • Main Conveyor: Belt Width: 1.3m (52"); Discharge Height: 3.5m (11' 5"); Discharge Height: 3.76m (12' 4"); Stockpile capacity: 69m³ (90yd³) • Impact Chamber: Rotor diameter: Ø1270mm (50"); Rotor width: 1220mm (48.8"); VGF Inlet opening: 1.16m x 865mm (45.6" x 34"); Prescreen Inlet opening: 1.17m x 835mm (46" x 33"); Direct drive via 'V' belts • Hopper and Feeder: Fixed Hopper with Optional hydraulically folding and locking extensions; VGF Hopper capacity, No Ext: 6m³ (7.85yd³); VGF Hopper capacity, With Ext: 9m³ (11.8yd³); Hopper Extensions: Optional with hydraulic folding & locking mechanism • Bypass Conveyor: Belt Width: 800mm (32"); Discharge Height: 3.38m (11' 1"); Stockpile capacity: 64m³ (83.7yd³); Hydraulically folds for transport Specifications: • Transport Length: 60 ft 5 in (18 m 43 cm) • Rotor Size: Ø50" x 48" (Ø1,270mm x 1,220mm) • Working Dimensions: Height 15' 0", Width 24' 2", Length 58' 5" (Height 4.6m, Width 7.36m, Length 17.8m) • Transport Width: 9 ft 10 in (3 m) • Transport Height: 12 ft 8 in (3 m 80 cm) • Weight: 111,818 lbs with options (50,720 kg with options) • Output Potential: 551 US tph (500 tph) • Net Engine Power: Tier 4F / Stage IV: Scania DC13 500 hp (Scania DC13 368 kW) • Net Engine Power: Stage V: Scania DC13 500 hp (Scania DC13 368 kW) • Net Engine Power: Tier 3 / Stage IIIA: CAT C15 540 hp (CAT C15 403 kW)
