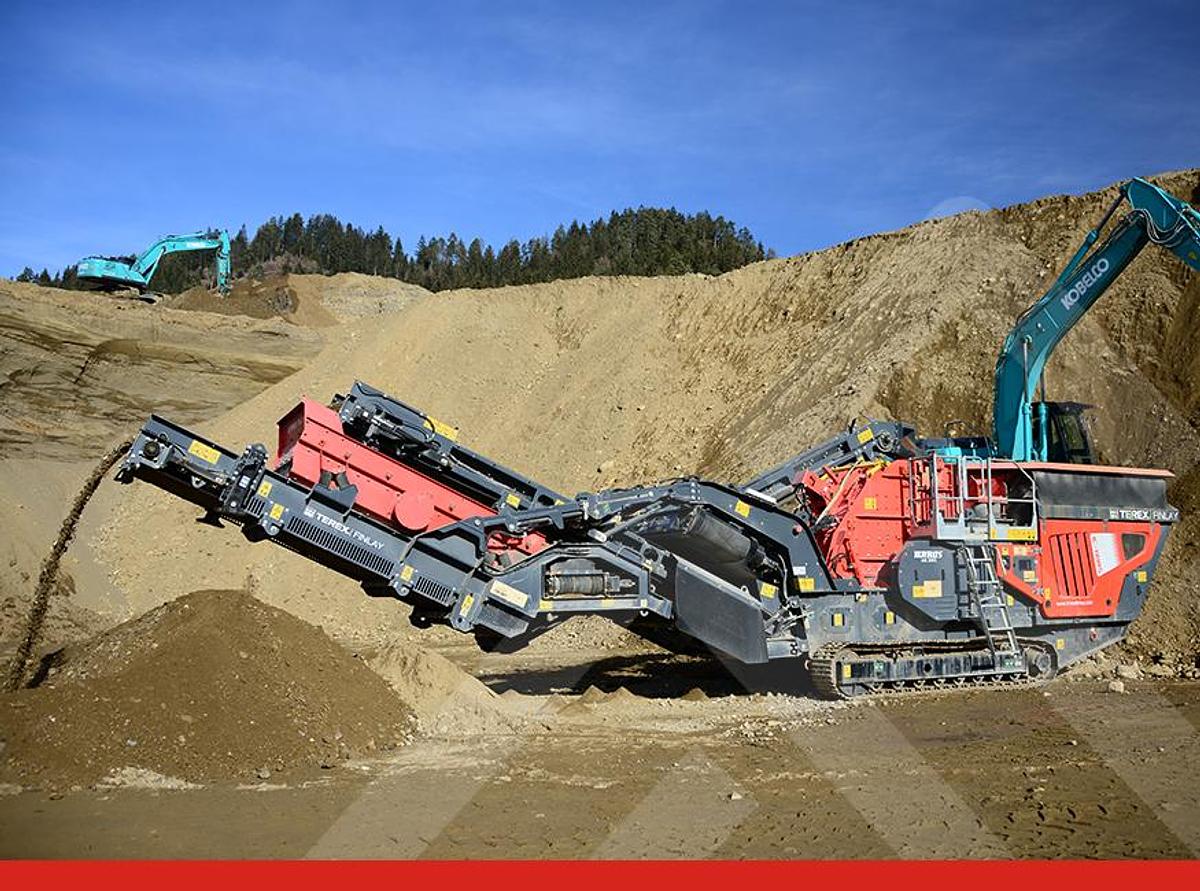

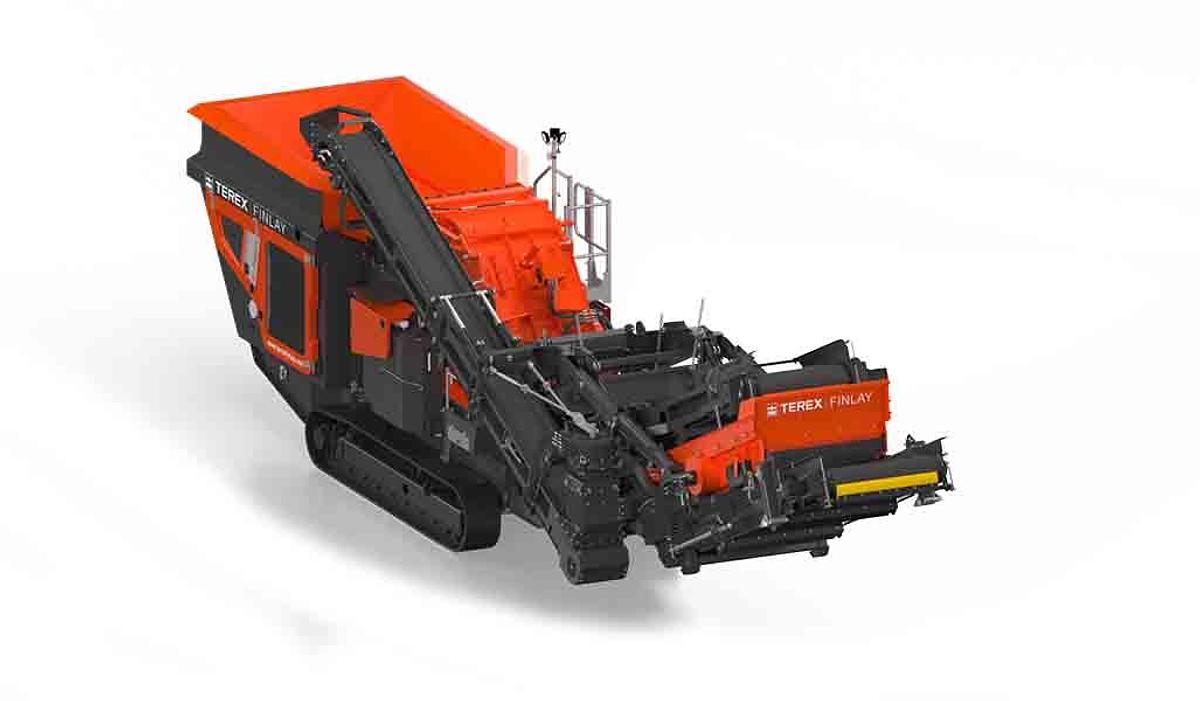

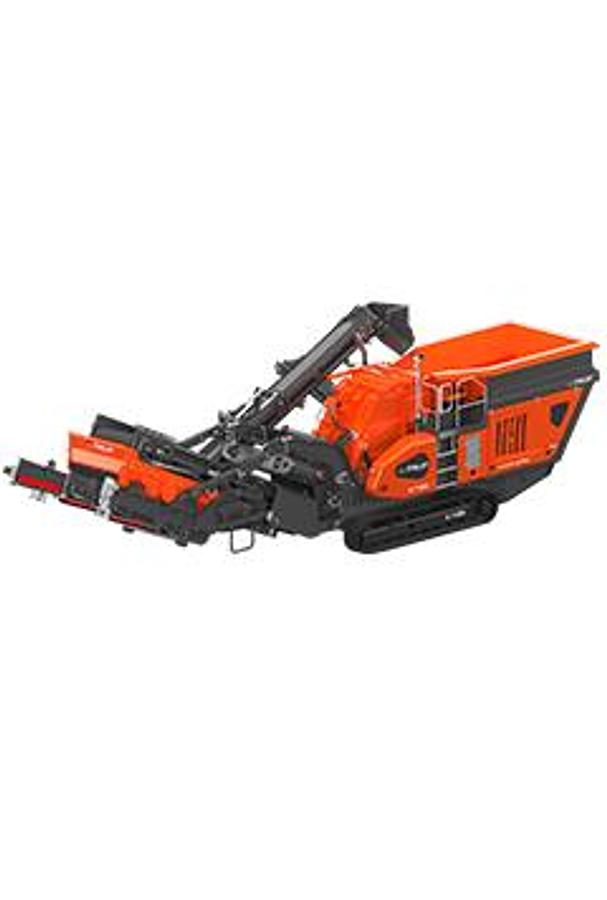

The Finlay IC110RS Tracked Compact Crusher provides the versatility of a compact crushing and screening plant on one mobile platform for quarrying, construction and demolition debris, reinforced concrete and asphalt recycling applications. The machine features a direct drive Ø1034 x 1000mm (Ø41.5" x 40") horizontal impact crusher with variable speed control to give operators unprecedented levels of fuel efficiency and productivity. A key feature of this Tracked Compact Crusher is the onboard 2.74m x 1.5m (9' x 5') single deck screen. Features: • HOPPER and FEEDER: Capacity: 3.3m³ (4.3yd³); Feed height: 3.13m (10' 3"); Width at rear: 2m (6' 7"); Screen area: 1500 x 950mm (5' x 3' 2") • Screenbox: Top deck: 2.74m x 1.5m (9' x 5') single deck screen; Screen Angle: 25; Total screening area: 4.11m² (45ft²) • Fines Conveyor: Belt Width: 1200mm (47"); Discharge Height: 3m (9' 10") • Main Conveyor: Belt Width: 1000mm (40"); Full length main conveyor with impact bars at feed point; Main conveyor can be lowered hydraulically for maintenance; Discharge Height: 3.42m (11' 3") • Impact Chamber: Rotor diamater: Ø1034mm (41.5"); Rotor width: 1000mm (40"); Inlet opening: 1030mm x 790mm (41" x 31"); Rotor speed Range: 630 to 800RPM; Drive arrangement: Direct drive via clutch • Undercarriage: Belt Width: 400mm (16"); Gradeability: 30°; Track Speed: 2 speed motor as standard • Re Circulating Conveyor: Belt Width: 500mm (20"); Discharge Height: 3.8m (12' 6") discharge height in stockpile mode; Conveyor can be hydraulically rotated between recirculation mode and stockpile more Specifications: • Weight: 77,492 lbs with options (35,150 kg with options) • Rotor Size: Ø41.5" x 40" (Ø1,034mm x 1,000mm) • Transport Length: 43 ft 9 in (13 m 30 cm) • Transport Height: 9 ft 10 in (3 m) • Transport Width: 8 ft 4 in (2 m 55 cm) • Net Engine Power: Tier 3: Volvo D8 315 hp (Volvo D8 235 kW) • Net Engine Power: Stage V: Volvo D8 315 hp (Volvo D8 235 kW) • Net Engine Power: Tier 4F / Stage IV: Volvo D8 315 hp (Volvo D8 235 kW) • Output Potential: 320 US tph (290 tph)
