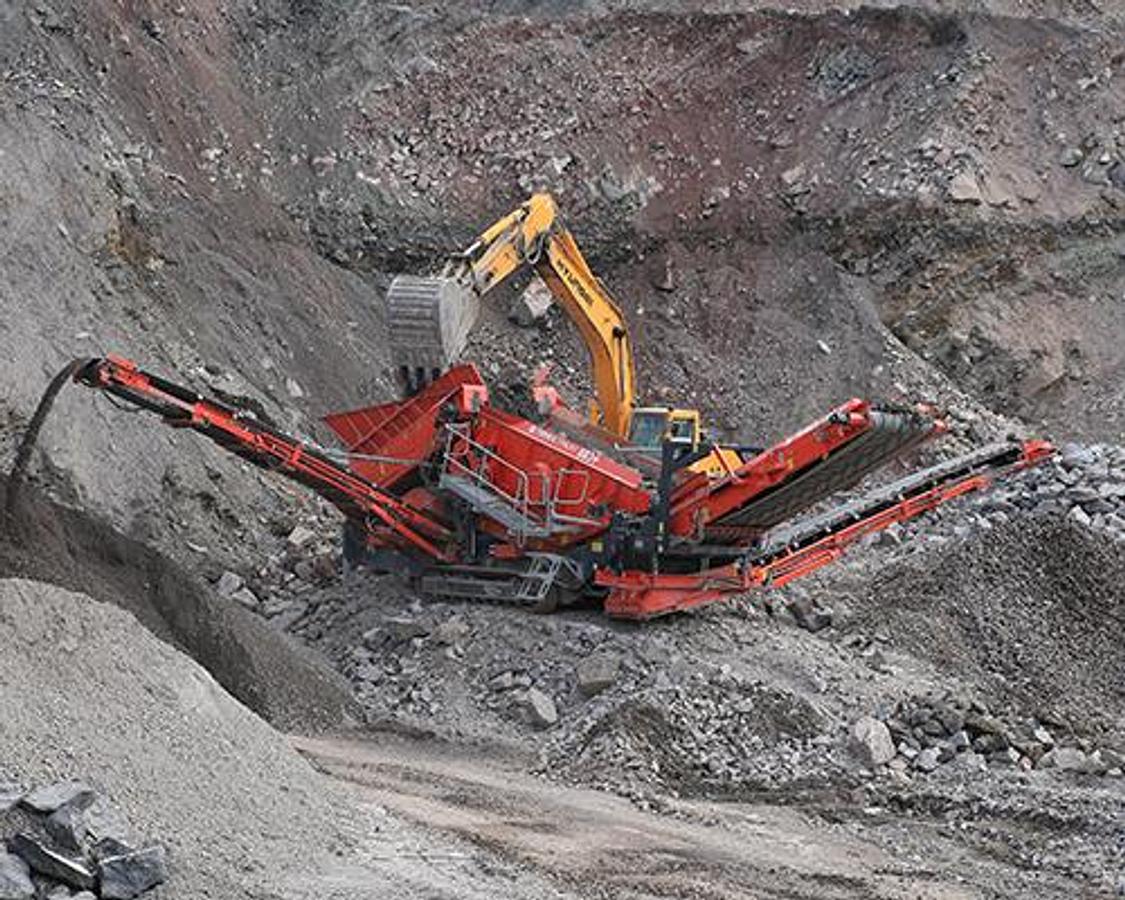

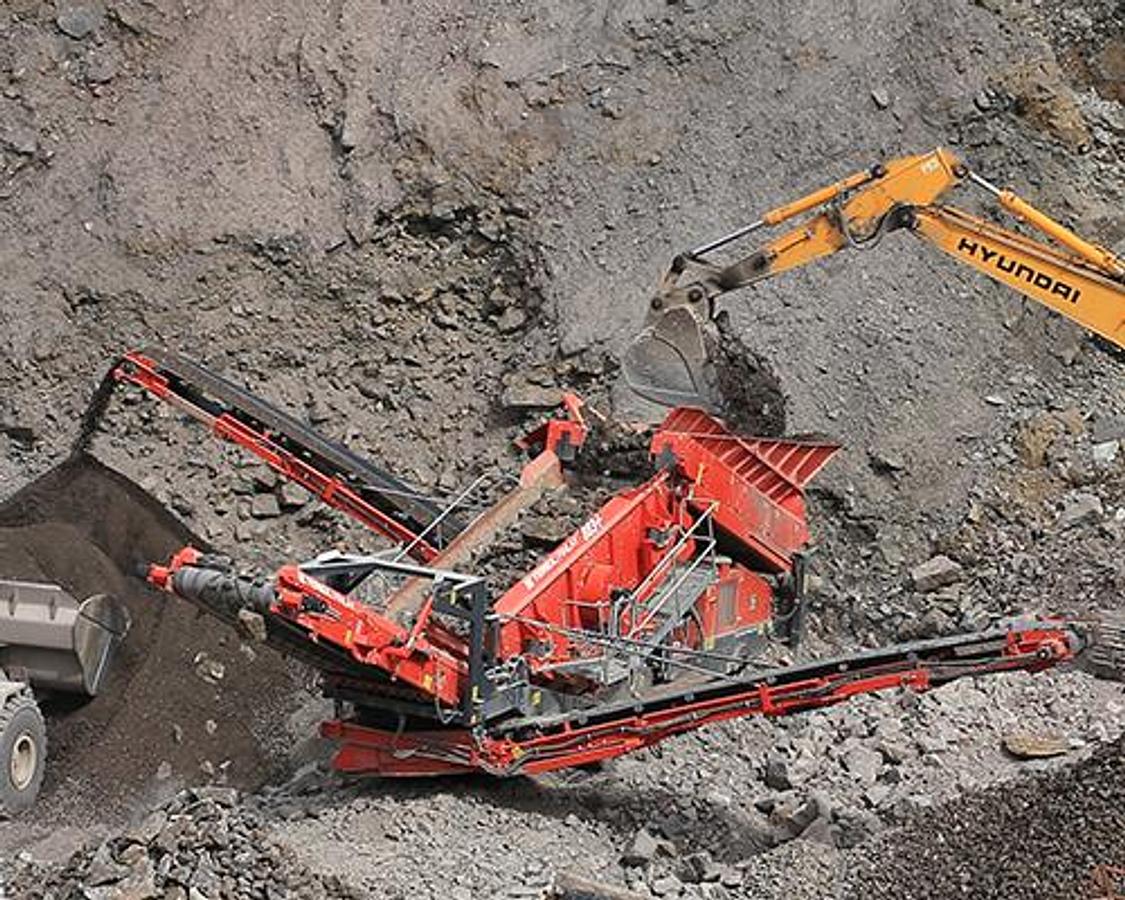

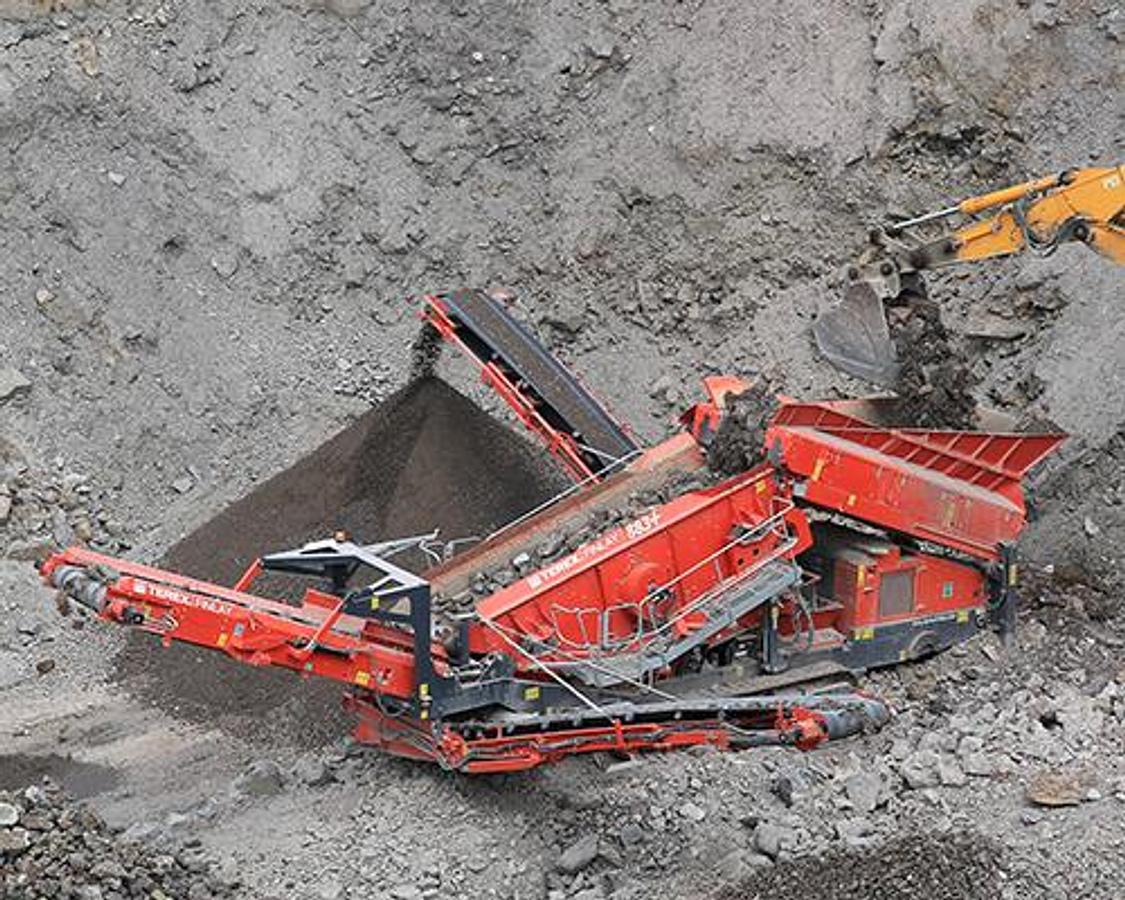

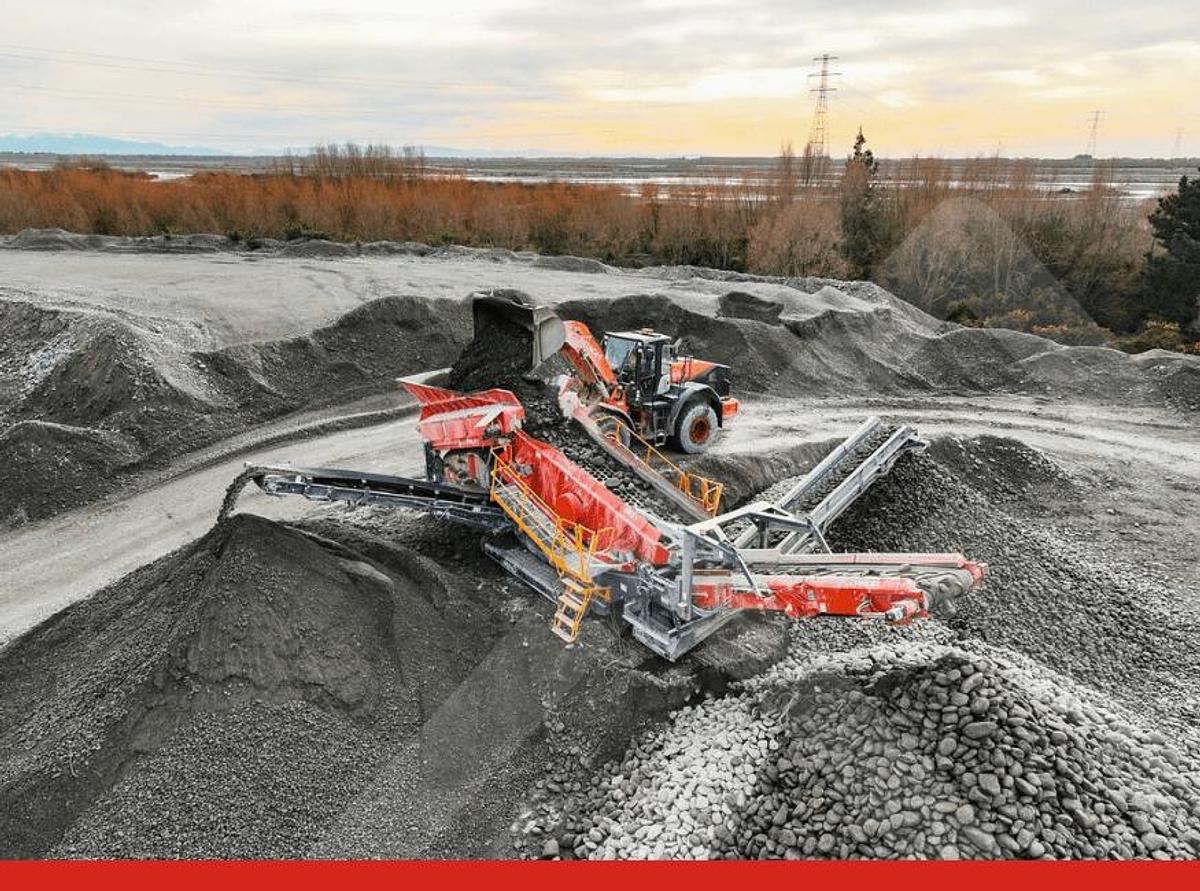

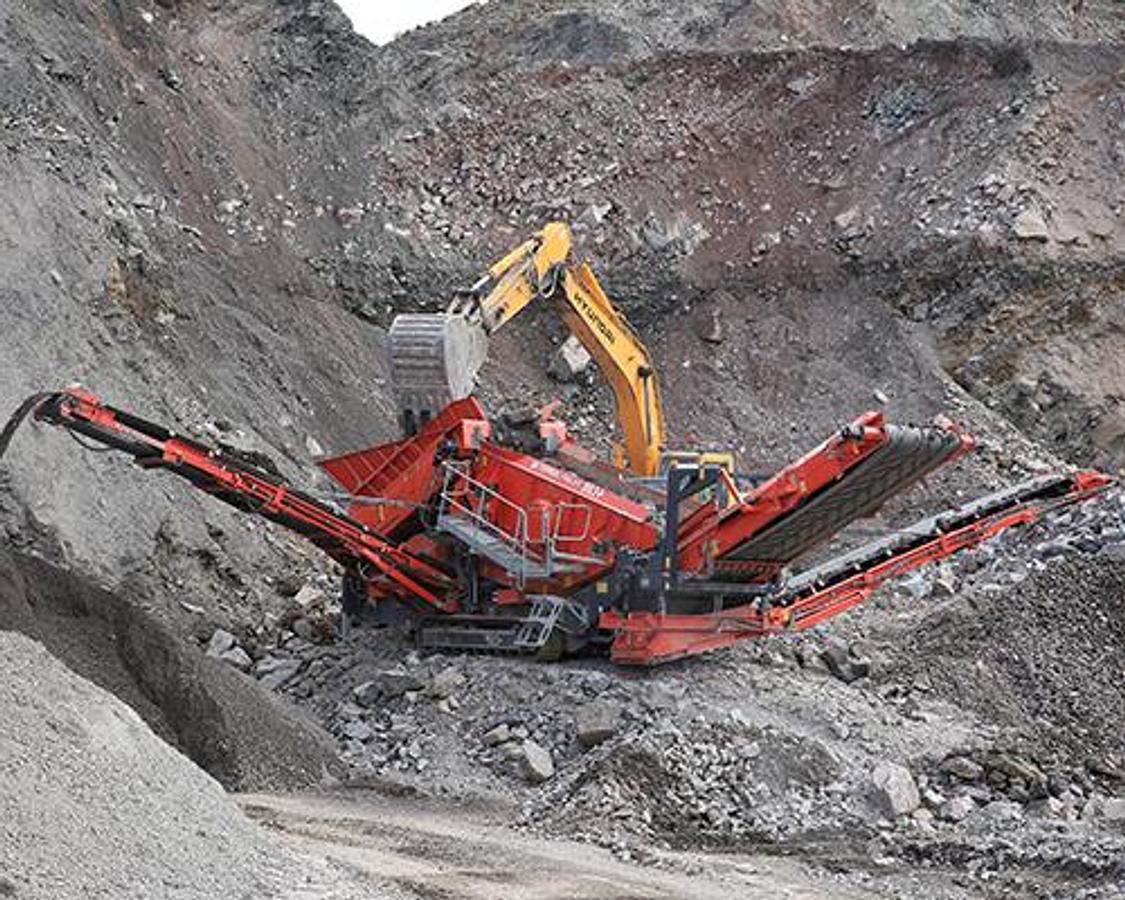

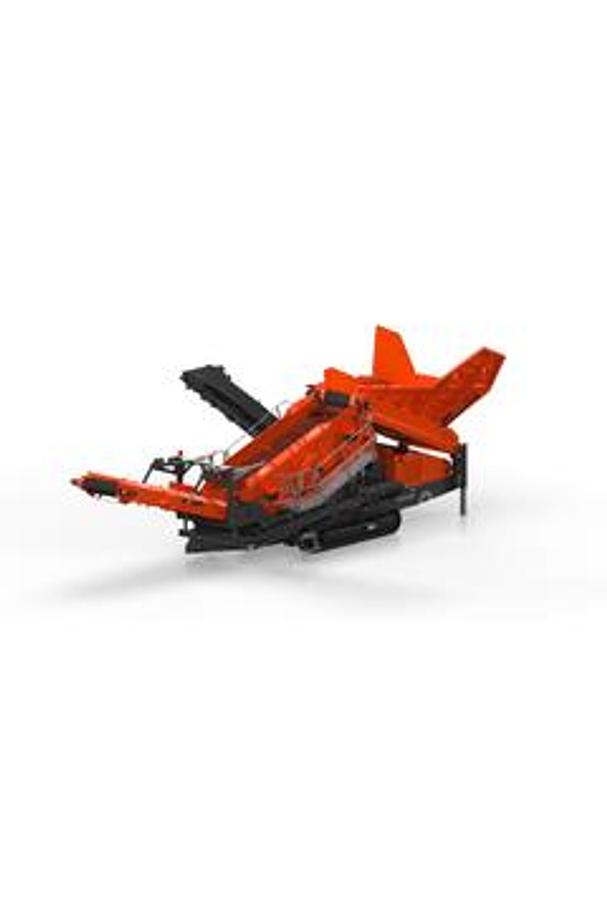

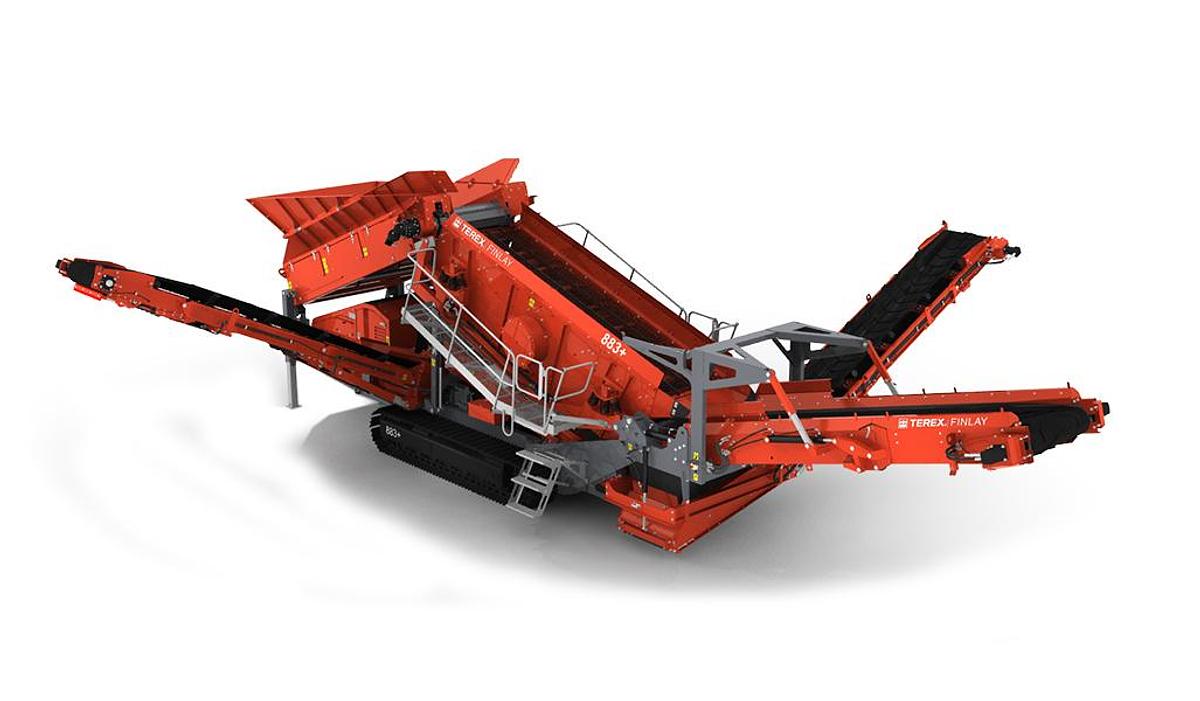

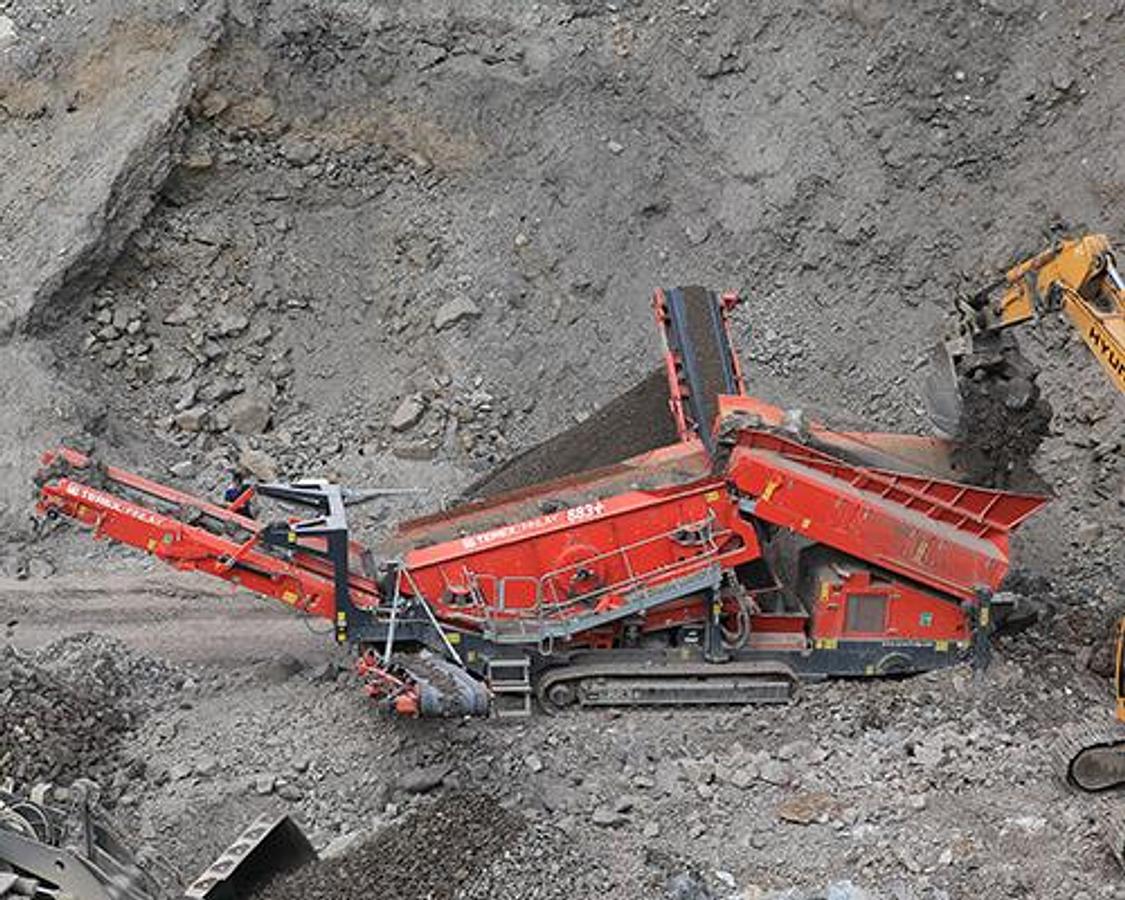

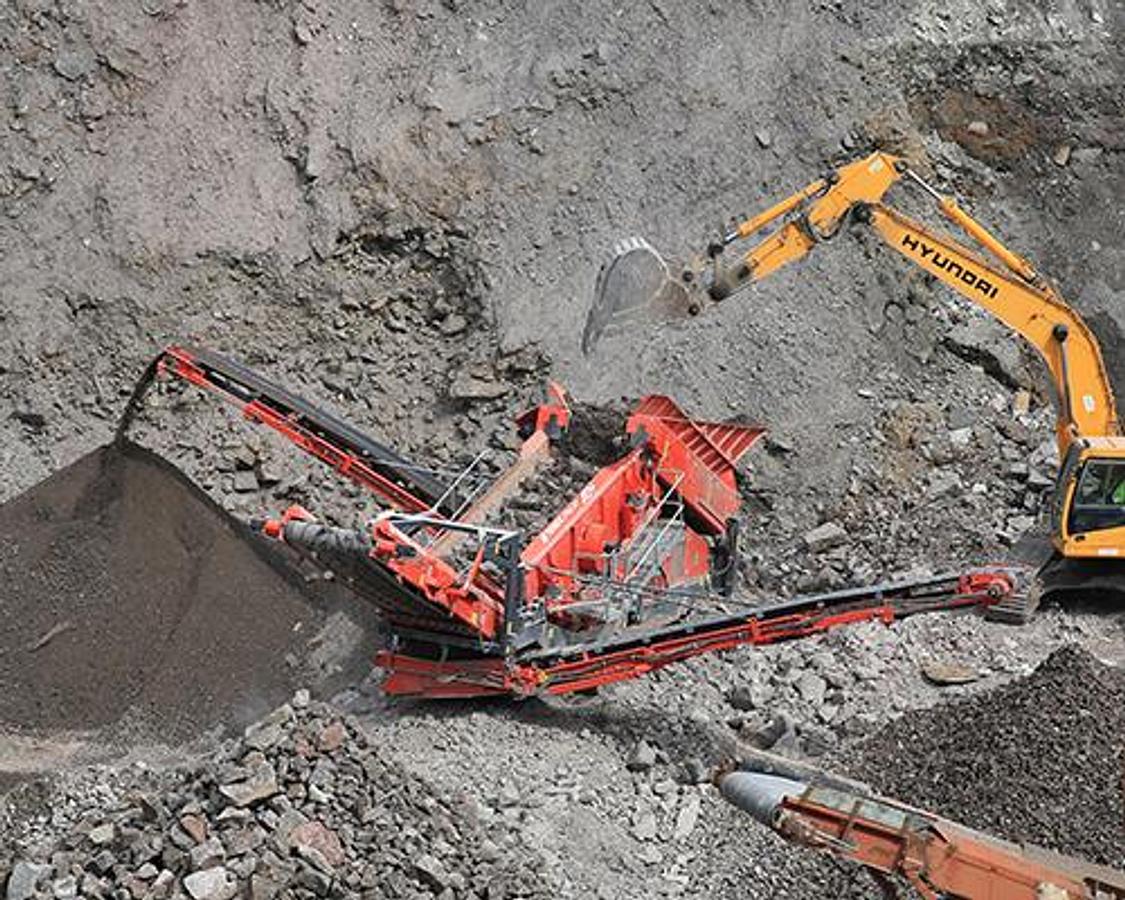

The Finlay 883+ Mobile Scalping Screener has been developed as a high capacity and versatile heavy duty screener to work in primary and secondary screening applications such as quarry and mining, iron ore, construction demolition waste, sand, gravel, compost, top soil and coal. The plant has the capacity to process at a rate of up to 600 tonnes per hour and can be fed either by a tracked mobile crusher, shovel or an excavator. The model is available with hybrid technology consisting of on board electrical motors permitting the flexibility to run the plant from an outside power supply or standard on board engine. Features: • Hopper and feeder: Hopper Capacity: 7m³ (9.16yd³); Feed height: 3.69m (12' 1"); Feed in width: 2.6m (8' 7") • Screenbox: Top deck: 4.8m x 1.53m (16' x 5'); Bottom deck: 4.8m x 1.53m (16' x 5'); Screen Angle: 13°, 19°, hydraulic adjustable; Total screening area: 14.4m2 (155ft2) • Midgrade conveyor: Belt width: 800mm (32"); Working Angle: 22°, 26° max; Standard Discharge Height: 3.4m (11' 2") max; Stockpile capacity: 58m3 (76yd3) max; Optional telescopic section; Extended Discharge Height: 4.1m (13' 5"); Stockpile capacity: 102.5m3 (134.1yd3) • Oversize conveyor: Belt width: 1.2m (48"); Working Angle: 18°, 24°, hydraulic adjust; Discharge Height: 3.6m (11' 10"); Stockpile capacity: 70m3 (91yd3) max • Fines conveyor: Belt width: 900mm (36"); Standard Discharge Height: 4m (13' 1") max; Stockpile capacity: 95m3 (124yd3) max; Optional telescopic section; Extended Discharge Height: 4.8m (15' 9"); Stockpile capacity: 164.5m3 (215yd3) • Undercarriage: Shoe Width: 400mm (16"); Gradeability: 24.8°; Raking Angle: 11° min Specifications: • Net Engine Power: Tier 3: CAT C4.4 111.3 hp (CAT C4.4 83 kW) • Net Engine Power: Tier 4F / Stage V: DEUTZ TCD 3.6L4 123 hp Dual Certified (DEUTZ TCD 3.6L4 92 kW Dual Certified) • Output Potential: 661 US tph (600 tph) • Net Engine Power: Tier 3 / LRC: CAT C4.4 130 hp (CAT C4.4 97 kW) • Weight: 70,327 lbs (31,900kg) • Transport Height: 11 ft 2 in (3 m 40 cm) • Transport Length: 48 ft 8 in (14 m 80 cm) • Screen: 16' x 5' (4.8m x 1.53m) • Working Dimensions: Height 15' 5", Width 41' 4", Length 48' 8" (Height 4.7m, Width 12.6m, Length 14.8m) • Transport Width: 9 ft 10 in (3 m)
