2026

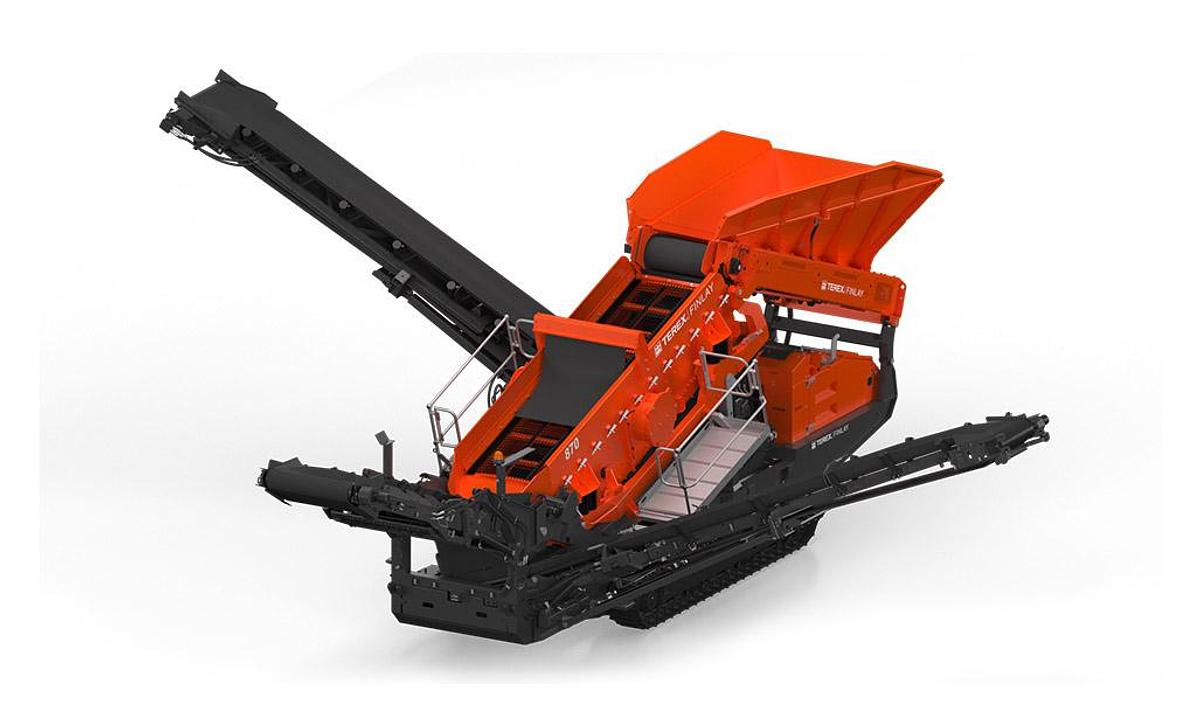

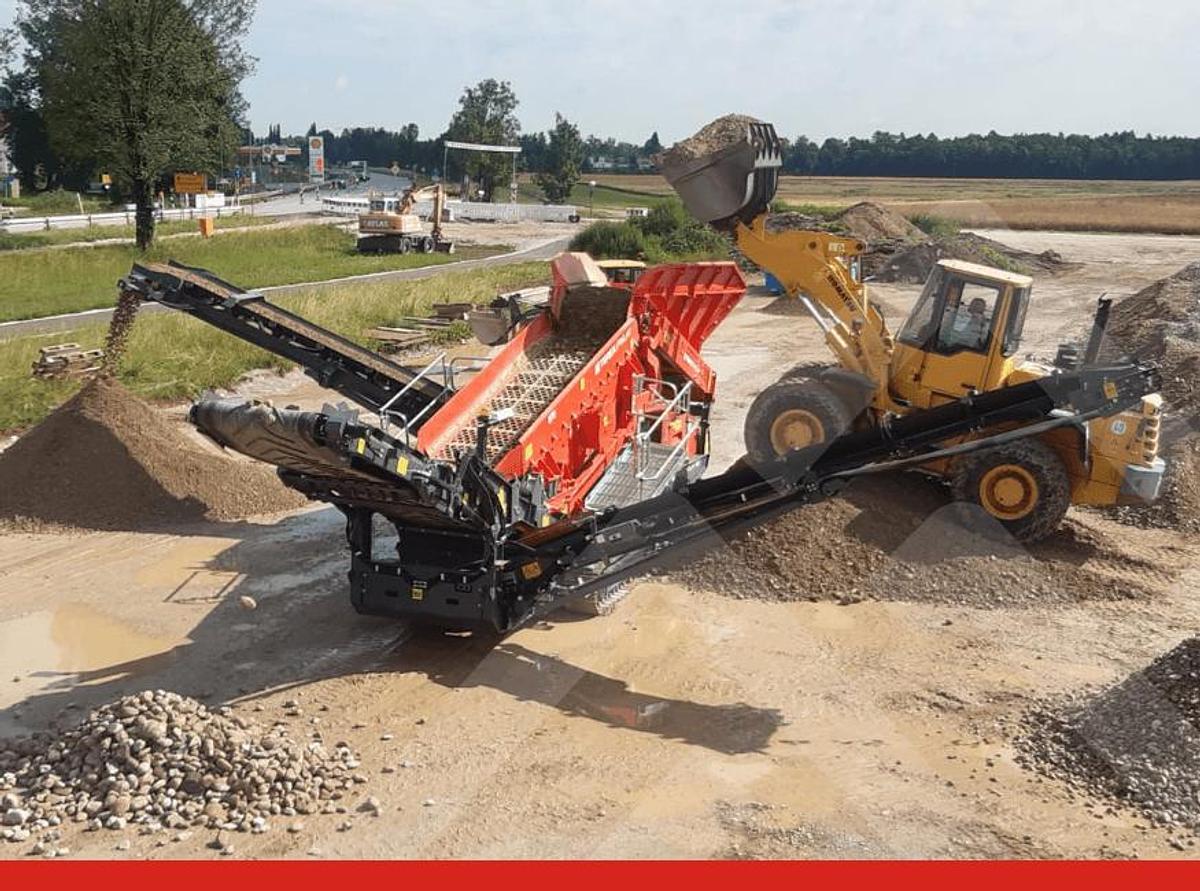

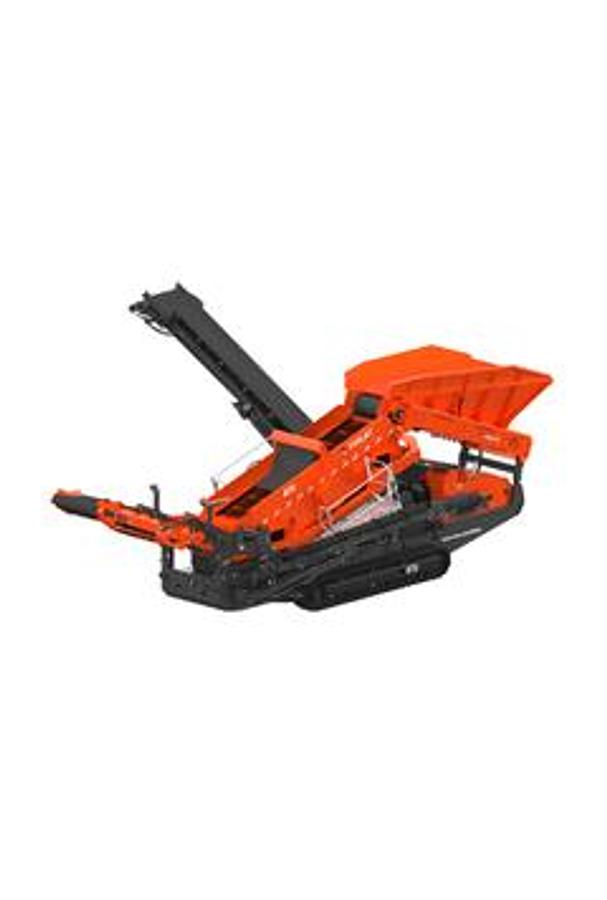

The Finlay 870 tracked scalper is a compact and aggressive forward facing heavy duty screen. This highly versatile and flexible machine excels in primary and secondary screening applications such as aggregates, sand and gravel, top soil, construction demolition and recycling applications where site space is at a premium. The machine has been designed to meet the requirements of large and small scale operators looking for a high performance screen with a small footprint that is easy to operate and transport. Features: • Hopper and Feeder: Hopper Capacity: 5m³ (6.54yd³) with hydraulic folding hopper extensions; Feed height (rear): 3.4m (11ft 2in); Feeder height (side): 4.1m (13ft 5in); Beltfeeder dimensions: 1.1m wide x 3.4m long (43" x 11' 12") Target area: 3.7m long x 2.2m wide; Speed: variable • Fines conveyor: Belt width: 800mm (32"); Belt spec: 3 ply Belt; Working Angle: 25°; Rosta scraper on head drum; Stockpile capacity: 88m3 (115.1yd3) • Screenbox: Top deck: 4.1m x 1.22m (13' 6" x 4'); Bottom deck: 4.1m x 1.22m (13' 6" x 4'); Tensioning top deck: side; Tensioning bottom deck: end; Drive: hydraulic with heavy duty bearing; Screen Angle: 14°, 18°, hydraulic adjust; Screen Speed: Screen Speed: 1020 rpm (10mm stroke) 920 rpm (12mm stroke); Total screening area: 9.74m2 (105ft2) • Oversize plus conveyor: Belt width: 1.05m (41"); Belt spec: 3 Ply Chevron; Working Angle: 23° fixed; Speed: Variable speed, 82 m/min max belt speed; Impact bed full length of conveyor; Discharge Height: 3.0m (9' 10"); Stockpile capacity: 40m3 (52.3yd3) max • Midgrade conveyor: Belt width: 650mm (26"); Belt spec: 3 ply Belt; Working Angle: 25°; Speed: variable speed, 102 m/min max belt speed; Standard Discharge Height: 3.6m (11' 10"); Stockpile capacity: 69m3 (90yd3) Specifications: • Working Dimensions: Height 10' 4", Width 45' 11", Length 41' 2" (Height 3.2m, Width 14m, Length 12.5m) • Weight: 45,745 lbs (20,750 Kgs) • Screen: 13' 6" x 5' (4.1m x 1.22m) • Transport Length: 35 ft 11 in (11 m) • Transport Height: 10 ft 2 in (3 m 10 cm) • Transport Width: 8 ft 2 in (2 m 50 cm) • Net Engine Power: Tier 4F / Stage V: CAT C2.2 74 hp Dual Certified (CAT C2.2 55 kW Dual Certified) • Net Engine Power: Tier 3: CAT C4.4 82 hp (CAT C4.4 64 kW) • Output Potential: 385 US tph (350 tph)
