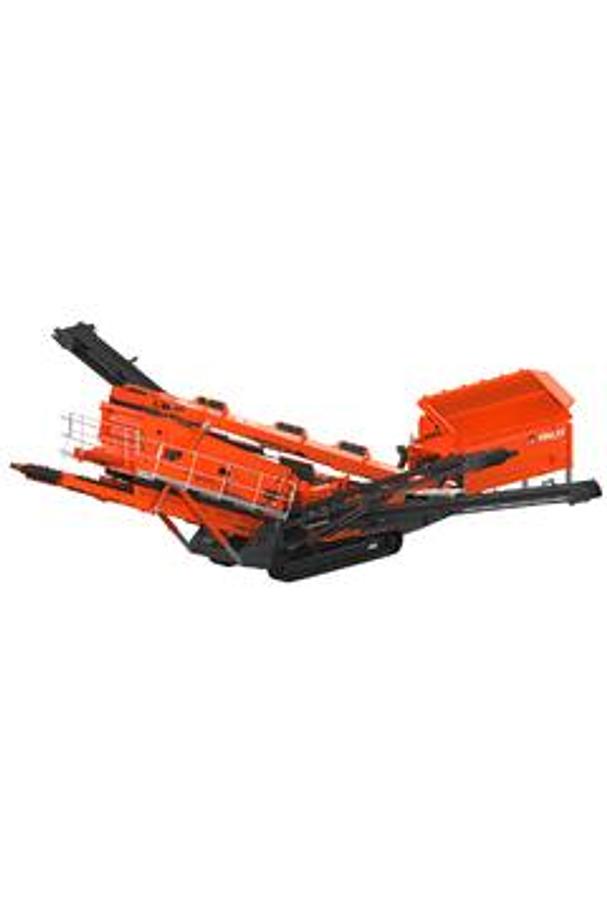

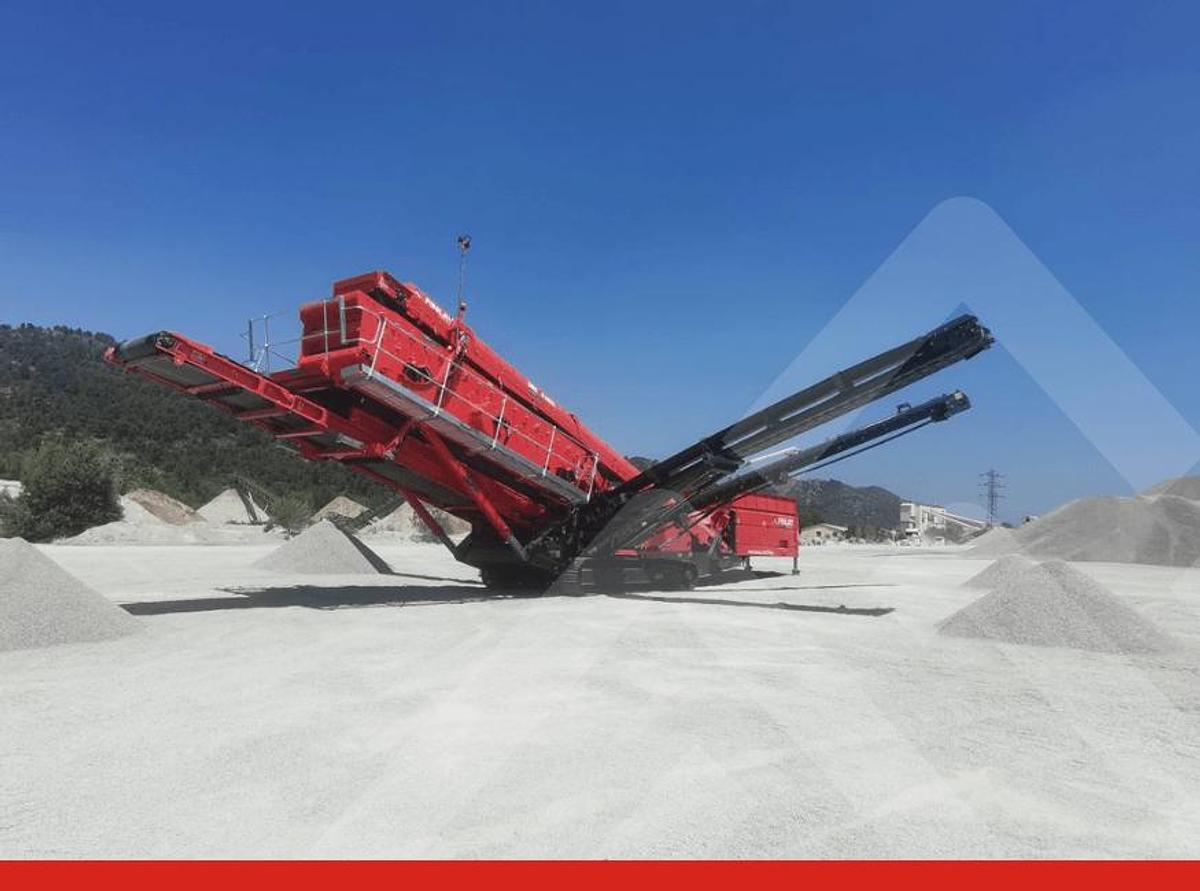

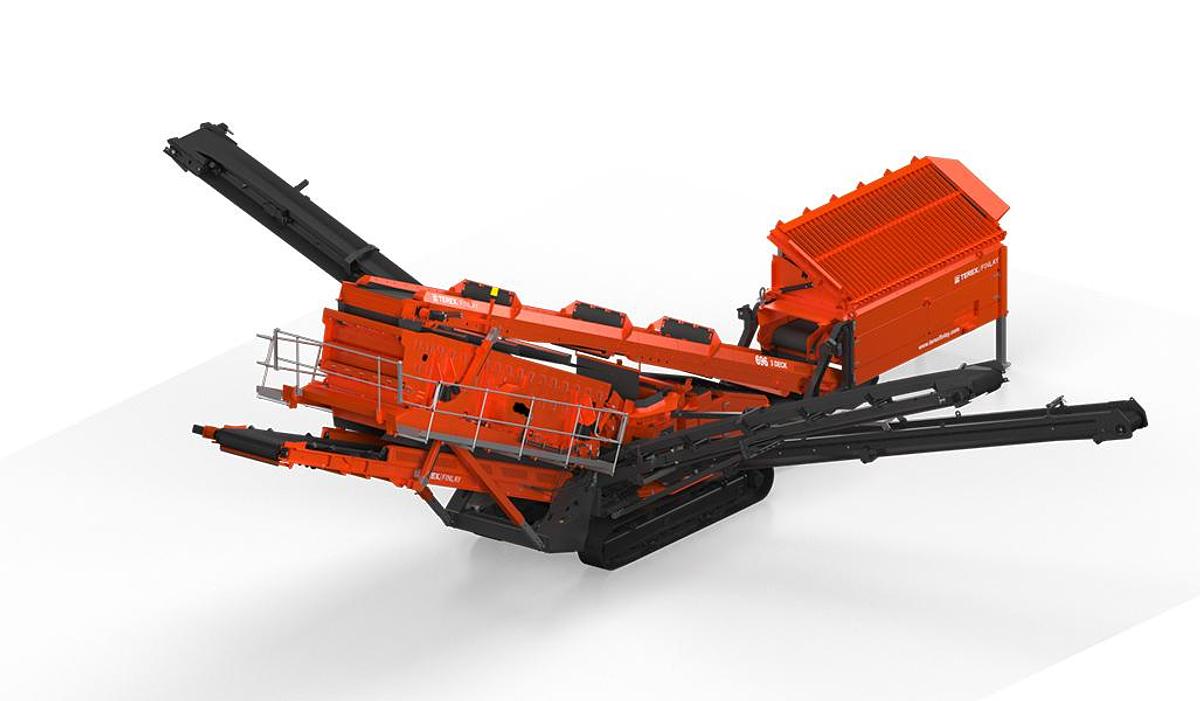

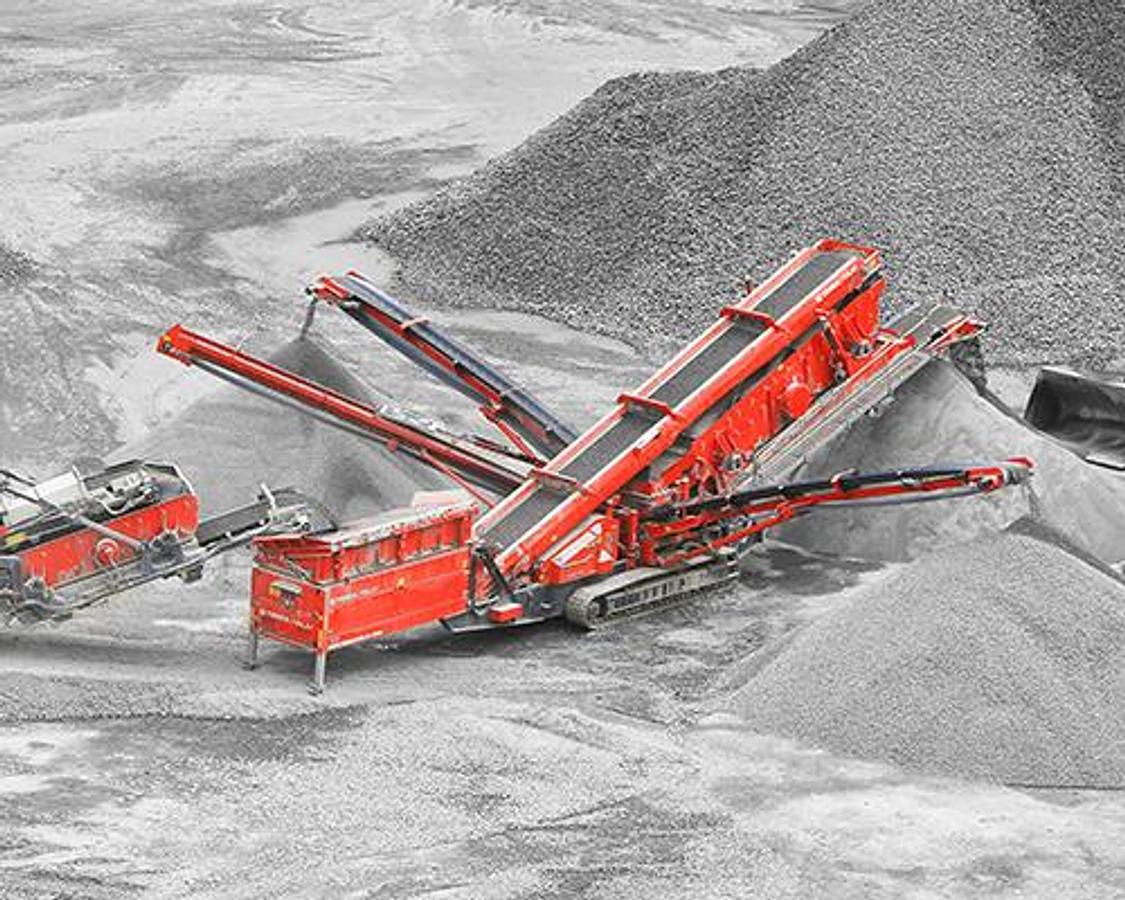

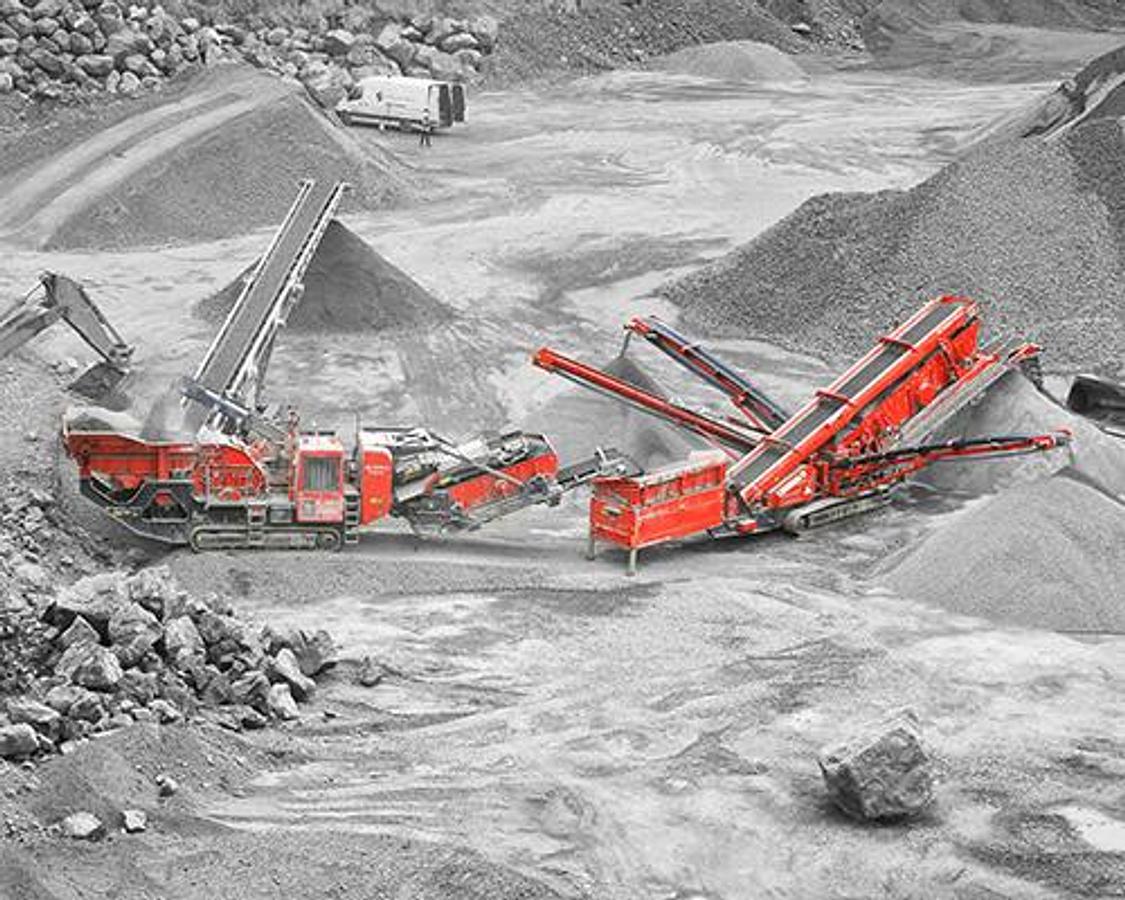

The Finlay 696 3 deck inclined screen has been engineered to provide a superior high production solution in quarrying, mining, sand and gravel, coal, woodchip and topsoil applications. The new high energy screenbox is the largest in the triple deck range and features three full size 6.1m x 1.7m (20' x 5' 7") decks to give a total screening area of 31.1m² (335ft²). The large 8m³ (10.5yd³) large hopper / feeder is fitted with variable speed belt feeder to ensure consistent flow of material and can be fitted with remote tipping grid or double deck vibrating grid. The fourth product oversize plus conveyor has hydraulic variable tilt and slew discharge for recirculating to secondary crusher or stockpiling of finished material. The compact transport envelope enables the machine to be transported between jobsites with ease. The model is available with hybrid technology consisting of on board electrical motors permitting the flexibility to run the plant from an outside power supply or standard on board engine. Features: • Hopper and Feeder: Hopper Capacity: 8m³ (10.5yd³); Feed height: 2.5m (8'); Feed in width: 4.2m (13' 9") (grid wing plates); Beltfeeder belt width: 1.2m (48"); Speed: variable, 0 to 16 mpm (0 to 53' per min) • Oversize minus grade conveyor: Belt width: 800mm (32"); Working Angle: 22°; Speed: variable speed, 0 to 90 mpm (410' per min); Discharge Height: 5.1m (16' 9"); Stockpile capacity: 228m³ (298yd³) • Main conveyor: Belt width: 1.2m (48"); Belt Speed: 92 mpm (302' per min); Steel skirted full length of conveyor • Screen box: All decks: 6.1m x 1.7m (20' x 5' 7") All 3 Decks; Hydraulic Folding Catwalks; Screen Angle: 18°, 32°, hydraulic adjust; Total screening area: 31.1m² (335ft²) • Middle grade conveyor: Belt width: 800mm (32"); Working Angle: 22°; Speed: variable speed, 0 to 90 mpm (410' per min); Discharge Height: 5.1m (16' 9"); Stockpile capacity: 228m³ (298yd³) • Oversize Plus Coneyor: Belt width: 500mm (20"); Working Angle: Variable 24° (Max); Speed: variable speed, 120 mpm (400' per min); Discharge Height: Variable 5.4m (Max); Stockpile capacity: 270m³ (353yd³) @ 40º • Undercarriage: Shoe Width: 500mm (20"); Gradeability: 32.6°; Raking Angle: 9° • Fines conveyor: Belt width: 1.2m (48"); Working Angle: Variable 27.5° (Max); Speed: variable speed max 125mpm (410' per min); Standard Discharge Height: 5.5m (18'); Stockpile capacity: 285m³ (373yd³) Specifications: • Net Engine Power: Tier 3 / Stage IIIA: Caterpillar C4.4 121 hp (Caterpillar C4.4 90 kW) • Net Engine Power: Tier 4F / Stage V: Caterpillar C4.4 137 hp Dual Certified (Caterpillar C4.4 102 kW Dual Certified) • Net Engine Power: Stage V: JCB 448 Dieselmax 108 hp, Not compatible with Hybrid Option (JCB 448 Dieselmax 80 kW, Not compatible with Hybrid Option) • Transport Height: 11 ft 11 in (3 m 65 cm) • Transport Width: 9 ft 10 in (3 m) • Working Dimensions: Height 19' 0", Width 60' 7", Length 68' 11" (Height 5.8m, Width 18.45m, Length 21.01m) • Weight: 80,910 lbs with options (36,700 kg with options) • Screen: 20' x 5' 7" (6.1m x 1.7m) • Transport Length: 64 ft 7 in (19 m 70 cm) • Output Potential: 772 US tph (700 tph)
