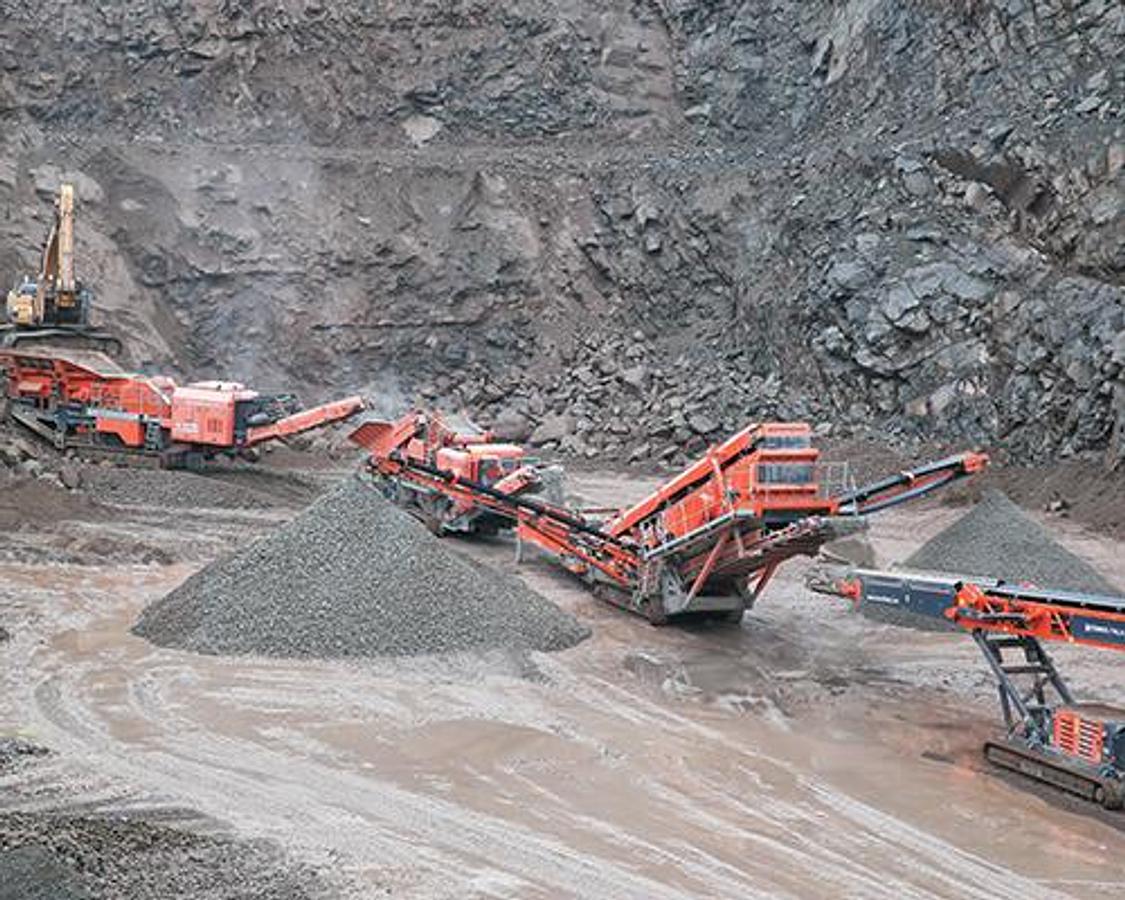

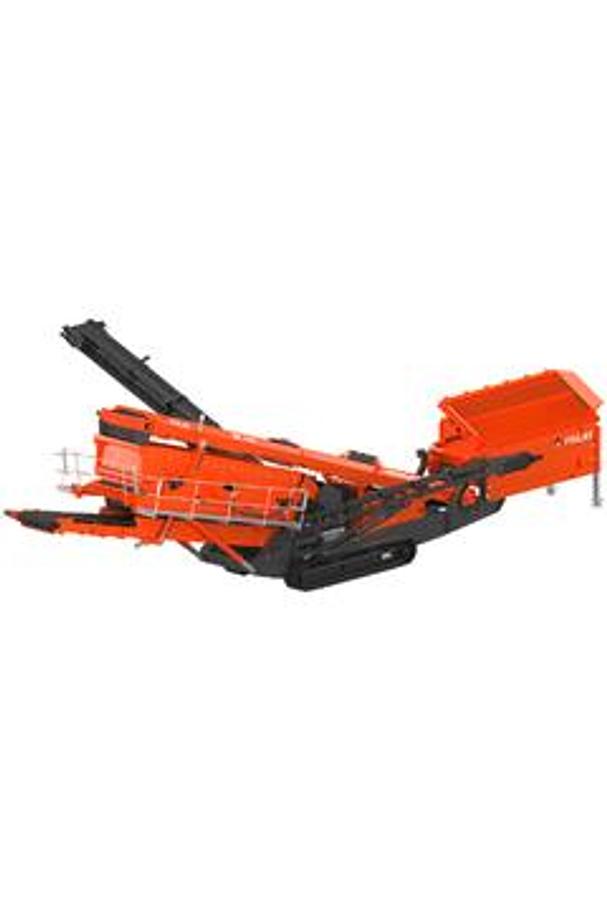

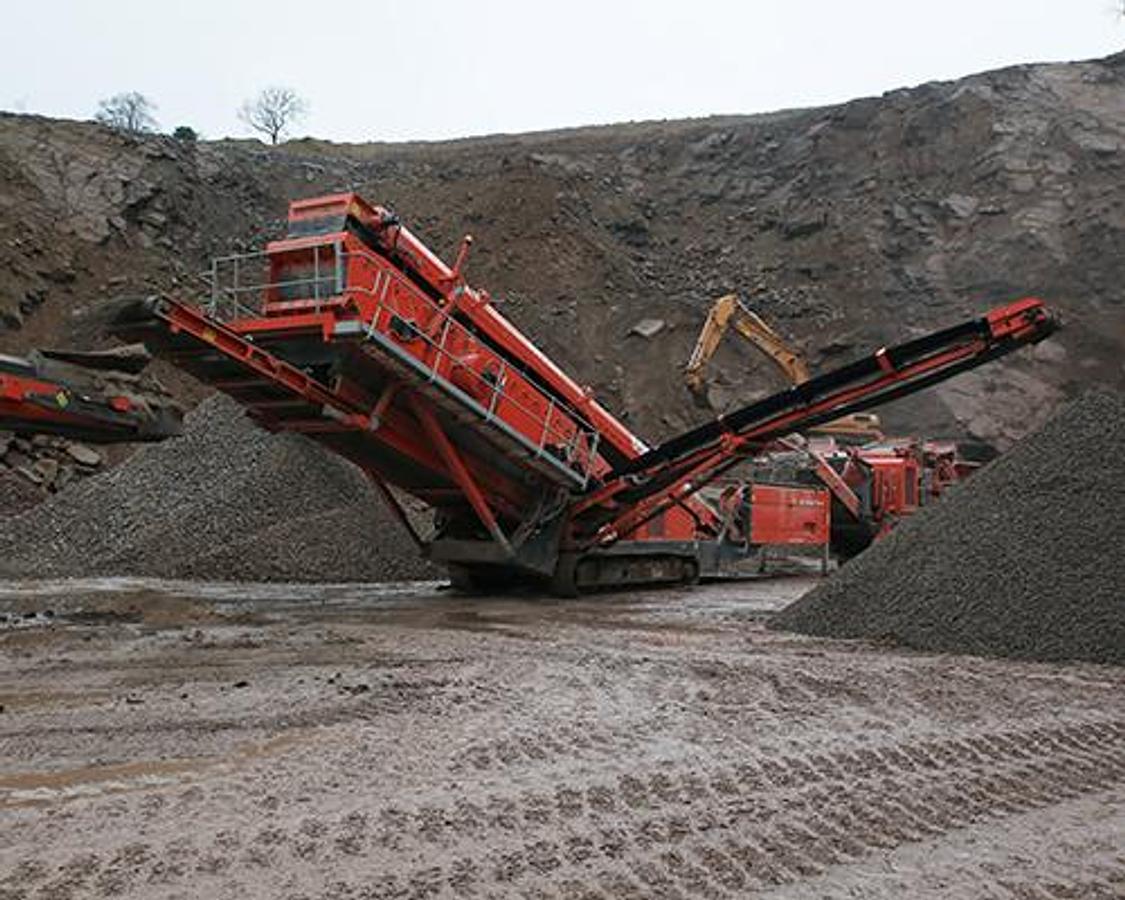

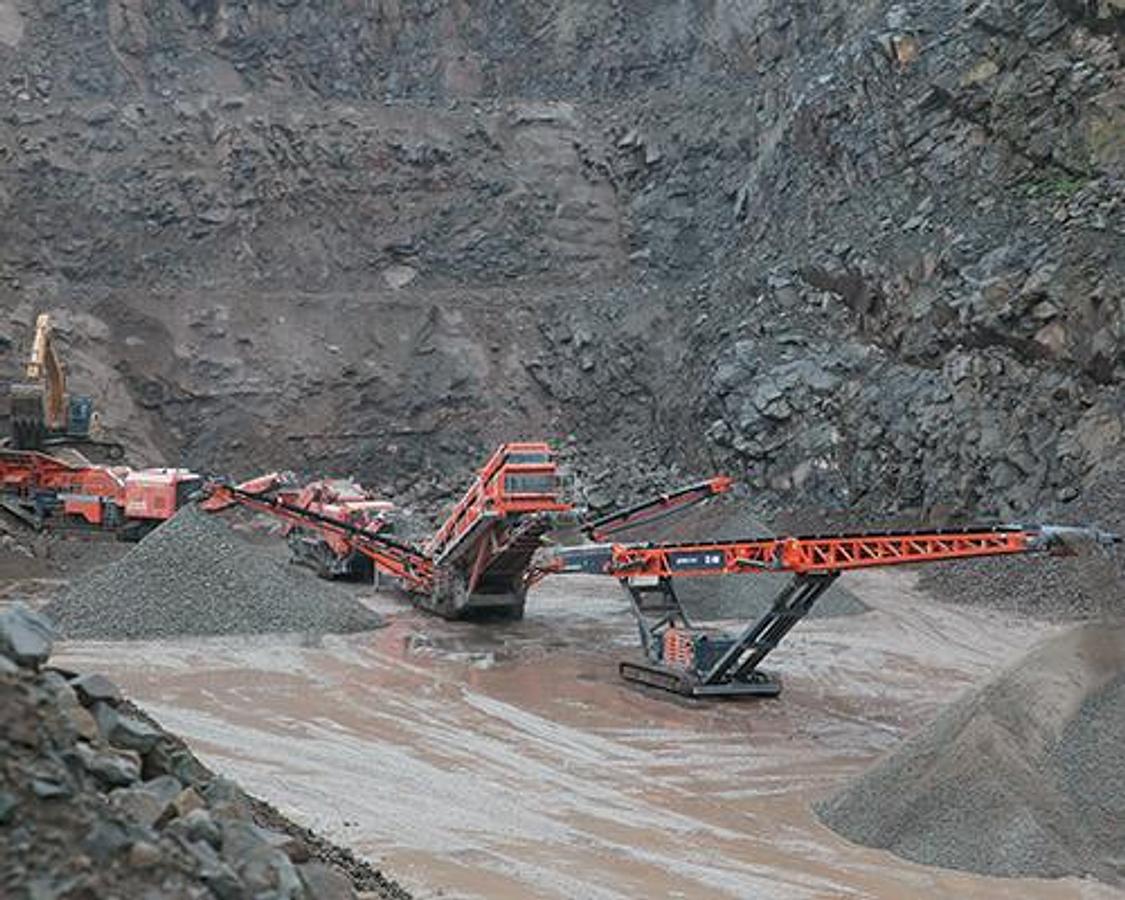

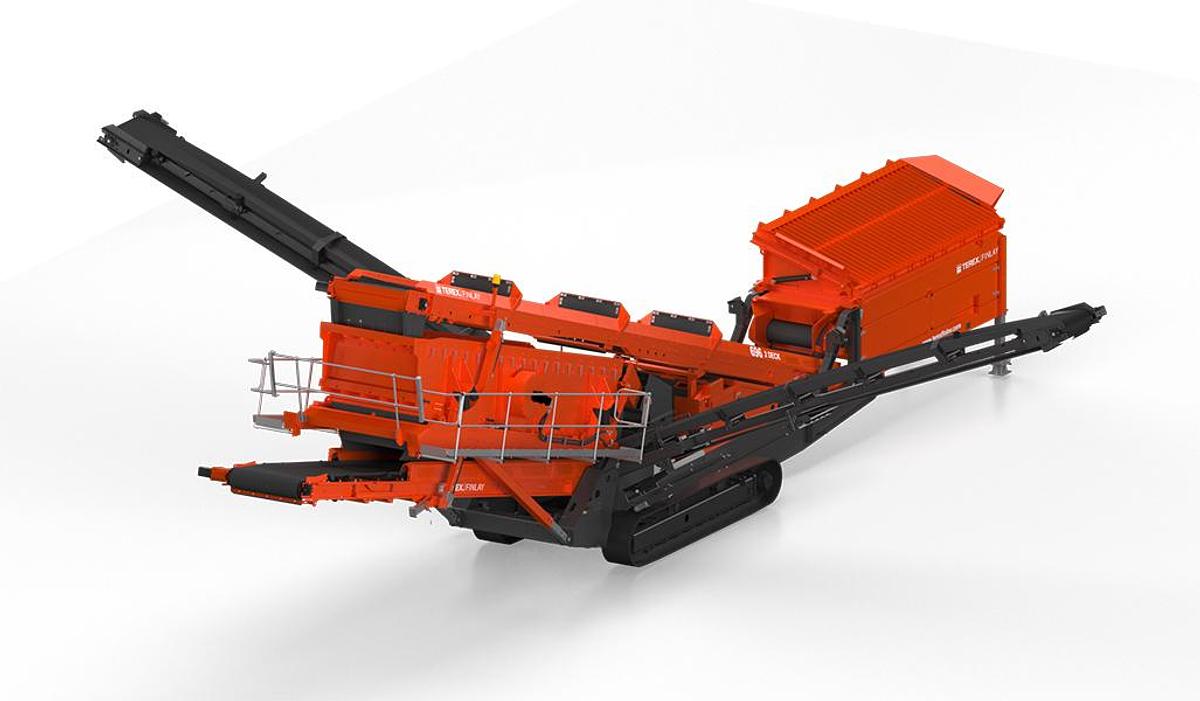

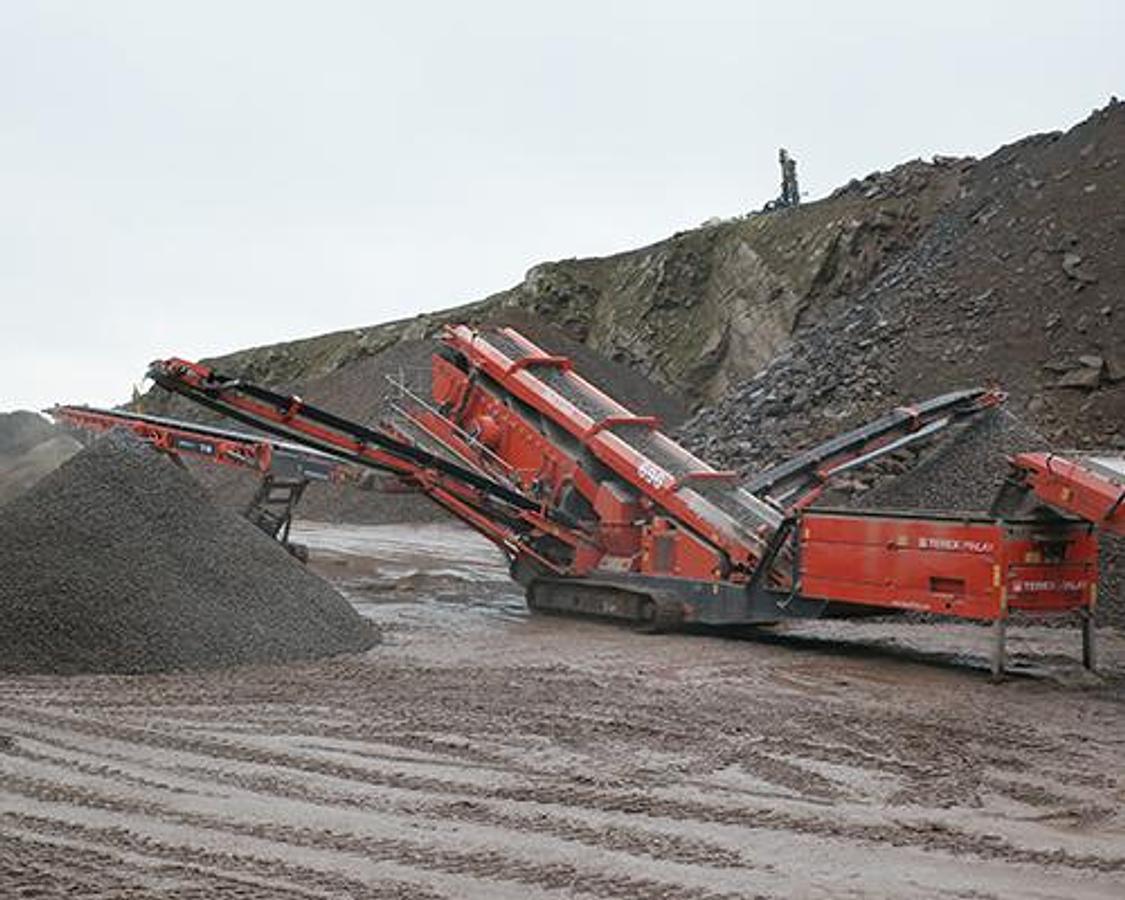

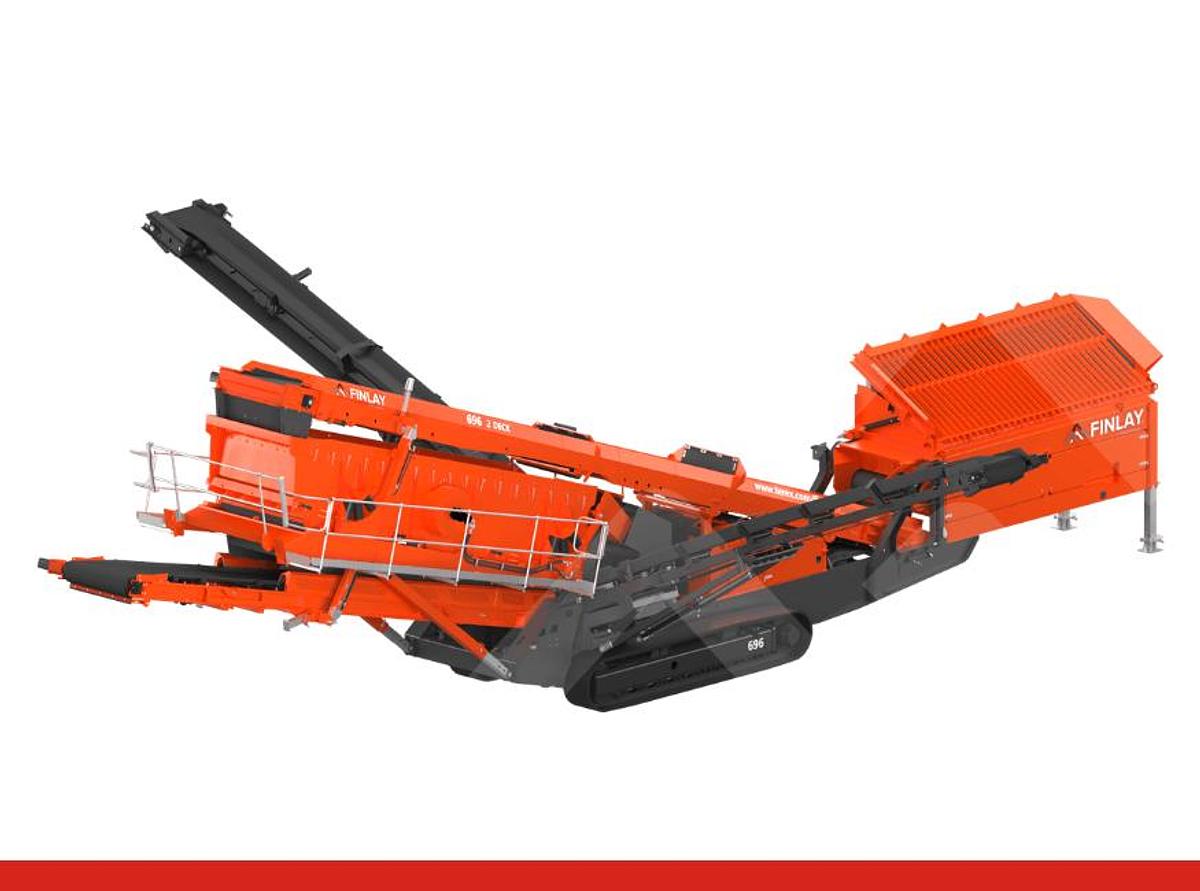

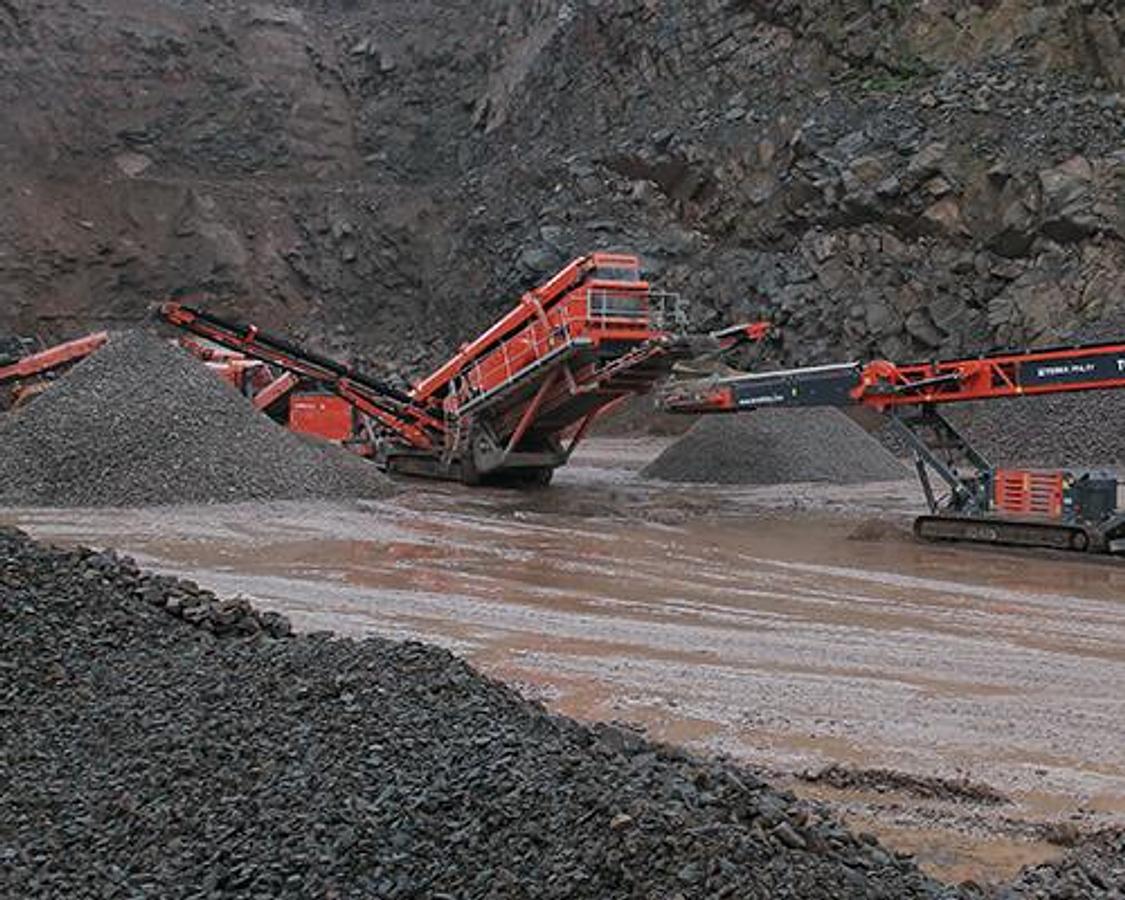

The Finlay 696 2 deck inclined screen has been developed to fulfil the demands of high production producers in quarrying, mining, sand and gravel, coal, woodchip and topsoil applications. The new high energy screenbox features two full size 6.1m x 1.7m (20' x 5' 7") to give a total screening area of 20.74m² (223ft²). The 8m³ (10.5yd³) hopper / feeder is fitted with variable speed belt feeder to ensure consistent flow of material and can be fitted with remote tipping grid or double deck vibrating grid. Operator benefits include a quick setup time (typically under 30 minutes) with hydraulically folding screenbox catwalks and product conveyors. The compact transport envelope enables the machine to be transported between jobsites with ease. The model is available with hybrid technology consisting of on board electrical motors permitting the flexibility to run the plant from an outside power supply or standard on board engine Features: • Hopper and Feeder: Hopper Capacity: 8m³ (10.5yd³); Feed height: 2.5m (8'); Feed in width: 4.2m (13' 9") (grid wing plates); Beltfeeder belt width: 1.2m (48"); Speed: variable, 0 to 16 mpm (0 to 53' per min) • Oversize conveyor: Belt width: 800mm (32"); Working Angle: 22°; Speed: variable speed, 0 to 90 mpm (295' per min); Discharge Height: 5.1m (16' 9"); Stockpile capacity: 228m³ (298yd³) • Main conveyor: Belt width: 1.2m (48"); Belt Speed: 92 mpm (302' per min); Steel skirted full length of conveyor • Middle grade Conveyor: Belt width: 800mm (32"); Working Angle: 22°; Speed: variable speed, 0 to 90 mpm (295' per min); Discharge Height: Variable 5.1m (Max); Stockpile capacity: 228m³ (298yd³) • Undercarriage: Shoe Width: 500mm (20"); Gradeability: 32.6°; Raking Angle: 9° • Screen box: All decks: 6.1m x 1.7m (20' x 5' 7") All 3 Decks; Hydraulic Folding Catwalks; Screen Angle: 18°, 32°, hydraulic adjust; Total screening area: 31.1m² (335ft²) • Fines conveyor: Belt width: 1.2m (48"); Working Angle: Variable 27.5° (Max); Speed: variable speed max 125mpm (410' per min); Standard Discharge Height: 5.5m (18'); Stockpile capacity: 285m³ (373yd³) Specifications: • Working Dimensions: Height 19' 0", Width 59' 6", Length 68' 11" (Height 5.8m, Width 18.1m, Length 21.01m) • Screen: 20' x 5' 7" (6.1m x 1.7m) • Transport Length: 64 ft 7 in (19 m 70 cm) • Weight: 76,390 lbs with options (34,650 kg with options) • Transport Height: 11 ft 11 in (3 m 65 cm) • Transport Width: 9 ft 10 in (3 m) • Net Engine Power: Tier 4F / Stage V: Caterpillar C4.4 137 hp Dual Certified (Caterpillar C4.4 102 kW Dual Certified) • Net Engine Power: Tier 3 / Stage IIIA: Caterpillar C4.4 121 hp (Caterpillar C4.4 90 kW) • Net Engine Power: Stage V: JCB 448 Dieselmax 108 hp to Not compatible with Hybrid Option (JCB 448 Dieselmax 80 kW to Not compatible with Hybrid Option) • Output Potential: 772 US tph (700 tph)
