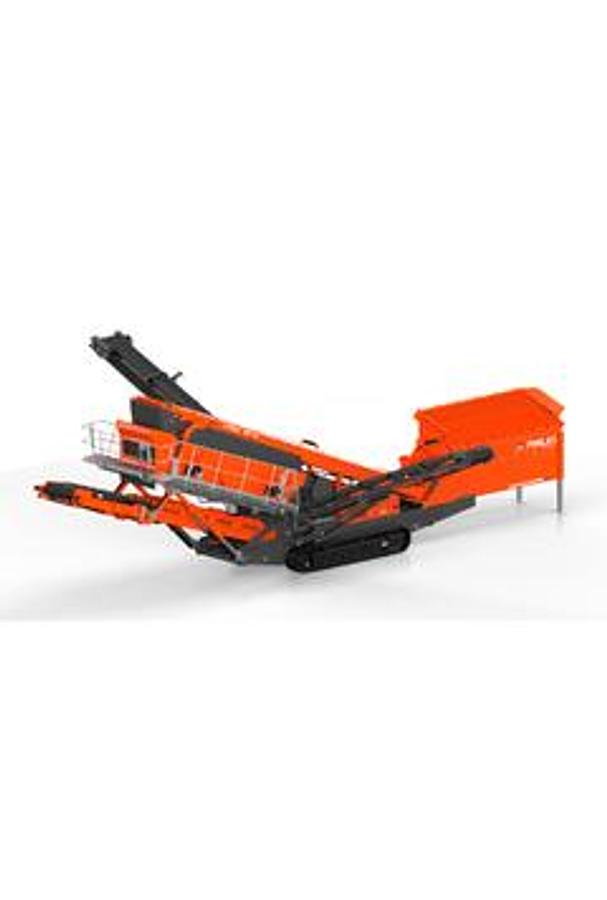

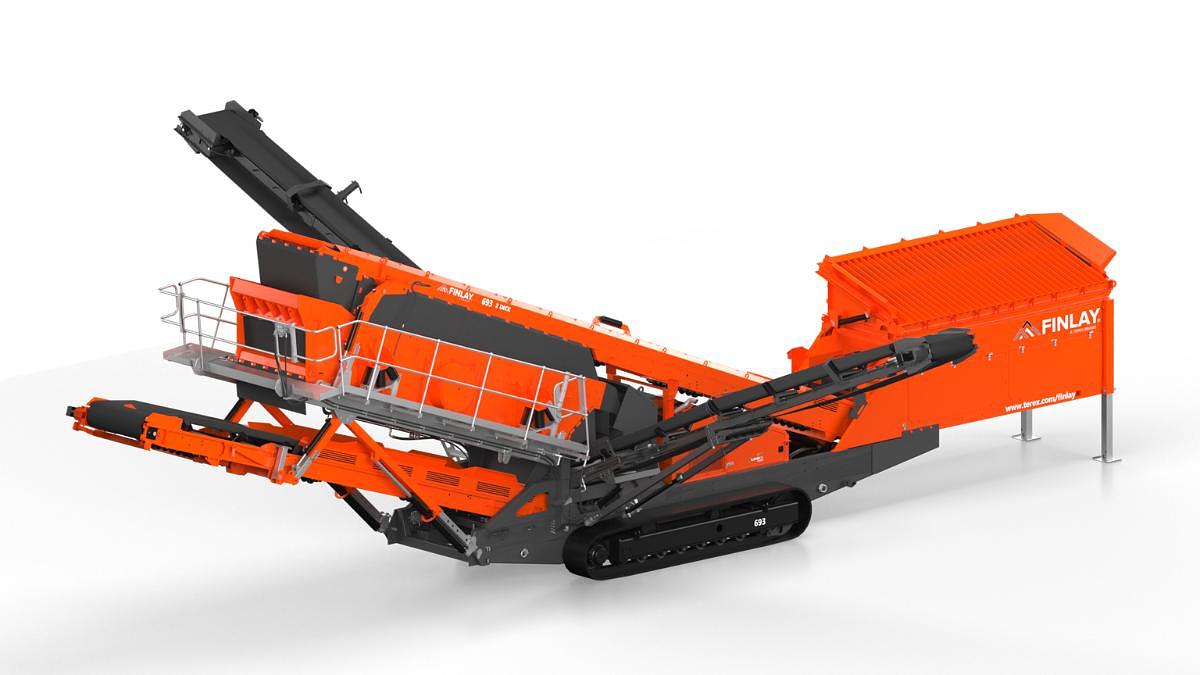

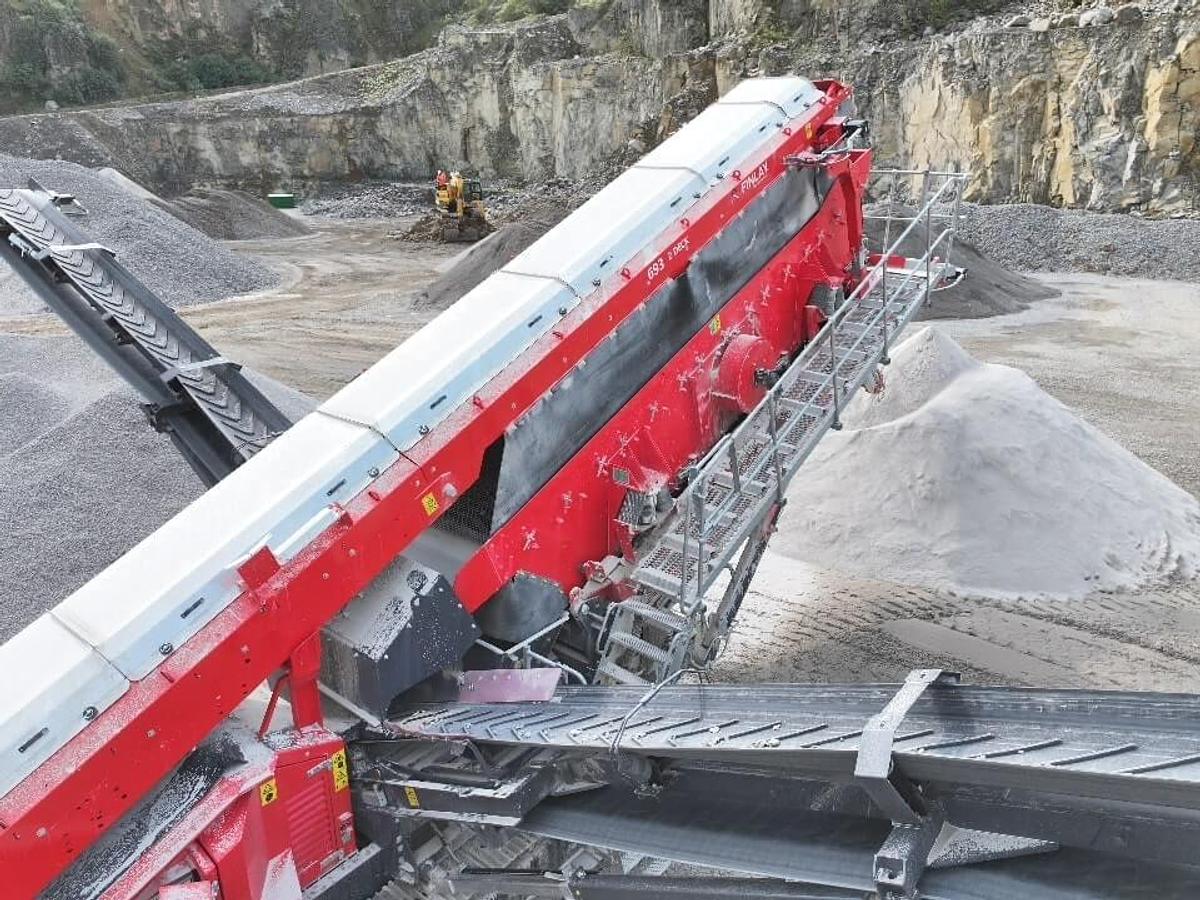

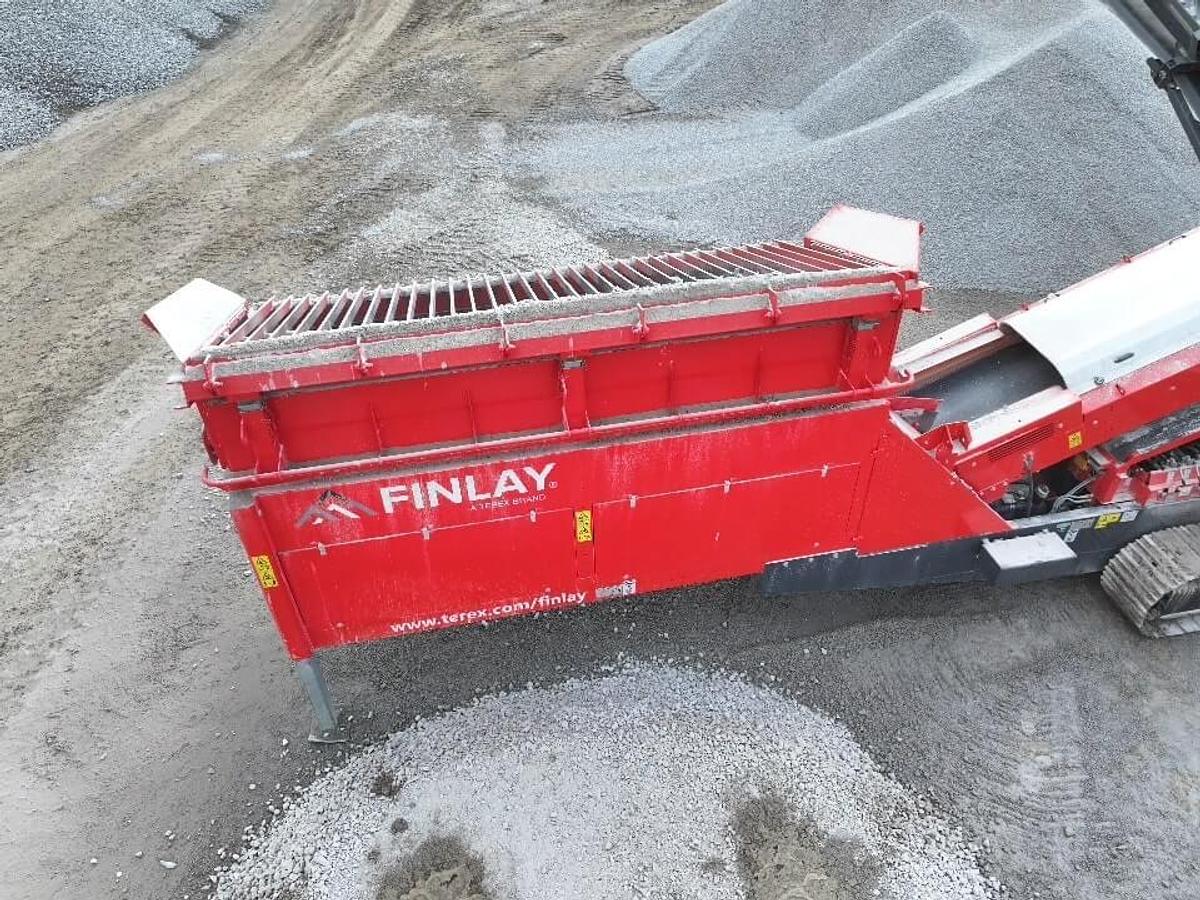

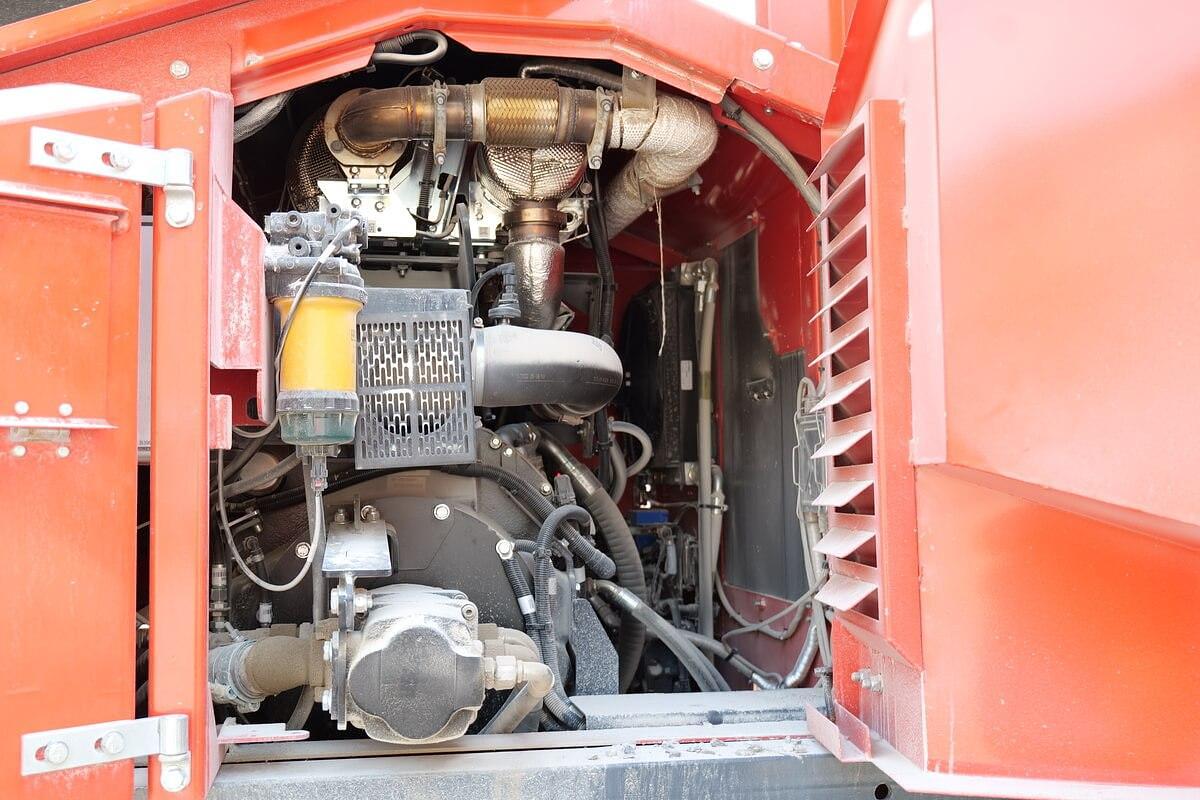

The Finlay 693 Inclined screen has been developed to fulfill the demands of high production producers in quarrying, mining, sand and gravel, coal, woodchip and topsoil applications. The high energy screen box features a 6.1m x 1.53m (20' x 5') top deck and 5.55m x 1.53m (18'x5') bottom deck that can process fine, sticky and dirty material with ease. The large hopper / feeder is fitted with variable speed belt feeder to ensure consistent flow of material and can be fitted with remote tipping grid or double deck vibrating grid. Specifications: • Net Engine Power: Tier 3 Cat 121hp, Tier 4F / Stage IV110hp (Tier 3, CAT 90kW, Tier 4F/ Stage IV, Cat 82kW) • Net Engine Power: Tier 4F / Stage V: Caterpillar C3.6 110 hp Dual certified (Caterpillar C3.6 82 kW Dual certified) • Net Engine Power: Tier 3 / Stage IIIA: Caterpillar C4.4 111 hp (Caterpillar C4.4 83 kW) • Output Potential: 551 US tph (500 tph) • Screen: 20' x 5' (6.1m x 1.53m) • Transport Width: 10 ft 4 in (3 m 15 cm) • Working Dimensions: Height 19' 0", Width 59' 6", Length 68' 11" (Height 5.8m, Width 18.10m, Length 21.01m) • Transport Length: 62 ft 2 in (18 m 95 cm) • Transport Height: 11 ft 10 in (3 m 60 cm) • Weight: 76,500 lbs with options (34,700 kg with options)
