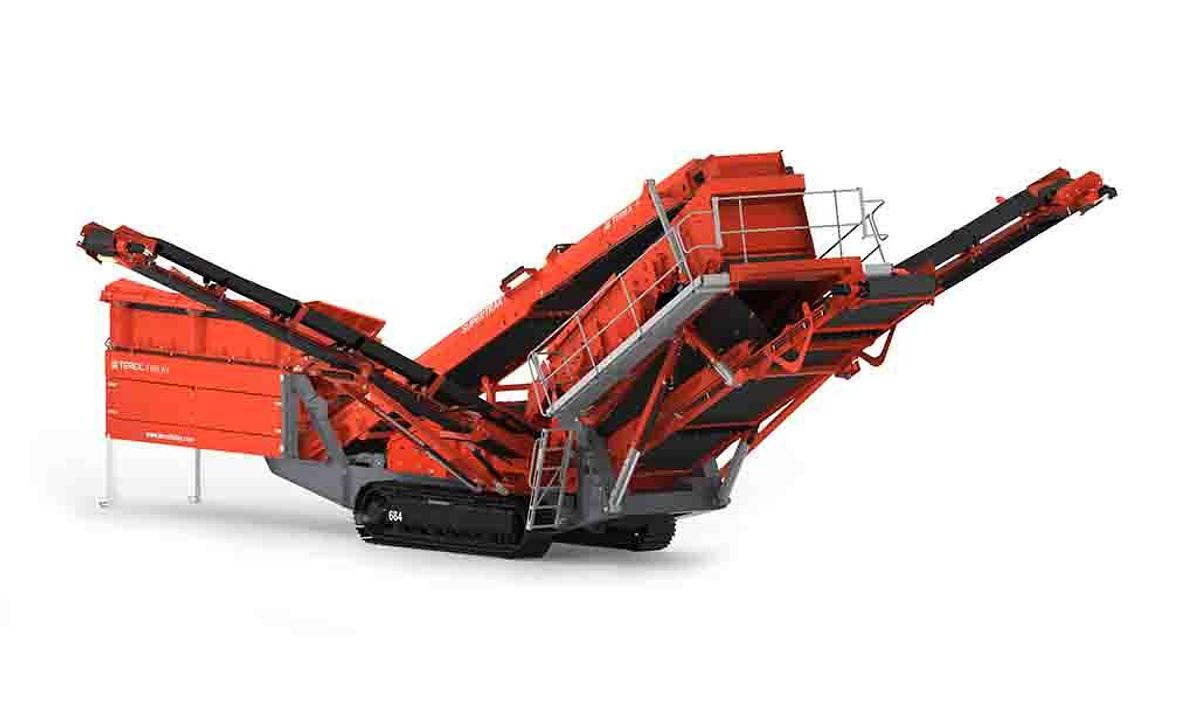

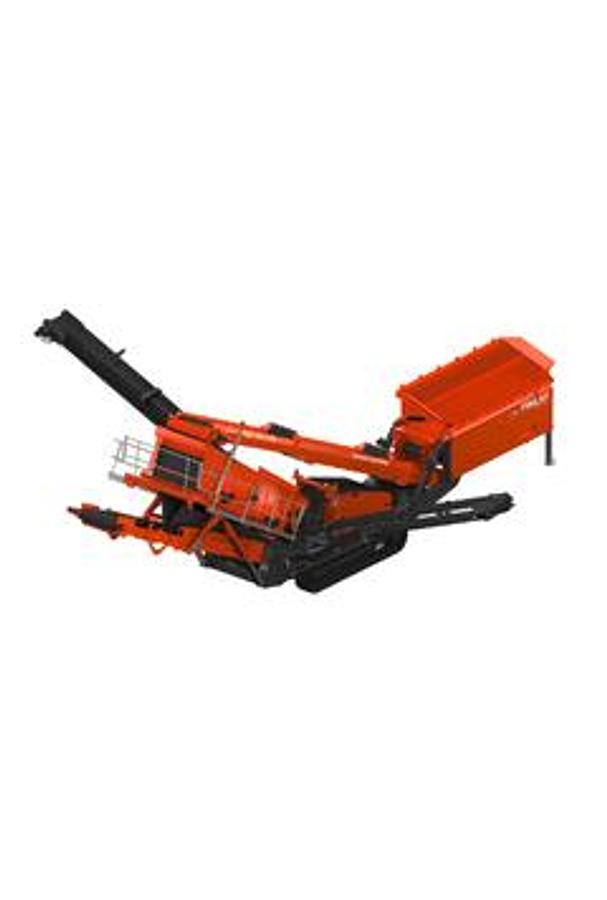

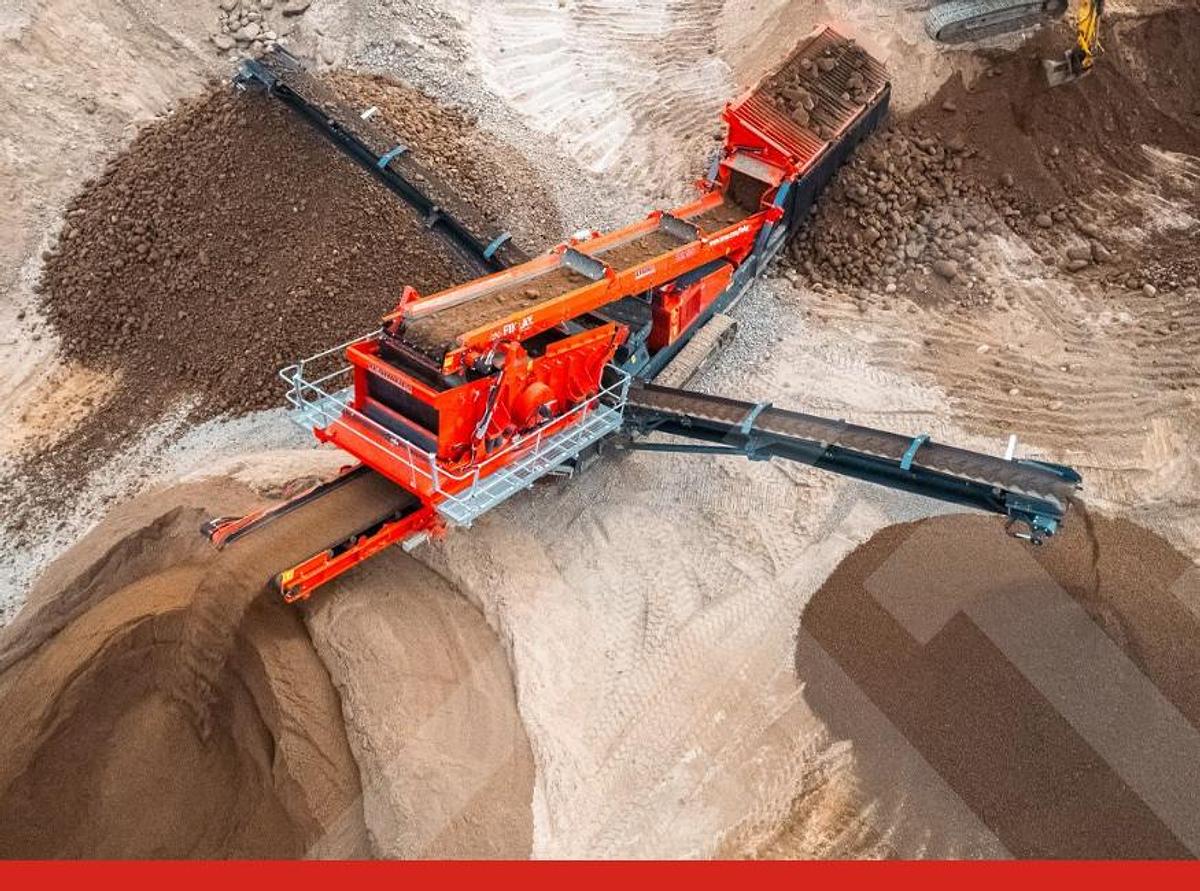

The Finlay 684 2 Deck Screener is a compact easily transportable machine that offers operators rapid set up and tear down times. The screenbox features two large 4.3m x 1.7m (14' x 5' 7") inclined screen decks giving a large screening area to provide efficient screening and high capacity. The screenbox features quick wedge tensioning on the top deck, access holes and bottom deck hydraulic tensioning system to reduce time required for mesh changes. Features: • Main conveyor: Belt width: 1m (40"); Steel skirted full length of conveyor; 3 number Anti rollback Plates; Conveyor can be raised while • Fines conveyor: Belt width: 1.2m (48"); Working Angle: Variable 25° (Max); Standard Discharge Height: 4.15m (13' 7"); Stockpile capacity: 106.3m³ (139yd³) @ 25° • Hopper and feeder: Hopper Capacity: 8m³ (10.5yd³); Feed height: 3.45m (11' 4"); Feed in width: 4.77m (15' 8") (grid wing plates) • Oversize and Mid grade conveyors: Belt width: 650mm (26"); Belt spec: Chevron 2 ply EP250; Hydraulic Folding; Discharge Height: 4.76m (15' 7"); Stockpile capacity: 194m³ (254yd³) • Oversize and midgrade conveyors: Belt width: 650mm (26"); Belt spec: Chevron 2 ply EP250; Hydraulic Folding; Discharge Height: 4.76m (15' 7"); Stockpile capacity: 194m³ (254yd³) • Screenbox: Both decks: 4.3m x 1.7m (14' x 5' 7"); Screen Angle: 18°, 37°, hydraulic adjust; Abrasion resistant material impact plate; Galvanised access catwalk at both sides and top end of screen; Total screening area: 14.6m² (156ft²) Specifications: • Transport Width: 9 ft 10 in (3 m) • Weight: 63,380 lbs with options (28,750 kg with options) • Working Dimensions: Height 20', Width 56' 8", Length 60' 7" (Height 6.11m, Width 17.25m, Length 18.46m) • Transport Length: 57 ft 10 in (17 m 61 cm) • Screen: 14' x 5' 7" (4.3m x 1.7m) • Transport Height: 11 ft 7 in (3 m 53 cm) • Output Potential: 551 US tph (500 tph) • Net Engine Power: Tier 3 / Stage IIIA: Caterpillar C4.4 103 hp / Caterpillar C4.4 120 hp (Caterpillar C4.4 77 kW / Caterpillar C4.4 90 kW) • Net Engine Power: Tier 4 Final / Stage V: Caterpillar C3.6 110 hp Dual certified (Caterpillar C3.6 82 kW Dual certified)
