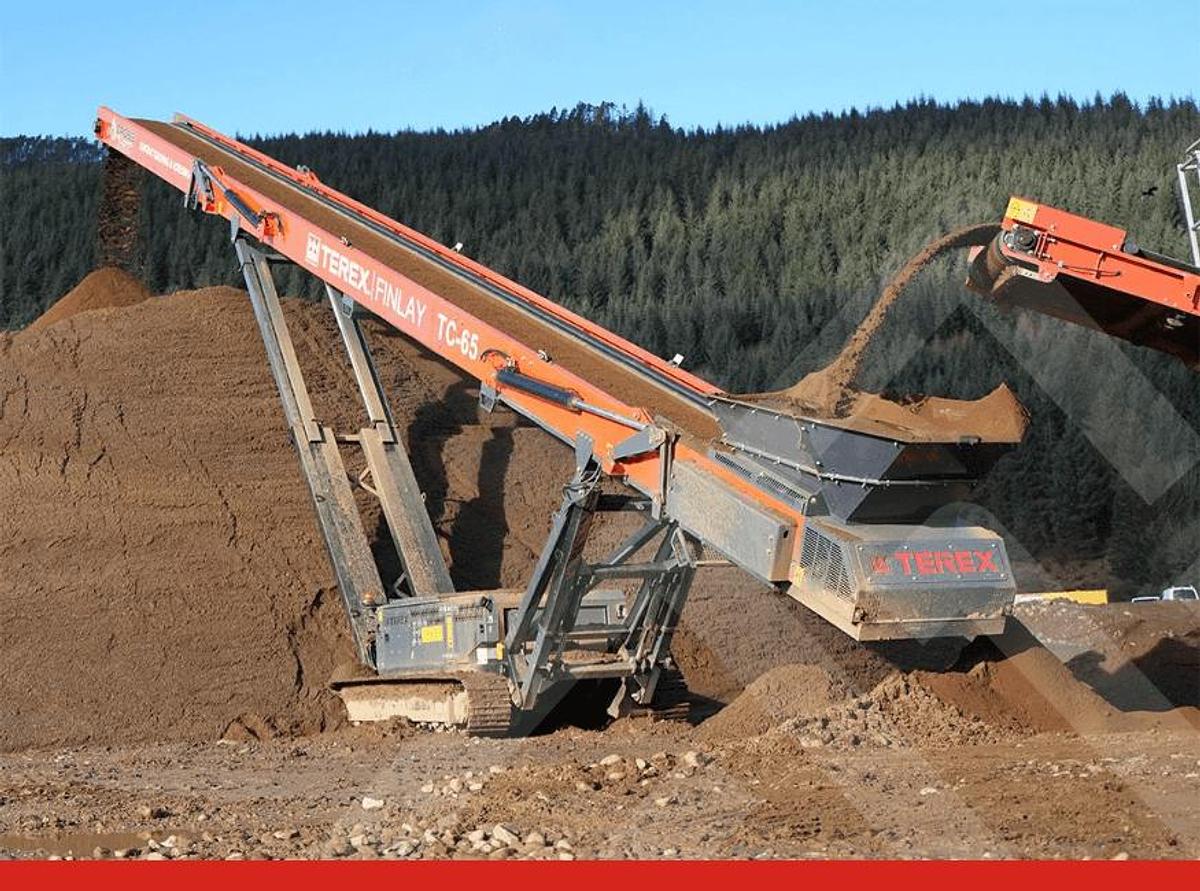

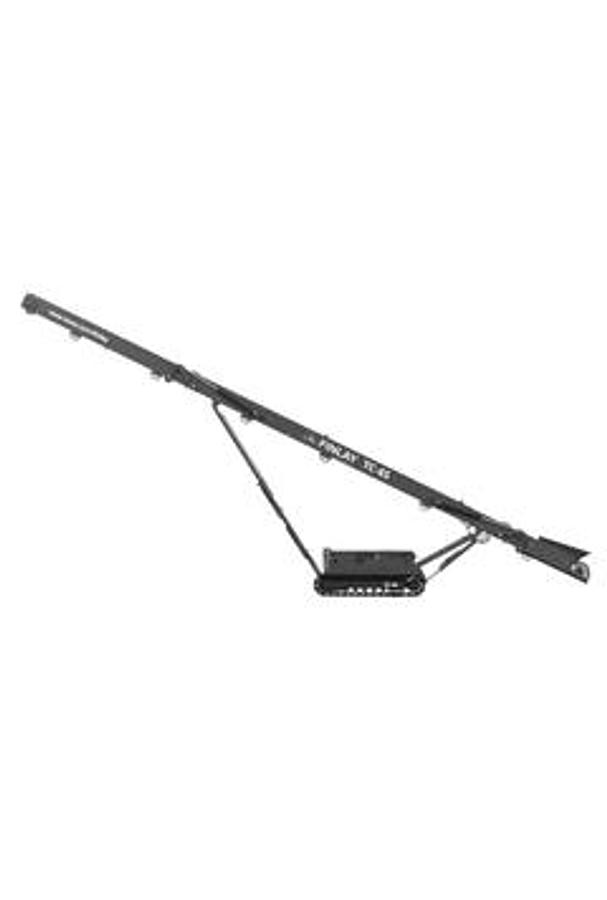

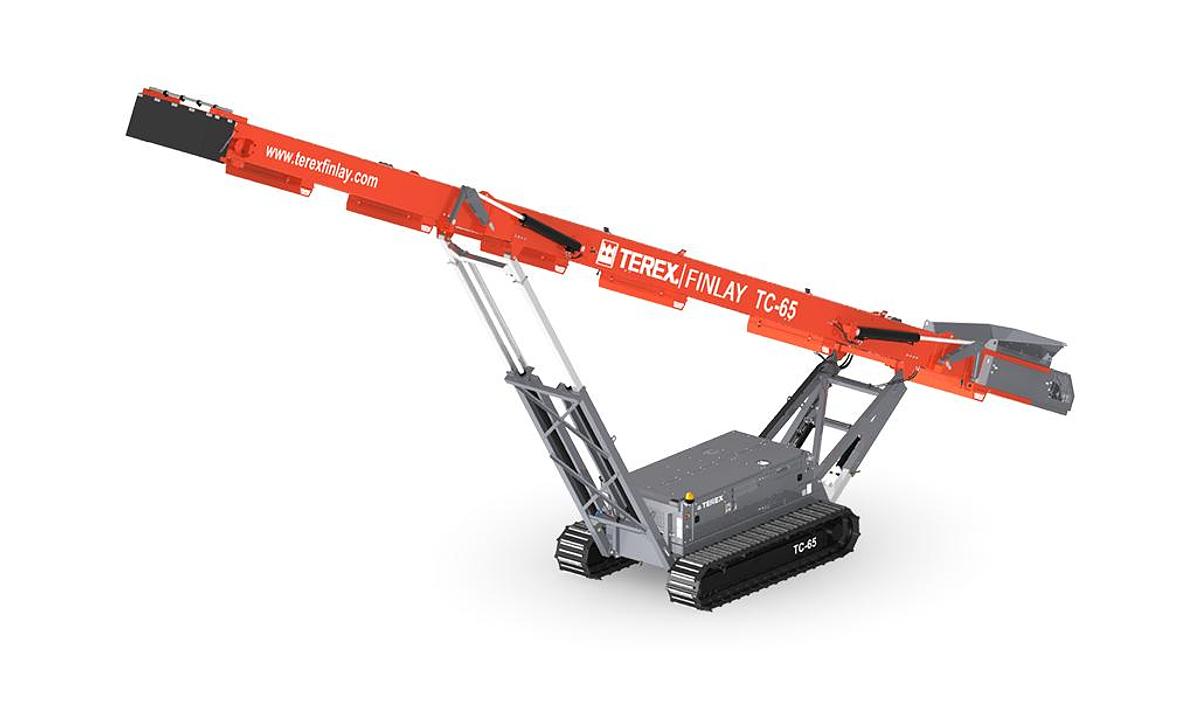

The Finlay TC65 tracked stacker is a highly portable and flexible machine that can be integrated seamlessly into stationary and mobile crushing and screening plants. Incorporating the TC65 to the job site reduces the dependency and use of auxiliary equipment onsite for transfer or stockpiling and aids the elimination of segregation, compaction and contamination of processed material. Features: • Safety measures: Inbuilt safety measures engineered into the machine include hydraulic feed height adjustment of the feedboot and pinless deployment of the main conveyor. • Conveyor: Length: 19.79m (64' 11"); Belt width: 1050mm (42") • Stockpile capacity: Maximum conical stockpile capacity based on 37° angle of repose: 2500 tonnes (2755 US ton). • Hybrid technology: The machine is available with hybrid technology consisting of on board electrical motors permitting the flexibility to run the plant from an outside power supply or standard on board engine. Specifications: • Net Engine Power: Tier 3 / Stage IIIA: CAT C 2.2 58 hp (CAT C 2.2 43 kW) • Net Engine Power: Tier 4F / Stage V: CAT C 2.2 74 hp Dual certified (CAT C 2.2 55 kW Dual certified) • Transport Width: 7 ft 5 in (2 m 26 cm) • Max Discharge Height: 31 ft (9.5 m) • Transport Length: 37 ft (11 m 33 cm) • Belt Width: 42 in (1,050 mm) • Transport Height: 8 ft 4 in (2 m 53 cm) • Conveyor Length: 64 ft 11 in (19 m 79 cm) • Output Potential: 551 US tph (500 tph)
