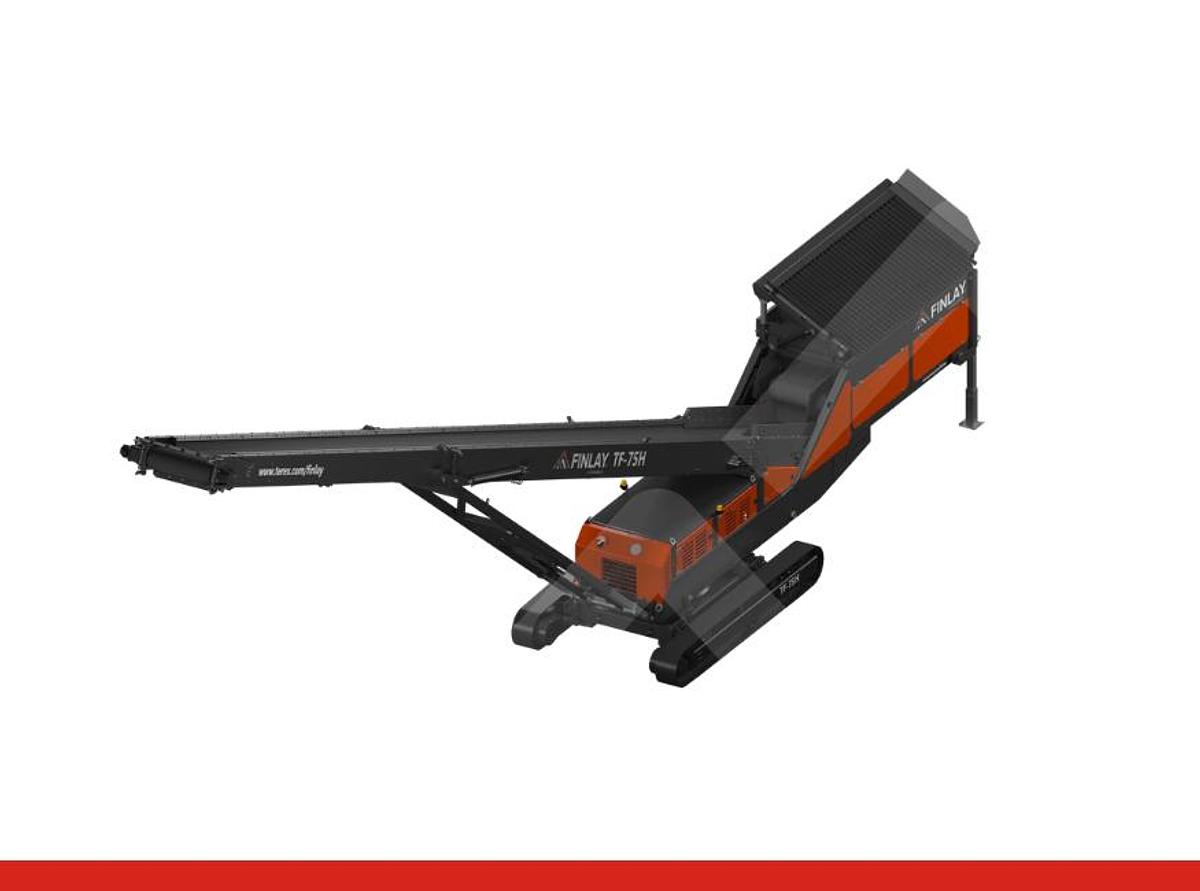

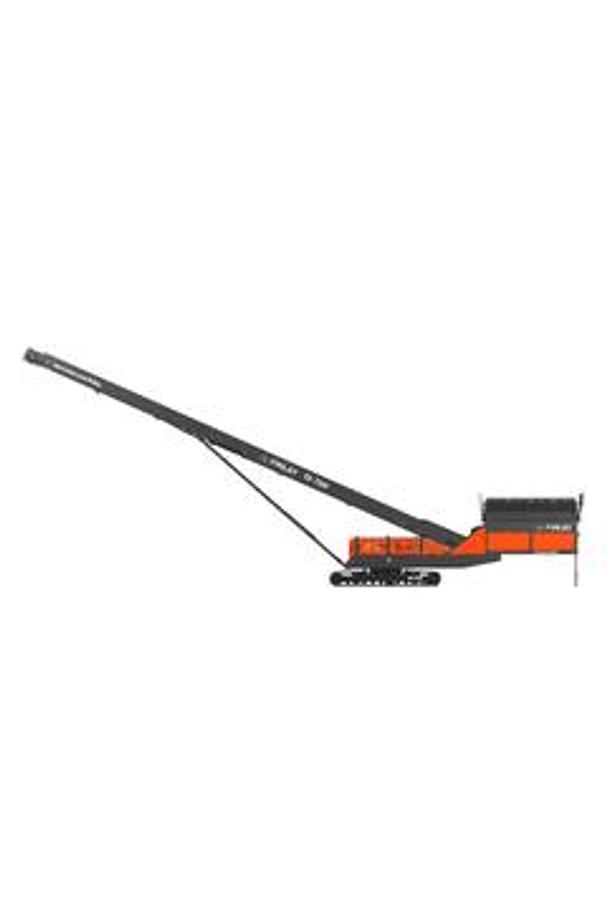

The Finlay TF75H high level orbital feeder has been designed to maximize productivity and improve efficiency by reducing double handling and on site operational costs in a wide range of applications and feed material types. For enhanced onsite mobility and flexibility the machine is fitted with an orbital centre mounted slew bearing that enables 360° rotation and movement of the hopper/feeder. The large hopper/feeder has a capacity of 7m3 (9.2yd3) and can be fed directly from excavators, wheel loaders and auxiliary machines. For crushing and screening applications the machine can be used for a 'metered or controlled' feed of material. Specifications: • Transport Length: 63 ft (19 m 50 cm) • Transport Height: 11 ft 11 in (3 m 63 cm) • Conveyor Length: 73 ft 10 in (22 m 5 cm) • Belt Width: 48 in (1,200 mm) • Max Discharge Height: 35 ft 8 in (10.9 m) • Transport Width: 10 ft 6 in (3 m 20 cm) • Net Engine Power: Tier 3 / Stage IIIA: Caterpillar C4.4 111 hp (Caterpillar C4.4 83 KW) • Net Engine Power: Tier 4F / Stage V: CAT C3.6 110 hp Dual Certified (CAT C3.6 82 kW Dual Certified) • Output Potential: 661 US tph (600 tph)
