2026

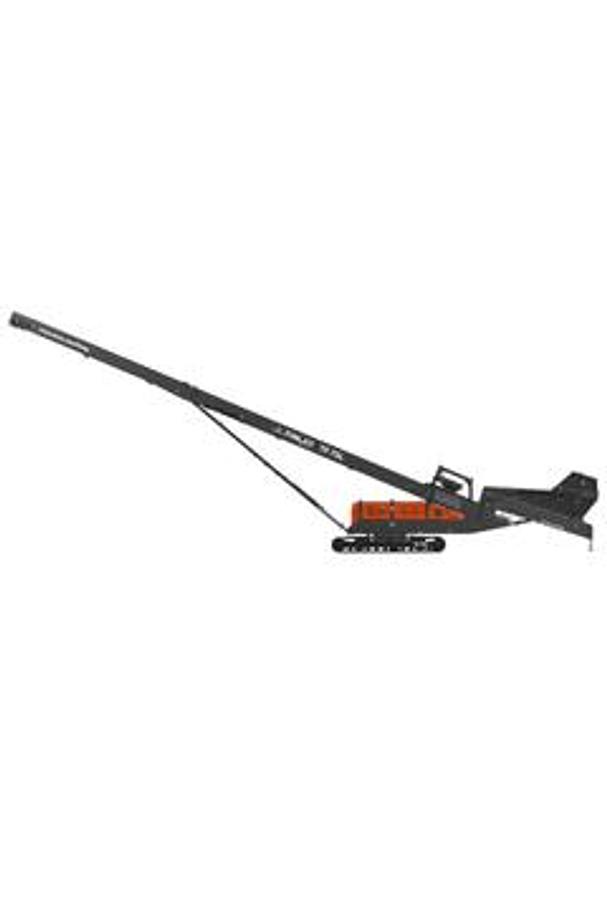

The Finlay TF75L low level orbital feeder has been designed to maximize productivity, enhance efficiency and reduce on site operational costs in a wide range of applications and feed material types.The large 7m3 (9.2yds3) hopper with a feed in height of 1900mm (6' 3") and width of 3500mm (11' 5") enables low level feeding directly from excavators, grab cranes, and wheel loaders compared to standard high level feeders. For onsite safety and quick setup the hopper is fitted as standard with hydraulically folding sides.Tracked mobility and the ability to feed material from all three sides enable the TF75L to be easily incorporated into open and closed circuit static and mobile crushing and screening circuits. For crushing and screening applications the machine can be used for a 'metered or controlled' feed of material. The machine can also be used to feed auxiliary equipment, connect to additional conveyors for transferring materials and to directly load / unload ships, trucks and rail wagons. Specifications: • Output Potential: 661 US tph (600 tph) • Belt Width: 48 in (1,200 mm) • Max Discharge Height: 35 ft 8 in (10.9 m) • Conveyor Length: 73 ft 10 in (22 m 5 cm) • Transport Length: 63 ft (19 m 50 cm) • Transport Height: 11 ft 11 in (3 m 63 cm) • Transport Width: 10 ft 6 in (3 m 20 cm) • Net Engine Power: Tier 3 / Stage IIIA: CAT C4.4 111 hp (CAT C4.4 83 KW) • Net Engine Power: Tier 4F / Stage V: CAT C3.6 110 hp Dual Certified (CAT C3.6 82 kW Dual Certified)
