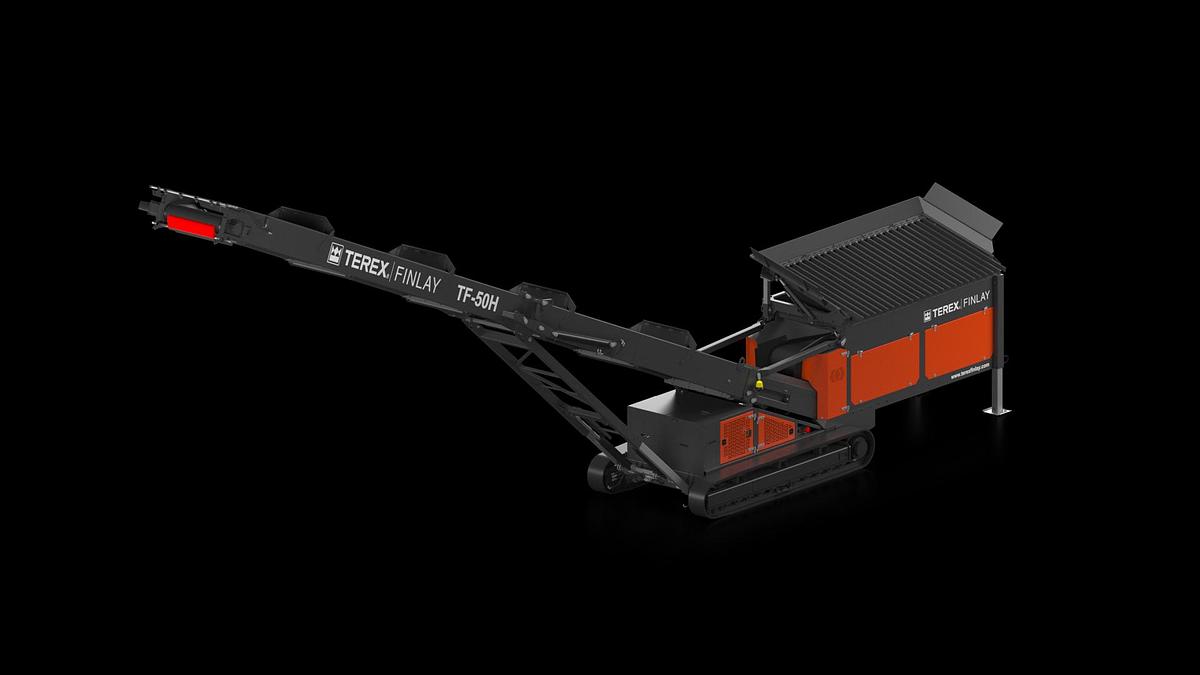

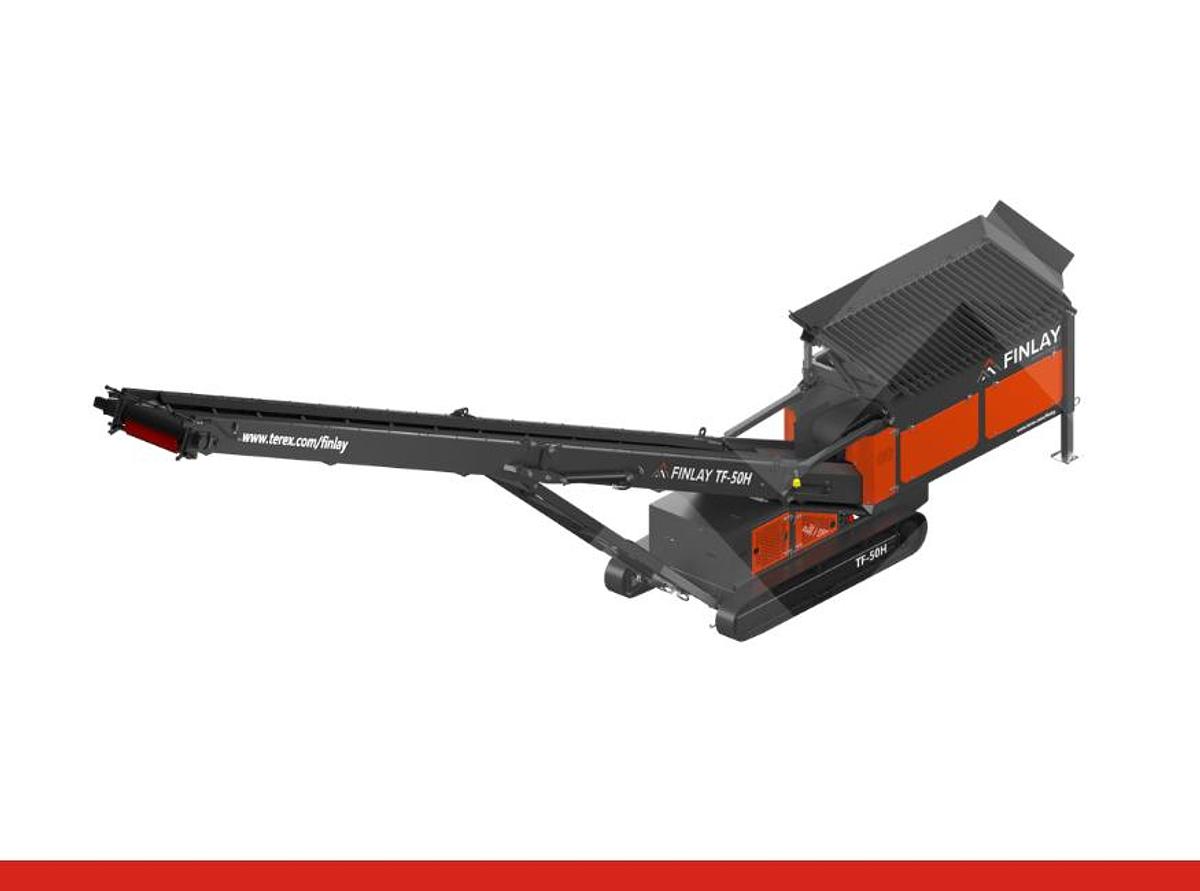

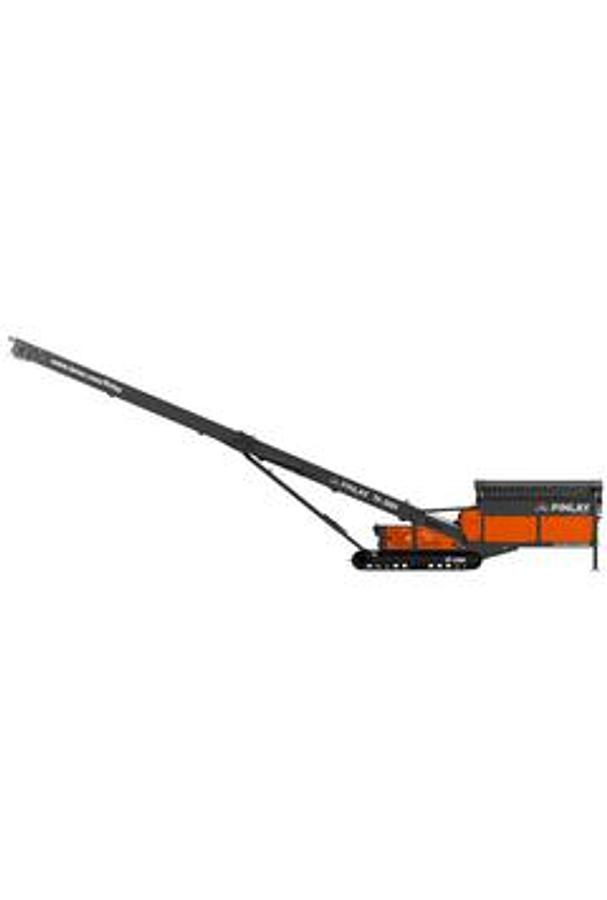

The Finlay TF50H high level feeder has been designed to maximize productivity and improve efficiency by reducing double handling and on site operational costs in a wide range of applications and feed material types. The large hopper/feeder has a capacity of 4.2m3 (5.5yd3) and can be fed directly from excavators, wheel loaders and auxiliary machines. For crushing and screening applications the machine can be used for a 'metered or controlled' feed of material. Features: • Feed Conveyor: Capacity (No Grid): 4.2 m³ (5.5yds3); Feed height (No Grid): 2.28m ( 7' 6"); Feed in width (No Grid): 3.47m (11' 5"); Drive: hydraulic variable speed drive via high torque gearbox • Undercarriage: Belt Width: 300mm (1' 0"); Sprocket Centres: 3434mm (11' 3.2"); Gradeability: 39.2° • Powerunit: Tier 3: Caterpillar C4.4 62kW(83hp) @2300rpm; Stage V:Caterpillar C2.2 55kW (74hp) @2300rpm Specifications: • Output Potential: 496 US tph (450 tph) • Max Discharge Height: 23 ft 8 in (7.2 m) • Transport Length: 39 ft 11 in (12 m 16 cm) • Transport Height: 8 ft 4 in (2 m 55 cm) • Belt Width: 42 in (1,050 mm) • Conveyor Length: 51 ft 2 in (15 m 6 cm) • Transport Width: 7 ft 6 in (2 m 29 cm) • Net Engine Power: Tier 3 / Stage IIIA: CAT C4.4 83 hp (CAT C4.4 62 kW) • Net Engine Power: Tier 4F / Stage V: CAT C 2.2 74 hp Dual certified (CAT C 2.2 55 kW Dual certified)
