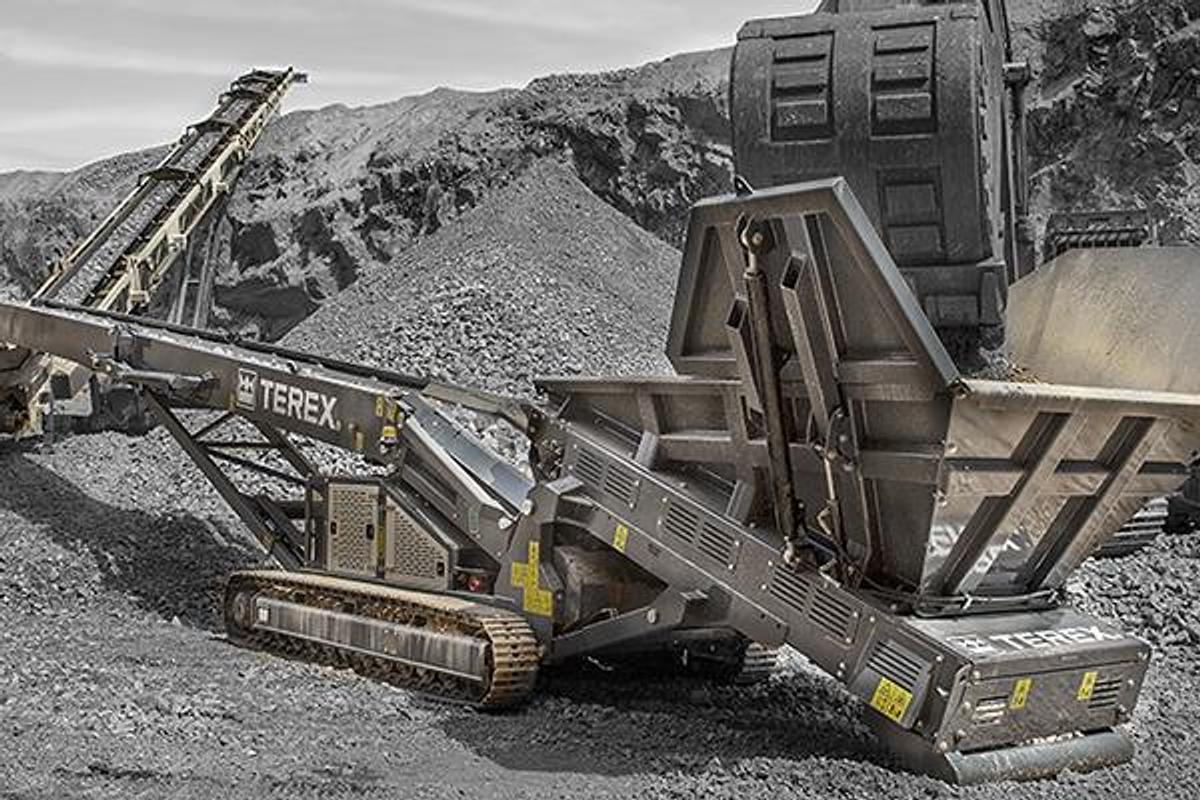

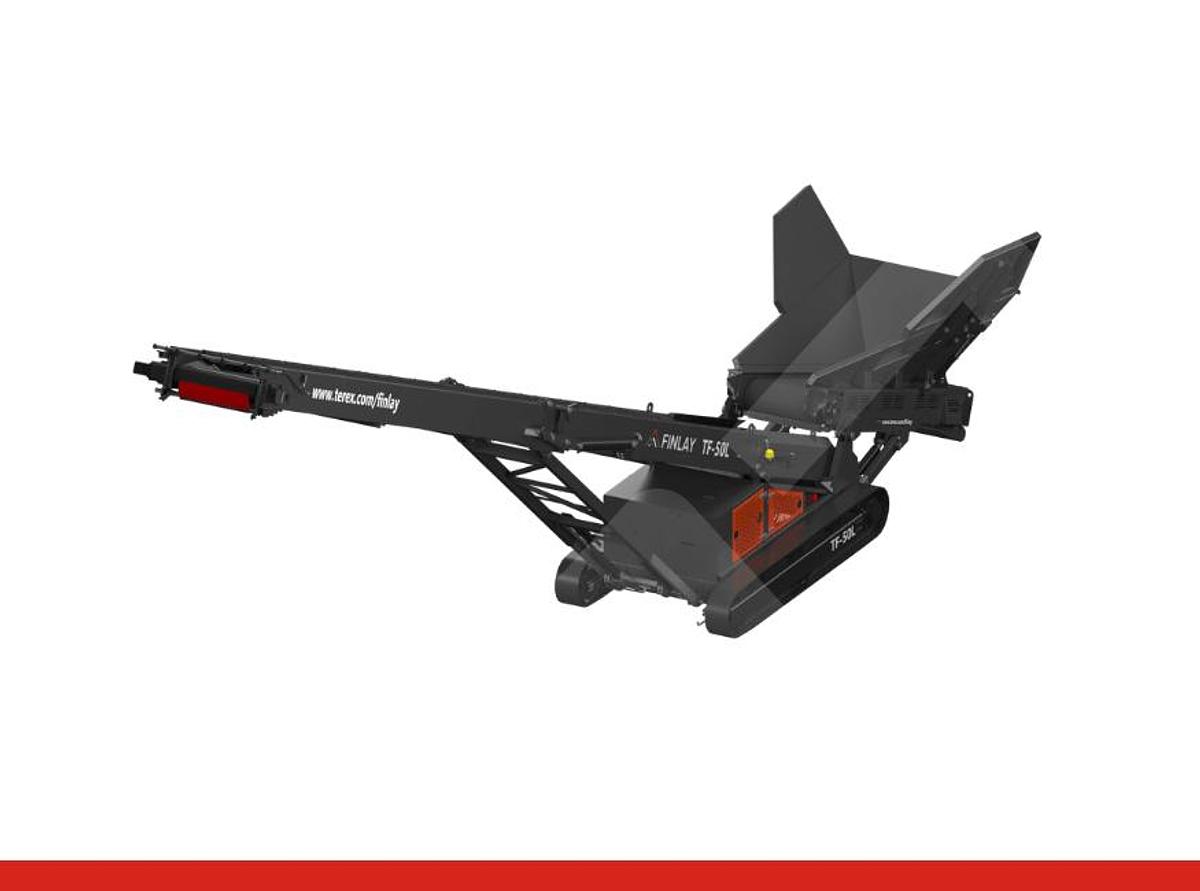

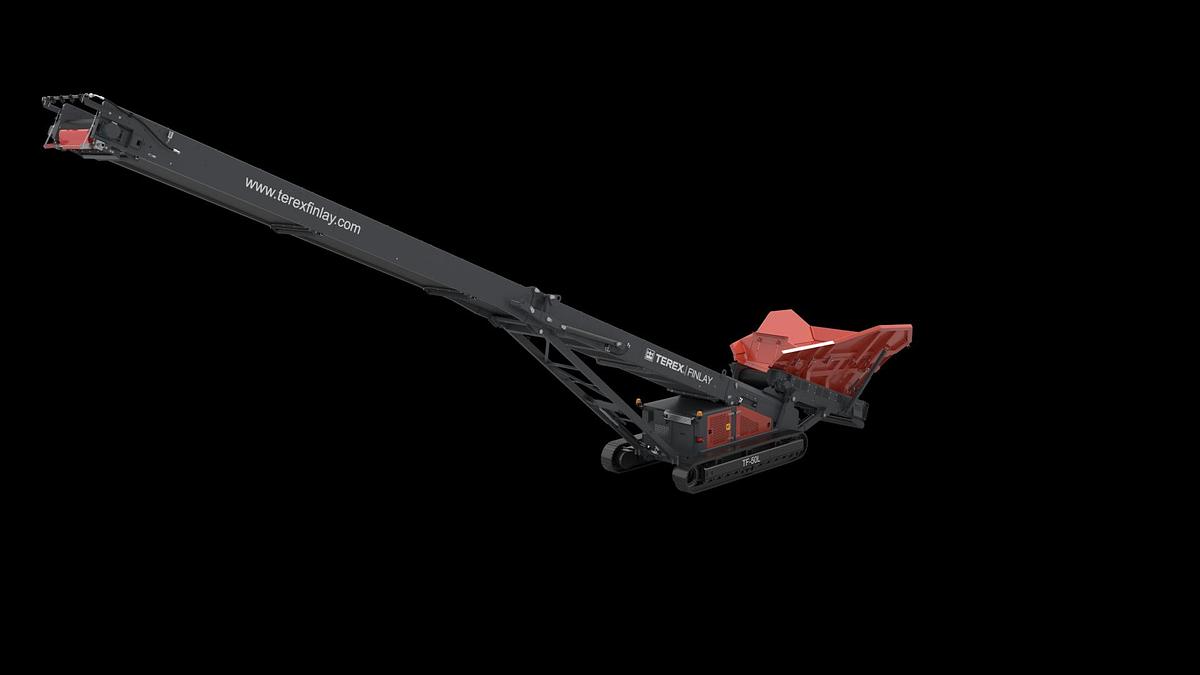

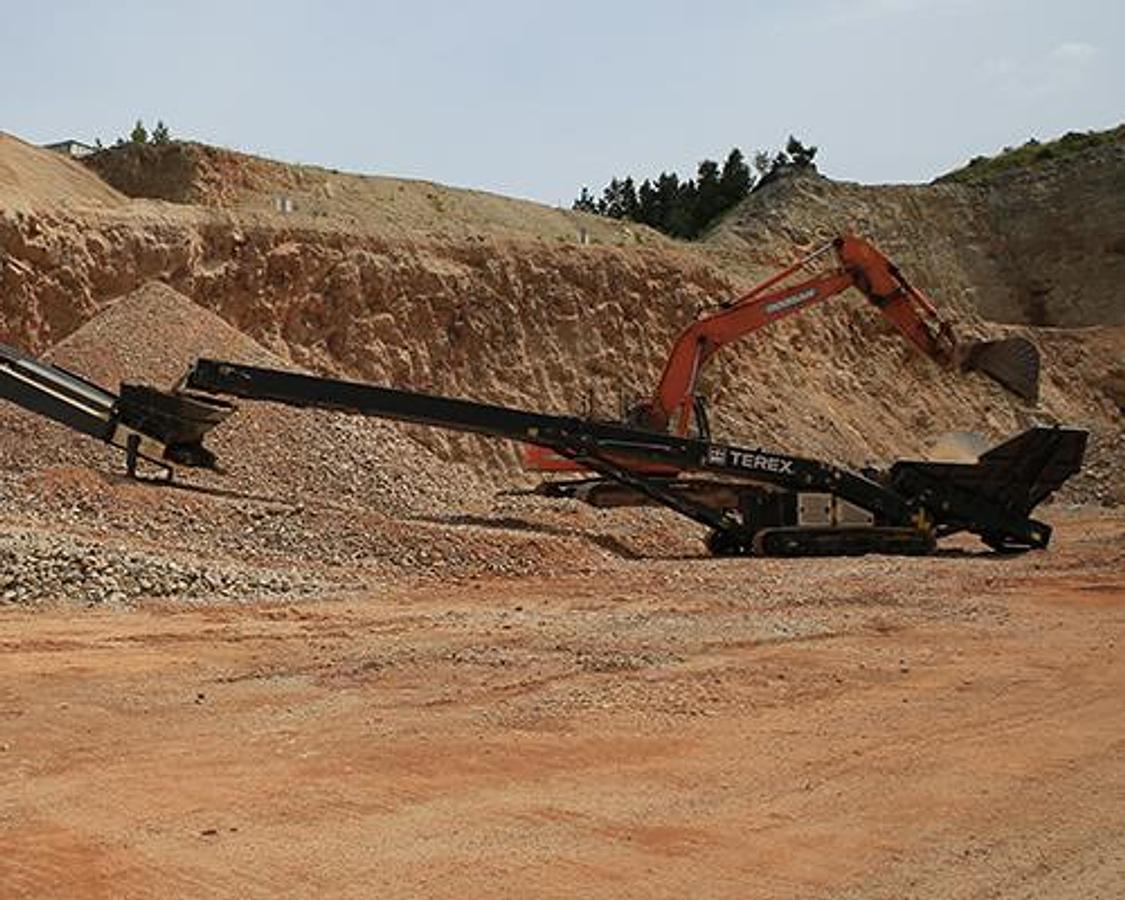

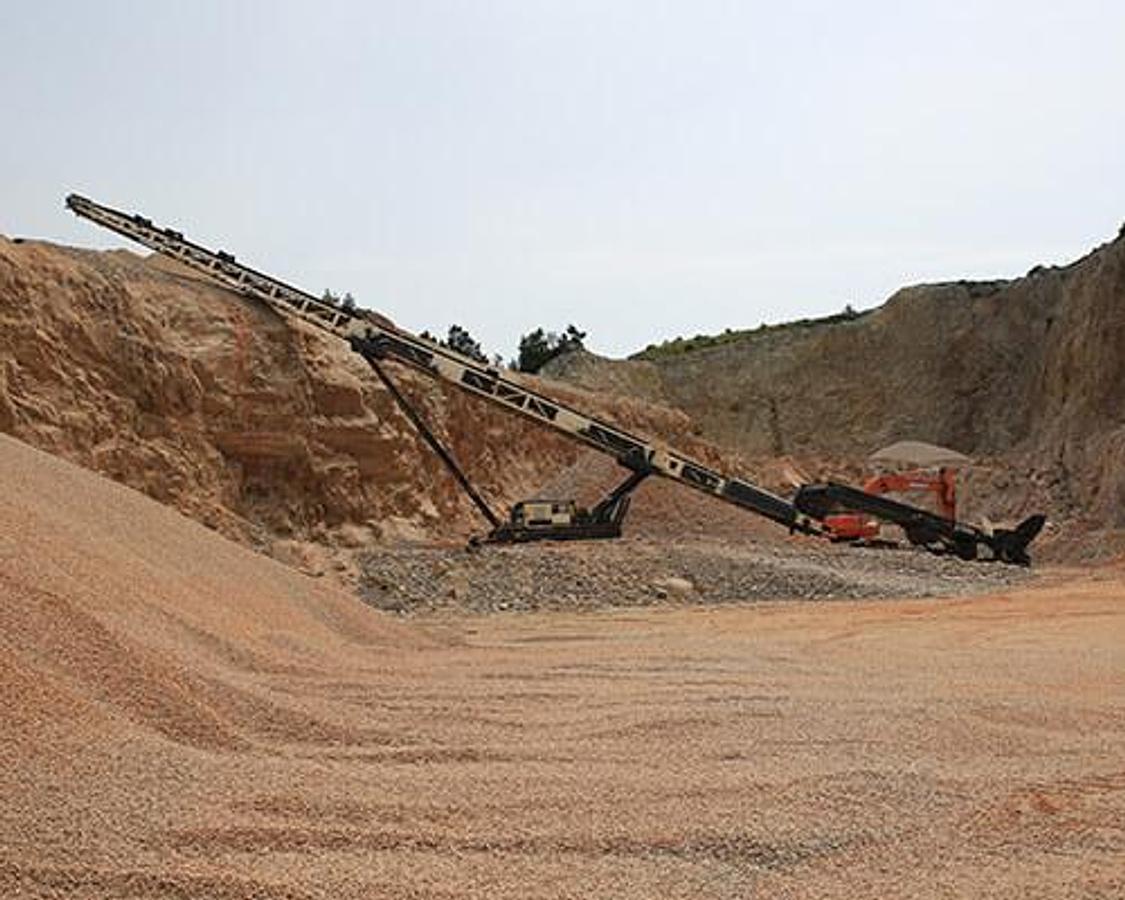

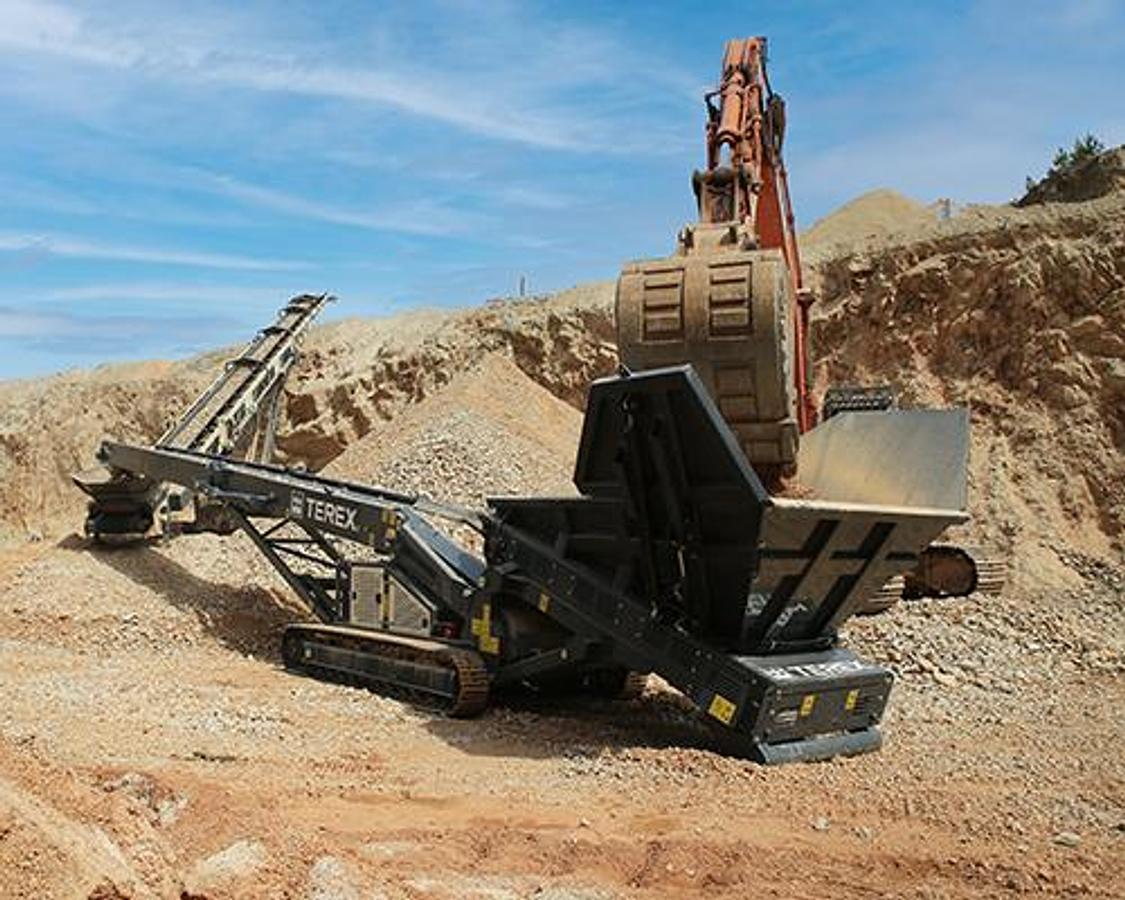

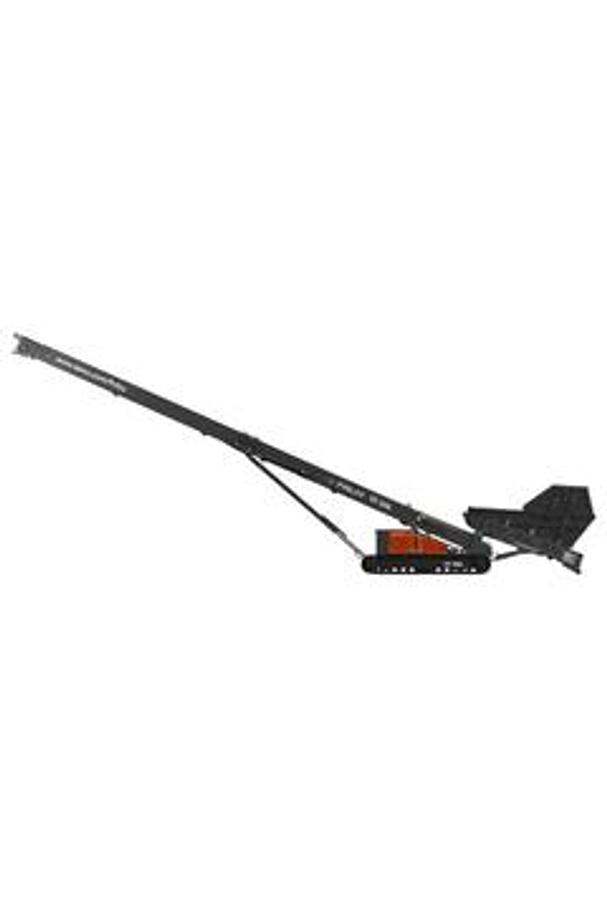

The Finlay TF50L low level feeder has been designed to maximize productivity, enhance efficiency and reduce on site operational costs in a wide range of applications and feed material types.The large 7m3 (9.2yds3) hopper with a feed in height of 1900mm (6' 3") and width of 2100mm (7' 1") enables low level feeding directly from excavators, grab cranes, and wheel loaders. For onsite safety and quick setup the hopper is fitted as standard with hydraulically folding sides.The ability to feed material from all three sides enable the TF50L to be easily incorporated into open and closed crushing and screening circuits. As part of a crushing and screening application the machine can be used for a 'metered or controlled' feed of material. The machine can also be used to feed auxiliary equipment, connect to additional conveyors for transferring materials and to directly load / unload ships, trucks and rail wagons. Features: • Discharge Conveyor: Conveyor length: 15.6m (51' 2"); Belt width: 1.05m (42"); Optimum working angle: 18⁰; Optimum discharge height: 5.9m (19' 4") • Feed Conveyor: Capacity: 7m3; Feed in width (flares up): 3.49m (11' 5") • Powerunit: Tier 3: Caterpillar C4.4 62kW (83hp) @2300rpm; Stage V:Caterpillar C2.2 55kW (74hp) @2300rpm • Undercarriage: Undercarriage with heavy duty tracks. 3400mm centres, 300mm shoe Specifications: • Conveyor Length: 51 ft 2 in (15 m 6 cm) • Belt Width: 42 in (1,050 mm) • Transport Width: 9 ft 1 in (2 m 77 cm) • Transport Height: 8 ft 4 in (2 m 55 cm) • Max Discharge Height: 24 ft 2 in (7.4 m) • Transport Length: 40 ft 8 in (12 m 20 cm) • Net Engine Power: Tier 3 / Stage IIIA: CAT C4.4 83 hp (CAT C4.4 62 kW) • Net Engine Power: Tier 4F / Stage V: CAT C 2.2 74 hp Dual certified (CAT C 2.2 55 kW Dual certified) • Output Potential: 496 US tph (450 tph)
