2026

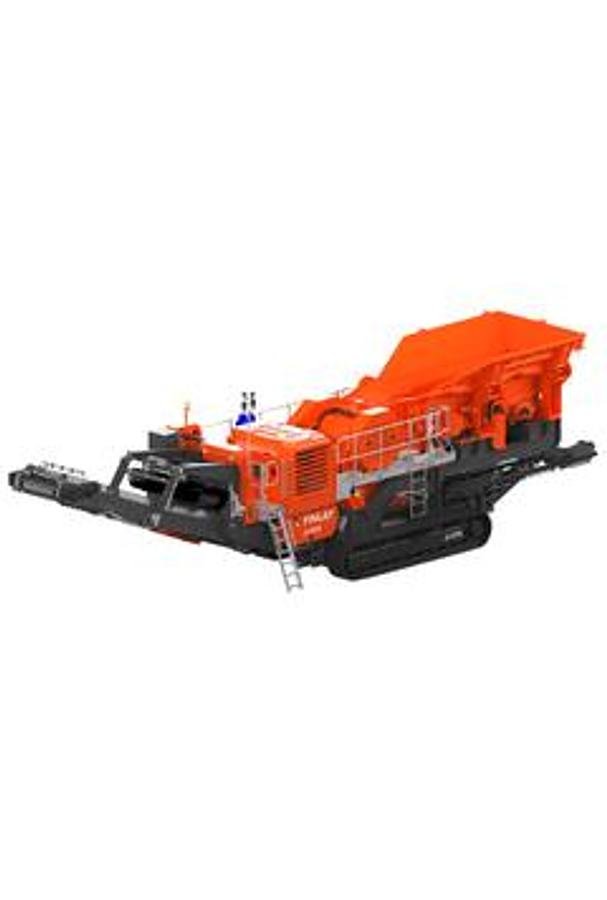

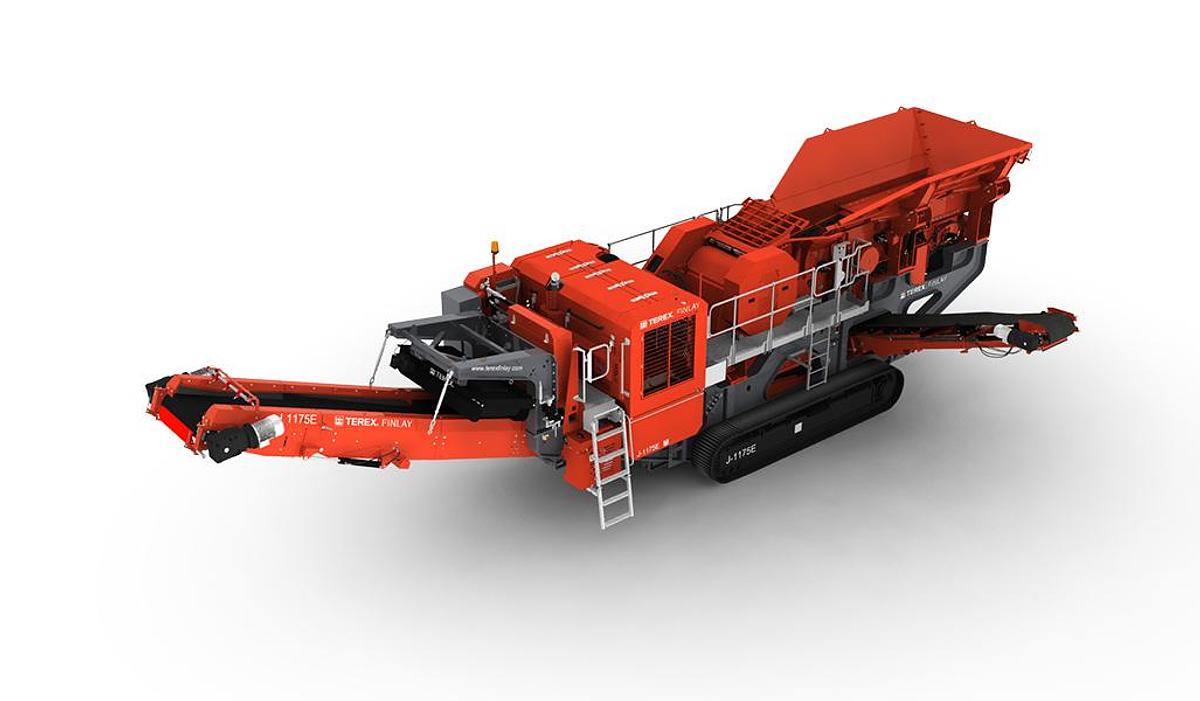

The Finlay J1175 Hybrid Jaw Crusher offers operators the flexibility to power the plant either by mains electric connection or the onboard genset powerpack configuration. Either power option presents operators with significant power, servicing and maintenance cost savings in direct comparison to a diesel/hydraulic powered plant. The plant incorporates the robust Terex JW42 high performance electrically driven single toggle jaw chamber and a heavy duty VGF feeder to give optimum production in quarrying, mining, demolition and recycling applications. Features: • Hopper and Feeder: Hopper capacity: 9m³ (11.7yd³); Feed height VGF: 3.98m (12' 11"); Feed width at rear VGF: 2.67m (8' 9"); Hydraulically folding sides and rear • Hopper and Feeder: Hopper capacity: 9m³ (11.7yd³); Feed height VGF: 3.98m (12' 11"); Feed width at rear VGF: 2.67m (8' 9"); Hydraulically folding sides and rear • Jaw Chamber: Terex JW42 Chamber single toggle jaw crusher Inlet width: 1070mm (42"); u Inlet gap: 760mm (30"); Under jaw clearance: 460mm nominal; Full hydraulic closed side setting adjust • Magnet Seperator (Optional): Belt Width: 750mm (30"); Drive: Hydraulic • Main Conveyor: Belt Width: 1000mm (40"); Discharge Height: 3.6m (11' 10") with standard conveyor; Impact bars and wear resistant liners at feed point; Stockpile capacity: 69.4m3 (90.8yd3) @ 40° Specifications: • Weight: 111,024 lbs with options (50,360 kg with options) • Inlet Opening: 42" x 30" (1,070 x 760 mm) • Output Potential: 496 US tph (450 tph) • Net Engine Power: Stage IIIA Constant Speed: Scania DC09 365hp (Scania DC09 273kW) • Net Engine Power: Stage V: Scania DC09 345 hp (Scania DC09 257 kW) • Net Engine Power: Tier 2 / Stage II Equivalent: Scania DC09 350hp (Scania DC09 257kW) • Net Engine Power: Tier 3 / Stage IIIA: Caterpillar C9.3B 335 hp (Caterpillar C9.3B 250 kW) • Net Engine Power: Tier 4F / Stage IV: Scania DC9 345 hp (Scania DC9 257 kW)
