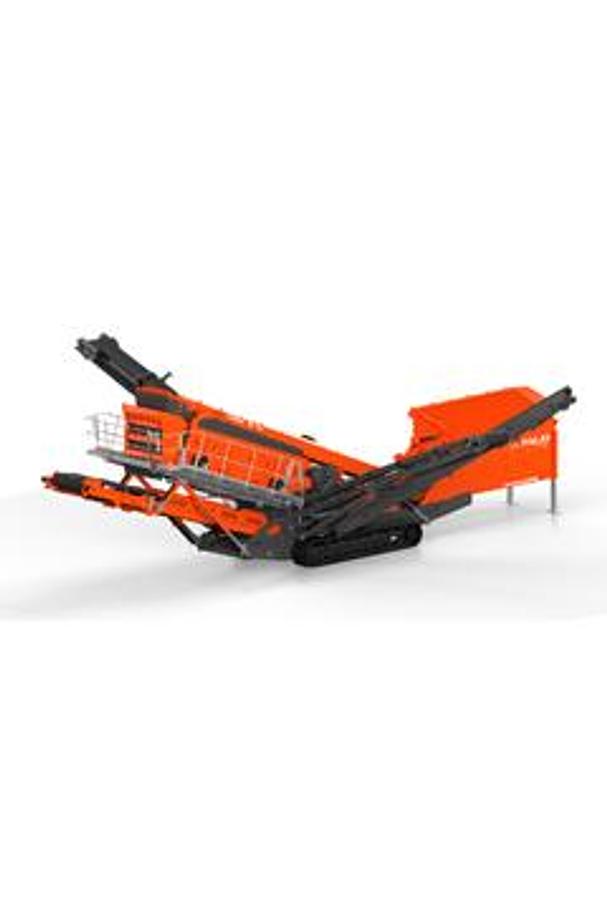

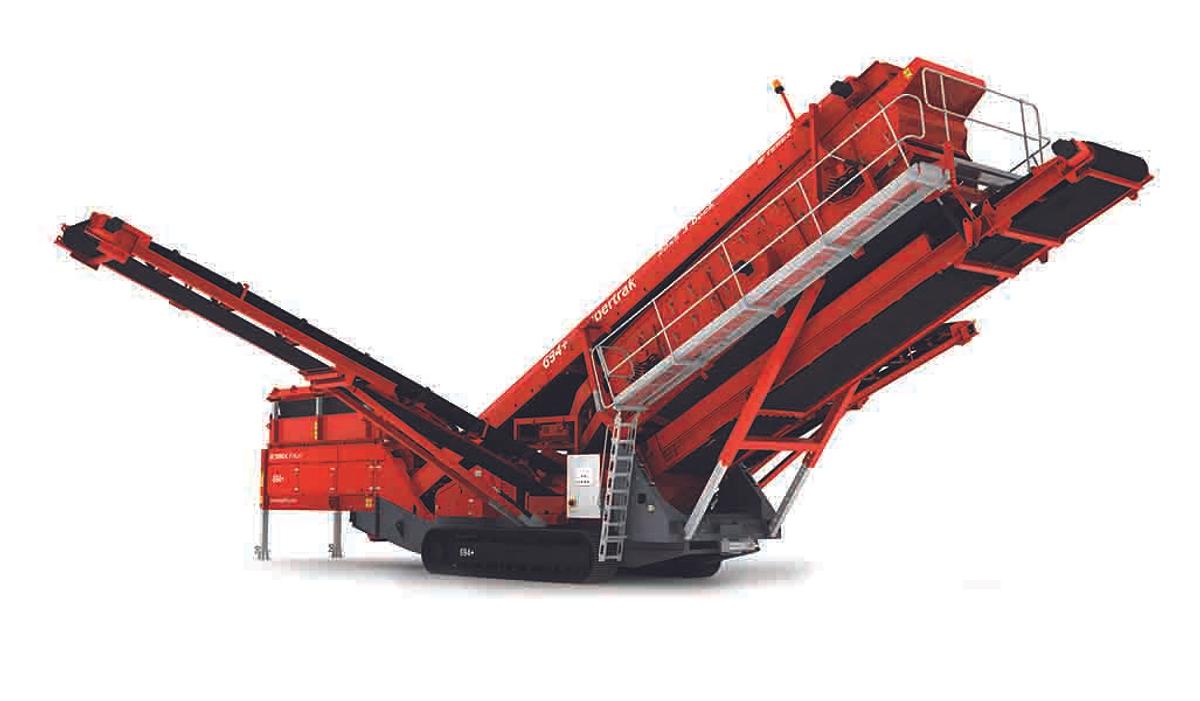

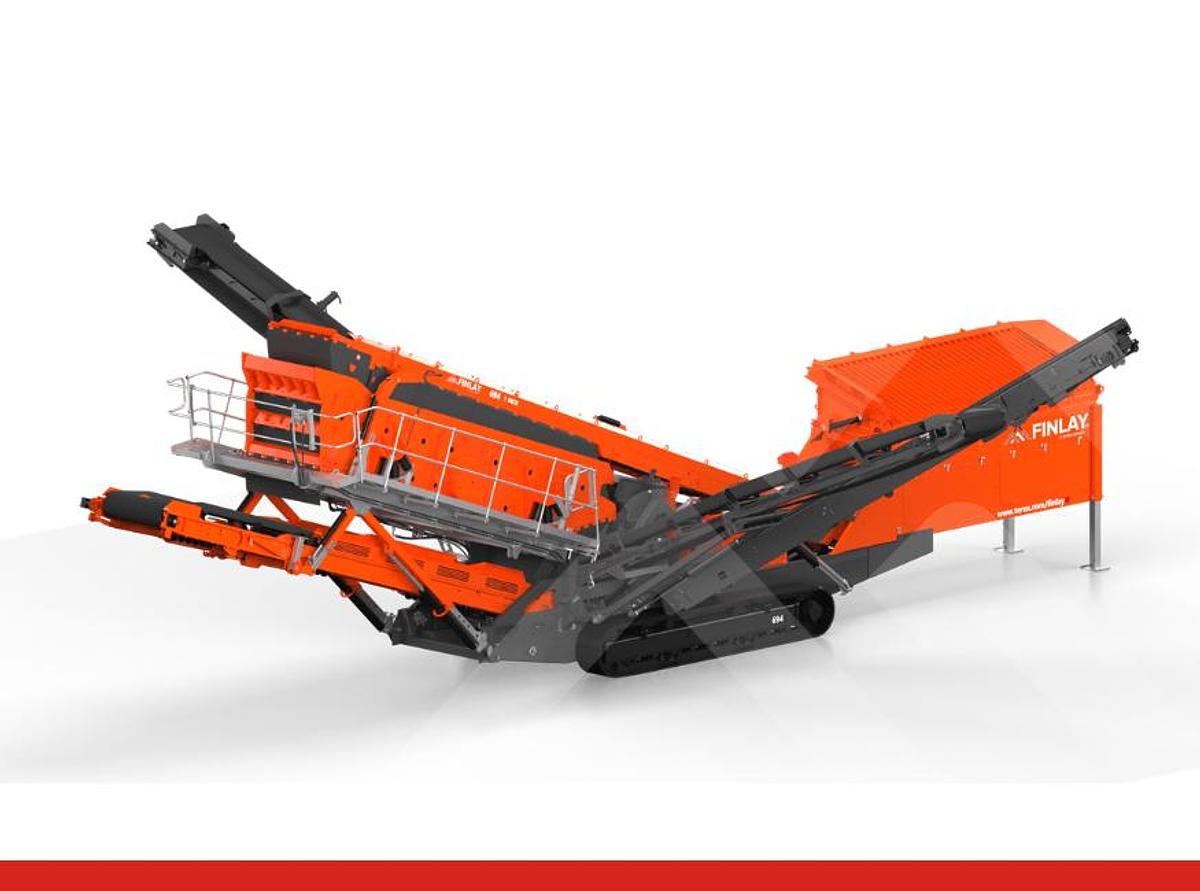

The Finlay 694 hybrid inclined screen has been developed to fulfill the demands of high production producers. The new high energy screenbox features three full size 6.1m x 1.53m (20' x 5') decks that can process fine, sticky and dirty material with ease in quarrying, mining, sand and gravel, coal, woodchip and topsoil applications. Features: • Fines Conveyor: Belt width: 1.2m (4 8"); Working Angle: Variable 25° (Max); Standard Discharge Height: 5.2m (17' 1"); Stockpile capacity: 260m³ (340yd³) • OVERSIZE and MIDGRADE CONVEYORS: Belt width: 8 00mm (32"); Working Angle: 24°; Hydraulic Folding; Discharge Height: 4.71m (15' 5"); Stockpile capacity: 193m³ (252yd³) • Undercarriage: Shoe Width: 500mm (20"); Speed: 0.8 km/h; Gradeability: 32.6°; Raking Angle: 9° • Screenbox: All decks: 6.1m x 1.53m (20' x 5'); Screen Angle: 18°, 3 0°, hydraulic adjust; Galvanised access catwalks on both sides and top end of screen; Total screening area: 27.8m² (300ft²) • Oversize Plus Conveyor: Belt width: 500mm (20"); Working Angle: Variable 22° (Max); Discharge Height: Variable 4.8m (Max); Stockpile capacity: 16 4.5m³ (215.2yd³) @ 40º • HOPPER and FEEDER: Hopper Capacity: 8m³ (10.5yd³); Feed height: 3.67m (12'); Feed in width: 4.77m (15' 8") (grid wing plates); Beltfeeder belt width: 1.2m (48") • Main Conveyor: Belt width: 1.2m (48"); Hydraulic adjust; Belt Speed: 92 mpm (302' per min); Steel skirted full length of conveyor Specifications: • Net Engine Power: Tier 3 / Stage IIIA: Caterpillar C4.4 130 hp (Caterpillar C4.4 97 kW) • Net Engine Power: Stage IIIA Constant Speed: Caterpillar C4.4 131hp (Caterpillar C4.4 98kW) • Net Engine Power: Tier 4F / Stage V: Caterpillar C4.4 137 hp Dual certified (Caterpillar C4.4 102 kW Dual certified) • Screen: 20' x 5' (6.1m x 1.53m) • Weight: 82,452 lbs (37,400 kg) • No. Stockpilers: 4 • Output Potential: 661 US tph (600 tph)
