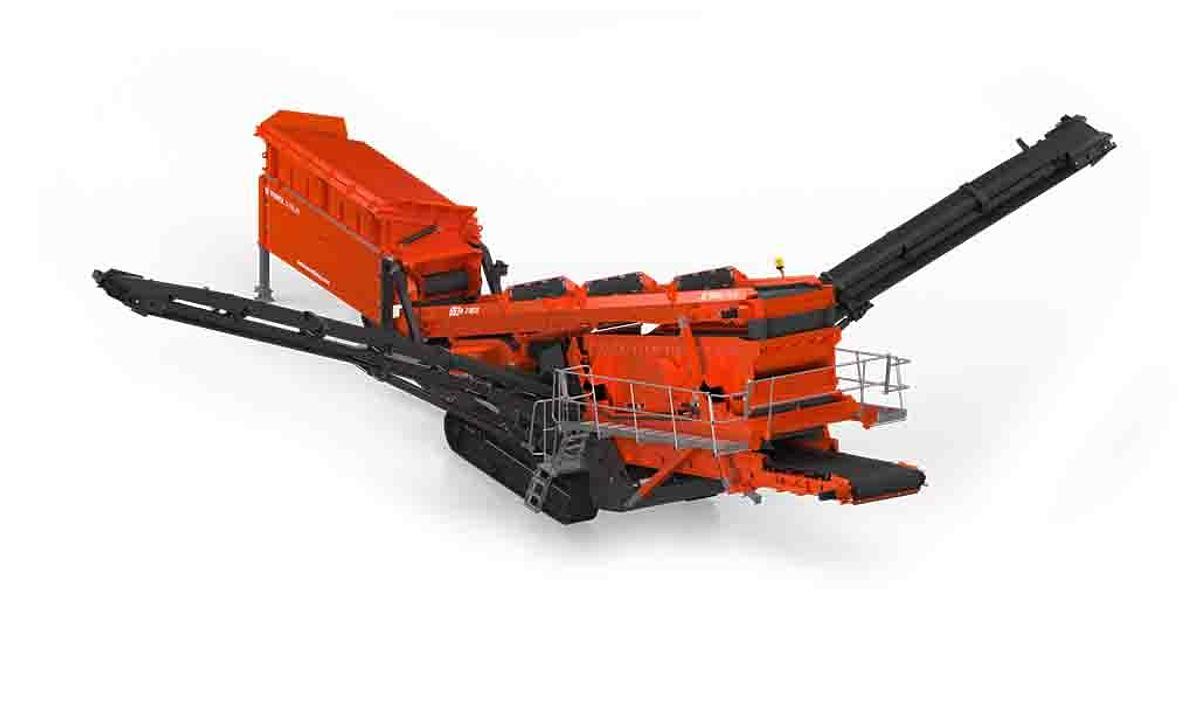

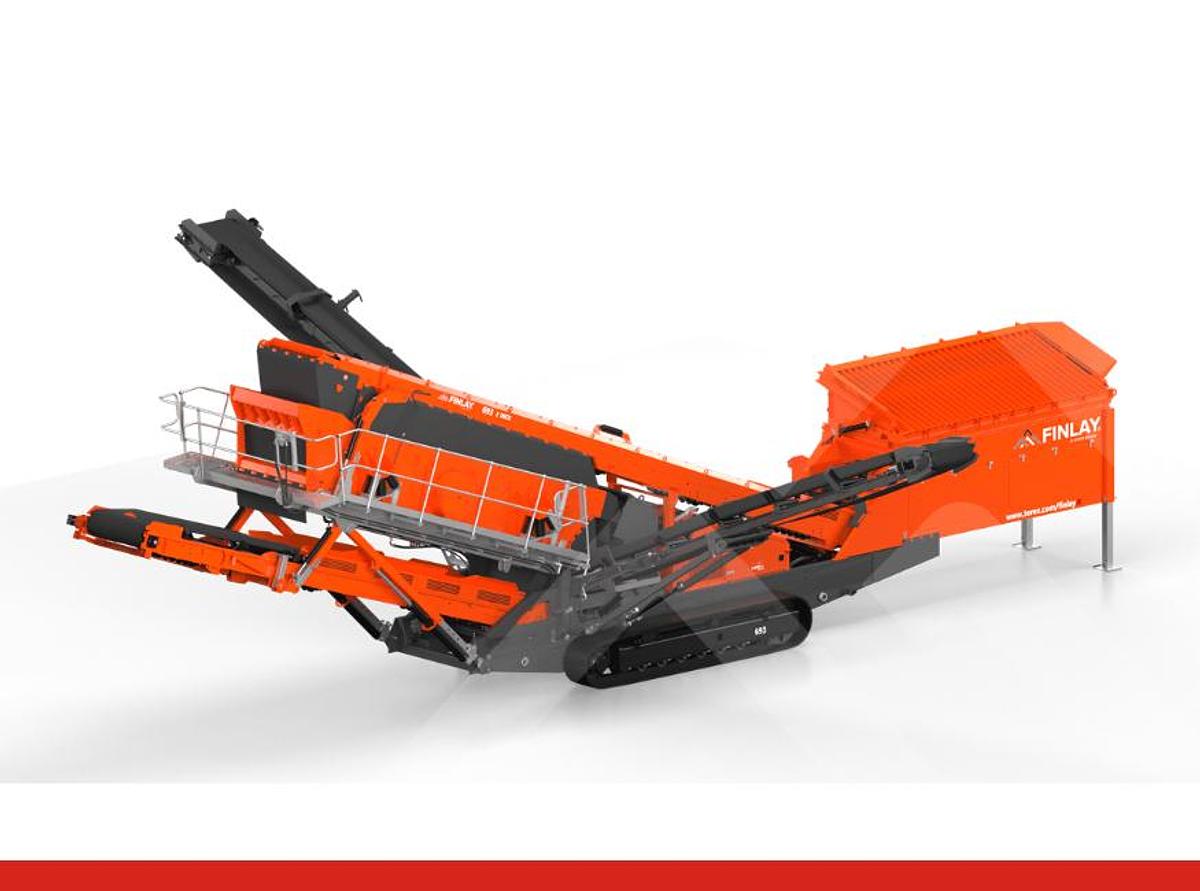

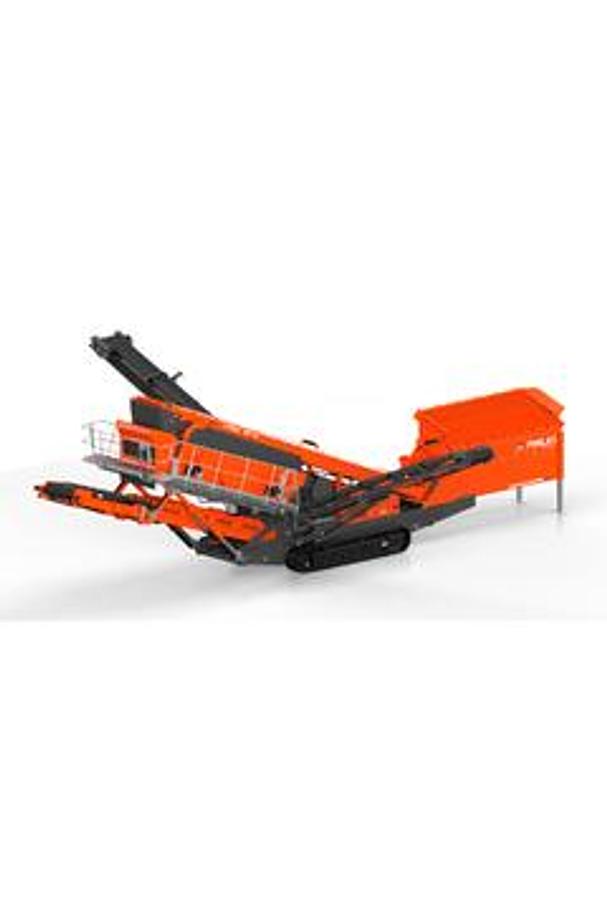

The Finlay 693 hybrid inclined screen has been developed to fulfill the demands of high production producers in quarrying, mining, sand and gravel, coal, woodchip and topsoil applications. The new high energy screenbox features two full size 6.1m x 1.53m (20' x 5') decks that can process fine, sticky and dirty material with ease. The large hopper / feeder is fitted with variable speed belt feeder to ensure consistent flow of material and can be fitted with remote tipping grid or double deck vibrating grid. Features: • HOPPER and FEEDER: Hopper Capacity: 8m³ (10.5yd³); Feed height: 2.5m (8' 2"), no grid; Feed in width: 4.2m (13' 9"); Beltfeeder belt width: 1.2m (48") • Screenbox: All decks: 6.1m x 1.53m (20' x 5'); Hydraulic Folding Catwalks; Screen Angle: 18°, 32°, hydraulic adjust; Total screening area: 18.7m² (200ft²) • Fines Conveyor: Belt width: 1.2m (4 8"); Working Angle: Variable 27.5° (Max); Standard Discharge Height: 5.5m (18' 1"); Stockpile capacity: 159m³ (208yd³) • Main Conveyor: Belt width: 1.2m (48"); Hydraulic discharge height adjustment; Steel skirted full length of conveyor • Oversize Conveyor: Belt width: 800mm (32"); Working Angle: 22°; Hydraulic Folding; Discharge Height: 5.1m (16' 9") • Midgrade Conveyor: Belt width: 800mm (32"); Working Angle: 22°; Hydraulic Folding; Discharge Height: 5.1m (16' 9") Specifications: • Net Engine Power: Stage IIIA Constant Speed: Caterpillar 4.4 130hp (Caterpillar 4.4 97kW) • Net Engine Power: Tier 3 / Stage IIIA: Caterpillar C4.4 111 hp (Caterpillar C4.4 83 kW) • Net Engine Power: Tier 4F / Stage V: Caterpillar C3.6 110 hp Dual certified (Caterpillar C3.6 82 kW Dual certified) • Weight: 76,500 lbs with options (34,700 kg with options) • Screen: 20' x 5' (6.1m x 1.53m) • No. Stockpilers: 3 • Output Potential: 551 US tph (500 tph)
