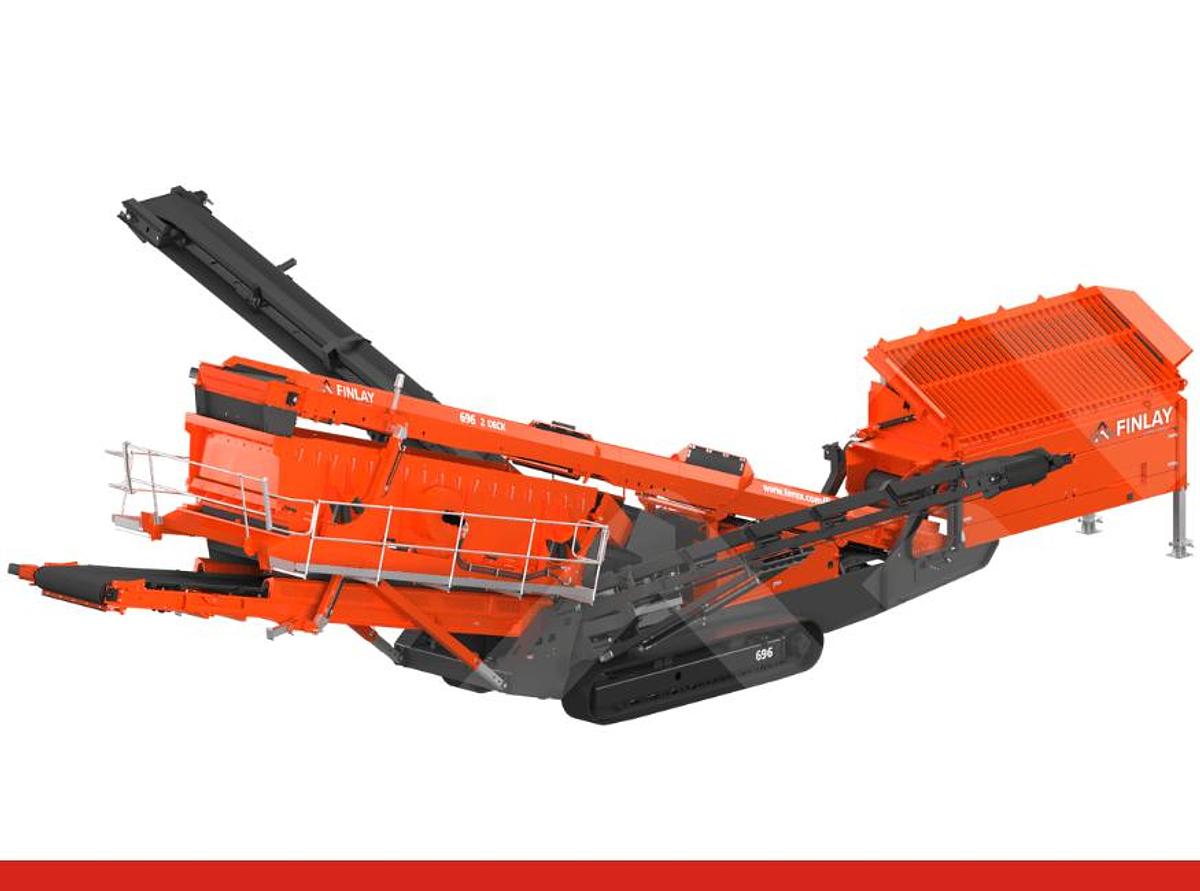

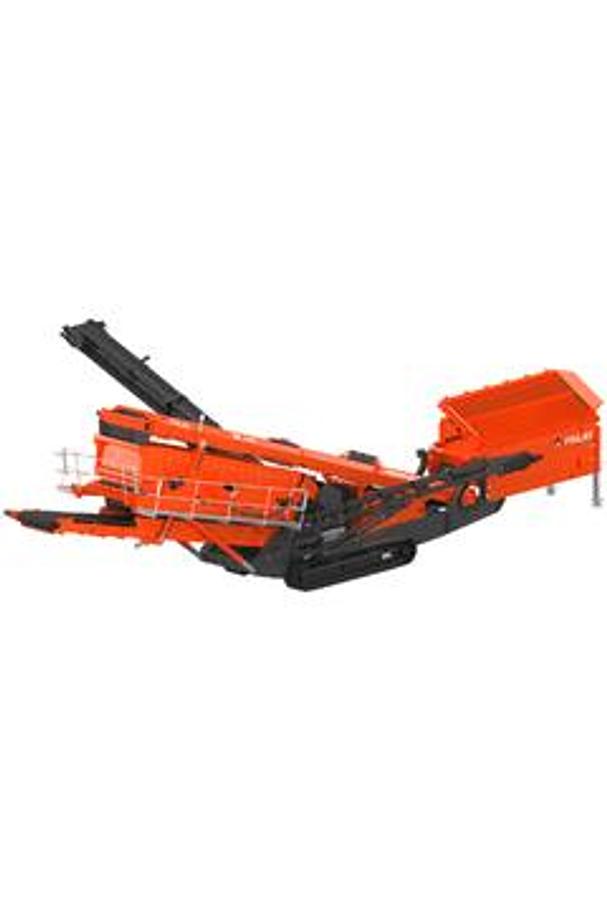

The Finlay 696 2 Deck Hybrid Inclined Screener has been developed to fulfil the demands of high production producers in quarrying, mining, sand and gravel, coal, wood chip and topsoil applications. The new high energy screenbox features two full size 6.1m x 1.7m (20' x 5' 7") to give a total screening area of 20.74m² (223ft²). The 8m³ (10.5yd³) hopper / feeder is fitted with variable speed belt feeder to ensure consistent flow of material and can be fitted with remote tipping grid or double deck vibrating grid. Operator benefits include a quick setup time (typically under 30 minutes) with hydraulically folding screenbox catwalks and product conveyors. The compact transport envelope enables the machine to be transported between job sites with ease. Hybrid powerpack is available as an option. The machine is fitted with a hybrid powerpack that is based upon an electric/hydraulic drive system that enables operators to connect the machine to a secondary electrical supply on site to provide even greater flexibility and energy efficiency ultimately resulting in significant fuel savings. Specifications: • Net Engine Power: Stage V: JCB 448 Dieselmax 108 hp to Not compatible with Hybrid Option (JCB 448 Dieselmax 80 kW to Not compatible with Hybrid Option) • Net Engine Power: Tier 4F / Stage V: Caterpillar C4.4 137 hp Dual Certified (Caterpillar C4.4 102 kW Dual Certified) • Net Engine Power: Stage IIIA Constant Speed: Caterpillar C4.4 (131hp) (Caterpillar C4.4 (98.1kW)) • Net Engine Power: Tier 3 / Stage IIIA: Caterpillar C4.4 121 hp (Caterpillar C4.4 90 kW) • Weight: 76,390 lbs with options (34,650 kg with options) • Screen: 20' x 5' 7" (6.1m x 1.7m) • Output Potential: 772 US tph (700 tph)
