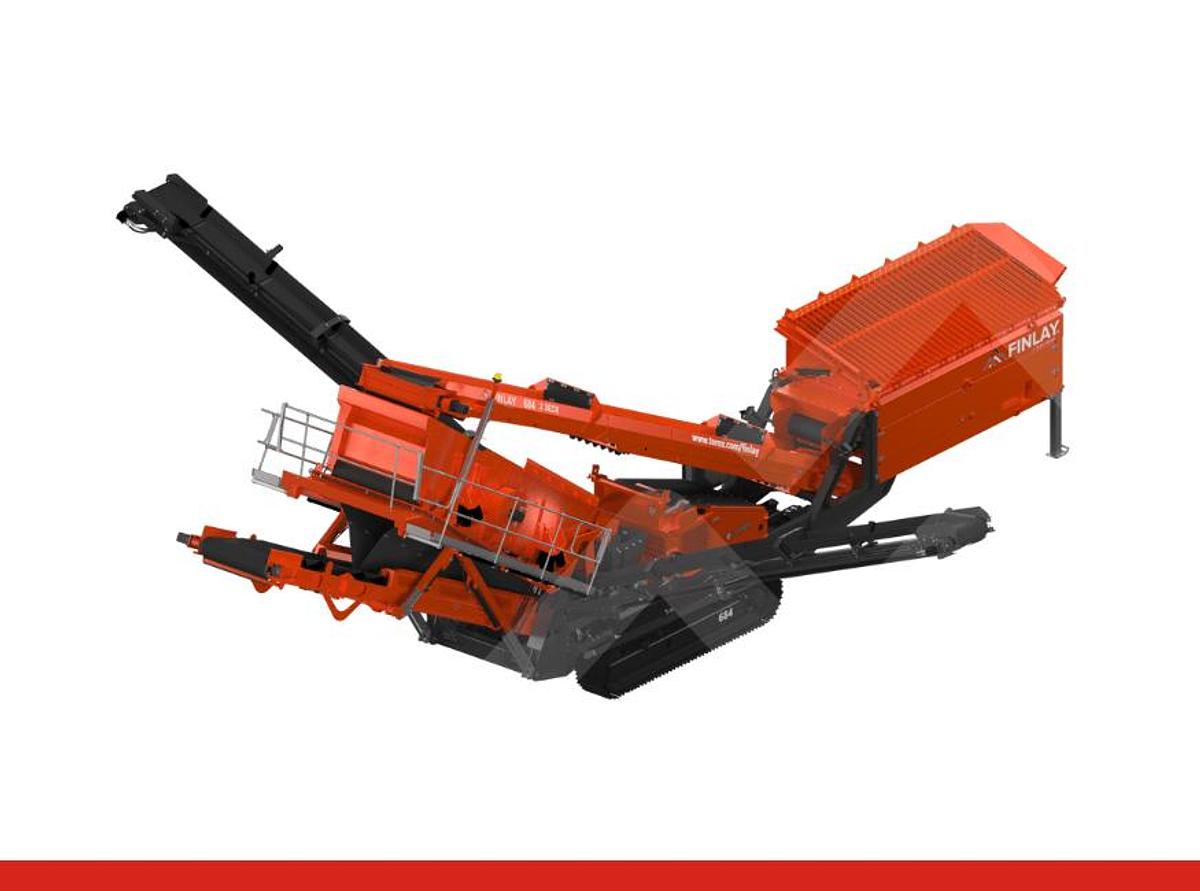

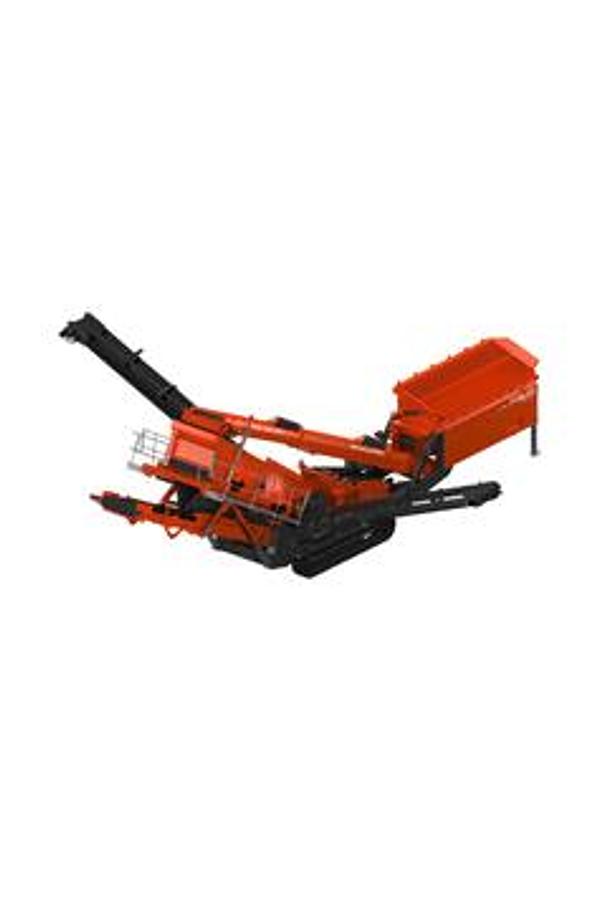

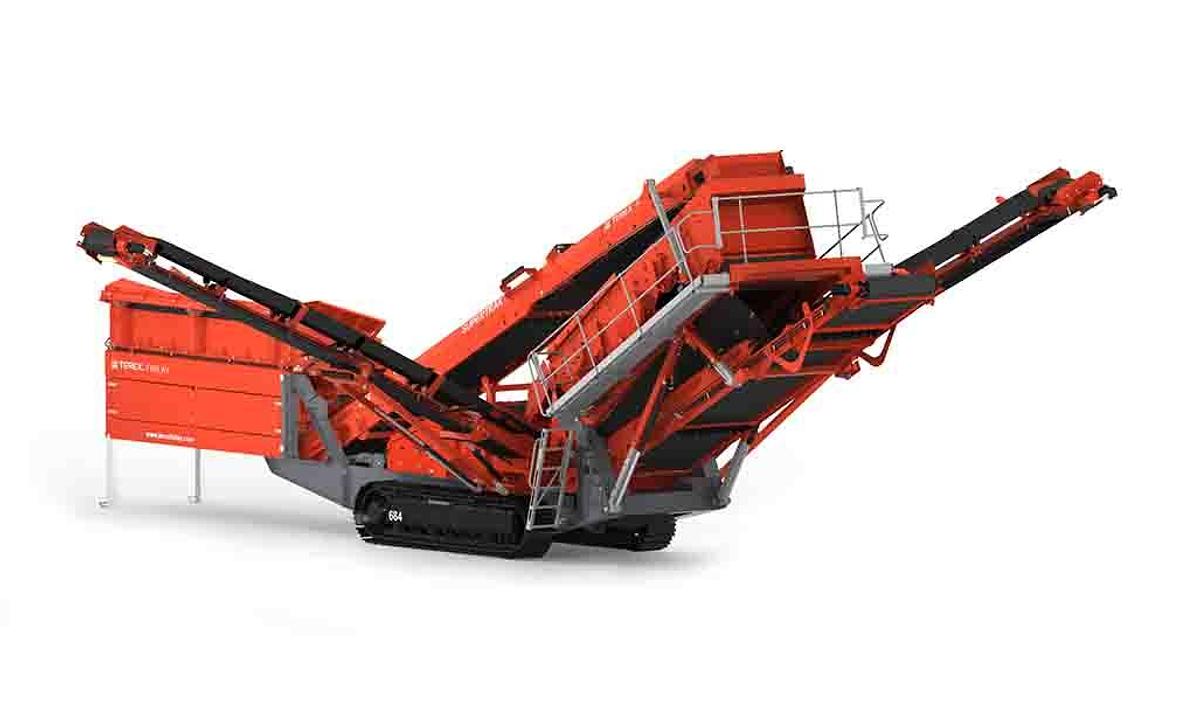

The Finlay 684 2 deck screener is a compact easily transportable machine that offers operators rapid set up and tear down times. The screenbox features two large 4.3m x 1.7m (14' x 5' 7") inclined screen decks giving a large screening area to provide efficient screening and high capacity. The screenbox features quick wedge tensioning on the top deck, access holes and bottom deck hydraulic tensioning system to reduce time required for mesh changes. All four discharge conveyors are adjustable and hydraulically fold for transport.The machine is fitted with a hybrid powerpack that is based upon an electric/hydraulic drive system that enables operators to connect the machine to a secondary electrical supply on site to provide even greater flexibility and energy efficiency ultimately resulting in significant fuel savings. Features: • Main Conveyor: Belt width: 1m (40"); Steel skirted full length of conveyor; 3 number Anti rollback Plates; Conveyor can be raised while • Fines Conveyor: Belt width: 1.2m (48"); Working Angle: Variable 25° (Max); Standard Discharge Height: 4.15m (13' 7"); Stockpile capacity: 106.3m³ (139yd³) @ 25° • HOPPER and FEEDER: Hopper Capacity: 8m³ (10.5yd³); Feed height: 3.45m (11' 4"); Feed in width: 4.77m (15' 8") (grid wing plates) • Oversize & Midgrade Conveyors: Belt width: 650mm (26"); Belt spec: Chevron 2 ply EP250; Hydraulic Folding; Discharge Height: 4.76m (15' 7"); Stockpile capacity: 194m³ (254yd³) • Oversize & Midgrade Conveyors: Belt width: 650mm (26"); Belt spec: Chevron 2 ply EP250; Hydraulic Folding; Discharge Height: 4.76m (15' 7"); Stockpile capacity: 194m³ (254yd³) • Screenbox: Both decks: 4.3m x 1.7m (14' x 5' 7"); Screen Angle: 18°, 37°, hydraulic adjust; Abrasion resistant material impact plate; Galvanised access catwalk at both sides and top end of screen; Total screening area: 14.6m² (156ft²) Specifications: • Net Engine Power: Stage IIIA Constant Speed: Caterpillar C4.4 (131hp) (Caterpillar C4.4 98.1kW) • Net Engine Power: Tier 4 Final / Stage V: Caterpillar C3.6 110 hp Dual certified (Caterpillar C3.6 82 kW Dual certified) • Net Engine Power: Tier 3 / Stage IIIA: Caterpillar C4.4 103 hp / Caterpillar C4.4 120 hp (Caterpillar C4.4 77 kW / Caterpillar C4.4 90 kW) • Screen: 14' x 5' 7" (4.3m x 1.7m) • No. Stockpilers: 3 • Weight: 63,380 lbs with options (28,750 kg with options) • Output Potential: 551 US tph (500 tph)
