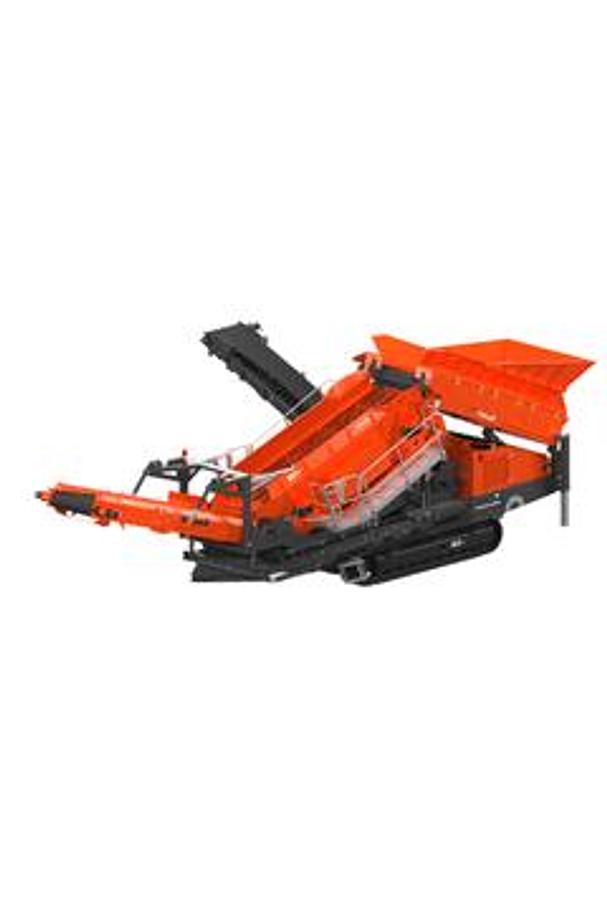

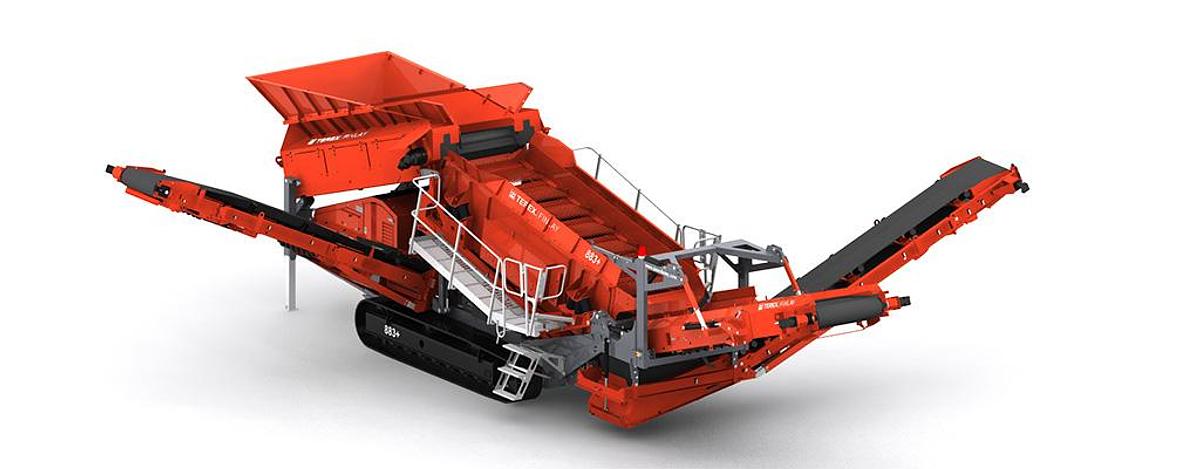

The industry leading Finlay 883+ Triple Shaft Hybrid Screener is now available with a triple shaft screenbox that is ideal for working in dry and sticky applications including quarry, mining, sand, gravel, construction and demolition debris and recycling applications.The heart of this new model is the new triple shaft screenbox, featuring two "true" full size 4.8 x 1.53m (16' x 5') screening decks.The triple shaft design of this new screenbox employs an oval motion stroke to generate an aggressive screening action, reducing plugging and blinding over the screen decks to ultimately provide a quality product with high tonnage output.The machine is fitted with a hybrid powerpack that is based upon an electric/hydraulic drive system that enables operators to connect the machine to a secondary electrical supply on site to provide even greater flexibility and energy efficiency ultimately resulting in significant fuel savings. Higher G force and larger stroke of the triple shaft screenbox provides the optimal solution for high productivity in dry and sticky applications. Features: • HOPPER and FEEDER: Capacity: 7m³ (9.16yd³); Feed height: 3.69m (12' 1"); Feed in width: 2.6m; Speed: variable, 0 to 25mpm (83ft/min) • Screenbox: Top Deck: 4.8m x 1.53m (16'x 5'); Bottom Deck: 4.8m x 1.53m (16'x 5'); Screenbox discharge end can be raised 500mm to facilitate mesh changing; Total screening area: 14.4m2 (155ft2) • Midgrade Conveyor: Belt Width: 800mm (32"); Working angle: 22° to 26°; Standard discharge height: 3.4m (11'2") max; Stockpile capacity: 58m3 (76yd3) max; Extended discharge height: 4.1m (13' 5"); Stockpile capacity: 102.5 (135yd3) max • Fines Conveyor: Belt Width: 900mm (36"); Working angle: 24° to 28°; Standard discharge height: 4m (13'1") max; Stockpile capacity: 95m3 (124yd3) max; Extended discharge height: 4.8m (15' 9"); Stockpile capacity: 165m3 (216yd3) • Oversize Conveyor: Belt Width: 1.2m (48"); Working angle: 18° to 24° hydraulic assist; Discharge height: 3.6m (11'10"); Stockpile capacity: 70m3 (91yd3) • Undercarriage: Shoe Width: 500mm (19.7"); Gradeability: 28°; Raking angle: 28°; Dual speed tracks as standard Specifications: • No. Stockpilers: 3 • Weight: 78,485 lbs (35,600 kg) • Screen: 16' x 5' (4.8m x 1.53m) • Net Engine Power: Tier 3 Equivalent: Caterpillar C4.4 130hp (Caterpillar C4.4 97kW) • Net Engine Power: Tier 4F / Stage V: DEUTZ TCD 3.6L4 123 hp Dual Certified (DEUTZ TCD 3.6L4 92 kW Dual Certified) • Net Engine Power: Tier 3 / LRC: CAT C4.4 130 hp (CAT C4.4 97 kW) • Output Potential: 661 US tph (600 tph)
