2026

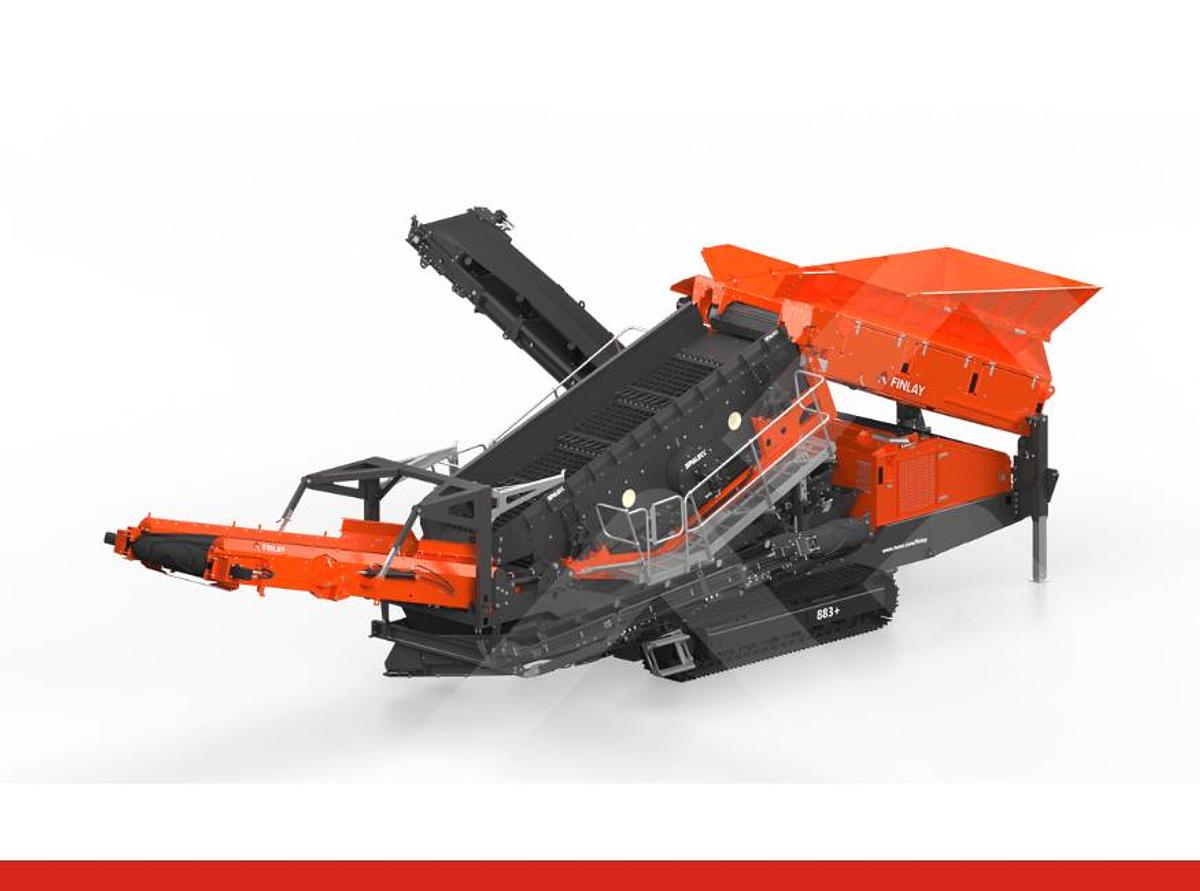

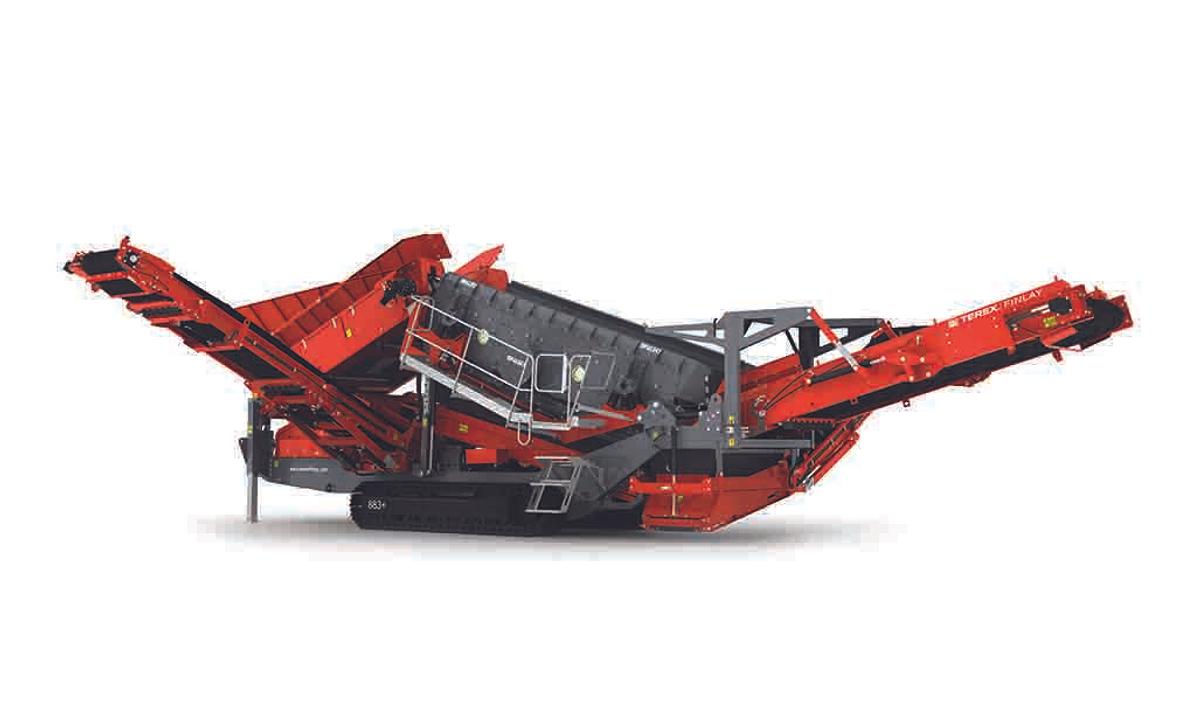

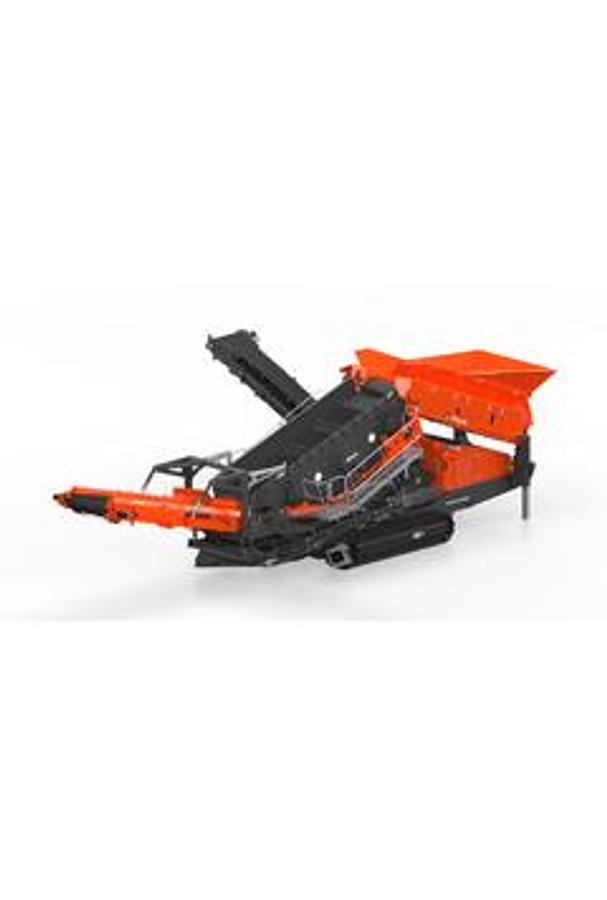

The Finlay 883+ Spaleck Screener is the ultimate in mobile scalping screening and separation technology. At the heart of the screen is the 2 deck German designed and constructed high performance recycling waste screen with Flip Flow Screen Elastica. The unique stepped top deck design combined with state of the art flip flow technology on the bottom deck catapults the 883+ Spaleck Screener into a class of its own. Its processing capabilities and application flexibility make the machine the only all in one mobile solution for the processing and separation of recycling materials such as incineration slag, shredder light and heavy fraction, scrap metal, electronic scrap, C&D, C&I, bulky waste, compost, plastic fractions, biomass, topsoil etc.The machine is fitted with a hybrid powerpack that is based upon an electric/hydraulic drive system that enables operators to connect the machine to a secondary electrical supply on site to provide even greater flexibility and energy efficiency ultimately resulting in significant fuel savings. Features: • HOPPER and FEEDER: Hopper Capacity: 7m³ (9.16yd³); Feed height: 3.69m (12' 1"); Feed in width: 2.6m (8' 7"); Drive: Hydraulic variable speed; Abrasion Resistant steel pan apron feeder mounted with wide mouth opening • Screenbox: Top deck: 4.8m x 1.53m (16' x 5'); Bottom deck: 4.8m x 1.53m (16' x 5'); 3D punch plate top deck; Flip, Flow technology bottom deck; Screenbox can hydraulically adjust to an angle between 13°, 19° • Midgrade Conveyor: Belt width: 800mm (32"); Working Angle: 22°, 26°; Speed: variable speed 120 m/min (394 ft/min) max belt speed; Standard Discharge Height: 3.4m (11' 2") max; Stockpile capacity: 58m3 (76yd3) max; Optional telescopic section; Extended Discharge Height: 4.1m (13' 5"); Stockpile capacity: 102.5m3 (134.1yd3) • Oversize Conveyor: Belt width: 1.2m (48"); Working Angle: 18°, 24°, hydraulic adjust; Speed: Variable speed, 50 m/min max belt speed; Discharge Height: 3.6m (11' 10"); Stockpile capacity: 70m3 (91yd3) max • Fines Conveyor: Belt width: 900mm (36"); Working Angle: 24°, 28°; Standard Discharge Height: 4m (13' 1") max; Stockpile capacity: 95m3 (124yd3) max; Optional telescopic section; Extended Discharge Height: 4.8m (15' 9"); Stockpile capacity: 164.48m3 (215.14yd3) • Undercarriage: Shoe Width: 400mm (16"); Sprocket Centres: 3.28m (10' 9"); Speed: 0.8kph; Gradeability: 24.8°; Raking Angle: 12° min Specifications: • Screen: 16' x 5' (4.8m x 1.53m) • No. Stockpilers: 3 • Weight: 73,414 lbs (33,300 kg) • Net Engine Power: Tier 3 Equivalent: Caterpillar C4.4 130hp (Caterpillar C4.4 97kW) • Net Engine Power: Tier 3 / LRC: CAT C4.4 130 hp (CAT C4.4 97kW) • Net Engine Power: Tier 3: CAT C4.4 111.3 hp (CAT C4.4 83 kW) • Net Engine Power: Tier 4F / Stage V: DEUTZ TCD 3.6L4 123 hp Dual Certified (DEUTZ TCD 3.6L4 92 kW Dual Certified) • Output Potential: 661 US tph (600 tph)
