Overview

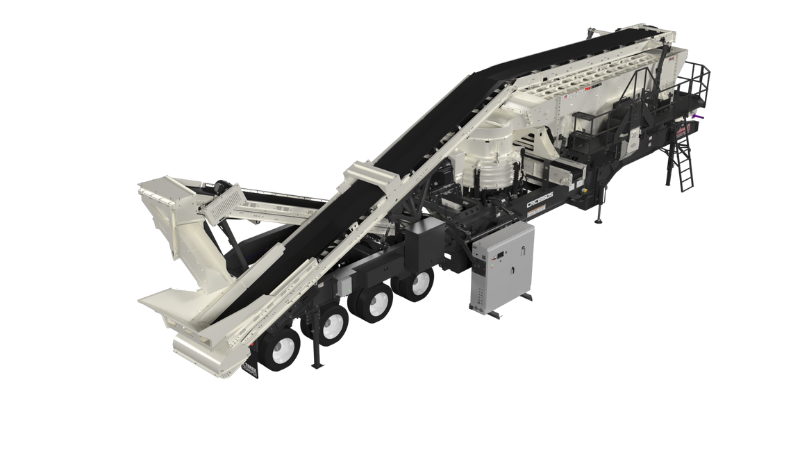

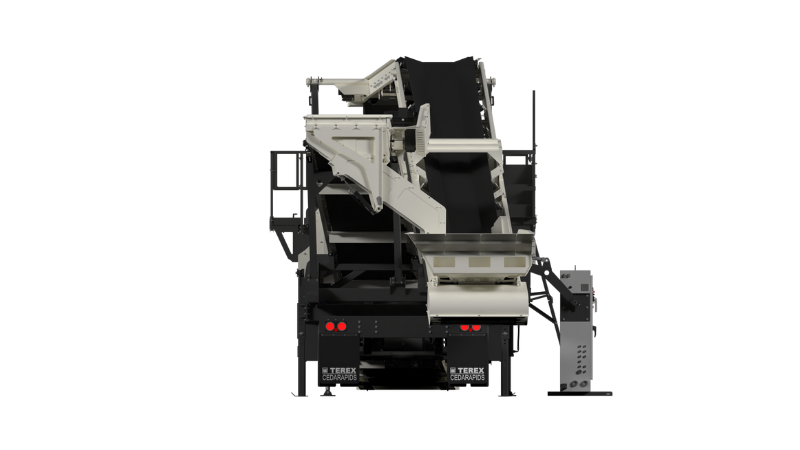

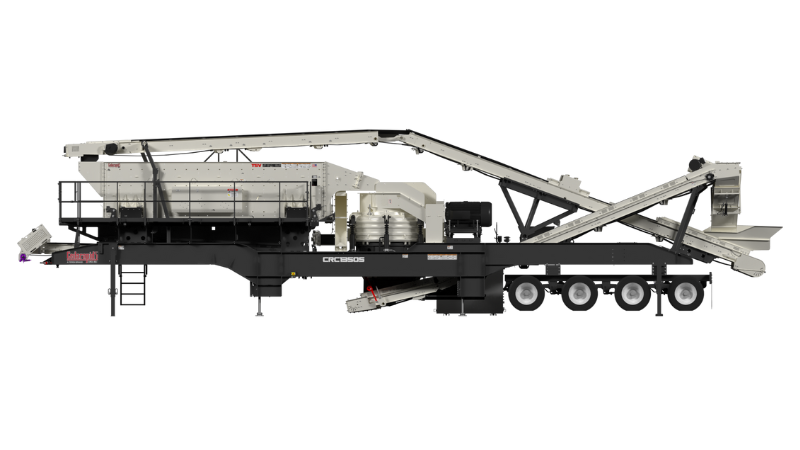

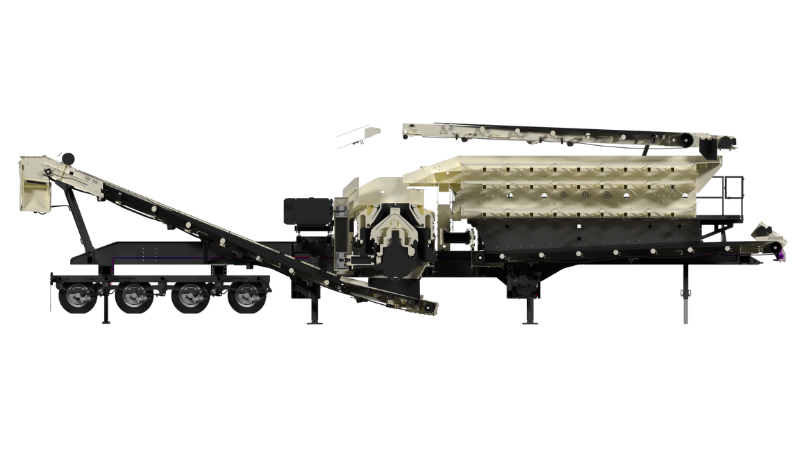

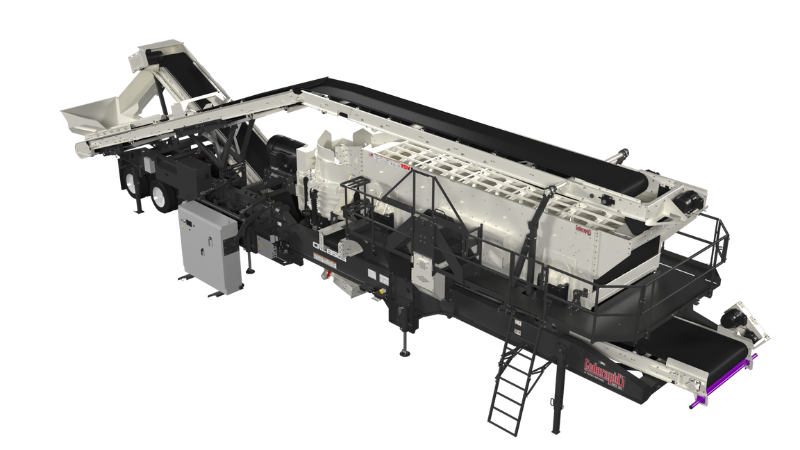

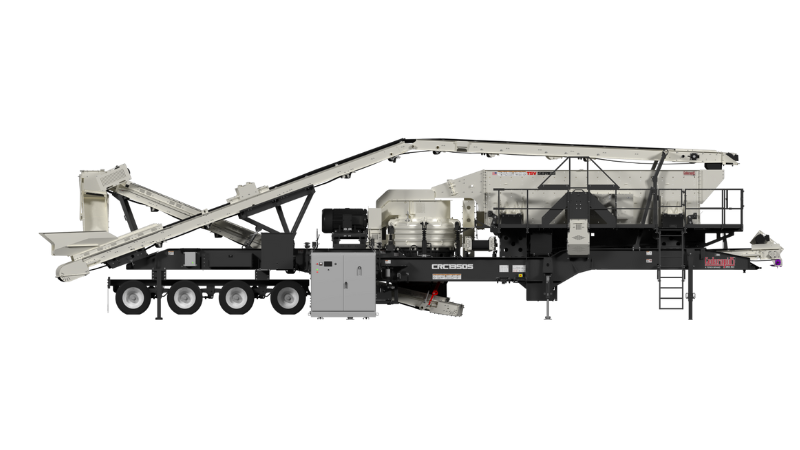

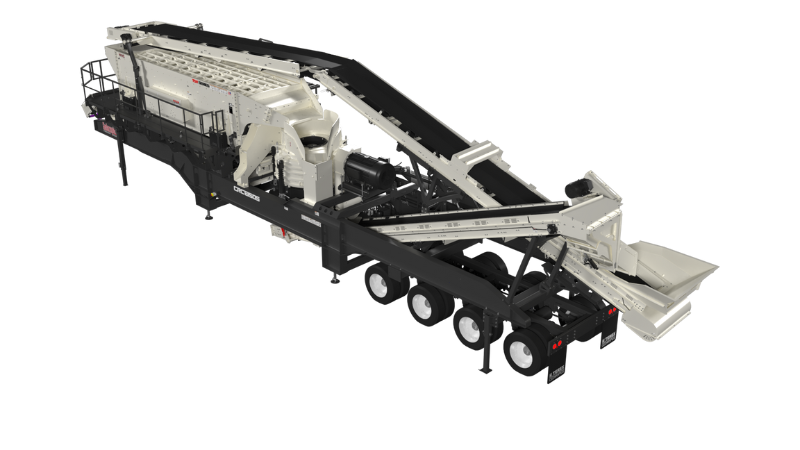

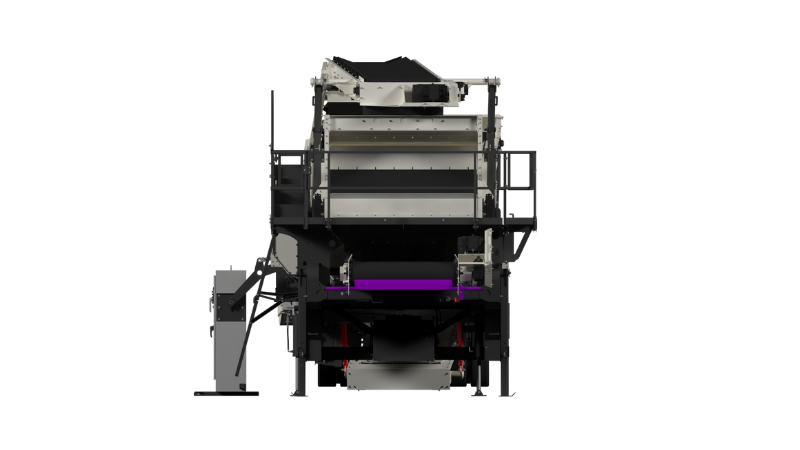

CRC1350S Portable Cone Crusher and Screen Plant
The Cedarapids CRC1350S is the largest Portable Closed Circuit Cone Crusher and Screen Plant on the market. It delivers high production, lower cost per ton, and superior portability. At just 14 feet wide, it remains easily transportable while offering unmatched efficiency in demanding applications. At its core, the Cedarapids TC1300X Cone Crusher features high efficiency roller bearings and advanced design enhancements for superior crushing performance. Powered by a 400 hp (300 kW) motor, this crusher is paired with a TSV 7’ x 3 deck Horizontal Screen, ensuring precision screening and maximum throughput. Featuring an oversized cone feed hopper with an overflow chute promotes smooth material flow, while the straight line under crusher conveyor and hydraulically powered transfer chute optimize efficiency. Integrated service platforms offer easy access for maintenance, and the built in metal detector provides enhanced protection. Available in quad or 3+1 axle configurations, the CRC1350S is permitted in all states, making it the ultimate solution for high capacity portable crushing and screening.
Product Features
What Comes on the CRC1350S
- Optional Switchgear Panel with Lift System
- TC1300X Cone Crusher 400hp
- 42" 20 hp Feed Conveyor
- TSV7203P Screen
- Open or Closed Circuit Hydraulic Operated Transfer Chute
- Quad or Three Plus One Axle Configurations
- 24" 5 hp Cross Conveyor
- 50 hp Flex Shaft Screen Drive
- 60" 10 hp Fines Conveyor
- Metal Detector
- 42" 15 hp Under Crusher Conveyor
Videos
See the CRC1350S in Action
Technical Documentation
CRC1350S Specifications
- Measurements
- Capacity
- 325 to 375 tph295 to 340 mtph
- Axles
- 44
- Weight
- 133,351 lbs60,487 kg
- Transport Dimensions
- 68' 9" x 12' 0" x 14' 0"20,955 x 3,657 x 4,267 mm
- Working Dimensions
- 69' 4" x 14' 11" x 17' 2"21,133 x 4,546 x 5,232 mm
Interested in the CRC1350S
Talk to the Excel Machinery team about pricing, availability, setup and support for the Cedarapids CRC1350S.
