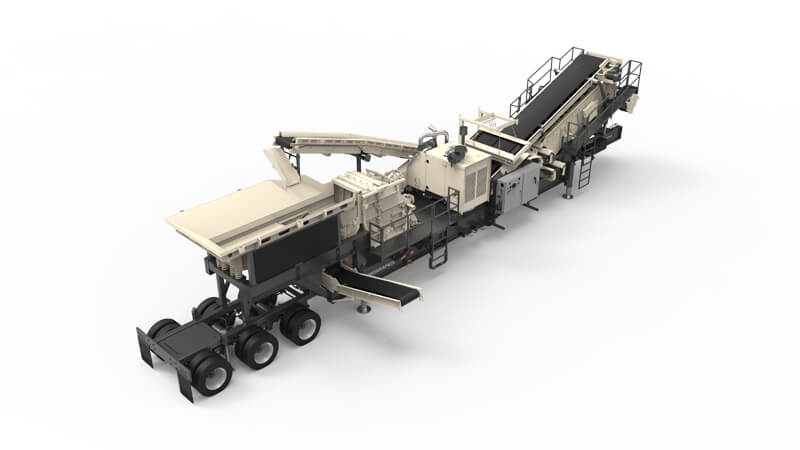

CRH1111R Portable HSI Closed Circuit Plant
The Cedarapids CRH1111R Portable Closed Circuit Plant is a highly productive plant designed for maximum efficiency and performance. Equipped with the Cedarapids TI4143 Impact Crusher and 5’ x 16’ two deck Inclined Screen, this plant delivers superior crushing and screening capabilities in a single, compact unit. The CRH1111R ensures reliable power driven by a 350 hp Scania diesel engine with a hydraulic clutch, while all other components operate electrically via a 150 kW generator. The hood scoop filter option enhances engine protection for extended durability in demanding environments. The CRH1111R is built for high output, featuring a large screen, wide conveyors, and electric driven components that reduce maintenance needs while optimizing efficiency. The 42.5” x 14’3” vibrating grizzly feeder with hopper capacity provides excellent material flow, ensuring smooth operation even in heavy duty applications. The CRH1111R delivers portability, power, and performance for operators looking for a versatile and cost effective solution in aggregate processing.
Product Features
What Comes on the CRH1111R
- Standard 42.5” x 14’3” VGF with 11.2 yd3 hopper capacity. Optional 42.5” x 20’ long VGF provides large hopper for large loaders
- Return 1 or 2 decks to crusher for maximum screening capacity
- Large capacity 5’x16’ two deck incline screen
- TI4143 horizontal shaft impactor
- Low maintenance electric components and easy maintenance access
- 350 hp engine + 150 kW generator with hood scoop filter option
- One piece tow provides a portable crushing and screening solution
Videos
See the CRH1111R in Action
Technical Documentation
CRH1111R Specifications
- Measurements
- Capacity
- 200 tph150 mtph
- Axles
- 33
- Weight
- 94,006 lbs42,460 kg
- Transport Dimensions
- 69' x 11' 10" x 13' 5"21,031 x 3,607 x 4,089 mm
- Working Dimensions
- 68' 10" x 18' 11" x 16' 6"20,980 x 5,766 x 5,029 mm
