Overview

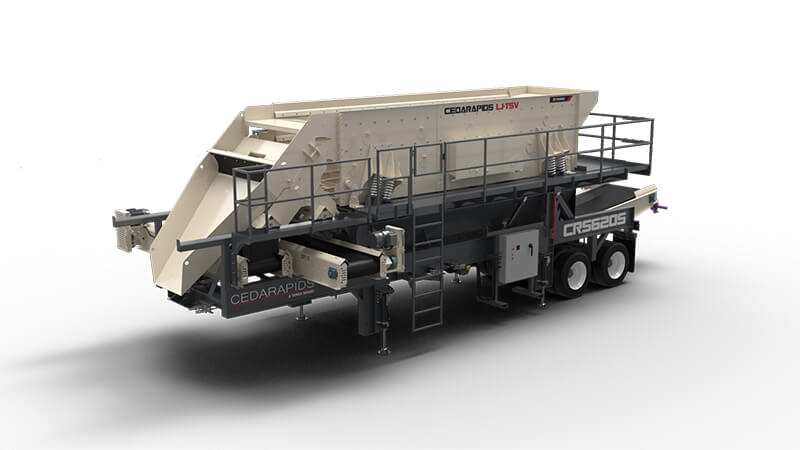

CRS620S Portable Screen Plant

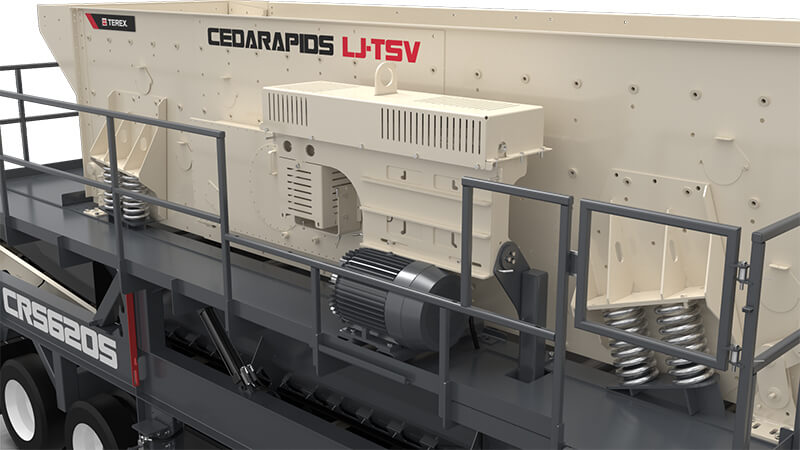

The Cedarapids CRS620S Portable Inclined Screen Plant featuring the TSV Series Triple Shaft Horizontal Screen is designed to increase production and handle applications not possible with traditional horizontal screens. The advanced technology combines the legendary high G force oval stroke motion with adjustable slope operation. Unlike traditional horizontal screens, it can handle larger deck loads and accommodate screen openings up to 6 inches, making it ideal for high capacity material processing. The hydraulic system allows quick screen slope adjustments in 2.5° increments up to 7.5°, optimizing performance for various applications. The combination of the TSV6203 "slant spring" triple shaft oval stroke screen and the 40hp flex shaft screen drive ensures reliable operation with minimal maintenance. Operators benefit from extra wide walkways on both sides and the feed end of the screen, providing easy and safe access for maintenance. Built with a rugged, heavy duty conveyor system, the CRS620S is engineered to handle demanding material loads effortlessly.
Product Features
What Comes on the CRS620S
- 6’ x 20’ TSV6203 Screen.
- Tool less ratchet support allows operation at 0, 2.5, 5.0, and 7.5° slope.
- Standard extended fines conveyor. Optional hinged fines conveyor folds for export.
- Hydraulic lift on screen support changes slope quickly without tools.
- 30” 7.5 hp reversing cross conveyors.
- Optional extended walkways along chutes for easier screen cloth changes.
- Roll away blending chute (hydraulic optional).
- Patented slant spring suspension stabilizes screen at any operational slope.

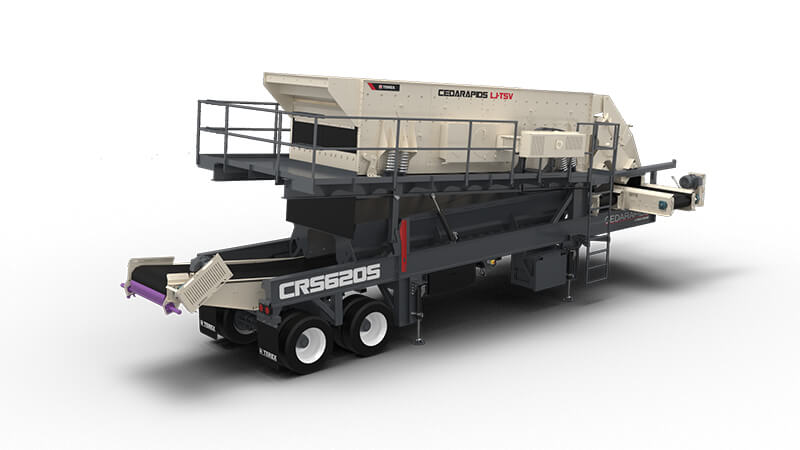

- Shown at 5 degree slope with optional hydraulic jacks, switchgear panel, and extended walkways.
Videos
See the CRS620S in Action
Technical Documentation
CRS620S Specifications
- Measurements
- Axles
- 22
- Weight
- 53,000 lbs24,045 kg
- Transport Dimensions
- 36' 10" x 11' 11" x 13' 11"11,215 x 3,632 x 4,251 mm
- Working Dimensions
- 41' 2" x 15' 2" x 16' 8"12,555 x 4,623 x 5,077 mm
