Overview
MC1150 Modular Cone Crusher
Capacity280 to 327 tph
Motor Size300 hp
Weight52,510 lbs
The Cedarapids® MC1150 Modular Cone Crusher is designed around our proven, high performance TC1150 Cone Crusher, featured on an easy to assemble, galvanized modular frame. It includes a 45" (1150mm) cone head diameter, a one piece upper frame, and a no hit concave design for improved durability and performance. The new mantle liner retention system, greater tramp clearance, and increased clamp hold down pressure enhance reliability and crushing efficiency. Options include an anti spin device and upgraded platform offering wider walkways plus easier maintenance access.
Product Features
What Comes on the MC1150
- Optional overflow chute

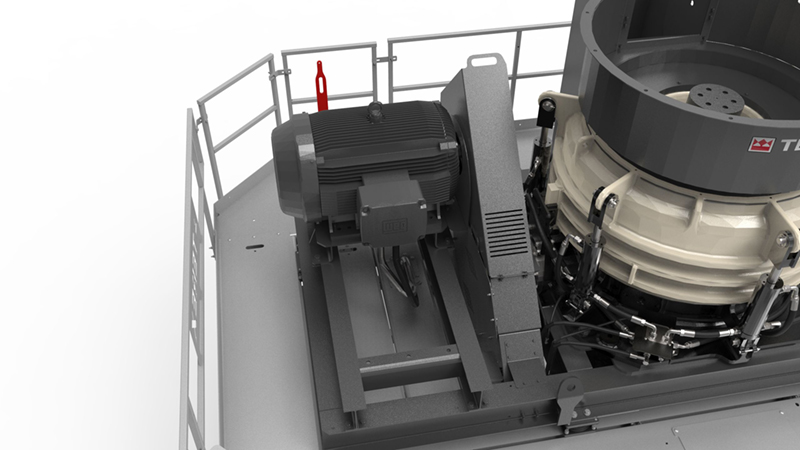

- WEG IE3 high efficiency motor 300 hp
- Bolts together on site, quick setup time with basic tools
- 4 plant E stops

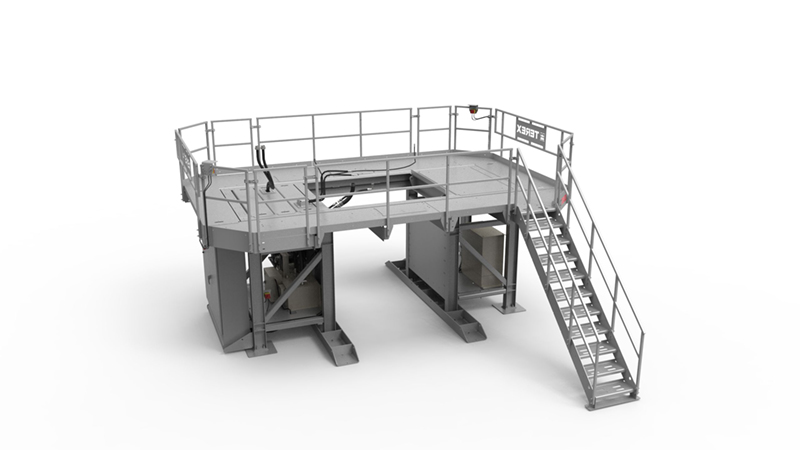

- Galvanized steel structure including oversize walkways, stairs and guard rails
- Repositionable stairs to 4 different locations
- Skid mounting feet are standard, a full length skid base is available
- Entire module easily transports in 1 x 40 and 1 x 20 foot container

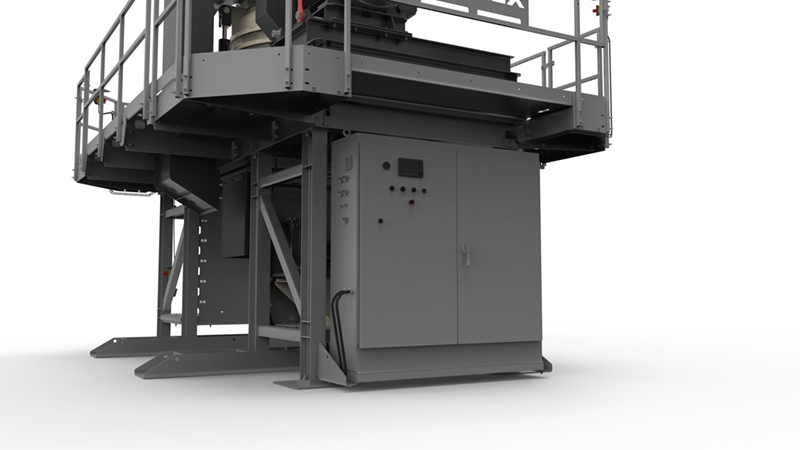

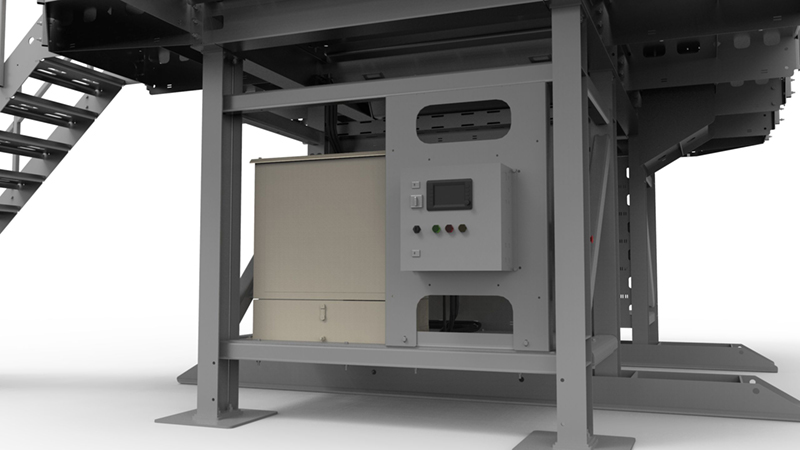

- ACE 6 standard crusher control panel
- CE compliant structure and components
- Standard live frame

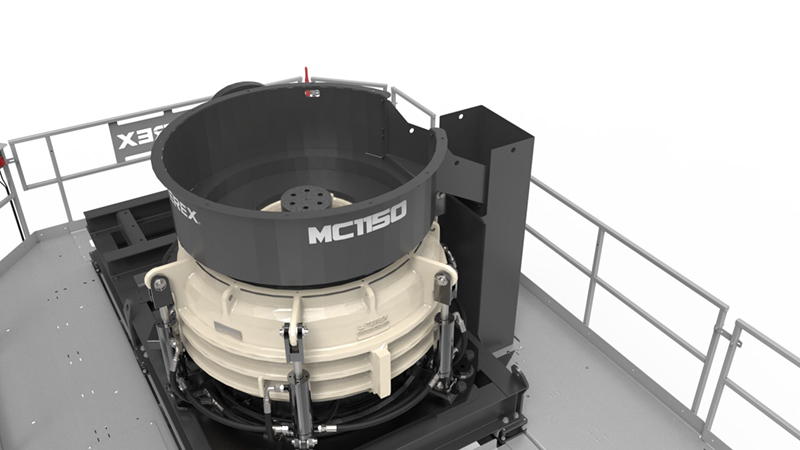

- TC1150 cone, featuring one piece upper frame for all liner configurations
Videos
See the MC1150 in Action
Technical Documentation
MC1150 Specifications
- Measurements
- Capacity
- 280 to 327 tph308 to 360 mtph
- Motor Size
- 300 hp225 kW
- Weight
- 52,510 lbs23,654 kg
- Working Dimensions
- 21' 11" x 23' 1" x 14' 10"6,688 x 7,044 x 4,527 mm
