Overview
MHS6203 Modular Horizontal Screen

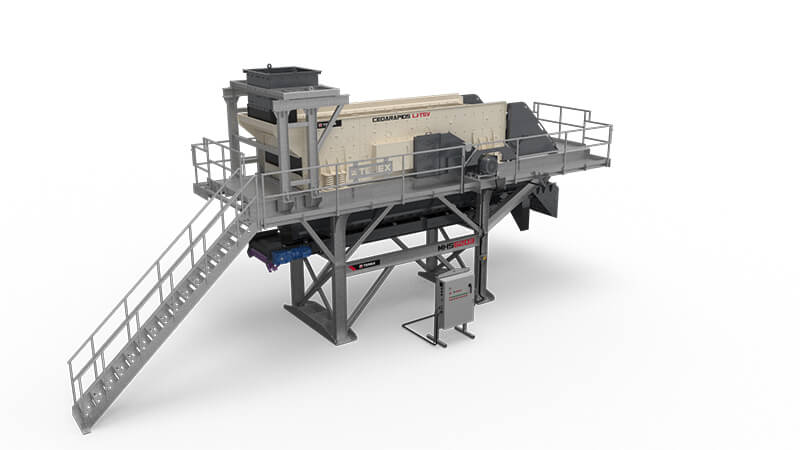

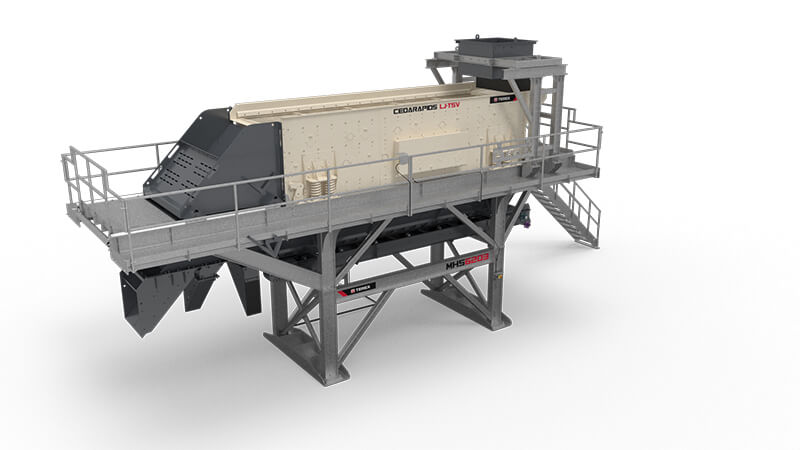

The Cedarapids MHS6203 Modular Triple Shaft Horizontal Screen is a high performance screening solution featuring the industry renowned 6' x 20', 3 Deck TSV Screen with oval stroke action. This advanced screening technology delivers superior efficiency and performance in a wide range of applications. Cedarapids modular structures are designed for fast assembly, with all components bolting together on site and requiring minimal wiring. The sturdy, easy to use galvanized modular frame ensures durability and longevity while simplifying maintenance. This triple shaft horizontal screen module ships efficiently in two 40' shipping containers plus the screen, reducing transportation costs and complexity. The MHS6203 Modular Horizontal Screen is an excellent choice for operators seeking a reliable, efficient, and easily transportable screening solution. Its smart design and robust construction make it ideal for a variety of applications, delivering high performance with minimal setup time.
Product Features
What Comes on the MHS6203
- Galvanized steel structure including walkways, stairs and guard rails
- Feed box and support structure for dry screening: rock box style material feed box allows for the conveyor to feed from either side or over the back of the screen
- Roll away blending chute
- 6' x 20' horizontal screen
- Minimal on site wiring
- E stops located for easy access on both upper deck and ground

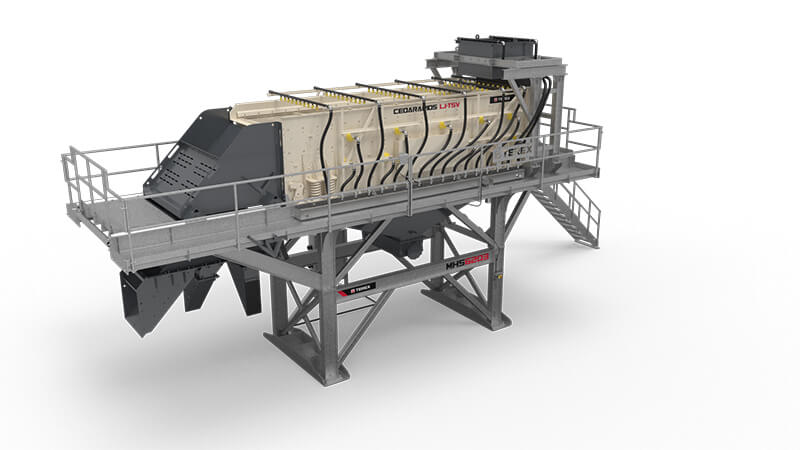

- Optional: Wash plant feed box with two spray bars and support structure, screen spray system with manifold and under screen flume
Videos
See the MHS6203 in Action
Technical Documentation
MHS6203 Specifications
- Measurements
- Number of Decks
- 33
- Motor Size
- 40 hp30 kW
- Weight
- 48,469 lbs21,984 kg
- Working Dimensions
- 48' 7" x 15' 9" x 18' 4"14,802 x 4,800 x 5,584 mm
